Dahua CAT6 OFC Cable - PFM920-6UN - 305m 0.53mm Black Outdoor

• 305 m /carton Outdoor U/UTP CAT6, power over Ethernet, compatible with one cable
• High-purity oxygen-free copper conductor material
• Customized PE outer sheath,certain degree of waterproof Environmentally friendly and all materials used are RoHS compliant
• 10-year warranty

Conductor

• Material : Oxygen free copper (99.97% purity)
• Diameter : 0.53 mm ± 0.02 mm (0.02" ± 0.0008")
• Wire Gauge : 24 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.21 mm (0.0083")
• Diameter : 0.95 mm ± 0.06 mm (0.04" ± 0.0024")
• Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 3 × 150D

Separator

• Material : PE
• Specification : Translucent 4.3 × 0.35 mm

Inner Sheath

• Material : PVC
• Min. Average Thickness : 0.45 mm (0.02")
• Diameter : 5.6 mm ± 0.4 mm (0.22" ± 0.02")
• Color : White

Sheath

• Material : MDPE
• Min. Average Thickness : 0.5 mm (0.02")
• Diameter : 6.8 mm ± 0.4 mm (0.27" ± 0.02")
• Color : Black

Electrical

• Max. DC Resistance of a Single Conductor : 9.5 Ω / 100 m (328.08 ft)
• Min. Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near-end Crosstalk : ≥39.30 dB / 100 m @ 250 MHz
• Max. Attenuation : 34.8 dB / 100 m @ 250 MHz
• Return Loss : ≥17.3 dB / 100 m @ 250 MHz

Mechanical

• Tensile Strength : Sheath ≥13.5 MPa, insulation ≥16 MPa
• Elongation at Break : Sheath ≥150%, insulation ≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥10%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operation Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (32 °F to 122 °F)
• Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

• Vertical Flame Test : Comply with IEC 60332-1-2

Packaging

• Cable Length : 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)

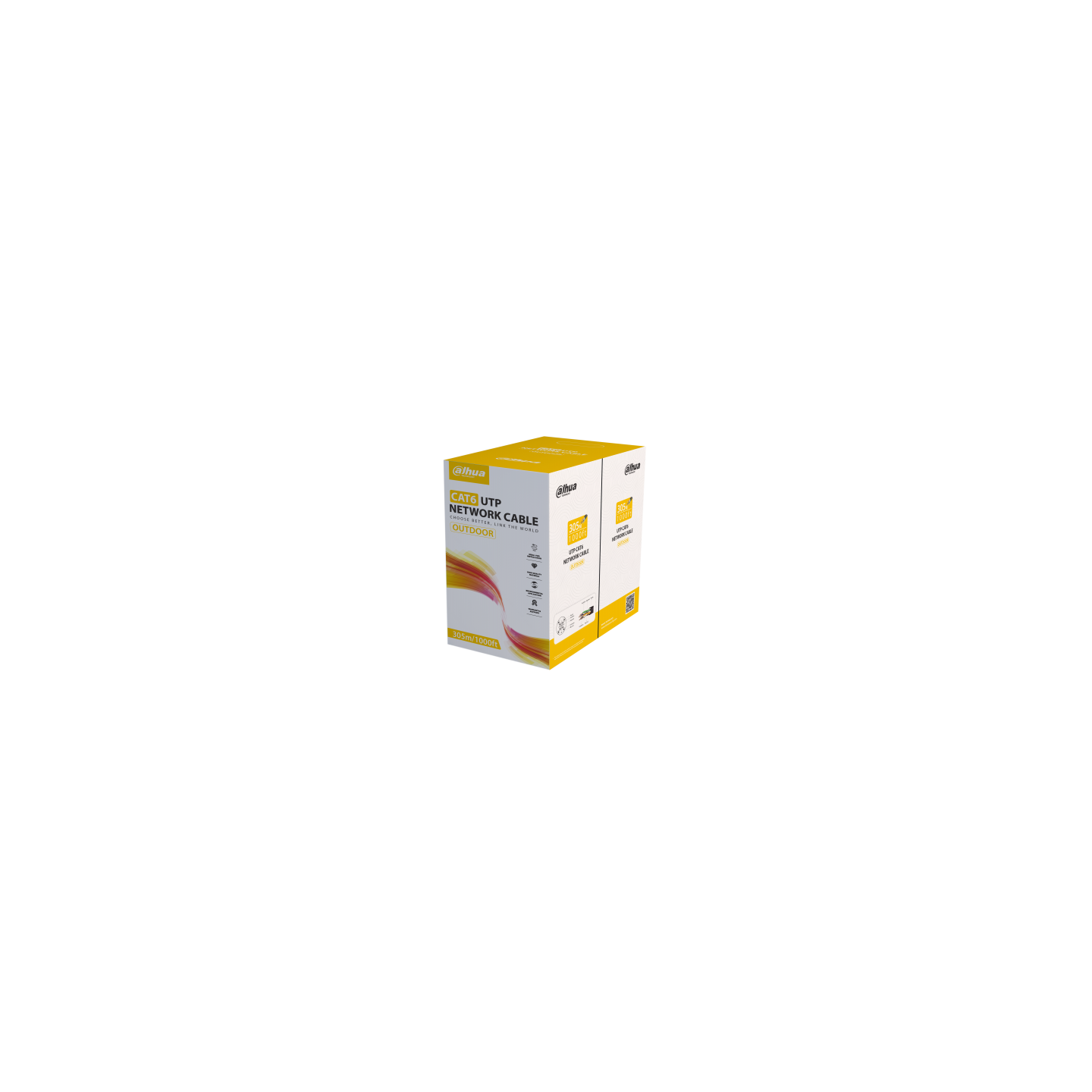

• Packaging Method : 305 m (1,000 ft) a carton, one carton with 2 inner cartons
• Packaging Dimensions : 433 mm × 433 mm × 230 mm (17.05" × 17.05" × 9.06") (L × W × H)
• Transport Package Dimensions : 495 mm × 457 mm × 466 mm (19.49" × 17.99" × 18.35") (L × W × H)
• Net Weight : 13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb)
• Gross Weight : 14.5 kg ± 0.6 kg (31.97 lb ± 1.32 lb)

Compliance

• Executive Standards : Q/DXJ 067-2024
