EcoFlow PowerOcean Hybrid Inverter - 10KW 3Phase
Hybrid 10 kW, 3-phase inverter with expandable battery from 5 kWh to 45 kWh total and 14 kW solar input; flexible net-zero home solution.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Output Power (W) | greater than3000 W |
|---|---|
| UPS & Power Backup - External Battery Pack Support | Yes |
Flexible investment
- The easiest step to juice up your home with sunshine
- Start building your net-zero home from only one battery of 5kWh, expandable up to 45kWh at all times
Safety
- We take reliability seriously, for every single battery
- Fireproof, weatherproof for 6000 whole life cycles, with robust LFP battery chemistry. With the BMS module integrated into every pack, the malfunction of one battery doesn't even hinder the rest

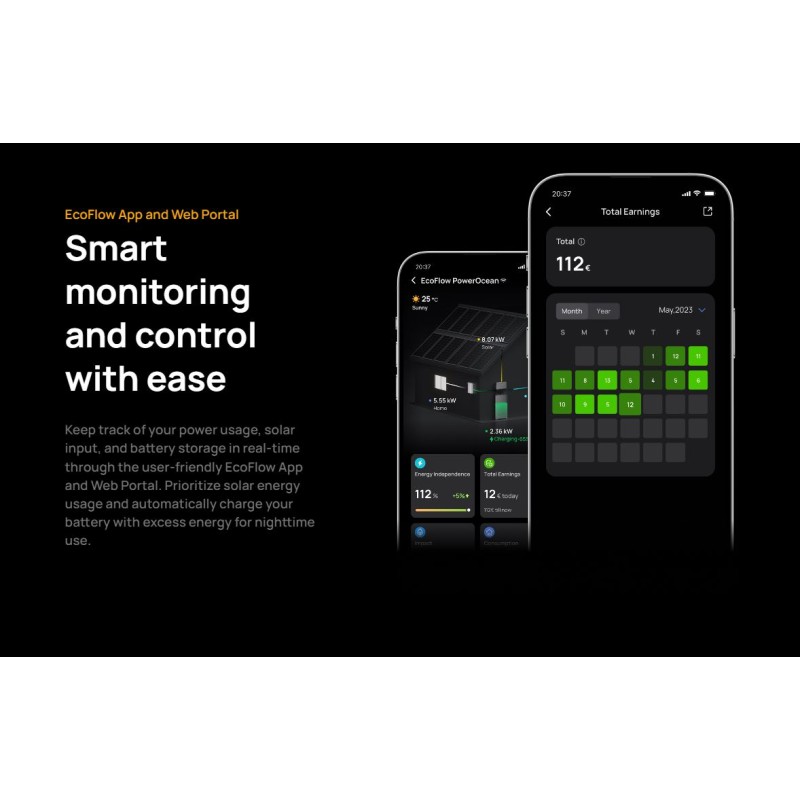

EcoFlow App and Web Portal
- Smart monitoring and control with ease
- Keep track of your power usage, solar input, and battery storage in real-time through the user-friendly EcoFlow App and Web Portal. Prioritize solar energy usage and automatically charge your battery with excess energy for nighttime use
Input (PV)
- Number of MPPTs : 2
- Maximum short circuit current : 24A
- Maximum PV power : 14kW
- Maximum input voltage : 1000V DC
- Operating voltage range : 180~1000V DC
- Rated input voltage : 600V
- Start voltage : 180V
- Maximum input current per MPPT : 16A
Input (Battery)
- Maximum battery capacity : 45KWh
- Rated current : 12.5A
- Rated voltage : 800V
- Maximum discharging power : 10kW
- Maximum charging power : 10kW
Output (On-grid)
- Grid connection : 3W/N+PE
- Power Factor : 0.8 leading - 0.8 lagging
- Matchable grid frequency value : 50/60Hz
- Norminal output current : 14.4A (3 pahse)
- Rated output voltage : 220Va.c./380Va.c., 230Va.c./400Va.c., 3W/N+PE
- Maximum apparent power : 10kVA
- Rated output power : 10kW
Output (Backup load)
- Rated output power : 10kW
- Rated output voltage : 220Va.c./380Va.c., 230Va.c./400Va.c., 3W/N+PE
- Maximum output current 17.3A
- Nominal Output Current : 14.4A
- THD : ≤3%
Compliance
- Safety standard : IEC/EN62109-1, IEC/EN62109-2
- Grid-tied standards : VDE-AR-N 4105, TOR Erzeuger Type A, EN 50549-1, EEA-NE7 - CH
- Protective class : I
General
- Operating temperature range : -20°C~50°C
- Operating humidity : 0~100% RH
- Maximum operating altitude : 3000m
- Weight : 29.5kg
- Dimensions : 588*380*175mm
- IP level : IP65
- Self-consumption at night : <20W
- Cooling method : Natural convection
- Communication method : RS485 & CAN & Wi-Fi & WAN & 4G
| Power Rating | 10KW |
| Battery Type | Lithium Ferro Phosphate (LifePO4 or LFP) |
| Phase | 3 |
| Battery Capacity | 45KWh max |
| Solar Panel input | 14000W |
| Number of MPPT | 2 |
| Operating Modes | Hybrid/Off-grid |
| IP Rating | 65 |
