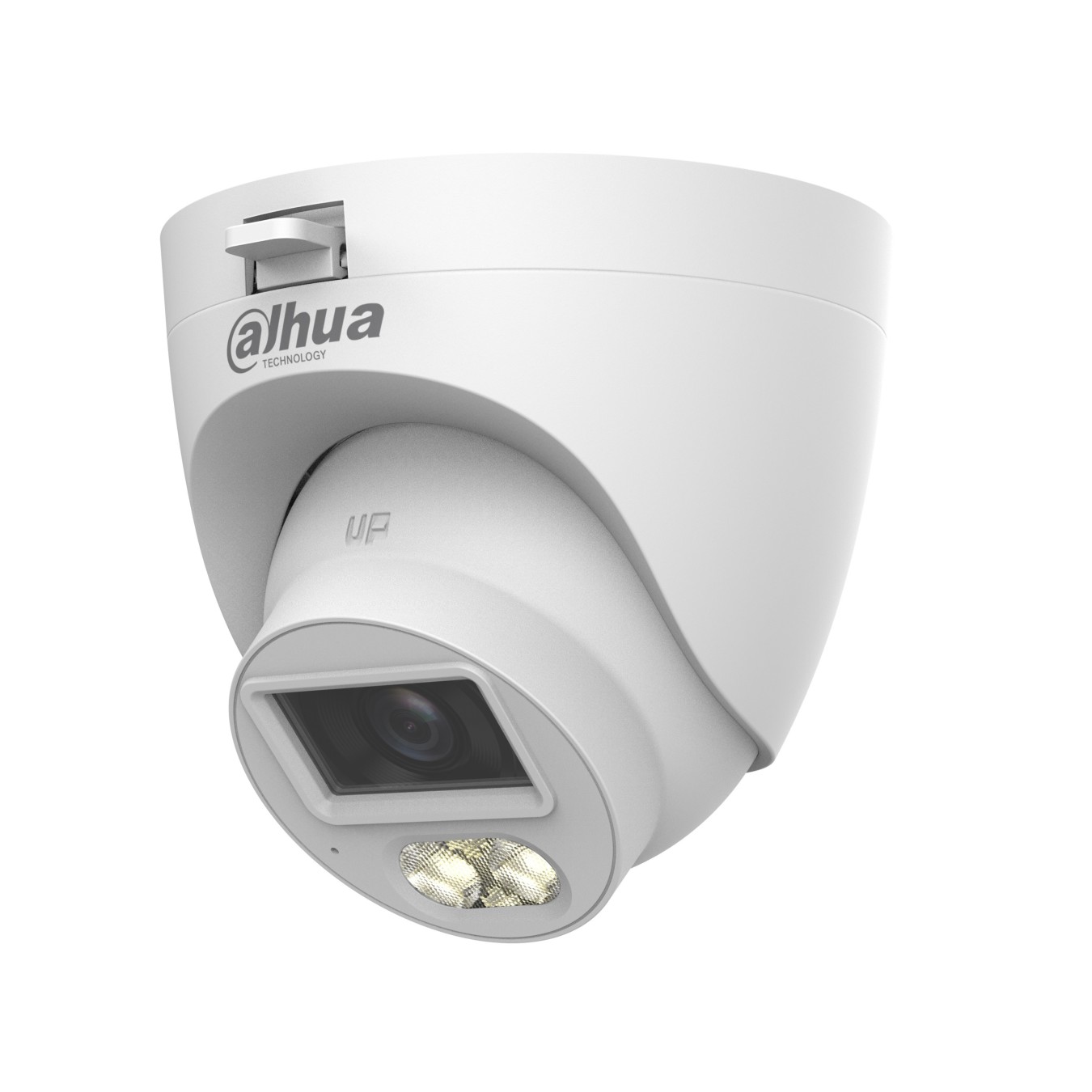

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator - HDW1500CLQ-IL-A-0280B-S3 - Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator
For 1500-IL-S3 series; requires XVR firmware upgrade (V4.001.000) for 5MP 16:9 and Smart Dual Light.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- * The parameters and datasheets below can only be applied to1500-IL-S3 series.
- * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output)
- Starlight, 3D NR
- Smart Dual Light.
- 30 m illumination distance.
- Built-in Mic.
- Quick-to-install eyeball saves installation time.
- 2.8 mm
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination : 0.01 lux@F1.6 (Color, 30 IRE) / 0.001 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 30 m / Warm light: 30 m
- Illuminator On/Off Control : Auto
- Illuminator Number : 2 (Multi-core light)
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm; 3.6 mm
- Max. Aperture : F1.6
- Field of View : 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° / 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.8 m / 3.6 mm: 1.3 m
Video
- Video Frame Rate : CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 5M 16:9@20 fps; NTSC: 5M 16:9@20 fps / CVBS: PAL: 960H; NTSC: 960H
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; WDR
- WDR : DWDR
- White Balance : Auto;Area white balance
- Gain Control : Auto
- Noise Reduction : 3D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
-
Pick-up Distance : 8 m
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035
Audio
- Built-in Mic : Yes
- Camera Audio : CVI; TVI
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
- Audio Input : 1 channel built-in mic
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 4.3W (12 VDC, WLED on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP67
-
Anti-corrosion Level : Basic Protection
Structure
- Casing Material : Plastic
- Product Dimensions : Φ97.4 mm × 92.9 mm
- Net Weight : 0.22 kg
- Gross Weight : 0.29 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Housing Type | Dome |
| Full-Color | Yes |
| Illumination | Up to 30m |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
| Starvis | YES |
