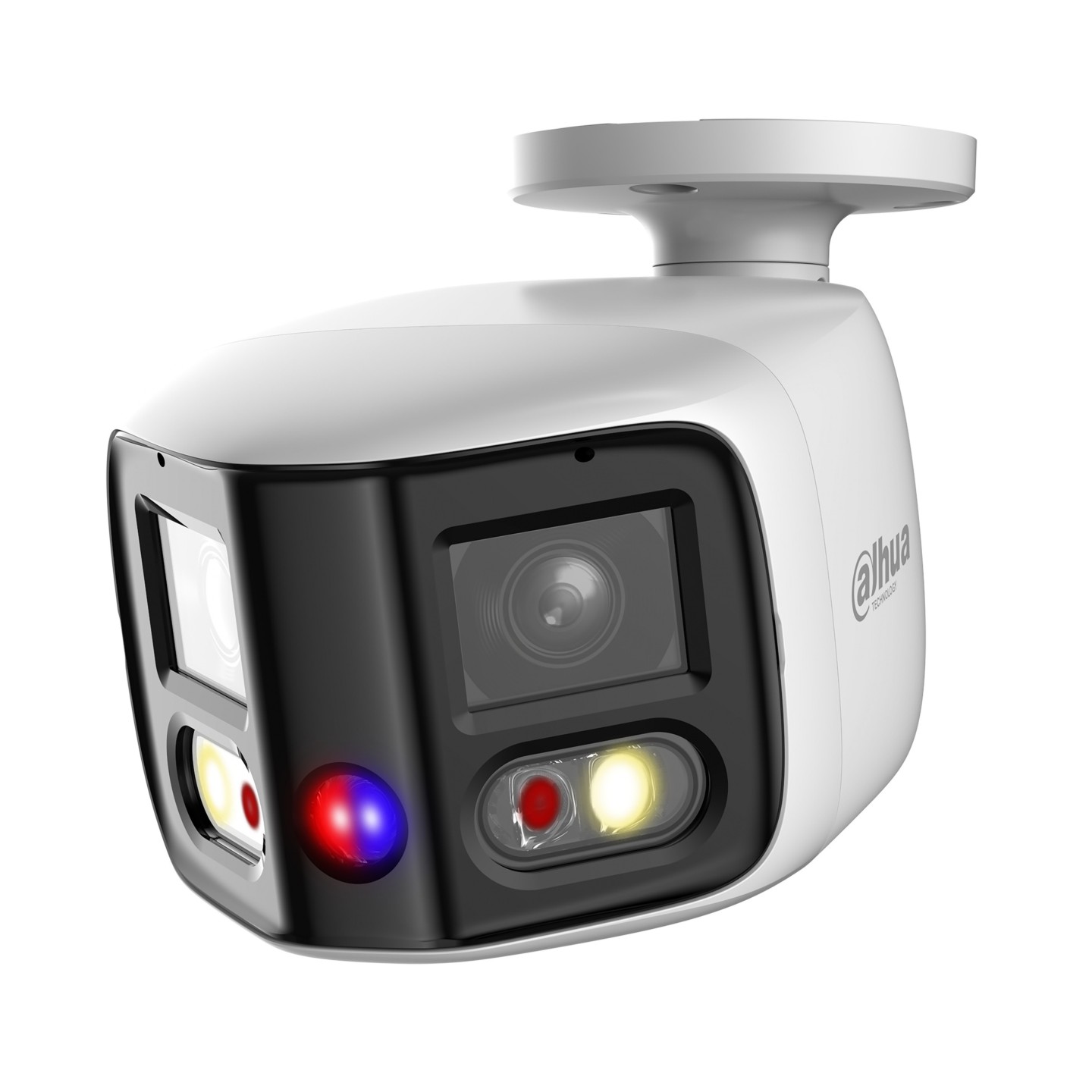

Dahua IP Lite AI 8.0MP Bullet 2.8mm - IPC-PFW3849S-A180-AS-PV - Dahua IP Lite AI 8.0MP Bullet 2.8mm

• Outputs 180° wide angle splicing image
• Outputs max. 8 MP (4096 × 1860)@20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m
• ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk
• 12 VDC/PoE power supply, easy for installation
• IP67 protection
• Sound and light alarm (red and blue lights)
• EPTZ: Enlarge and track the targets of intelligent alarms
• SMD 4.0
• One-tap arming/disarming through alarm input

Camera

• Image Sensor : Dual 1/2.7" CMOS
• Max. Resolution : 4096 (H) × 1860 (V)
• ROM : 128 MB
• RAM : 1 GB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.005 lux@F1.4 (Color, 30 IRE) / 0.0005 lux@F1.4 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : Up to 25 m  (IR LED) / Up to 20 m  (Warm light)
• Illuminator On/Off Control : Auto; Manual
• Illuminator Number : 2 (IR LED); 2 (Warm light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm
• Field of View : Horizontal: 180°; Vertical: 86°
• Max. Aperture : F1.4
• Iris Control : Fixed
• Close Focus Distance : 0.8 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• SMD : SMD 4.0
• Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
• EPTZ : Enlarge and track the targets of intelligent alarms

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+ / Smart H.264+
• AI Coding : AI H.265 / AI H.264
• Video Frame Rate : Main stream: 4096 × 1860@(1–20 fps ) / Sub stream: 1200 × 530@(1–20 fps) / Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability : 3 streams
• Resolution : 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 6 kbps –16384 kbps / H.265: 6 kbps –16384 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• Scene Self-adaptation (SSA) : Yes
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Privacy Masking : 4 areas
• Defog : Yes

Audio

• Built-in MIC : Yes, built-in dual Mic
• Built-in Speaker : Yes, built-in speaker
• Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI
• User/Host : 20 (Total bandwidth: 64 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS
• Browser : IE: IE 8 and later
• Chrome : Firefox
• Management Software : Smart PSS Lite; DSS; DMSS
• Mobile Client : iOS; Android

Certification

• Certifications : CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: wet contact, 5 mA 3 V–5 VDC
• Alarm Output : 1 channel out: wet contact, 300 mA 12 VDC

Power

• Power Supply : 12 VDC (±30%); PoE (802.3af)
• Power Consumption : Basic: 3.4 W (12 VDC); 3.8 W (PoE)
• Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Protection : IP67

Structure

• Casing : Metal
• Product Dimensions : 183.1 mm × 99.0 mm × 78.0 mm (L × W × H)
• Net Weight : 695 g
• Gross Weight : 870 g
