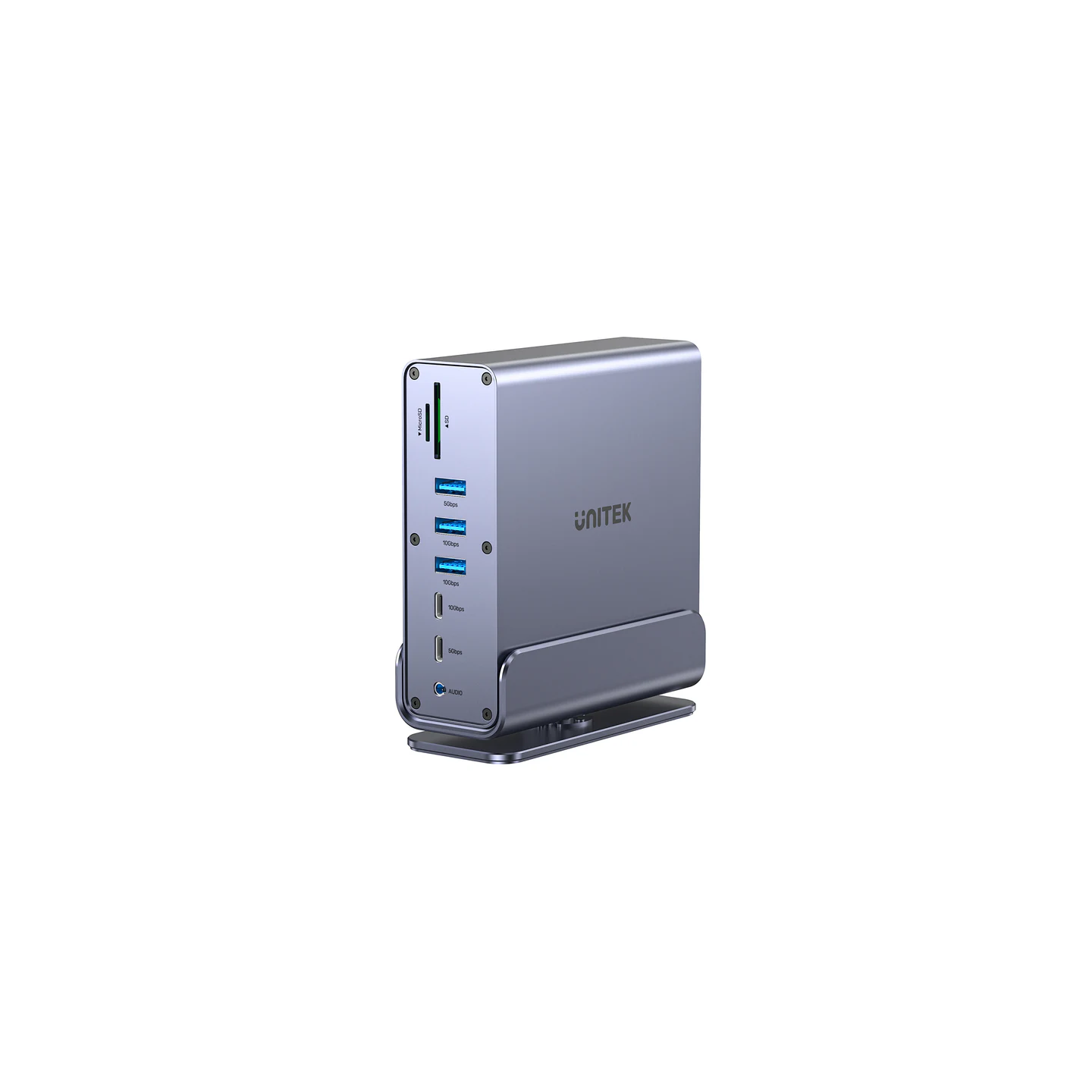

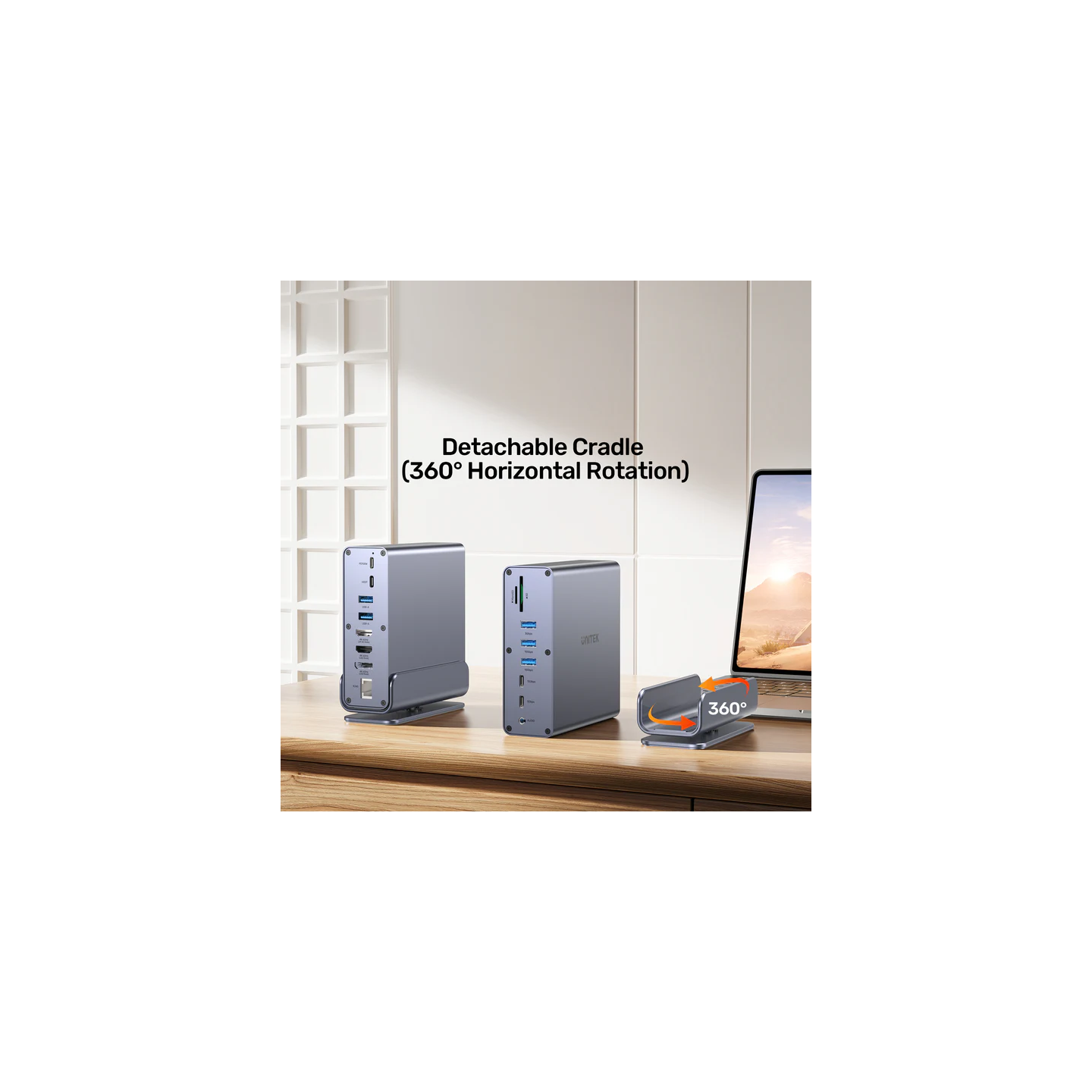

Unitek D1135A 15in1 USB-C Hub - Triple 4K M1 MacBook PD100W (Boxed)
15-in-1 USB-C hub with DisplayLink tech supports Mac M1-M3 triple 4K@60Hz displays via MST, 100W PD charging, Gigabit Ethernet, dual SD readers, multiple USB ports up to 10Gbps.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | Thunderbolt 3 Thunderbolt 4 USB-A USB-C USB4 |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 11+ |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Aluminum Body Audio Jack DisplayLink Driver Required Fast Charging Port MicroSD Card Reader MST Support SD Card Reader |

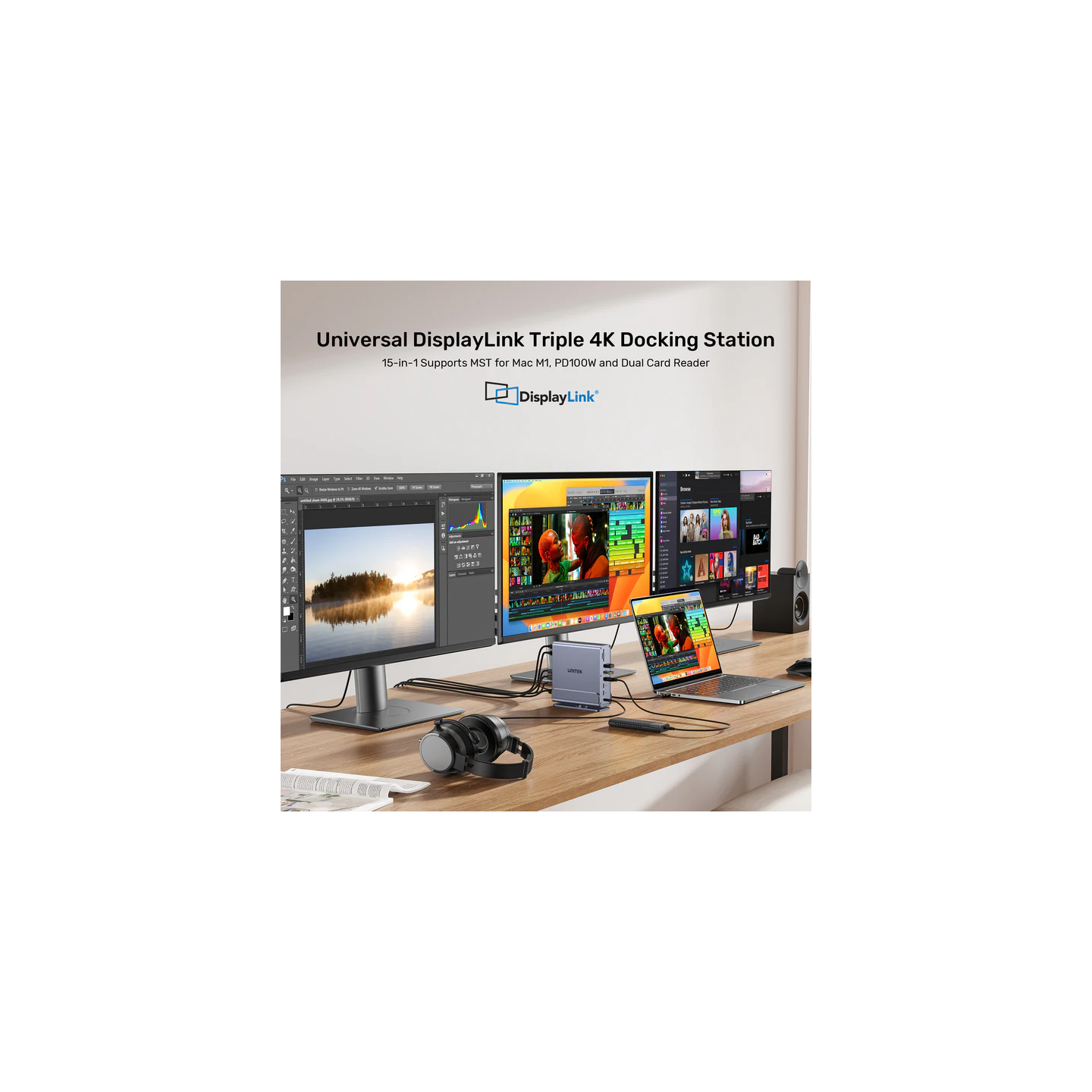

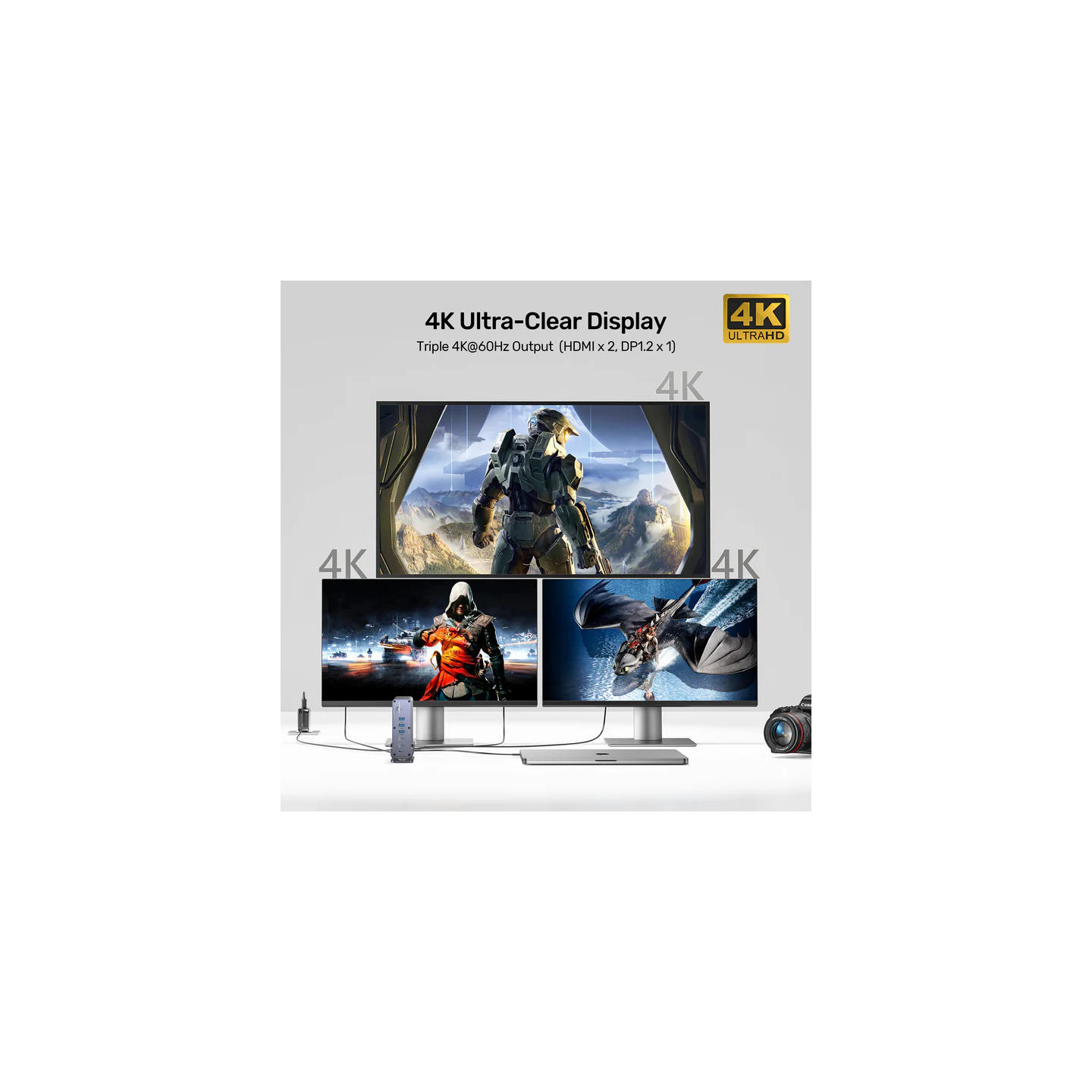

Elevate productivity with the Unitek D1135A USB-C DisplayLink Triple 4K Docking Station. Overcomes MacBook M1-M3 limitations for up to 3x 4K@60Hz monitors (2x HDMI, 1x DP) using MST mode.
Features 100W PD charging, ultrafast USB ports (3x 10Gbps, 2x 5Gbps, 2x 480Mbps), Gigabit Ethernet (10/100/1000Mbps), SD/MicroSD 2.0 readers (single slot each), and 3.5mm audio jack. Compatible with USB4, Thunderbolt 3/4, USB-C/A hosts.
Dimensions: 121.8 x 137.9 x 49.3mm. Requires DisplayLink driver download. USB-A hosts support dual monitors only.

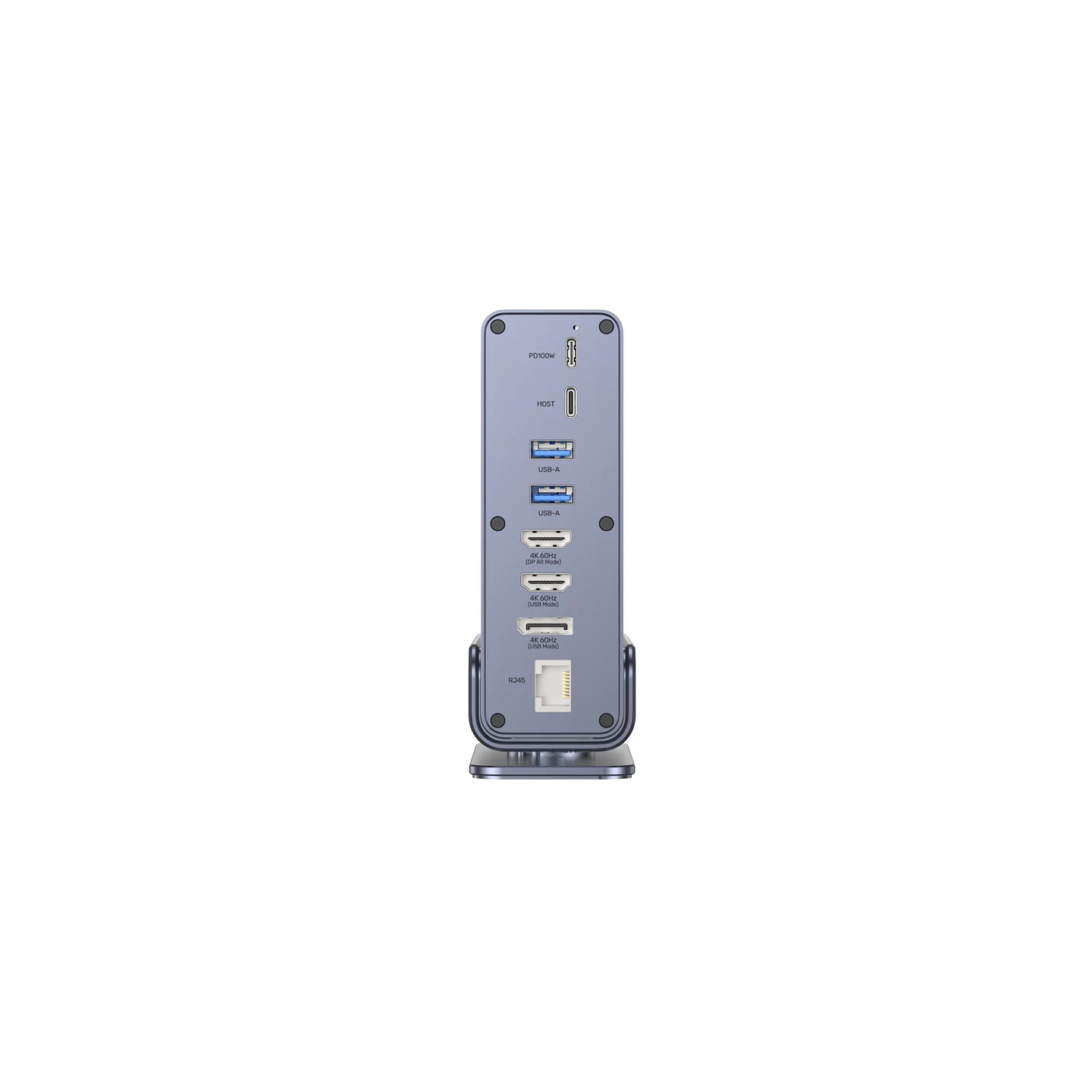

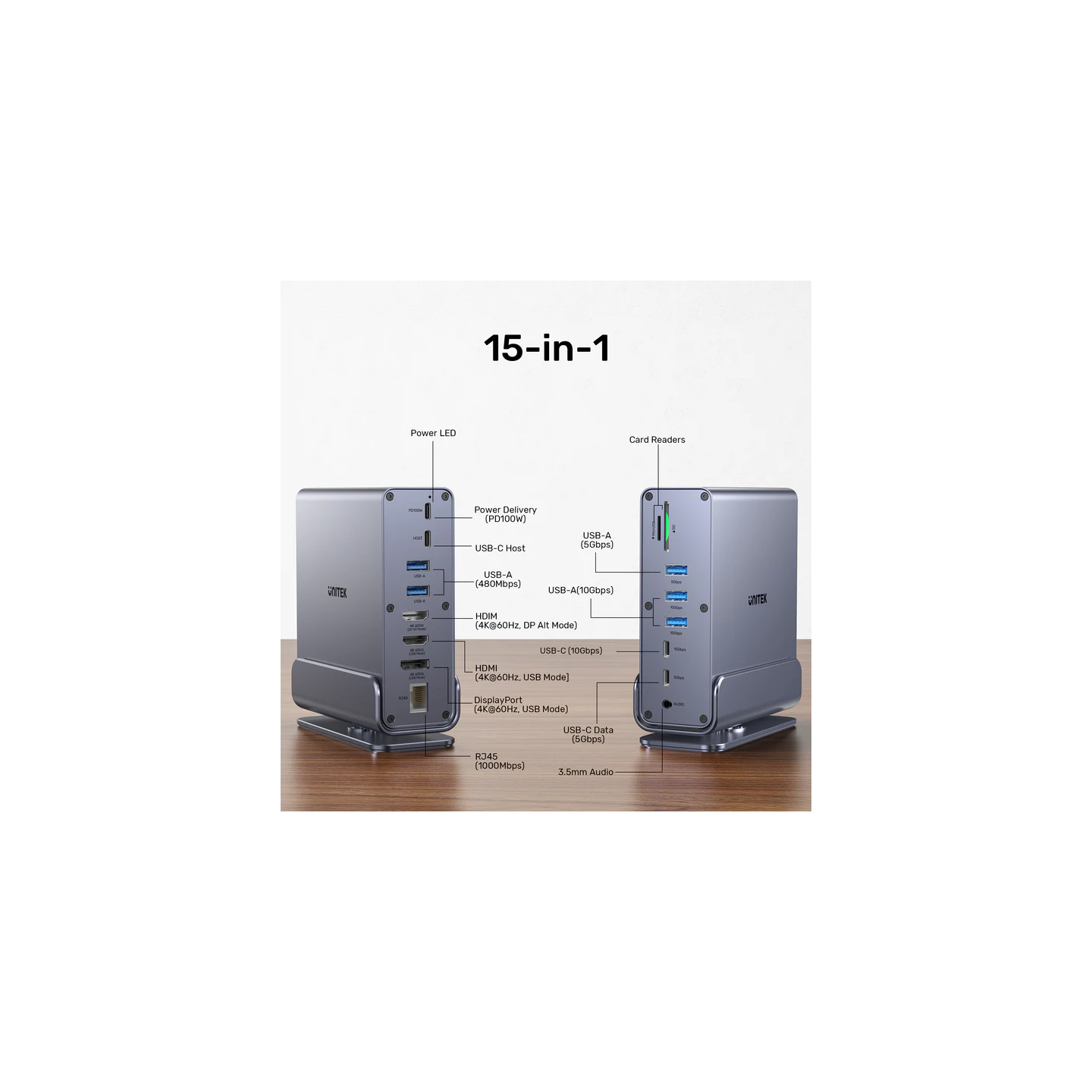

- Triple 4K@60Hz MST: 2x HDMI, 1x DP

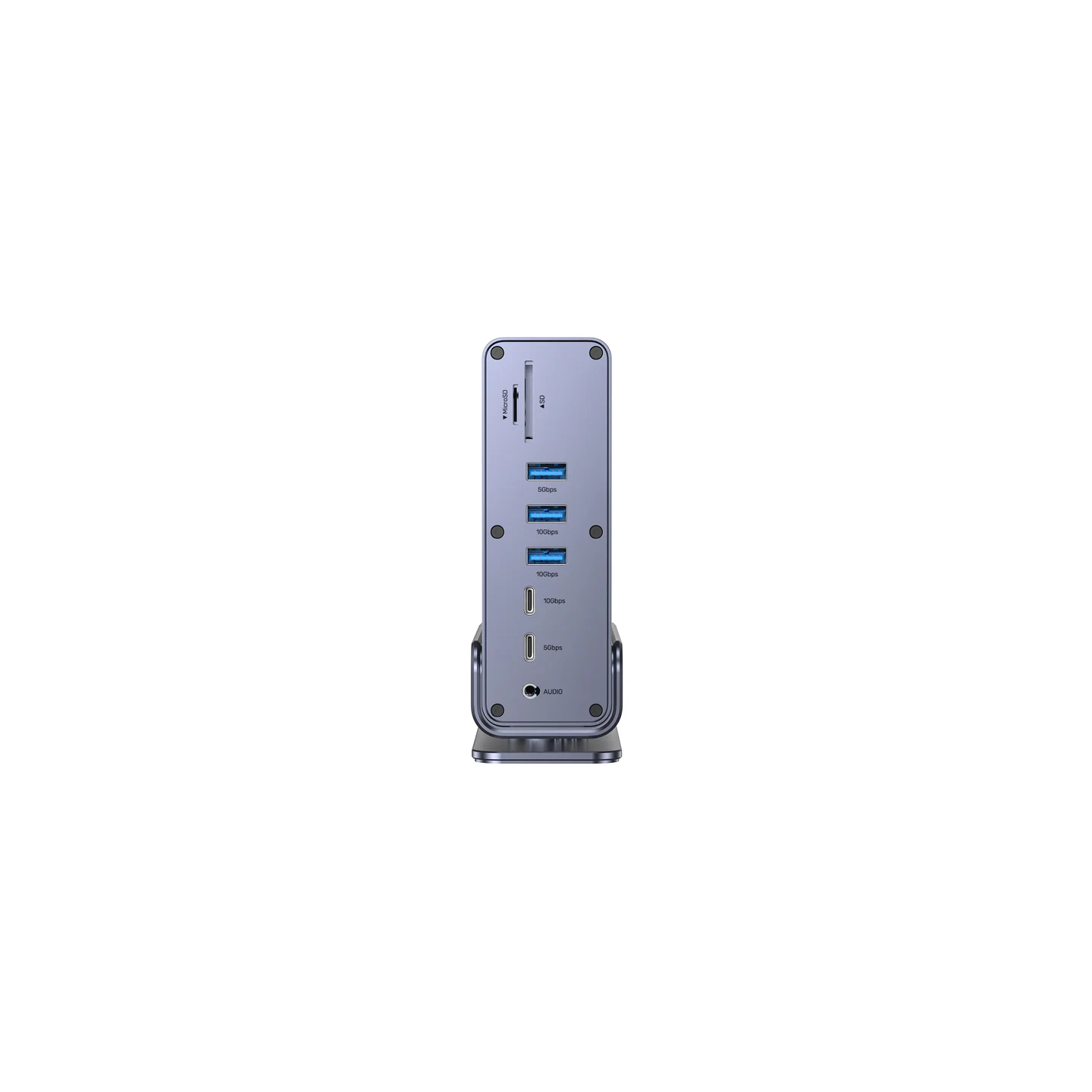

- USB: 2x A 10Gbps, 1x A 5Gbps, 2x A 480Mbps, 1x C 10Gbps, 1x C 5Gbps
- Power: 100W PD input
- Network: RJ45 1Gbps
- Other: Dual card readers, audio jack
| Model | D1135A |
| USB Type | Type C |
| Upstream | USB-C 10Gbps (with USB-A adapter) |
| USB Ports | 7 total (5 USB-A/C data + 1 PD + 1 upstream equiv) |

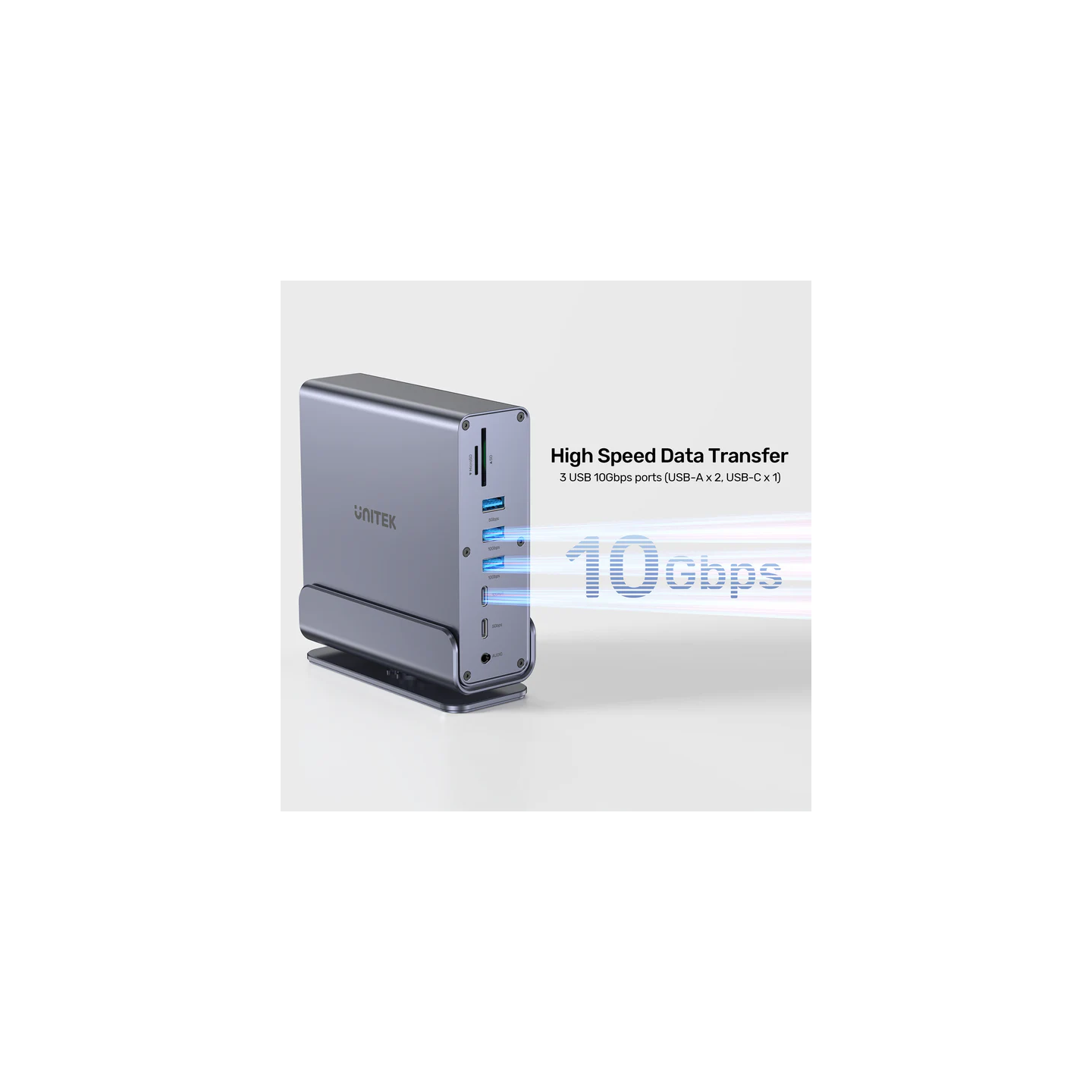

| USB Speeds | 3x 10Gbps (1C/2A), 2x 5Gbps (1C/1A), 2x 480Mbps (2A) |
| HDMI Ports | 2 (4K@60Hz) |
| DisplayPort | 1 (4K@60Hz) |

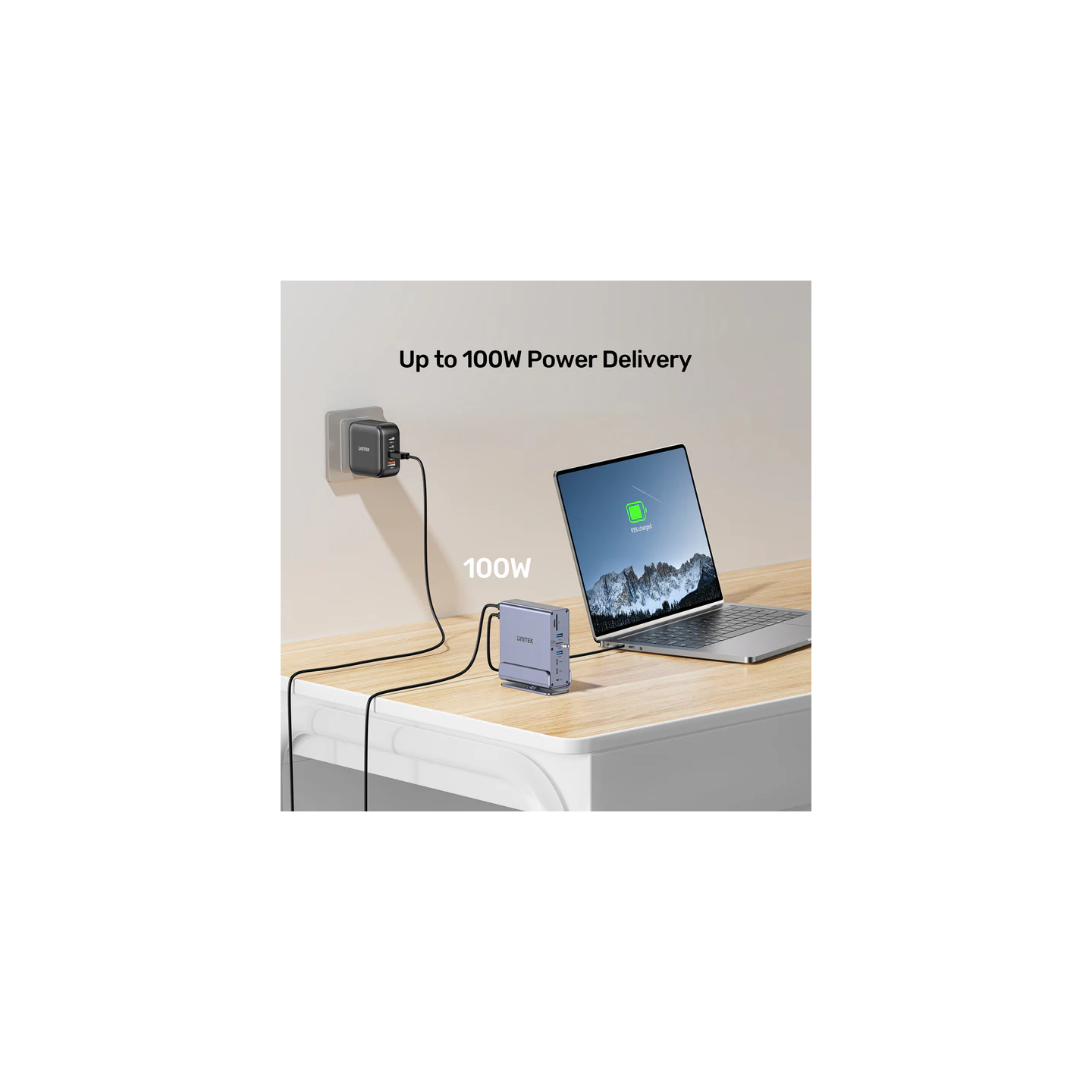

| Max PD Output | 100W |
| MST Function | Yes (DisplayLink) |

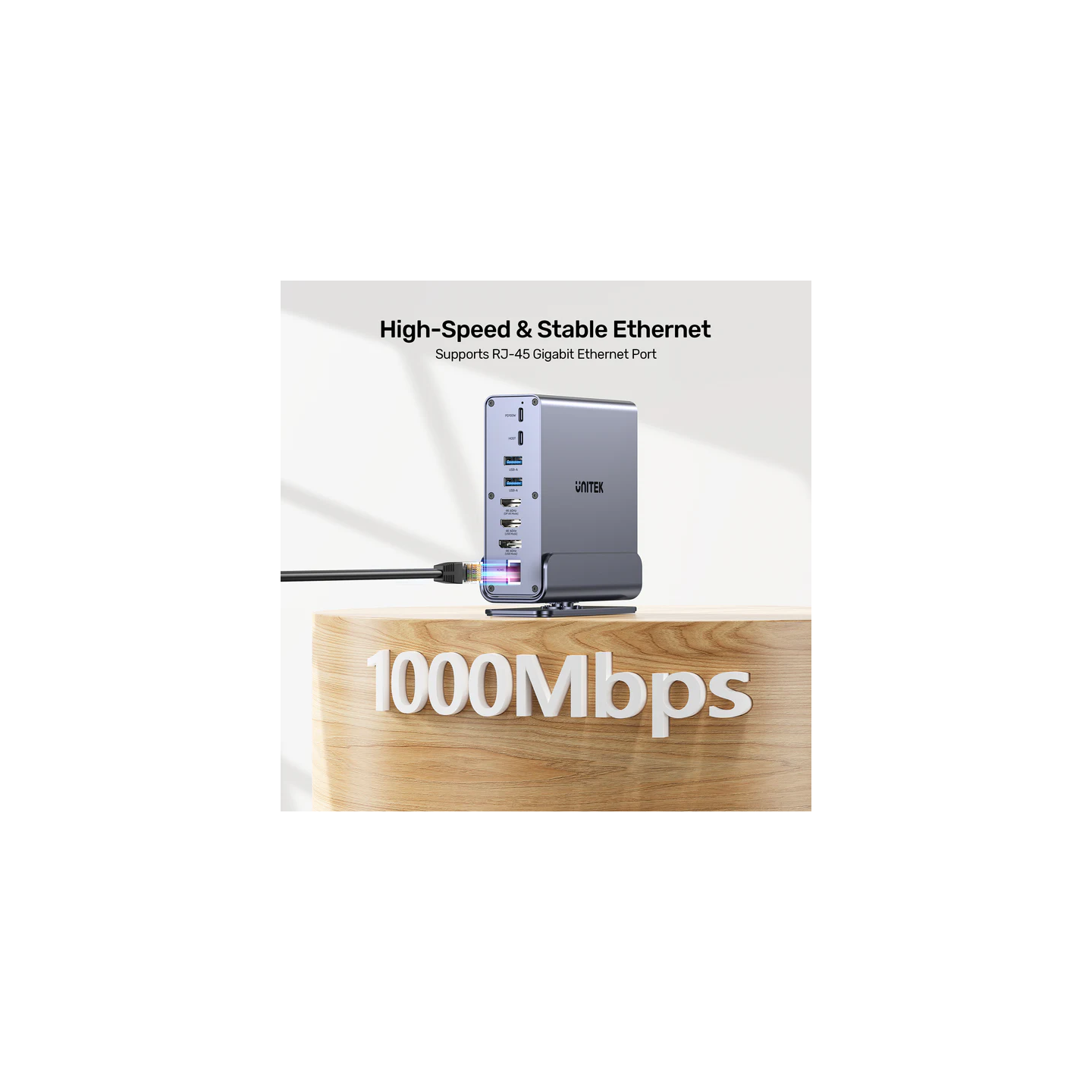

| Ethernet | RJ45 Gigabit (10/100/1000Mbps) |

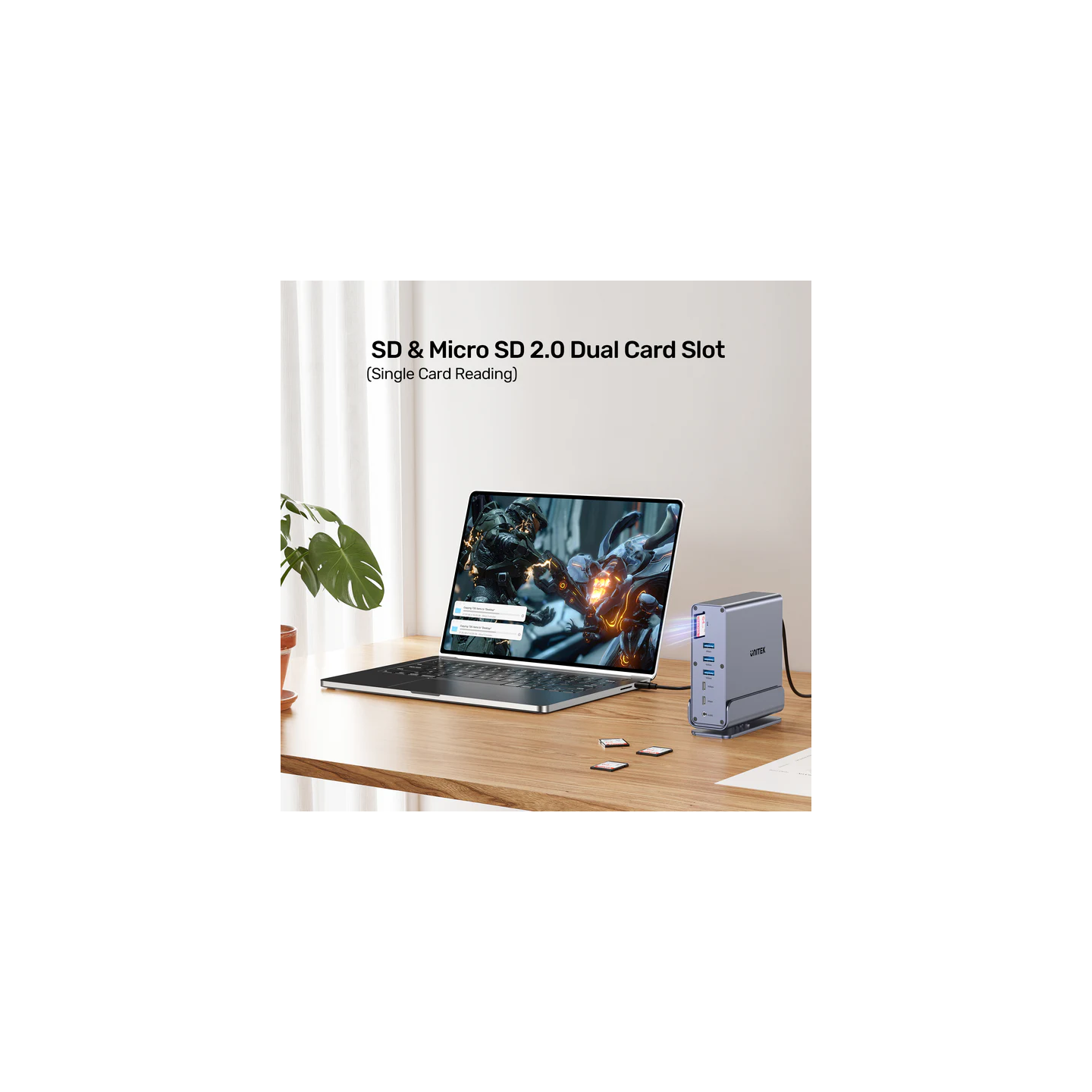

| Card Readers | SD 2.0 x1, microSD 2.0 x1 (single reading) |

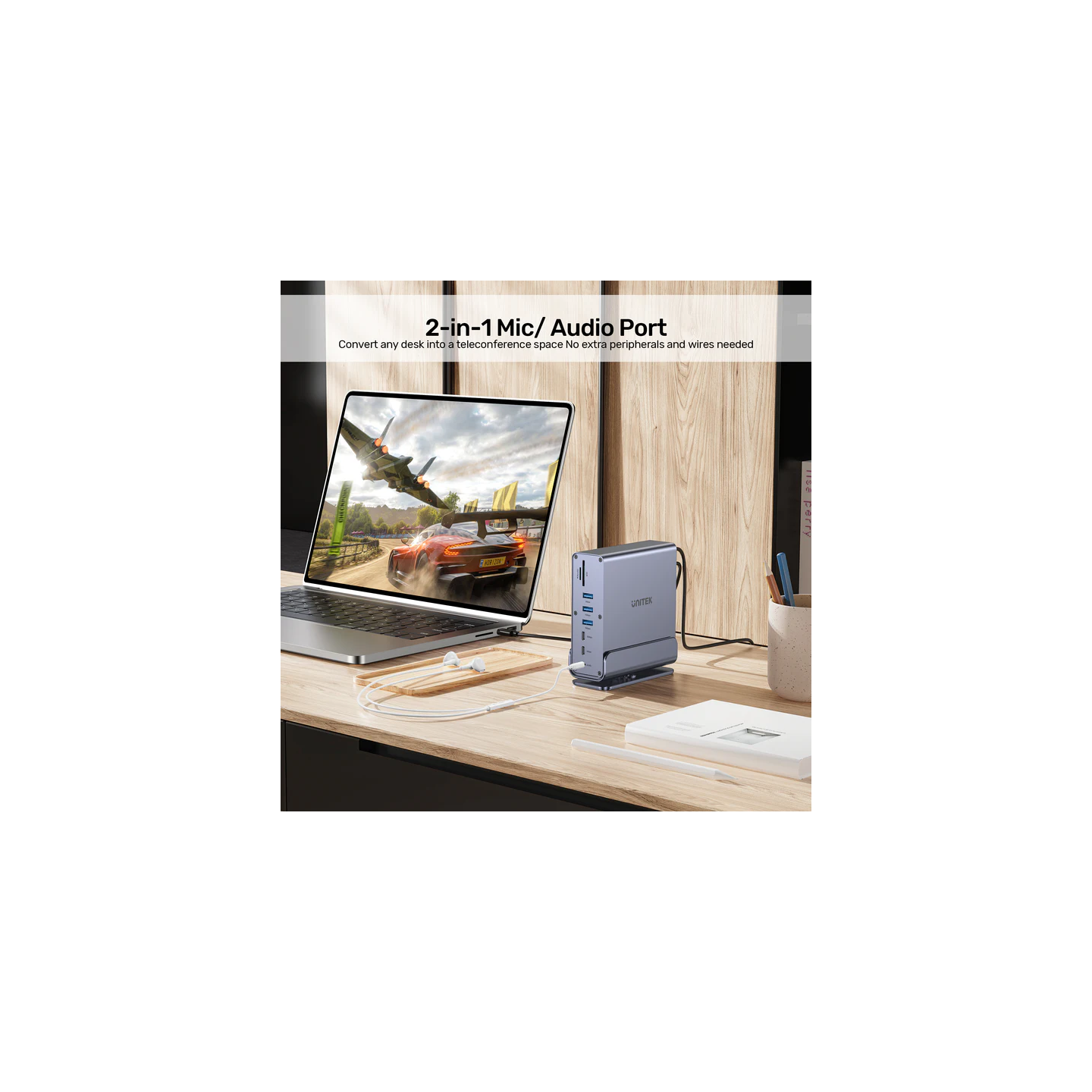

| Audio | 3.5mm Mic/Headphone jack |

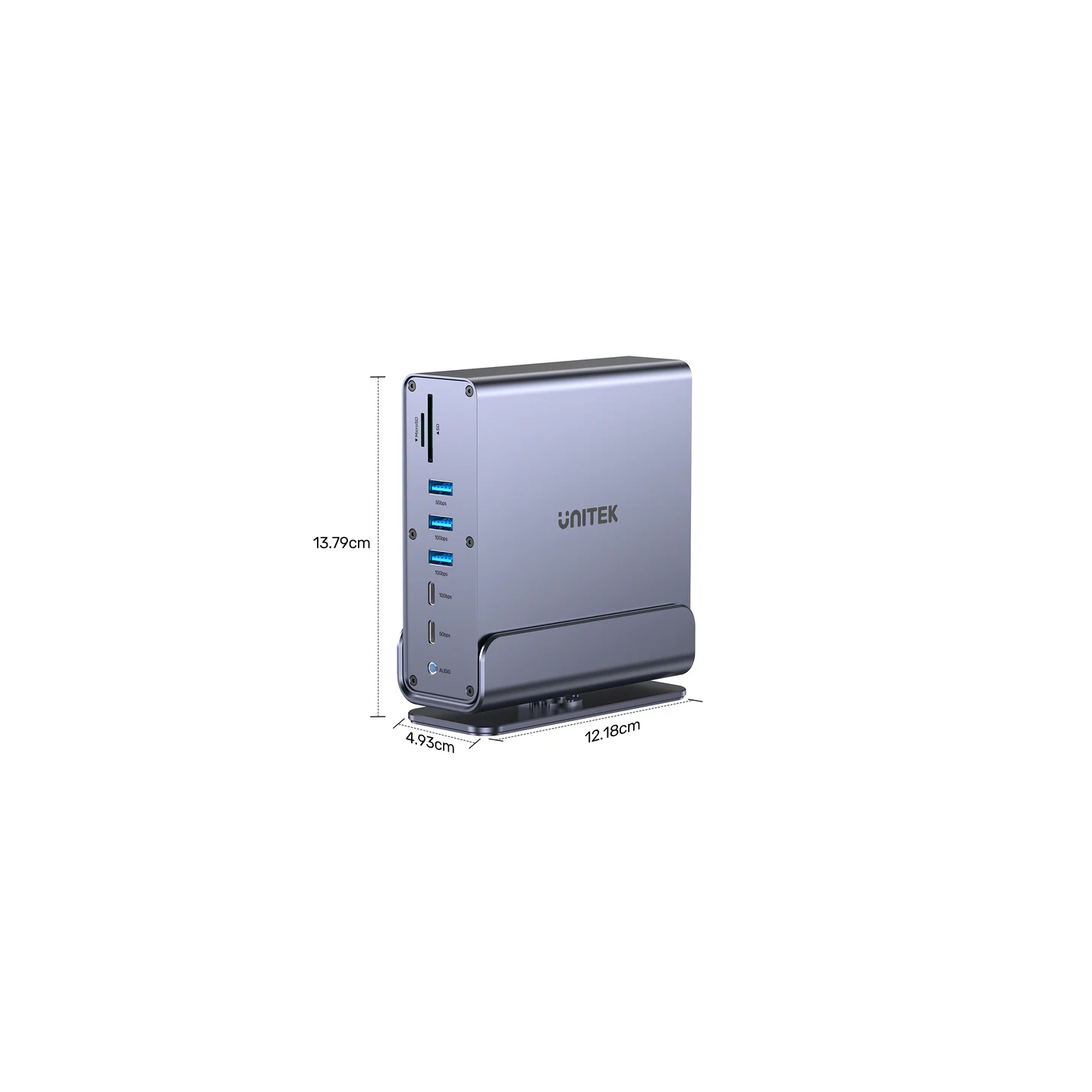

| Dimensions | 121.8 x 137.9 x 49.3 mm |
| Material | Aluminum Alloy / Space Grey |
| Compatibility | USB4, Thunderbolt 3/4, USB-C, USB-A; Win10/11, macOS 10.6+, Linux 3.x |

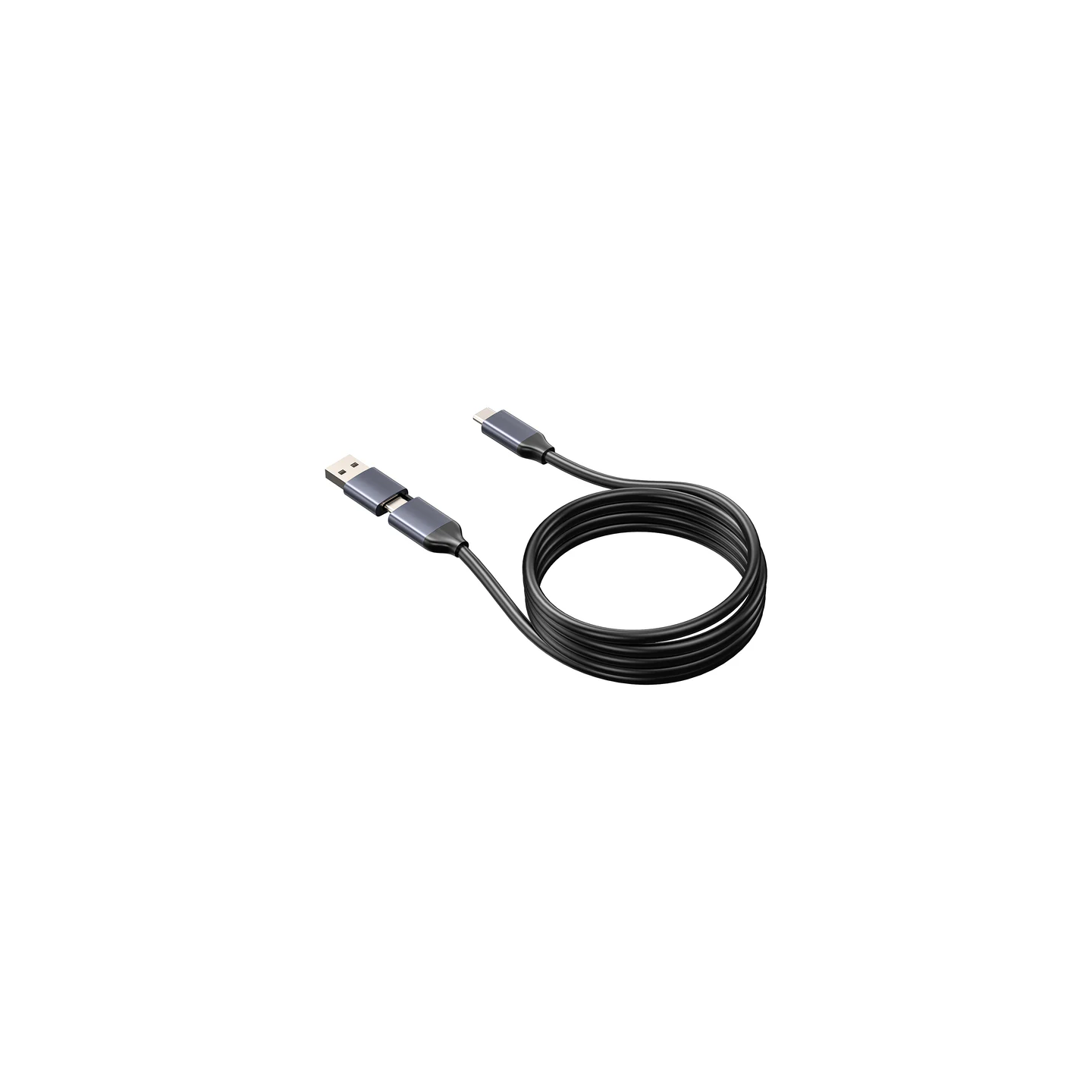

| Cable Length | 100cm USB-C to C |

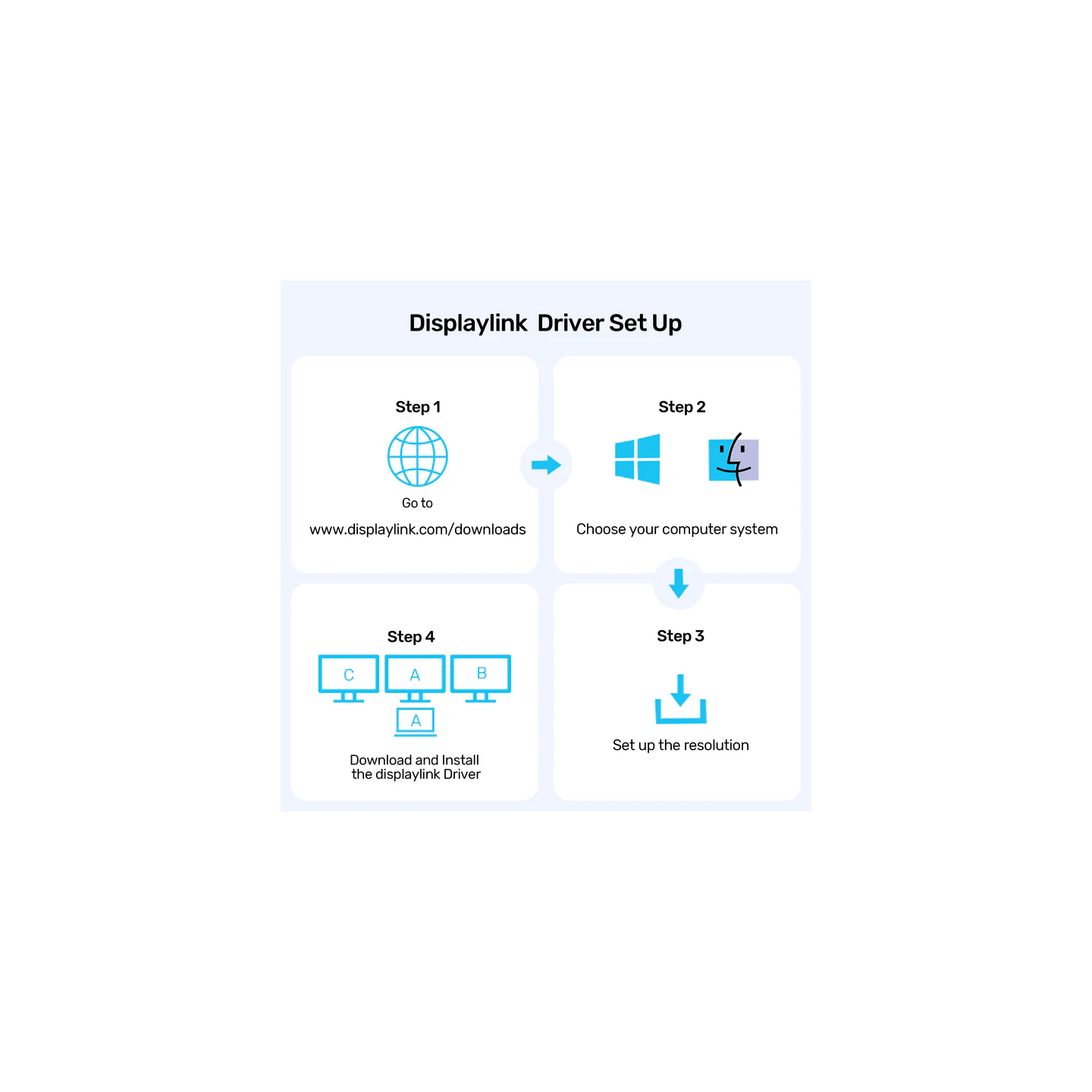

| Driver | DisplayLink required |
