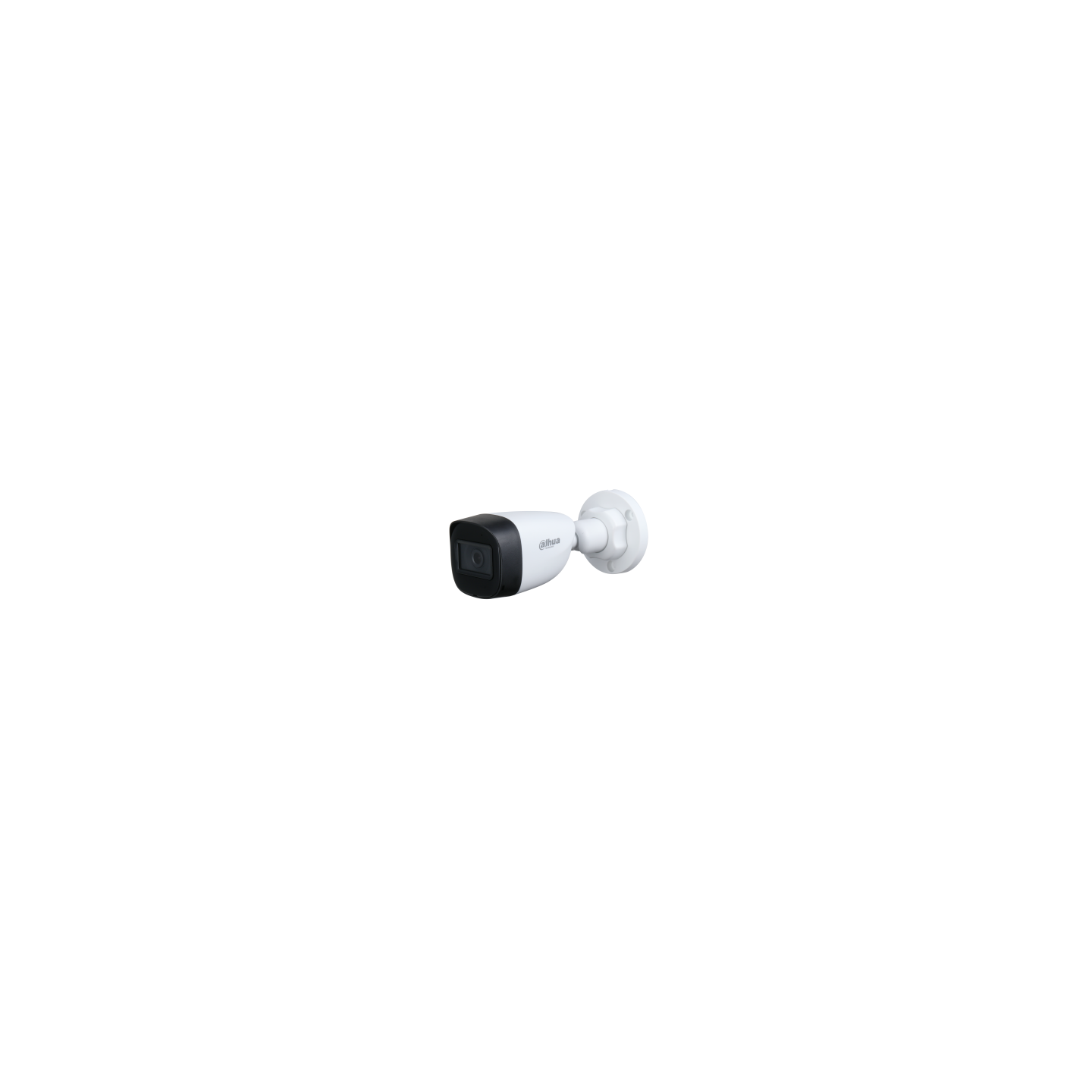

Dahua HDCVI 5.0MP Bullet 2.8mm - HFW1500C-S2 - Dahua HDCVI 5.0MP Bullet 2.8mm
For 1500-S2 series. 5.0 MP HDCVI bullet camera with fixed 2.8 mm lens, up to 30 m IR, DWDR, Starvis, built-in mic. Firmware note: XVR v4.001.0000001.0.R.200908 or newer.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The parameters and datasheets below can only be applied to 1500-S2 series
In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max 25 fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm optional)
- Max. IR length 30 m, Smart IR
- Built-in mic(-A)
- IP67, DC12V
Camera
- Image Sensor : 1/2.7 inch CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25s–1/100000s , NTSC: 1/30s–1/100000s
- S/N Ratio : >65 dB
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm , 3.6 mm
- Max. Aperture : F1.6
- Field of View : 2.8 mm: 132° × 111° × 58°(diagonal × horizontal × vertical) , 3.6 mm: 109° × 92° × 48°(diagonal × horizontal × vertical)
- Iris Control : Fixed
- Close Focus Distance : 3.6 mm: 1.3 m
Video
- Video Frame Rate : CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
- NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps /AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps / CVBS: PAL: 960H; NTSC: 960H
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Auto switch by ICR
- BLC : BLC; HLC; DWDR
- WDR : DWDR
- White Balance : Auto; Area white balance
- Gain Control : Auto/Manual
- Noise Reduction : 2D NR
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certification
- Certifications : CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in mic
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 3.1 W (12 VDC, WLED on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : <95% (RH), non-condensing
- Protection: IP67
Structure
- Casing Material : Plastic
- Product Dimensions : 161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75" )
- Net Weight : 0.19 kg kg
- Gross Weight : 0.29 kg
| Housing Type | Bullet |
| Camera Resolution | 5.0 MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
| Starvis | YES |
| Audio | Built-in Mic |
