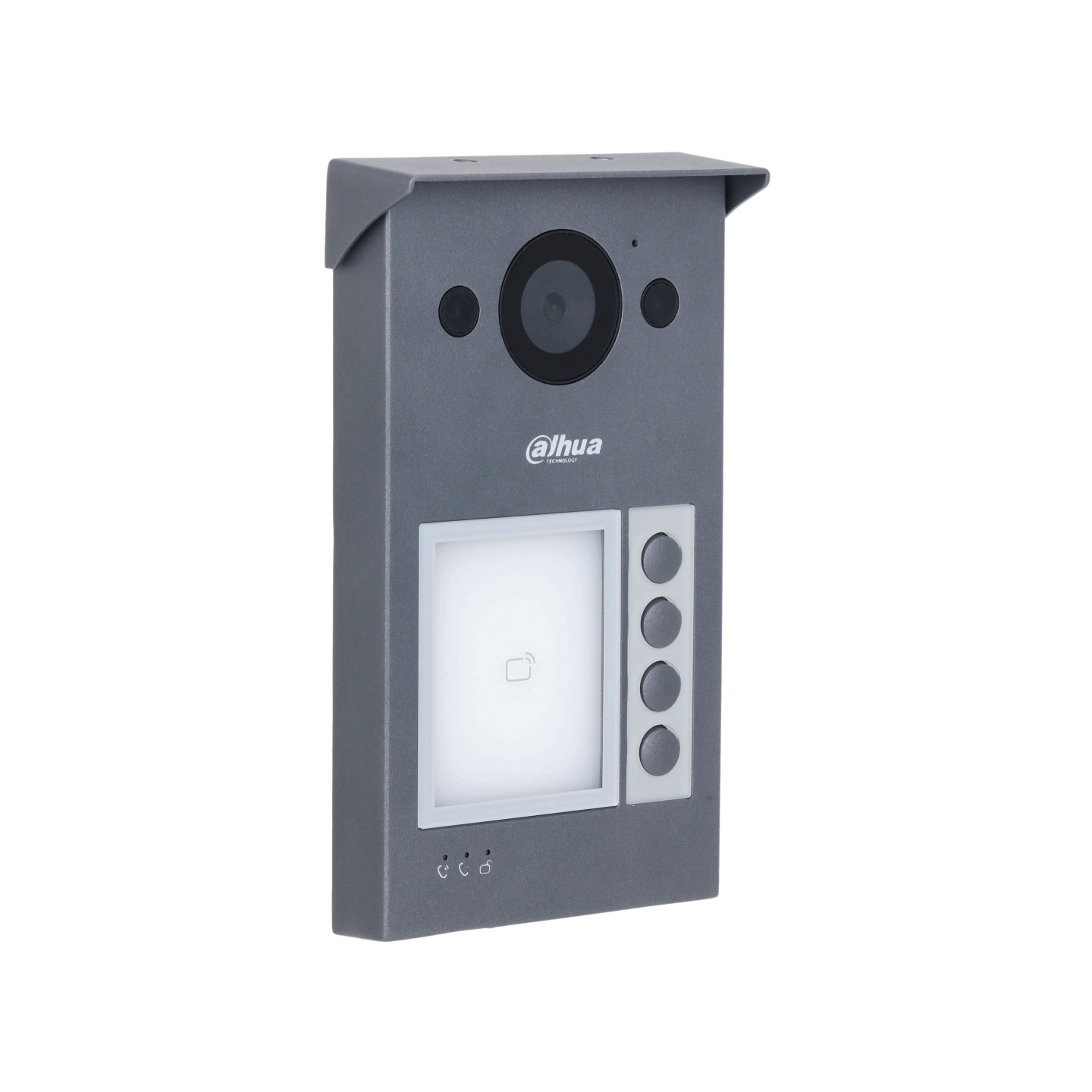

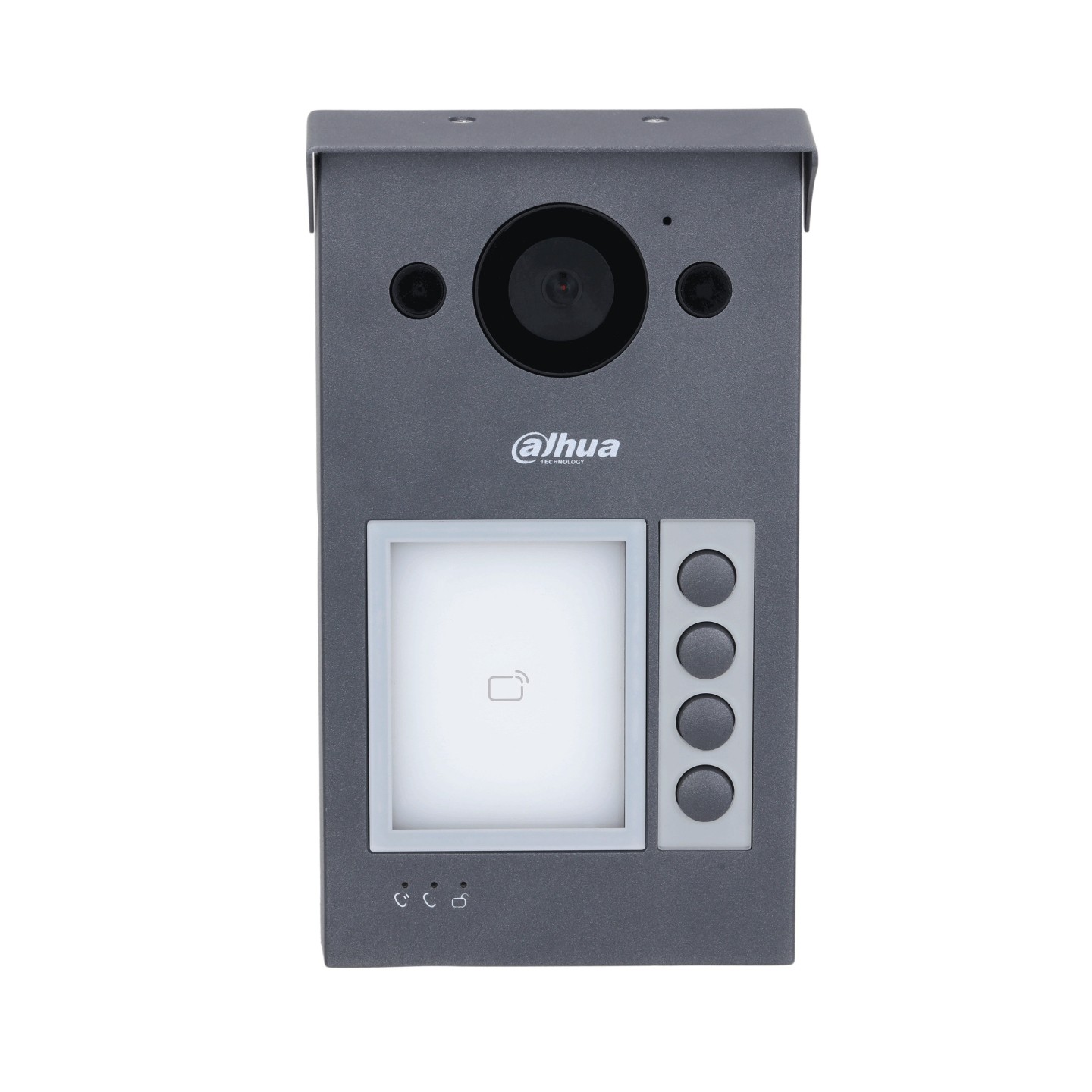

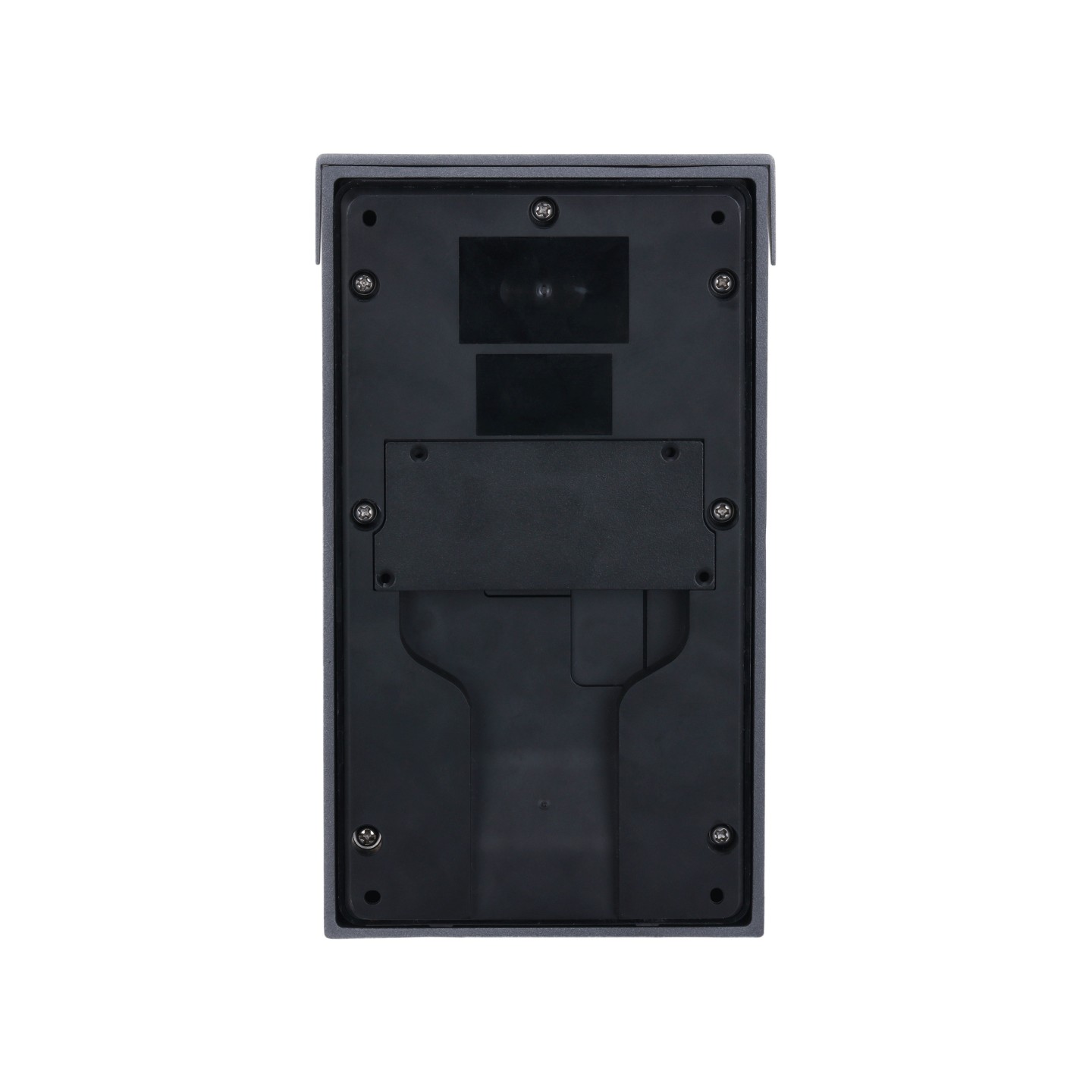

Dahua VD Wi-Fi 2MP Outdoor Station - VTO3311Q-WP - Wi-Fi 2MP Outdoor Station
All-metal outdoor intercom with Wi-Fi, 2MP camera, RFID access, and supports two-way video calls with indoor monitors; IR illumination and auto WDR.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Access | RFID/NFC |
| Intercoms - Camera | 1080p |
| Intercoms - Display (Indoor) | No Display |
- Full metal casing design
- Customizable Number of Buttons
- Wi-Fi connection
- 1/2.8" 2-MP HD CMOS camera
- Offers two–way video call with indoor monitors
- IR illumination and auto WDR
- Supports two locks
- Voice call and unlocking through app
- IK08 and IP65 rated
- H.264 and H.265
- Unlock with IC card
- PoE power supply
- Included rain cover
System
- Main Processor: Embedded Micro Processor
- Button Type : Mechanical
- Interoperability : ONVIF; CGI
- Network Protocol : RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
Basic
- Camera : 1/2.8" CMOS 2-MP HD camera
- Field of View : Horizontal: 125°; vertical: 65°; diagonal: 139°
- WDR : 120dB
- Noise Reduction : 3D NR; 2D NR
- Video Compression : H.264; H.265
- Video Resolution : Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
- Video Frame Rate : PAL:25 fps / NTSC:30 fps
- Video Bit Rate : 768 kbps–8 Mbps
- Light Compensation : Auto IR
- Day/Night : Auto (ICR)/Color/B/W; Color/B/W
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression and cancellation/digital noise reduction
- Audio Bit Rate : 16KHz, 16Bit
Function
- Communication Mode : Full digital
- Unlock Mode : Card/app/indoor monitor unlock
- Card Type : IC card
- Motion Detection : Video motion detection
- Auto Snapshot : Yes (SD card is inserted in the indoor monitor or door station)
- Leave Videos : Yes (SD card inserted in VTH/VTO is needed)
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4GHz
- Storage : Micro SD card (max. 256 GB)
Performance
- Card Reading Distance : 3cm–5cm
- Issue Card Locally : Yes
- Casing :Alluminum alloy
Port
- RS-485 : 1
- Alarm Input : 1
- Alarm Output : 1
- Power Output : 1
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
- Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
Alarm
- Tamper : Yes
General
- Color : Grey
- Power Supply : 12 VDC, 1 A; Standard PoE
- Installation : Surface Mount
- Certifications : CE; FCC
- Accessory : Included: Alarm power ribbon cable, rain cover
- Product Dimensions : 188.1 mm × 107.2 mm × 30 mm
- Protection : IP65 IK08
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : 10%–90% (RH), non-condensing
- Operating Altitude : 0 m–3,000 m
- Power Consumption : ≤ 3 W (standby), ≤ 6 W (working)
- Gross Weight : 0.81 kg
- Net Weight : 0.55 kg
| Connectivity | IP/Wi-Fi |
| Image Sensor | 2MP |
| Material | Aluminum |
| Angle of View | D:139° H:125° |
| IP Rating | IP65, IK08 |
| Access Type | RFID |
| Recording | Photos & Video |
| Door Control | 1 x Relay Out,1 x Feedback,1 x Exit Button |
| Installation | Surface |
| Memory Slot | Micro SD, Max 256G |
| POE | Yes |
