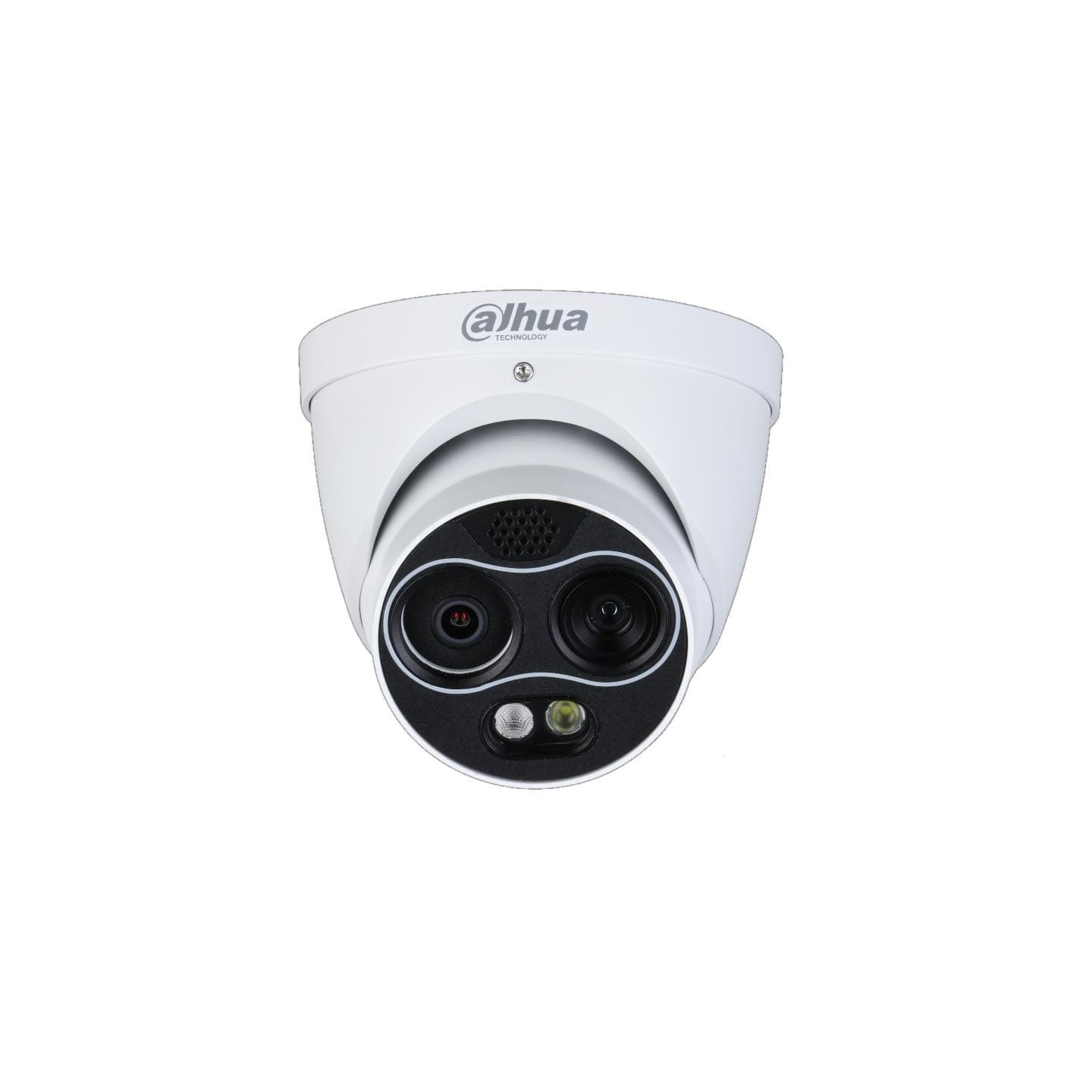

Dahua IP 4.0MP Dome Thermal - TPC-DF1241-D2F2 - Dahua IP 4.0MP Dome Thermal

• Uncooled VOx thermal sensor technology
• Athermalized lens (thermal camera), focus-free
• 1/2.7'' 4Megapixel progressive scan CMOS
• Support ROI, motion detection, color palettes
• Smoking and call behaviour detection
• Support fire detection & alarm
• Built-in 1/1 alarm in/out
• Micro SD memory, IP67, PoE
• Smart linkage with strobe light & audio
• Dual image fusion (visible and thermal images)

Thermal

• Detector Type : Vanadium Oxide Uncooled FPA
• Max. Resolution : 256 × 192
• Pixel Pitch : 12 μm
• Spectral Range : 8 μm–14 μm
• Thermal Sensitivity (NETD) : < 50 mK (@f/1.0,25Hz,300K)
• Focal Length: 3.5 mm
• Field of View H: 50.6°, V 37.8°
• Close Focus Distance : 0.5 m
• Effective Distance Human (1.8 m × 0.5 m) : D: 146 m / R: 38 m / I: 19 m
• Effective Distance Vehicle (4.0 m × 1.4 m) : D: 389 m  / R: 97 m  / I: 49 m
• Aperture : F1.0
• Digital Detail Enhancement (DDE) : Yes
• Digital Zoom : 16 ×
• AGC : Auto; Manual
• Noise Reduction : 2D NR; 3D NR
• Image Flip : 90°; 180°; 270°
• ColorPalettes : 18(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
• Fusion Mode : 3 (Warm color; cool color; Ironred)

Visible

• Image Sensor : 1/2.7'' CMOS
• Max. Resolution : 2336 × 1752
• Pixel : 4MP
• Electronic Shutter Speed : 1/30000 s–1 s
• Min. Illumination : Color: 0.05 Lux
• Black & white: 0.005 Lux : 0 Lux (IR on)
• IR Illumination Distance : ≥ 30 m
• IR Illuminator On/Off Control : Auto; Manual
• Focal Length : 4 mm
• Aperture : F1.6
• Field of View : H: 71.2° / V: 52° / D: 92.6°
• Focus Control : Fixed
• Close Focus Distance : 1.0 m
• Day/Night : Auto (ICR); Color and B/W
• BLC : Yes
• WDR : DWDR
• HLC : Yes
• White Balance : Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
• AGC : Auto; Manual
• Noise Reduction : 2D NR; 3D NR
• S/N Ratio : ≥ 55 dB
• Region of Interest (RoI) : Yes
• Image Flip : 90°; 180°; 270°
• Exposure Compensation : Yes

Intelligence

• General Intelligence : Tripwire, Intrusion
• Advanced Intelligence : Fire Detection & Alarm / Cold & Hot Spot Trace / Human & Vehicle Classification / Smoking Detection / Call Detection
• Video and Audio
• Video Compression : H.265/H.264M/H.264H/H.264B/MJEPG
• Resolution
• Thermal : Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default / Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default /
• Visual : Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default / Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default
• Frame Rate
• Thermal : 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
• Visual : 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

• G.711a; G.711mu; PCM

Network

• Protocol : HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
• Edge Storage : Micro SD card (256 G)
• Interoperability : ONVIF; CGI
• Browser : IE: IE8 and the later, and explorer with IE core / Google: 42 and the earlier / Firefox: 42 and the earlier
• User/Host : 10
• Security : Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

• CE: EN55032:2015; EN61000-3-2:2014
• FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

• Network : 1 10M/100M Ethernet port (RJ-45)
• Audio Input : 1
• Audio Output : 1
• Alarm Input : 1
• Alarm Output : 1
• RS-485 : 1 pair

Power

• Power Supply : 12V±20% DC/PoE
• Power Consumption : Basic: <6.5W (LED off) / Max: <13W (LED on, heater on)

Environment

• Operating Temperature : –30°C to +60°C (–22°F to +140°F)
• Storage Temperature : –30°C to +70°C (–22°F to ﹢158°F)
• Operating Humidity : ≤ 95%
• Protection : IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air)

Structure

• Product Dimensions : 122 mm × 122 mm × 112 mm
• Packaging Dimensions : 155 mm × 155 mm × 135 mm
• Net Weight : ≤ 0.85 kg
• Gross Weight : ≤ 1 kg

IVS Range

• Focal Length :3.5 mm
• Human (1.8 m × 0.5 m) : 26 m
• Vehicle (1.4 m × 4.0 m) : 72.5 m
