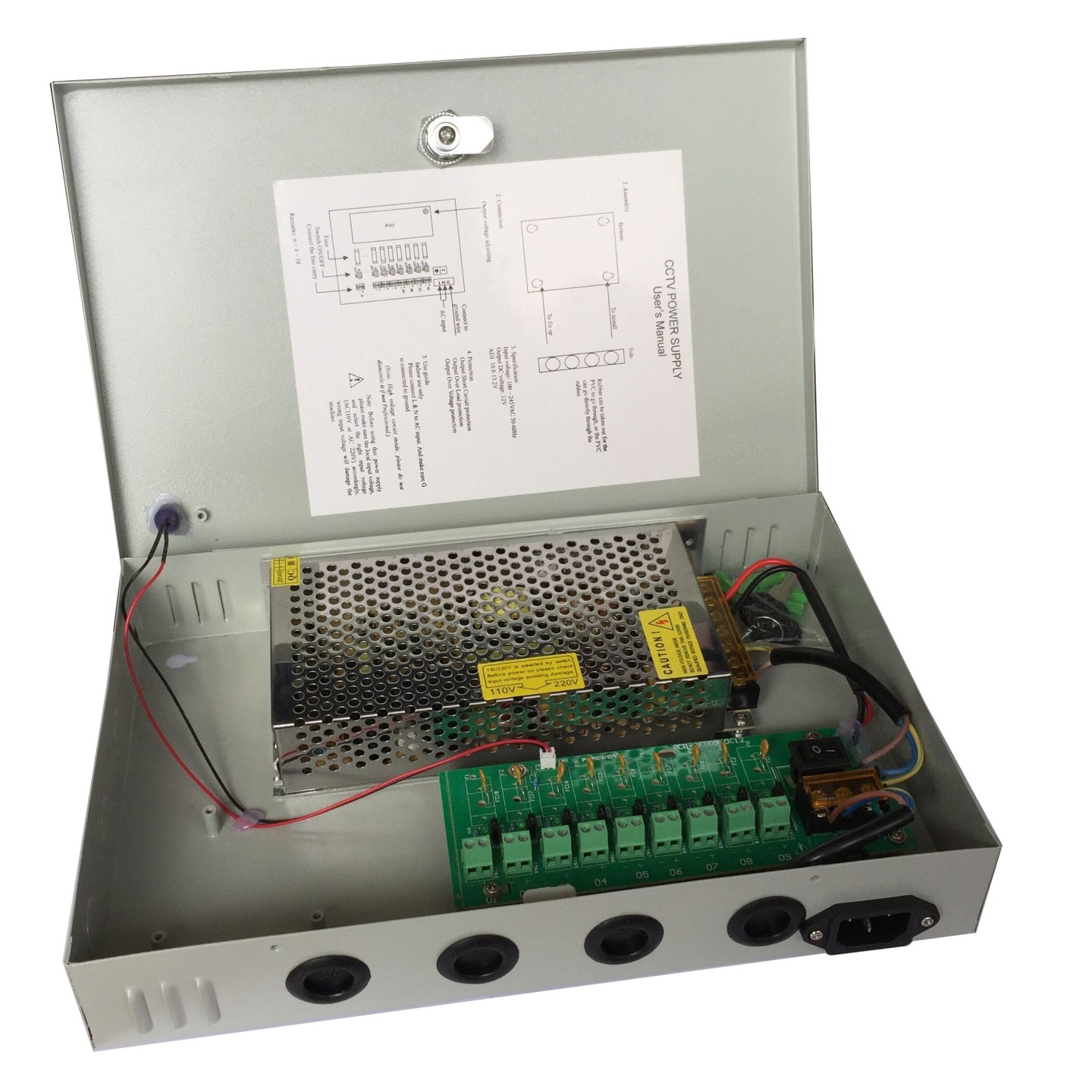

DigitMX Power Supply - DMX-PSU1210M - 12V 10A metal
Efficient, eco-friendly switching power supply with a robust metal frame, optimized for easy system integration.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|---|
| Power Supplies - Output Current | 10 A |
- Use of efficient, environment-protection switching power supply circuit frame
- Optimization of the shape and structure to facilitate the construction systems
- Small ripple-video output signal more stable, clear images
- Splitter output bypass failure to protect other equipment to work
- Power protection output over-voltage protection, over-current protection and short circuit protection
- Input:110/220VAC 50-60Hz
- Output:12V-10A-120W
- DC adjustment range: ±10%
- Input voltages range: 110/220V AC/50-60Hz
- Inrush current: 30-75A
- Leakage current: <0.7mA/230VAC
- Output voltage: 12V
- Output current: 10A
- DC adjustment range: ±10%
- Overload protection: 105%-135% rated output power
- Overvoltage protection: 105%-135% hiccup mode, auto-recovery
- Withstand voltage:
- I/P-O/P: 3kV AC
- I/P-FG: 1.5kV AC
- O/P-F/G: 0.5kV AC
- Working temperature: -20 to +70?
- Certifications: CE, RoHS Directive-compliant, FCC
| Type | Metal |
| Voltage | 12V |
| Ampers | 10A |
| Current | 10A |
