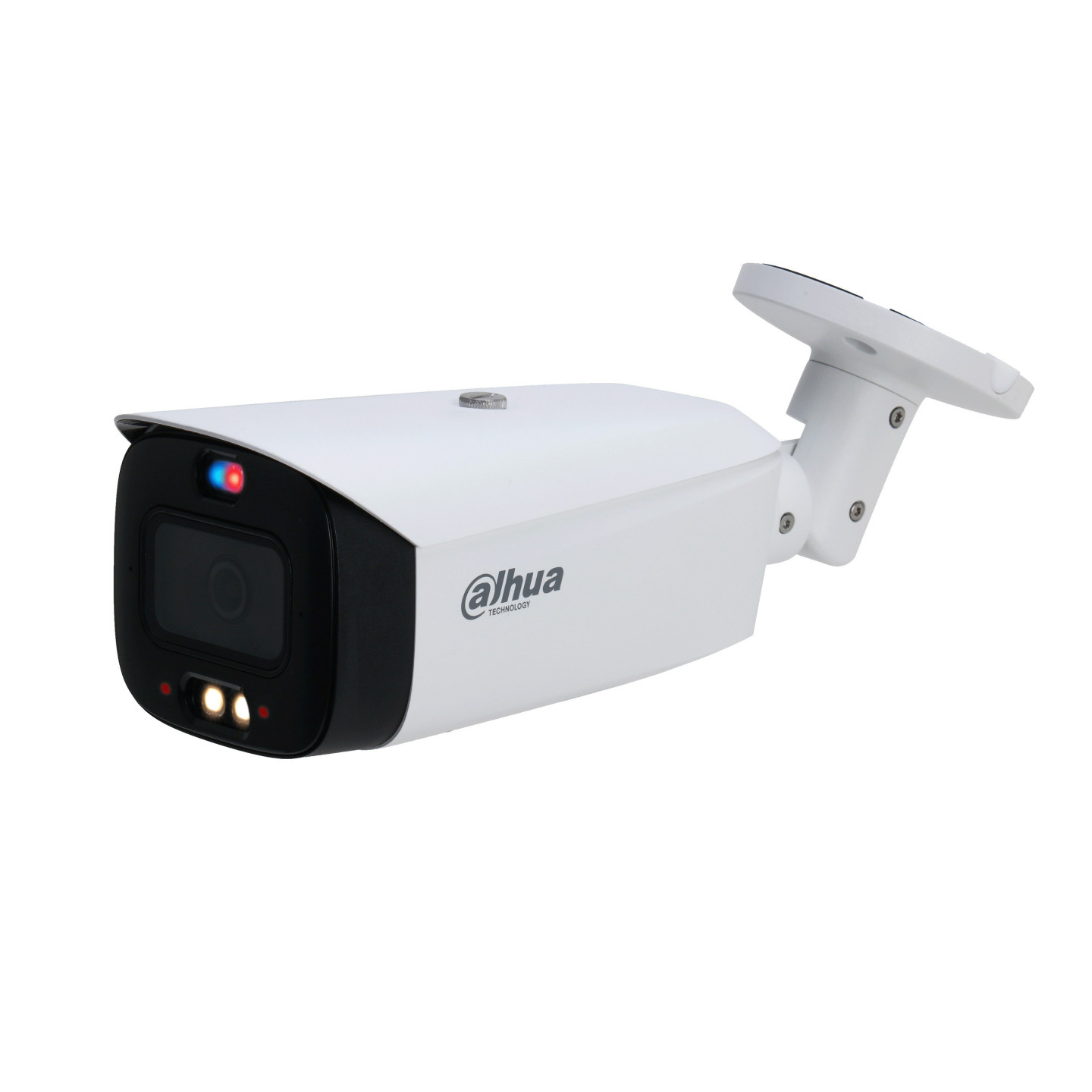

Dahua IP Lite AI - IPC-HFW3549T1-AS-PV-0280B-S5 - 5.0MP Bullet 2.8mm

• 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 5 MP (2960 ×1668) @20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
• 12 VDC/PoE power supply
• IP67 protection
• Sound and light alarm (red and blue lights)
• SMD 4.0
• Supports AI SSA and one-tap arming and disarming
• SMD area can be set in warm light areas that support triggering alarms

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2960 (H) × 1668 (V)
• ROM : 256 MB
• RAM : 1 GB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.003 lux@F1.0 (Color, 30 IRE) / 0.0003 lux@F1.0 (B/W, 30 IRE) / 0 lux (illuminator on)
• S/N Ratio : ﹥ 56 dB
• Illumination Distance / 30 m (IR) / 30 m (warm light)
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number : 2 (IR LED) / 2 (warm light)

Lens

• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length : 2.8 mm
• Field of View : 2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
• Iris Type : Fixed
• Close Focus Distance : 2.8 mm:  1.5 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• SMD : SMD 4.0
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
• AcuPick : Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
• AI SSA : Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• AI Coding : AI H.265; AI H.264
• Video Frame Rate : Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) / Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) / Third stream: 1920 × 1080@(1 fps–30 fps). The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
• Stream Capability : 3 streams
• Resolution : 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 3 kbps–20480 kbps / H.265: 3 kbps–20480 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• Scene Self-adaptation : Yes
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Defog : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas
• LDC : Yes

Audio

• Built-in MIC : Yes, built-in dual Mic
• Built-in speaker : Yes, built-in speaker
• Audio Compression : PCM; G.711a; G.711Mu; G.726; G.723

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

• Network : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
• User/Host : 20 (Total bandwidth: 72 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser : IE: IE8/9/11 / Chrome / Firefox
• Management Software : Smart PSS Lite; DSS; DMSS
• Mobile Phone : iOS; Android

Certification

• CE-LVD: EN 62368-1;
• CE-EMC: Electromagnetc Compatbility Directve
• 2014/30/EU

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: 5mA 3V–5 VDC
• Alarm Output : 1 channel out: 300mA 12 VDC

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption :  Basic: 3.7 W (12 VDC); 4.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE)

Environment

• Operating Conditions : –40 °C to +60 °C /Less than 95% RH
• Storage Conditions : –40 °C to +60 °C
• Protection Grade : IP67

Structure

• Casing : Metal + plastic
• Dimensions : 288.4 mm × 94.4 mm × 84.7 mm (L × W × H)
• Net Weight : 1.0 kg
• Gross Weight : 1.23 kg
