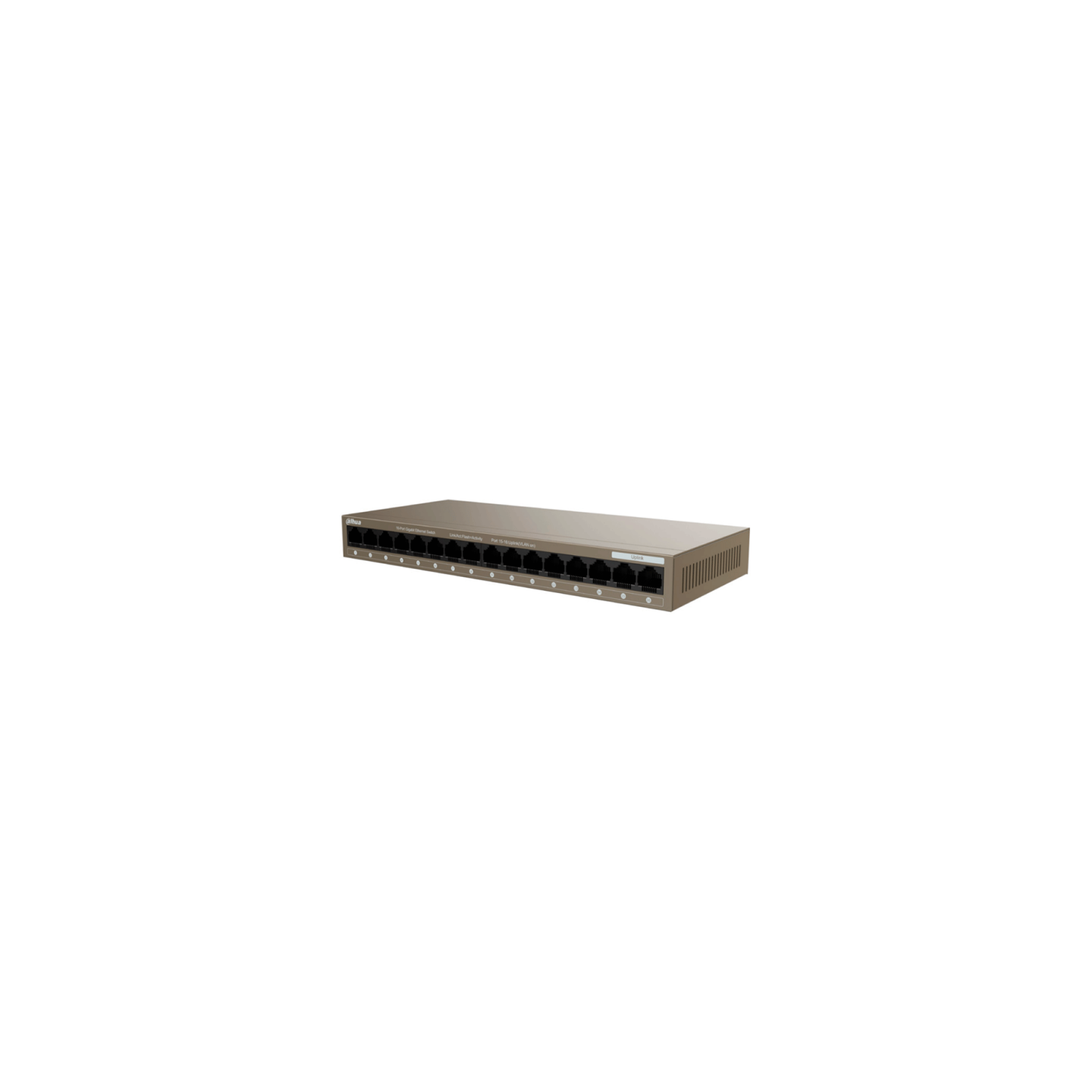

Dahua Ethernet Switch - PFS3016-16GT-M - 16 port Gigabit

• Fast forwarding: All ports can run at their highest speed at the same time, with no pressure running in concurrent flow scenarios
• Plug and play: Just power-on and enjoy your device. No configuraiton required. It is suitable for forwarding scenarios
• Fanless design: A fanless design is used to effectively reduce noise and create a quiet, serene environment. Its design also reduces mechanical loss to a certain extent and increases service life
• Flexible installation: Supports multiple installation methods such as desktop mount and wall mount. Suitable for various installation scenarios

Hardware

• Power Adapter Provided : Yes
• PoE : Not supported
• Ethernet Port : 16
• Ethernet Port Speed : 10/100/1000 Mbps
• Ethernet Port Uplink Speed : 10/100/1000 Mbps
• Description of Function Slots : Port 1-16: 16 × RJ-45, 10/100/1000 Mbps
• Power Supply : 12 VDC external power supply
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 5%–95% (RH)
• Storage Temperature : –40 °C to +85 °C (–40 °F to +185 °F)
• Storage Humidity : 5%–95% (RH)

Performance

• Layer : Layer 2
• Management Type : No
• Switching Capacity : 32 Gbps
• Packet Forwarding Rate : 23.68 Mpps
• Packet Buffer Size : 2 Mbit
• Jumbo Frame : 10K Byte
• MAC Table Size : 8K
• Communication Standard : IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab

General

• Statics Protection : Air discharge: 8 kV Contact discharge: 6 kV
• Lighting Protection : Common mode: 2 kV Differential mode: 1 kV
• Product Dimensions : 235 mm × 103 mm × 27 mm
• Casing : Metal
• Installation : Desktop mount; wall mount
