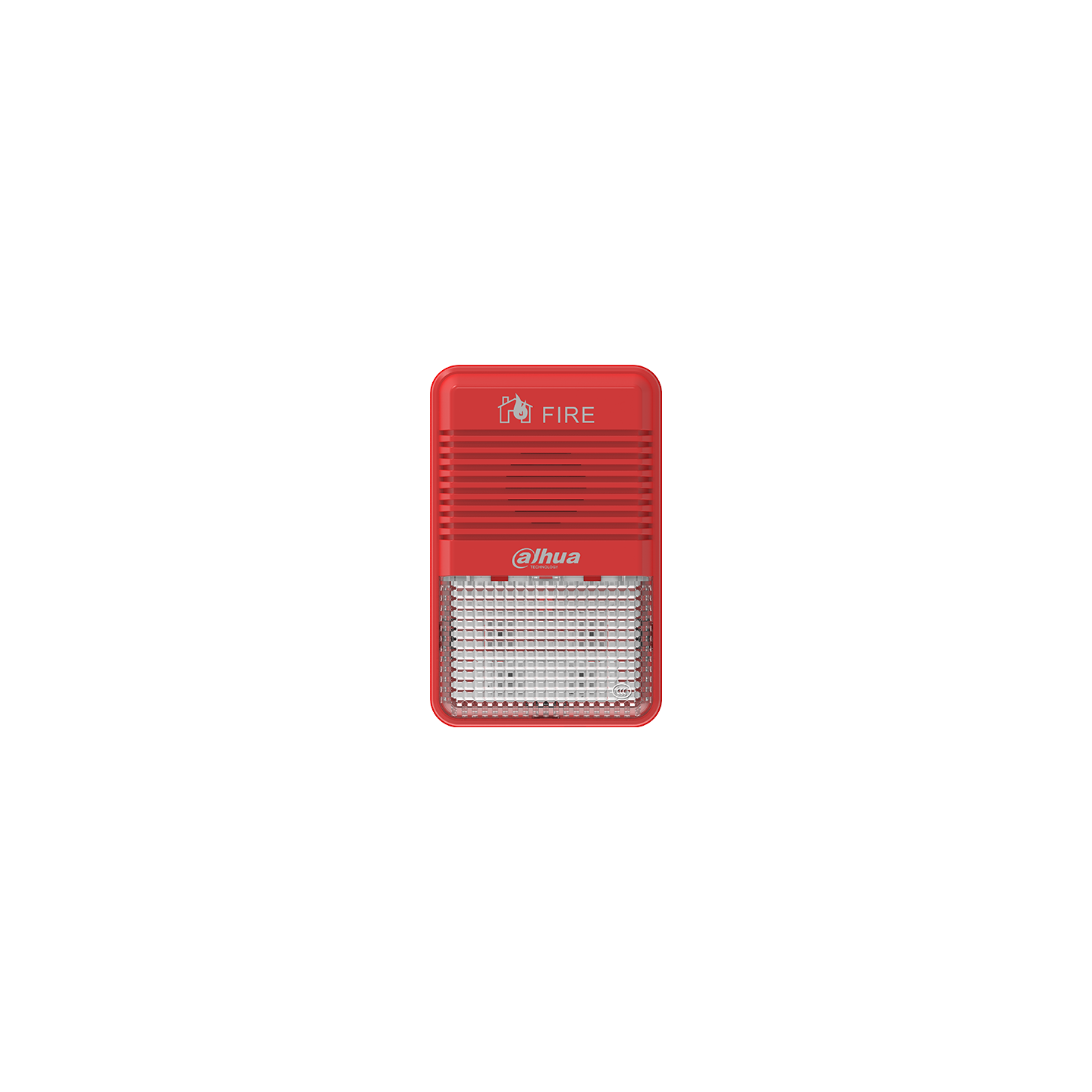

Dahua Conventional Fire Alarm Sounder - HY-C151 - With Base
EN54-compliant conventional fire alarm sounder with base; two-wire polarity-free wiring; EMC tested; low power; loud output >75 dB(A) at 3 m; corrosion-resistant contacts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Ultra-low consumption and strong loading capacity
- Loud sound output over 75 dB(A) at 3 meters, accompanied with bright alarm signal
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
- Working Voltage : DC16V-DC28V
- Rated Power : 132.6mW
- Current : Standby current: ≤ 400μA / Alarm current: ≤ 8mA
- Alarm Mode : Visual and audible alarm
- Alarm Volume : Modified Tone:4s-5s / Sound Pressure Level:75dB-115dB (A) at 3 m (9.84 ft)
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Dimensions (with base) : 125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")
- Weight (with base) : 118 g (0.26 lb)
- Installation : Wall Mount
- Compliance Standard : EN54-3:2014,EN54-23:2010
