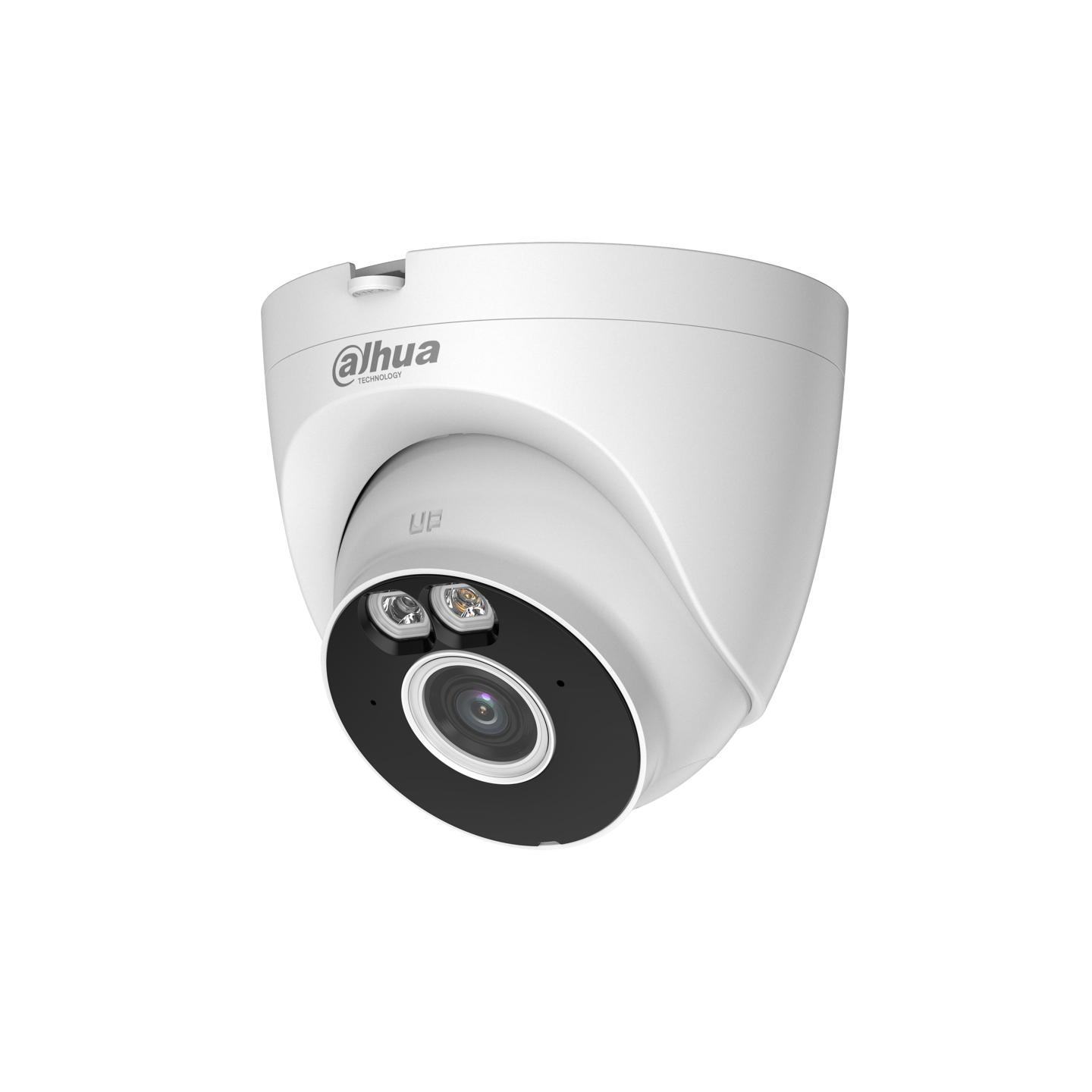

Dahua IP - T5A-PV - 5.0MP Wifi Dome Dual Illumination

Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.

Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 2880 (H) × 1620 (V)
• Min. Illumination: 0.007 lux@F1.6 (Color, 30 IRE) / 0.0007 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• Illumination Distance: Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)
• Illuminator Number: 1 (IR LED); 1 (Warm light)
• Angle Adjustment: Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Focal Length: 2.8 mm; 3.6 mm
• Max. Aperture: F1.6
• Field of View: 2.8 mm: H: 108°; V: 57°; D: 129° / 3.6 mm: H: 89°; V: 48°; D: 104°

Intelligence

• Human Detection: Yes
• Vehicle Detection: Yes

Audio and Video

• Video Compression: H.264B; H.264; H.264H; H.265
• Video Frame Rate: Main stream: 2880 × 1620@(1–25/30 fps) / Sub stream: 640 × 360@(1–25/30 fps) / Values above are maximum per stream; total limited by encoding capacity.
• Video Bit Rate: H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps
• Day/Night: Auto (ICR)/Color/B/W
• WDR: DWDR
• Image Rotation: 0°/180°
• Built-in MIC: Yes, built-in Mic
• Built-in Speaker: Yes, built-in speaker
• Audio Compression: G.711a; G.711Mu; PCM

Network

• Network Port: RJ-45 (10/100 Base-T)
• Wi-Fi: IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
• Wi-Fi Pairing: Bluetooth pairing
• Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI
• Storage: Micro SD card (support max. 256 GB)
• Management Software: Smart PSS Lite; DSS; DMSS
• Mobile Client: iOS; Android

General

• Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU
• Power Supply: 12 VDC
• Power Consumption: Basic: 2.1 W (12 VDC); Max.: 7.1 W (12 VDC) (H.265 + warm light on + sound and light alarm)
• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95% (RH), non-condensing
• Protection: IP67
• Camera Button: Reset button
• Casing Material: Metal + plastic
• Product Dimensions: 102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
• Net Weight: 0.32 kg (0.71 lb)
