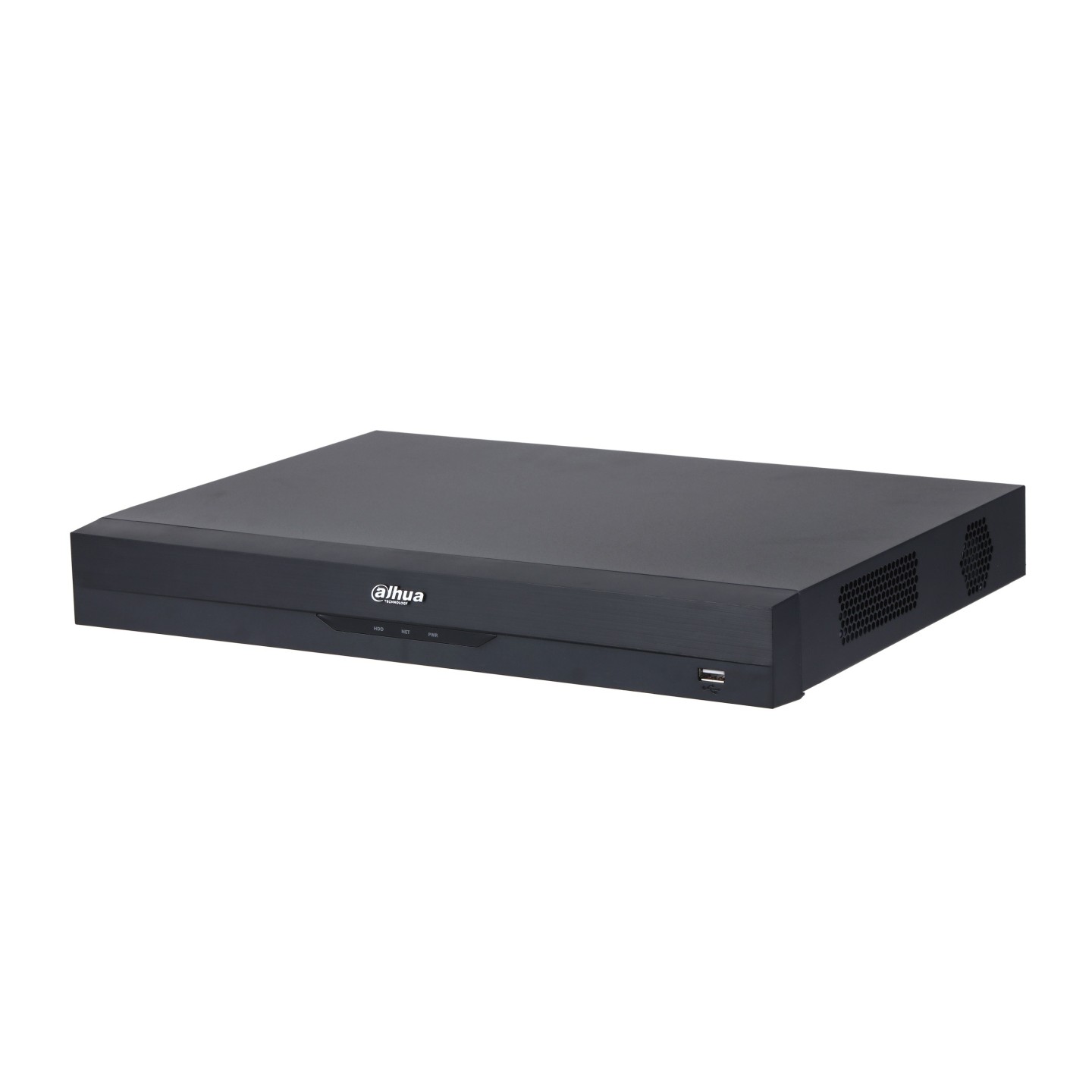

Dahua NVR 16ch 2HDD 256mbps H265 - NVR4216-EI

• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
• AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
• AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
• Connected to the third-party network cameras
• Security baseline 2.3

System

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web, Local GUI

AI

• AI by Recorder : Face detection; face recognition; perimeter protection; SMD Plus
• AI by Camera : Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map

Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels) : 2 channels, 10 IVS rules for each channel
• Perimeter Performance of AI by Camera (Number of Channels) P : 8 channels

Face Detection

• Face Attributes : Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels) : 1 channels (up to 12 face images/s each channel)
• Face Detection Performance of AI by Camera (Number of Channels) : 8 channels

Face Recognition

• Face Database Capacity :Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
• Face Recognition Performance of AI by Recorder (Number of Channels) :  8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s /  1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
• Face Recognition Performance of AI by Camera (Number of Channels) : 8 channels

SMD Plus

• SMD Plus by Recorder : 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera : 8 channels

Audio and Video

• Access Channel : 16 channels
• Network Bandwidth : AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing / AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
• Resolution : 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
• Decoding Capability : AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps / AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps
• Video Output : 1 HDMI, 1 VGA
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
• Multi-screen Display : 1st Screen: 1/4/8/9/16 / 2nd Screen: 1/4/8/9/16
• Third-party Camera Access : Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
• Compression Standard : Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG / Audio Compression : G.711a; G.711u; PCM; G726

Network

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome / IE 9 or later / Firefox

Recording Playback

• Multi-channel Playback : Up to 16 channels
• Record Mode : General, motion detection; intelligent; alarm; POS
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

• Disk Group : Yes

Alarm

• General Alarm : Motion detection; privacy masking; local alarm
• Anomaly Alarm : Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
• Intelligent Alarm : Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
• Alarm Linkage : Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

Port

• Audio Input : 1-channel RCA
• Audio Output : 1-channel RCA
• Alarm Input : 4 channels
• Alarm Output : 2 channels
• HDD Interface : 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature
• RS-232 : 1
• USB : 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• HDMI : 1
• VGA : 1
• Network Port : 1(10/100/1000 Mbps Ethernet port, RJ-45)

General

• Power Supply : 100–240 VAC, 47-63 Hz
• Power Consumption : Total output of NVR is ≤ 10W (without HDD)
• Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
• Net Weight : 2.60 kg
• Gross Weight : 3.80 kg
• Product Dimensions : 375.0 mm × 329.3 mm x 53.0mm (W × D × H)
• Packaging Dimensions : 451.0 mm × 170.0 mm × 425.0 mm (W × D × H)
• Operating Temperature : –10 °C to +55 °C
• Storage Temperature : –20 °C to +60 °C
• Operating Humidity : 10%–93% (RH)
• Installation : Rack or desktop
• Certifications : FCC: 47 CFR FCC Part15, SubpartB, Class A
• CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 / CE-LVD: EN 62368-1: 2014
