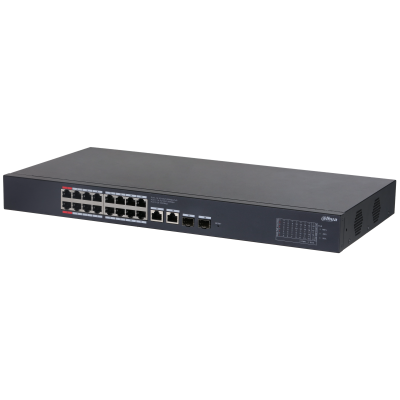

Dahua PoE Gigabit Switch 16ports 240W Cloud Managed - CS4220-16GT-240 - 16ports 240W Cloud Managed
Cloud-managed PoE switch with 16 Gigabit ports and 240W total PoE budget, supports 802.3af/at and 802.3bt standards.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Ports | 16 |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab,IEEE802.3z standards.
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Basic
- Switching Capacity : 40 Gbps
- Packet Forwarding Rate : 29.76 Mpps
- Description of Function Slots : Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)
- PoE Power : Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
- Layer : Layer 2
- Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity : 5% –95% (RH), non-condensing
- Power Supply : Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
- Power Consumption : Idling: ≤8.3 W ; Full load: 265 W
- Statics Protection : Air discharge: 8 kV; Contact discharge: 6 kV
- Lightning Protection : Common mode: 4 kV; Differential mode: 2 kV
- Net Weight :P 2.37 kg (5.21 lb)
- Product Dimensions : 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Hardware
- PoE : Yes
- Ethernet Port : 16
- Reset Button : 1
- Storage Temperature : –40 °C to +70 °C (–40 °F to +158 °F)
- Storage Humidity : 5%–95% (RH), non-condensing
Performance
- MTBF : 86.94 years
- Packet Buffer Size : 4 Mbit
- Jumbo Frame : 15K Byte
- MAC Table Size : 8K
- VLAN Number : 32
- Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
Feature
- PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- PoE Power Consumption Management : Yes
- PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）
- Long Distance PoE Transmission : Yes
- Ethernet Loop Protection : STP/RSTP
- VLAN Function : Port-based VLAN
- IEEE 802.3x Flow Control : Yes
- DHCP Function : DHCP Client
- Equipment Management : Web management; App management
General
- Gross Weight : 3.02 kg (6.64 lb)
- Packaging Dimensions : 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
- Casing Material : Sheet metal
- Installation : Desktop mount; rack mount
- Certifications : CE
Packing List
- Quick Start Guide × 1; Legal and Regulatory Information × 1; Power cord × 1; Rack-mount kit × 1
| Ethernet Speed | Gigabit |
| Poe Ports | 16 |
| Total PoE Power | 240W |
| Max. Watt per Port | 90W |
| Type | Cloud Managed |
| Housing | Metal |
| Mounting | Rackmounted |
| PoE Type | 802.3af/at |
| SFP Ports | 2 |
| Gigabit Uplink Ports | 2 x SFP/RJ45 Combo |
| Recommended for | VoIP Phones, IP Cameras |
