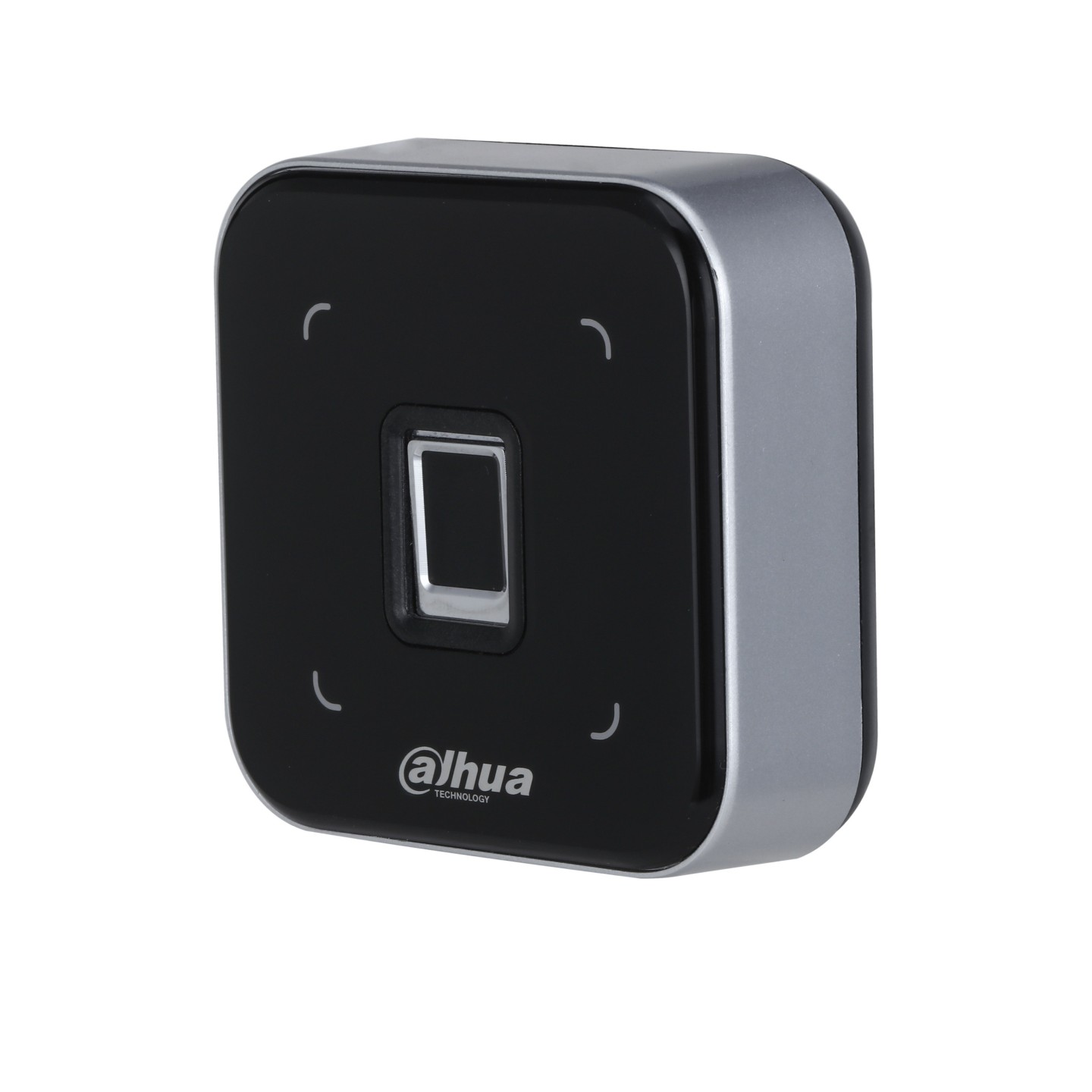

Dahua AC Fingerprint RFID - ASR2102A - Reader
PC material with acrylic panel, IP65 housing for indoor/outdoor use; supports contactless Mifare IC cards, card/fingerprint unlock, and RS-485.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader |
|---|
- PC material, acrylic panel and IP65, suitable for indoor and outdoor use
- Support contactless recognition of IC card (Mifare card)
- Support card/fingerprint unlock
- Support RS-485 communication protocol
- Support buzzer and indicator prompt
- Support anti-tampering alarm
- The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
- All connection ports have overcurrent and overvoltage protection
Basic
- Product Type : Fingerprint Card Reader
- Buzzer : Yes
- Casing : PC/acrylic panel
Function
- Unlock Mode : Card swiping/fingerprint / Multiple unlocking modes
- Card Type : IC card/ID card
Performance
- Response Time : 0.1 s
- Card Reading Distance : 0 cm–5 cm (0"–1.97")
- Fingerprint Sensor Type : Capacitive fingerprint sensor
- Fingerprint Verification Mode : 1:N
- Fingerprint Recognition Time : 1.5 s
Capacity
- Fingerprint Capacity : 3000
Port
- RS-485 : 1 channel
Alarm
- Tamper Alarm : Yes
General
- Power Supply : 12V 0.5A DC
- Protection : IP65 (silicon sealant is needed, see the manual)
- Power Consumption : Standby ≤ 1.0W, working ≤ 1.7W
- Product Dimensions : 70 mm × 70 mm × 26 mm (L × W × H)
- Packaging Dimensions : 110 mm × 97 mm × 90 mm (L × W × H)
- Operating Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : 5%RH–95% (non-condensing)
- Operating Environment : Indoor; outdoor
- Gross Weight : 0.17 kg
- Installation : Surface mount
- Certifications : CE; FCC
| Reader Frequency | Mifare (13.56MHZ) |
