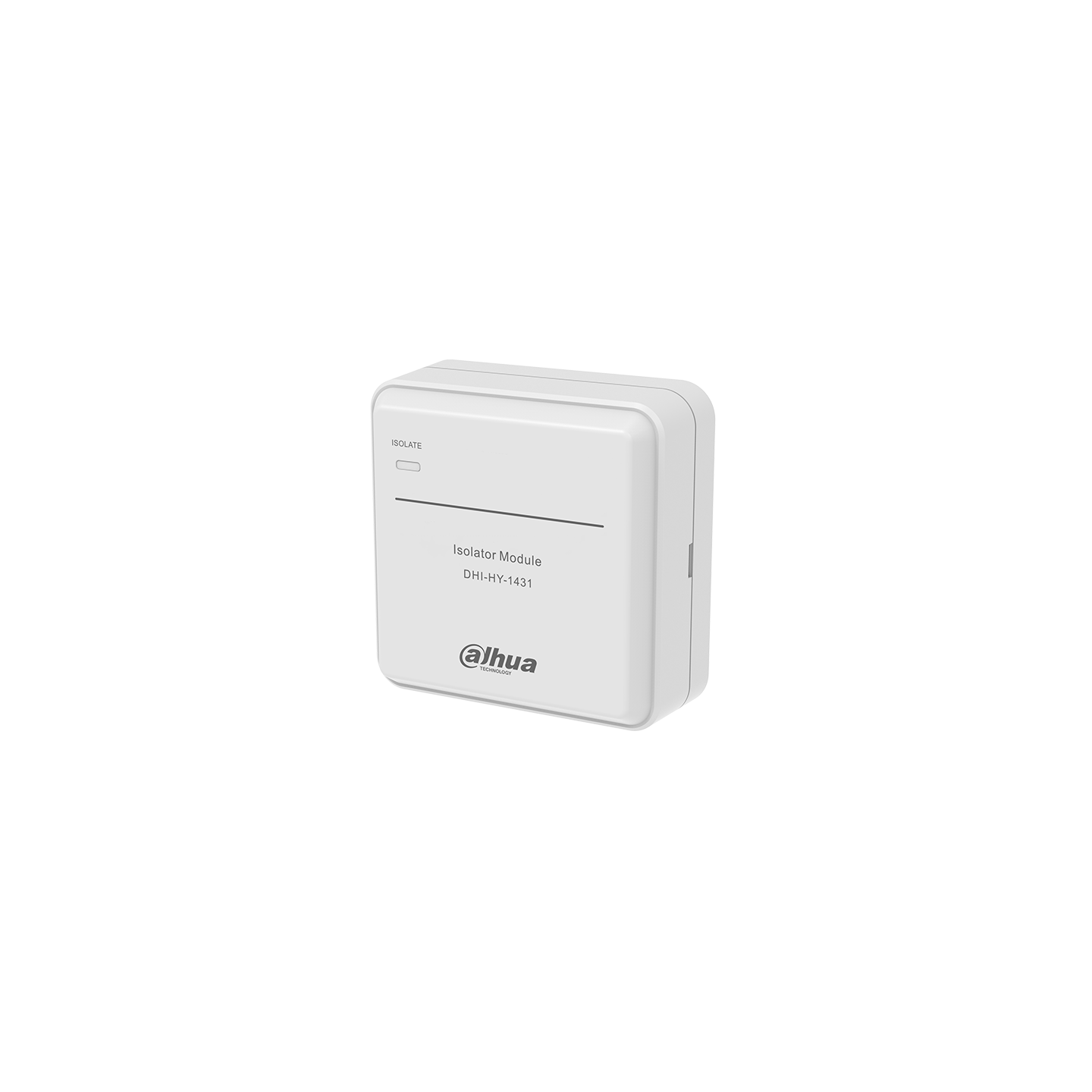

Dahua Addressable Fire Alarm Module Isolator - HY-1431R-CTXF - without Base
Automatically isolates loop shorts and restores when fault is cleared; LED status indicator; compatible with two-wire polarity-free addressable loops.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Automatic isolation of loop short circuits
- Automatic restoration when the fault is removed
- LED indicator for status and fault conditions
- Compatible with two-wire polarity-free addressable loops
- Compact design with base for quick installation
- Working Voltage : 24 V DC nominal
- Monitoring Current : ≤ 150 μA
- Alarm Current : ≤ 8 mA
- Short-Circuit Protection Current : ~ 450 mA
- Communication Wiring : Two-wire, polarity-free
- Maximum Loop Distance : ≤ 1500 m
- Operating Temperature : −10 °C to +55 °C
- Storage Temperature : −20 °C to +65 °C
- Humidity : ≤ 95% RH (non-condensing)
- Dimensions (with base) : 90 mm × 90 mm × 37 mm
- Weight (with base) : ~107 g
