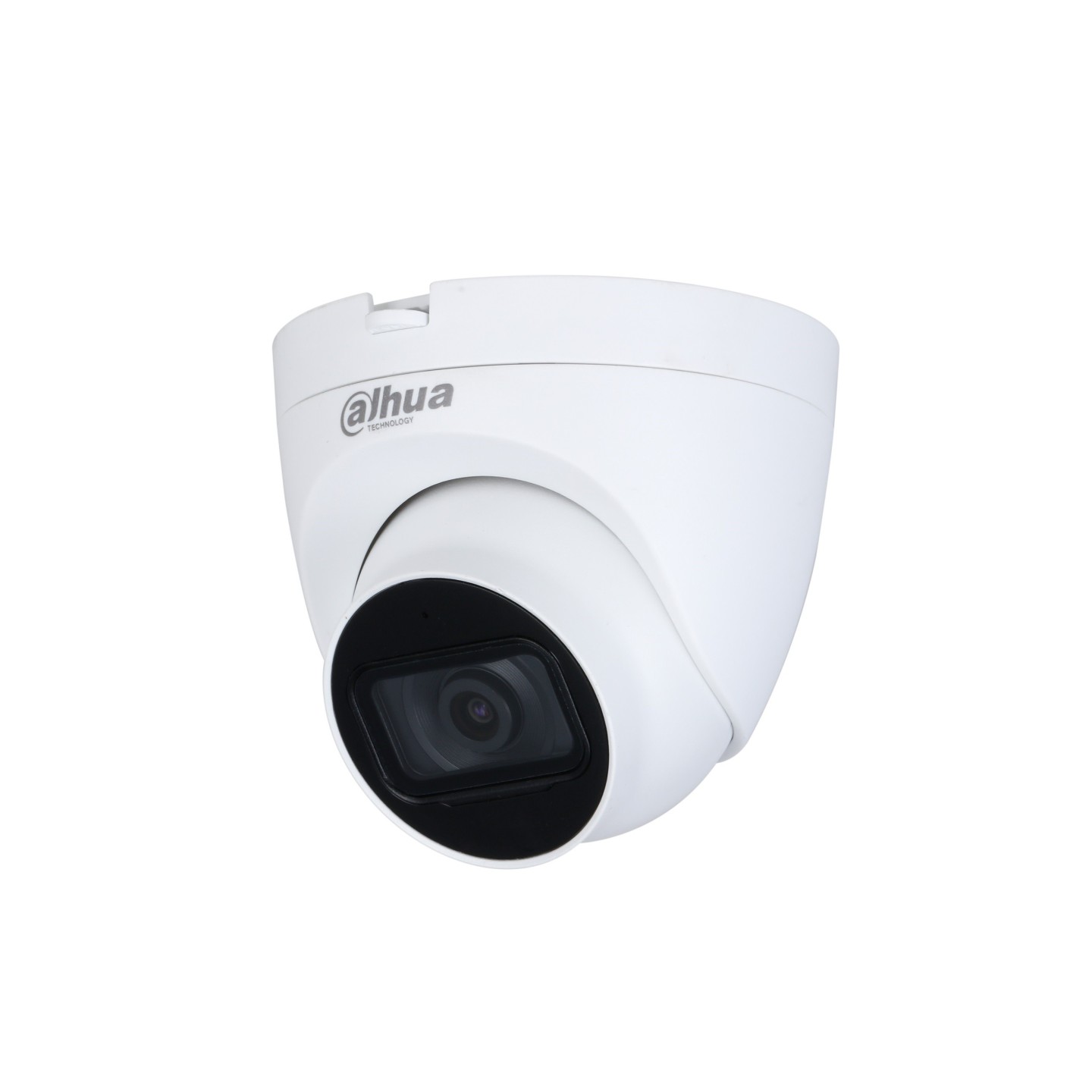

Dahua HDCVI 5.0MP Dome 2.8mm - HDW1500TLMQ-A-0280B-S2 - Dahua HDCVI 5.0MP Dome 2.8mm
Dahua HDCVI 5.0MP Dome 2.8mm camera with up to 25 fps at 5MP (16:9); quick-to-install eyeball.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version
- Max 25 fps@5MP (16:9 video output)
- Quick-to-install eyeball saves installation time
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm optional)
- Built-in mic(-A)
- Max. IR length 30 m, Smart IR
- IP67, DC12V
Camera
- Image Sensor : 1/2.7 inch CMOS
- Effective Pixels : 2880 (H) × 1620 (V)
- Electronic Shutter Speed : PAL:1/25s–1/100000s / NTSC:1/30s–1/100000s
- S/N Ratio : >65 dB
- Minimum Illumination : 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
- IR Distance : Distance up to 30m
- IR On/Off Control : Auto; manual
- IR LEDs Number : 1
Lens
- Lens Type : Fixed Lens / Fixed Iris
- Mount Type : M12
- Focal Length : 2.8 mm
- Max. Aperture : F1.6
- Angle of View : 132° × 111° × 58° (diagonal × horizontal × vertical)
- Close Focus Distance : 0.9M
Video
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×
- 1080); 960 H (960 × 576/960 × 480)
- Frame Rate : CVI:PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; / NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
- AHD: PAL: 4M@25 fps; / NTSC: 4M@30 fps
- TVI: PAL: 4M@25 fps; / NTSC: 4M@30 fps
- CVBS: PAL: 960H; / NTSC: 960H
- Day/Night : Auto switch by ICR
- BLC : BLC/HLC/DWDR
- WDR : DWDR
- White Balance : Auto; manual
- Gain Control : Auto; manual
- Noise Reduction : 2D NR
- Smart IR : Yes
- Mirror : Off/On
- Privacy Masking : Off/On (8 area, rectangle)
Certifications
- CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 623681:2014+A11:2017)
- FCC : (CFR47 FCC Part 15 subpartB,ANSI C63.4-2014)
- UL : (UL60950-1+CAN/CSAC22.2 No.60950-1)
Port
- Audio Interface : One channel built-in mic (-A)
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
- Power Supply : 12V±30% DC
- Power Consumption : Max 3.2W (12V DC, IR on)
Environment
- Operating Temperature : -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
- Storage Temperature : -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
- Protection Grade : IP67
Structure
- Casing : Metal dome+metal cover+plastic decorative ring
- Camera Dimensions : φ109.9 mm × 88.1 mm
- Net Weight : 0.33 kg
- Gross Weight : 0.44 kg
| Housing Type | Dome |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 5.0 MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
| Audio | Built-in Mic |
