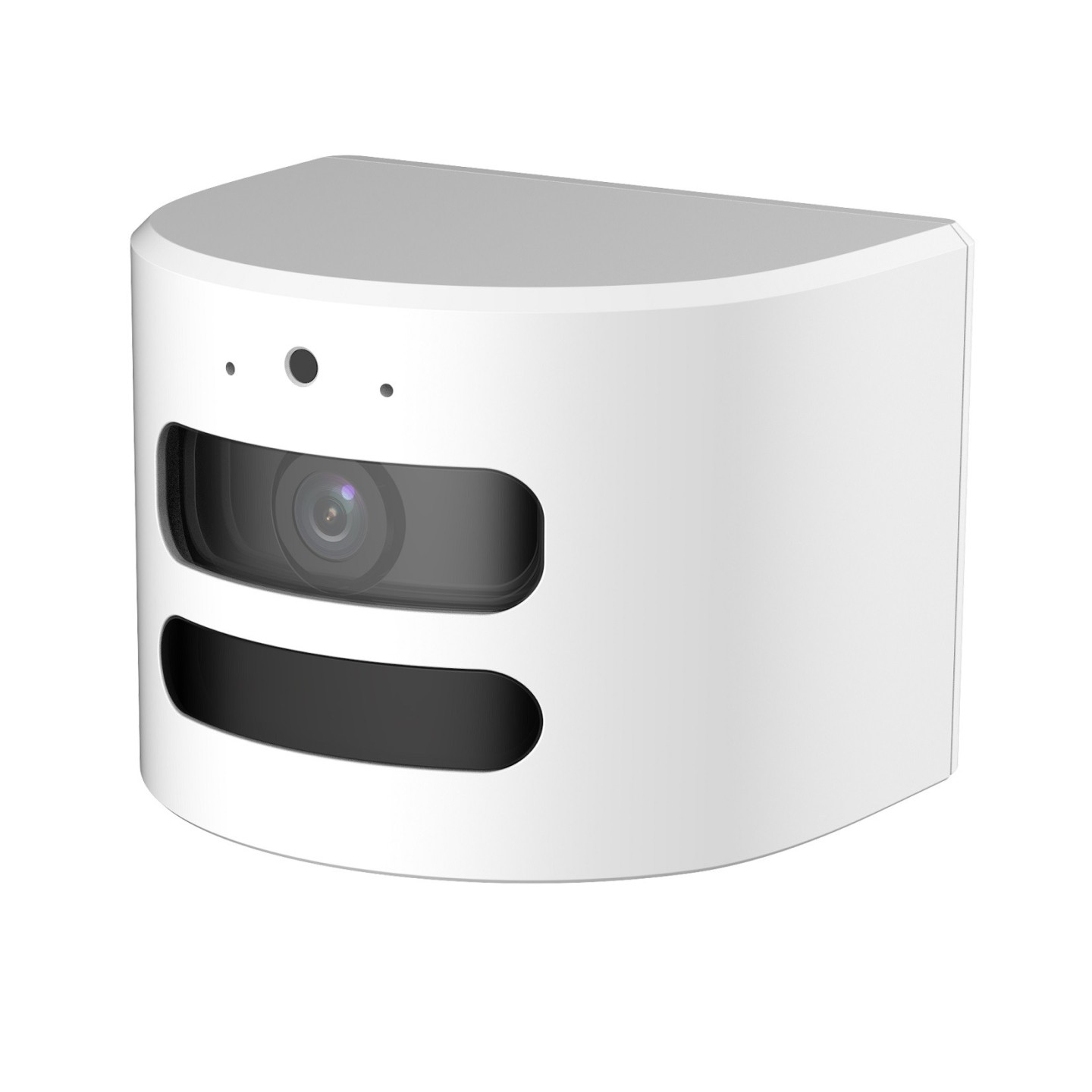

Dahua PIR Outdoor Triple-Tech Detector Add-on Camera - ARD1130-CAM - Add-on Camera
1.3 MP 1/3" CMOS camera with low-light performance; outputs up to 1.3 MP (1280 × 960); built-in IR LED with up to 15 m illumination.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Security Sensors - Type | PIR Motion |
|---|---|
| Security Sensors - Connectivity | Wireless (433/868 MHz) |
- 1.3-MP 1/3" CMOS image sensor, low luminance, and high definition image
- Outputs max. 1.3 MP (1280 × 960)
- Built-in IR LED, and the max. IR illumination distance is 15 m
Camera
- Image Sensor : 1/3" CMOS
- Max. Resolution : 1280 (H) × 960 (V)
- Electronic Shutter Speed : Auto 1/30 s–1/100,00 s
- Illumination Distance : Up to 15 m (49.21 ft) (IR)
- Illuminator On/Off Control : Auto
- Illuminator Number : 2 (IR LED)
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : H: 112°; V: 60°; D: 133°
- Iris Control : Fixed
- Close Focus Distance : 0.5 m
Video
- Resolution : 1.3M (1280 × 960); VGA (640 × 480); QVGA(320 × 240); (160 ×120)
- Day/Night : Auto(ICR)/Color/B/W
Certifications
- CE
Power
- Power Supply : Provided by siren: 3 VDC
- Power Consumption : Basic: 1.4 W / Max.: 3.6 W (IR + ICR switch)
Environment
- Operating Temperature : –25 °C to +60°C (–13 °F to +140 °F)
- Operating Humidity : ≤95% (RH), non-condensing
Protection
- IP66
Structure
- Casing Material : Plastic
- Product Dimensions : 80.0 mm × 64.6 mm × 58.4 mm (L × W × H)
- Gross Weight : 230.0 g
| Connectivity | Wireless |
| Installation | Wall |
| Communication | 2Way |
