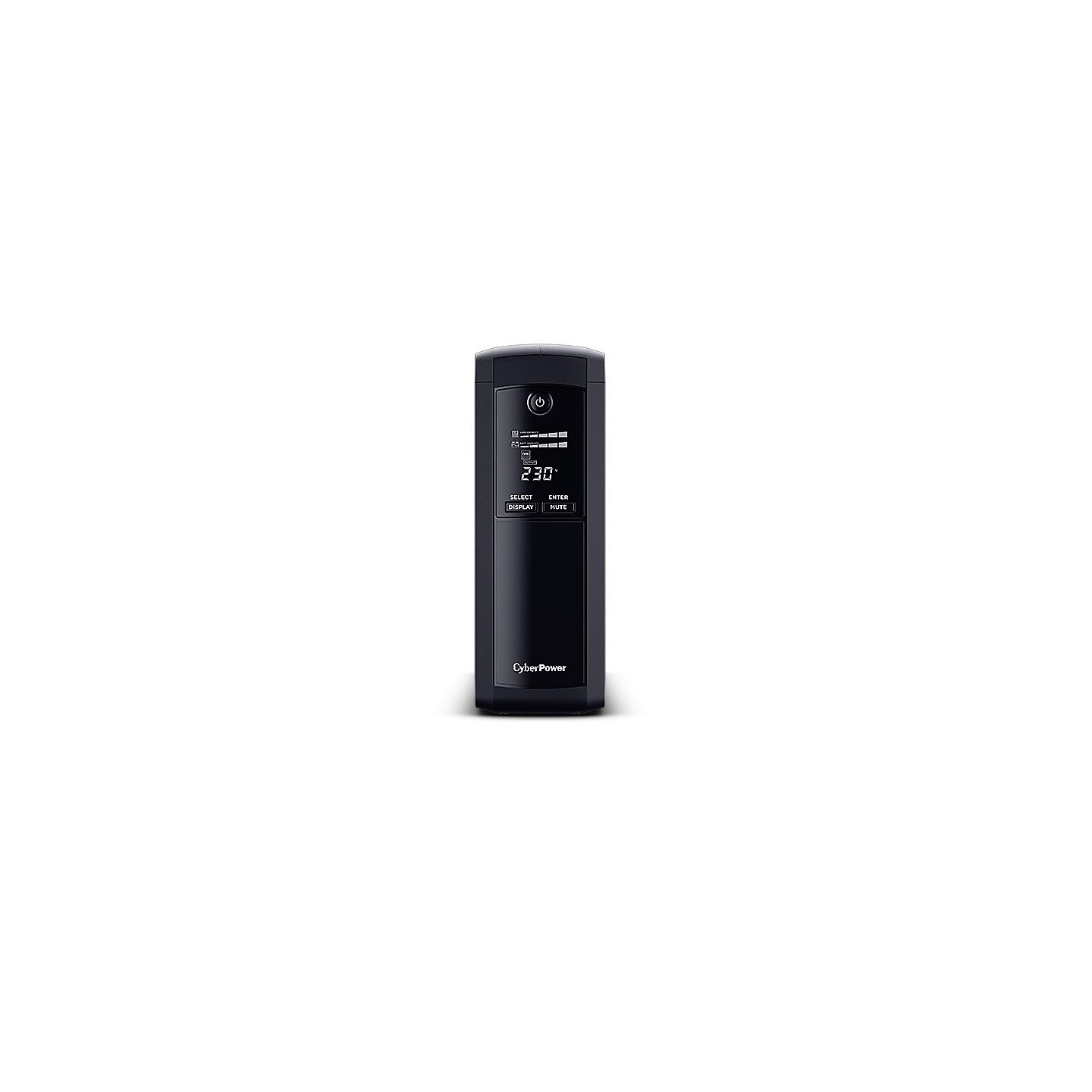

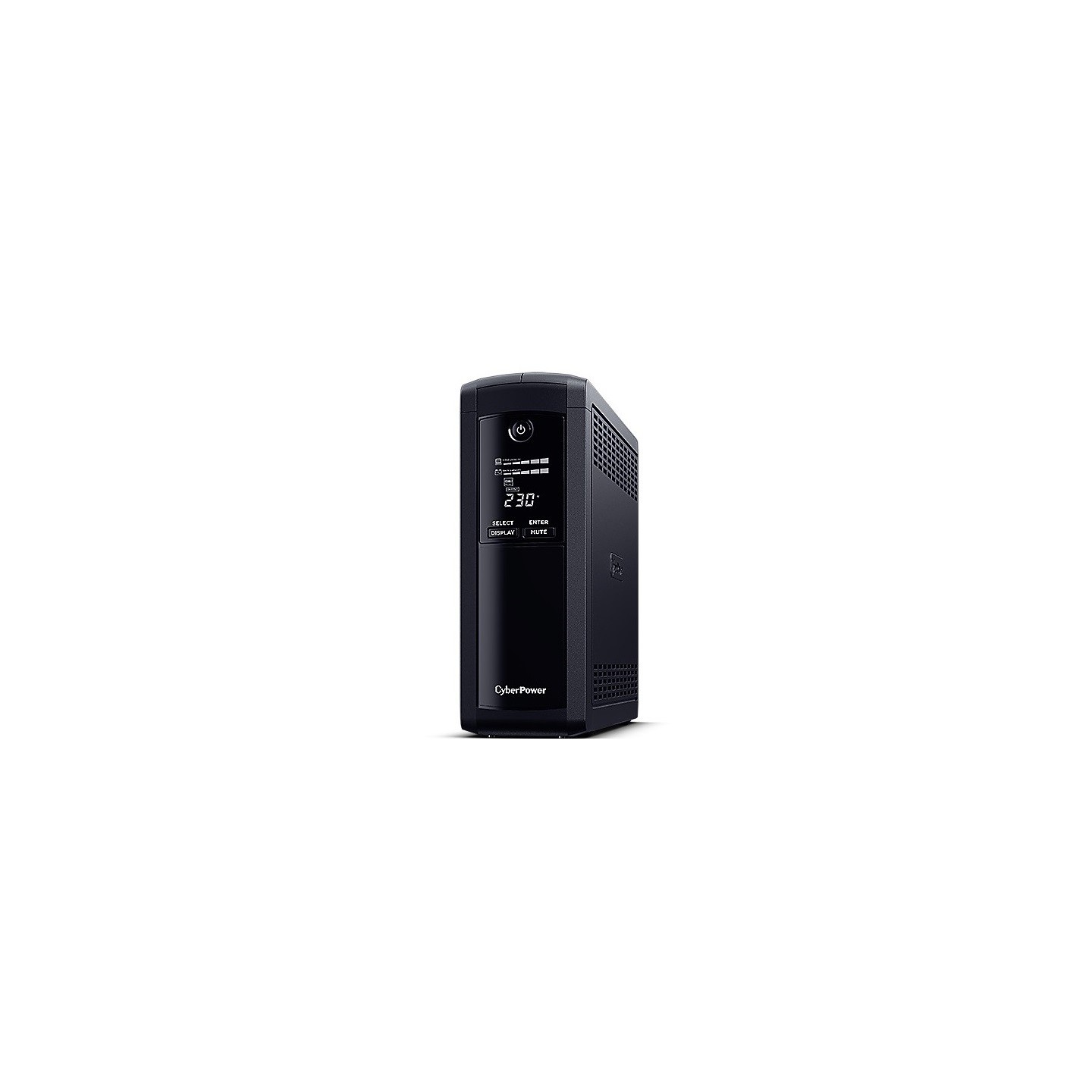

CyberPower VALUEPRO - VALUEPRO1600 - 1600VA Line Interactive UPS

CyberPower VP1600EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.

• Line-interactive UPS Topology
• Generator Compatible
• Automatic Voltage Regulation (AVR)
• High-speed Ethernet Data Transmission
• Surge and Spike Protection
• PowerPanel® Management Software
• Energy Saving Technology
• Simulated Sine Wave Output
• LCD Status Display
• USB Connectivity Port
• Serial Connectivity Port

To download the latest Power Panel software please visit the website below:

• Phase : Single Phase
• Form Factor : Tower
• UPS Topology : Line-interactive
• Energy Saving Technology : GreenPower UPS™ Bypass Technology

• Generator Compatibility : Yes
• Nominal Input Voltage ( Vac ) : 230 ± 10%
• Input Voltage Range ( Vac ) : 167 ~ 295
• Input Frequency ( Hz ) : 50 ± 5 60 ± 5
• Input Frequency Detection : Auto-sensing
• Rated Input Current ( A ) : 6.96
• Input Connector Type : IEC C14 　

• Capacity (VA) : 1600
• Capacity (Watts) : 960
• On Battery Waveform : Simulated Sine Wave
• On Battery Voltage(s) ( Vac ) : 230 ± 10%
• On Battery Frequency ( Hz ) : 50 ± 1% 60 ± 1%
• Automatic Voltage Regulation (AVR) : Single Boost, Single Buck
• Overload Protection : Circuit Breaker

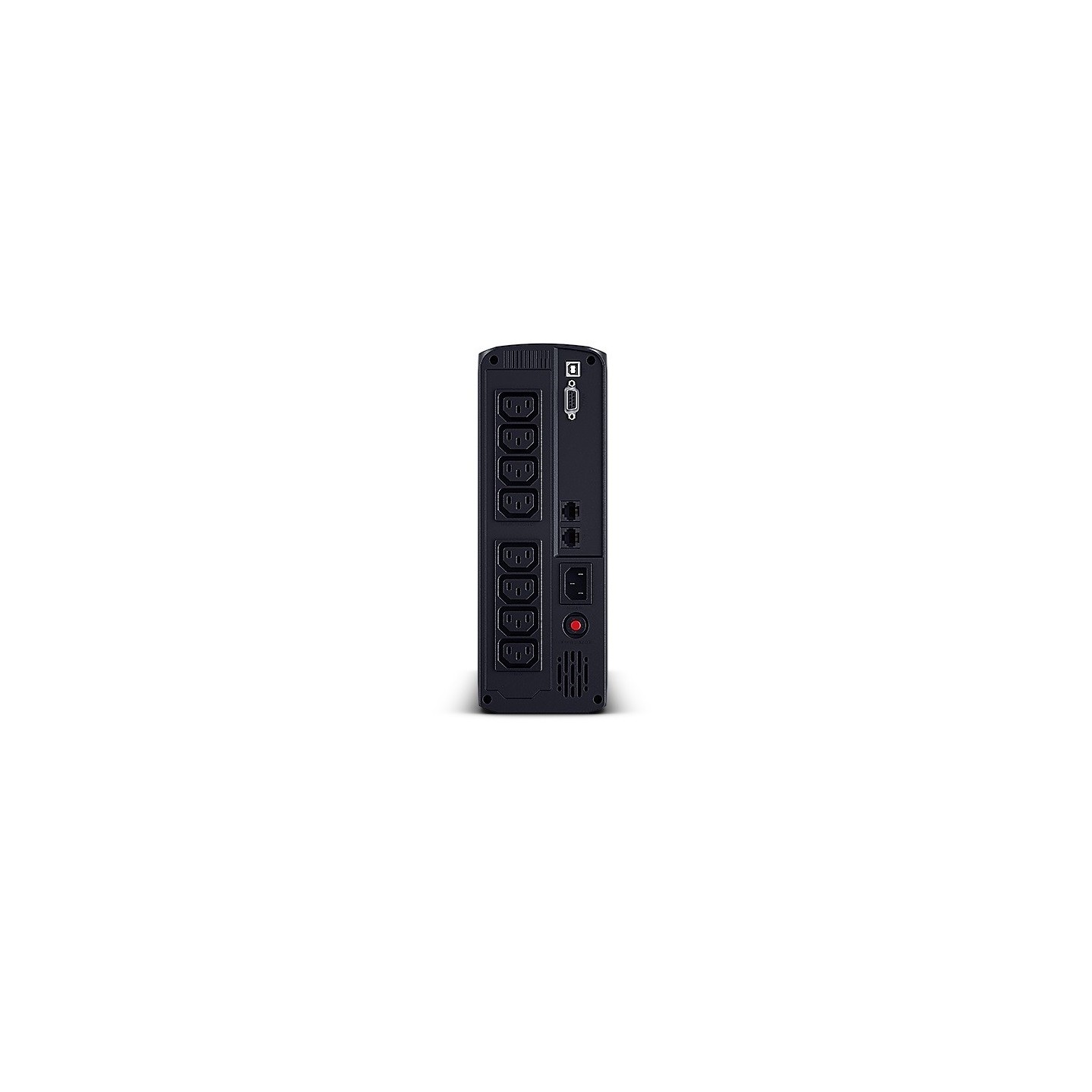

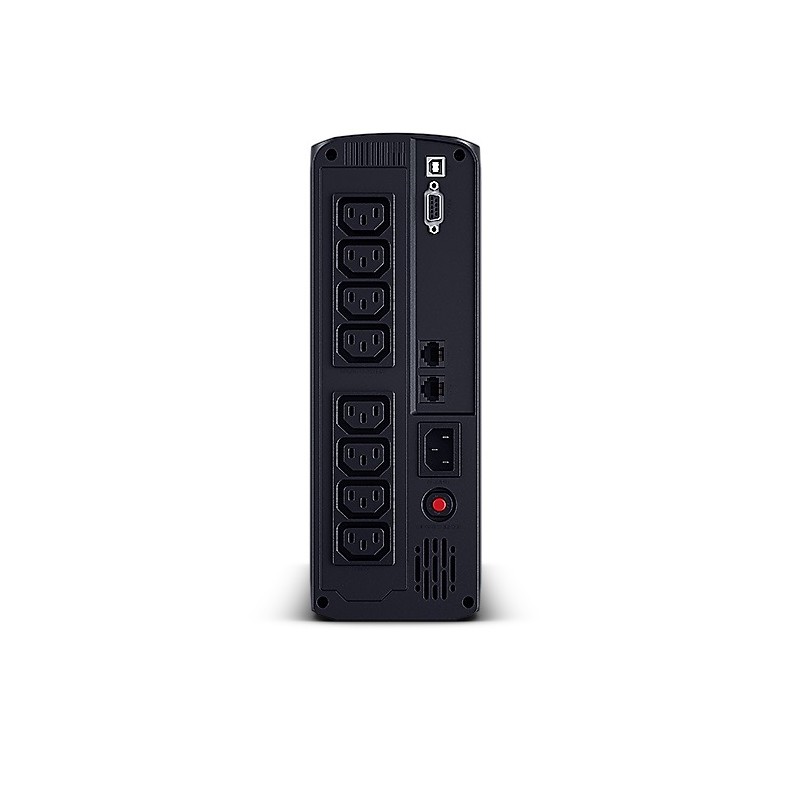

• Outlet(s) - Total : 8
• Outlet Type : IEC C13 x 8 　
• Outlet(s) - Battery & Surge Protected : 4
• Outlet(s) - Surge-Only Protected : 4
• Typical Transfer Time ( ms ) : 4

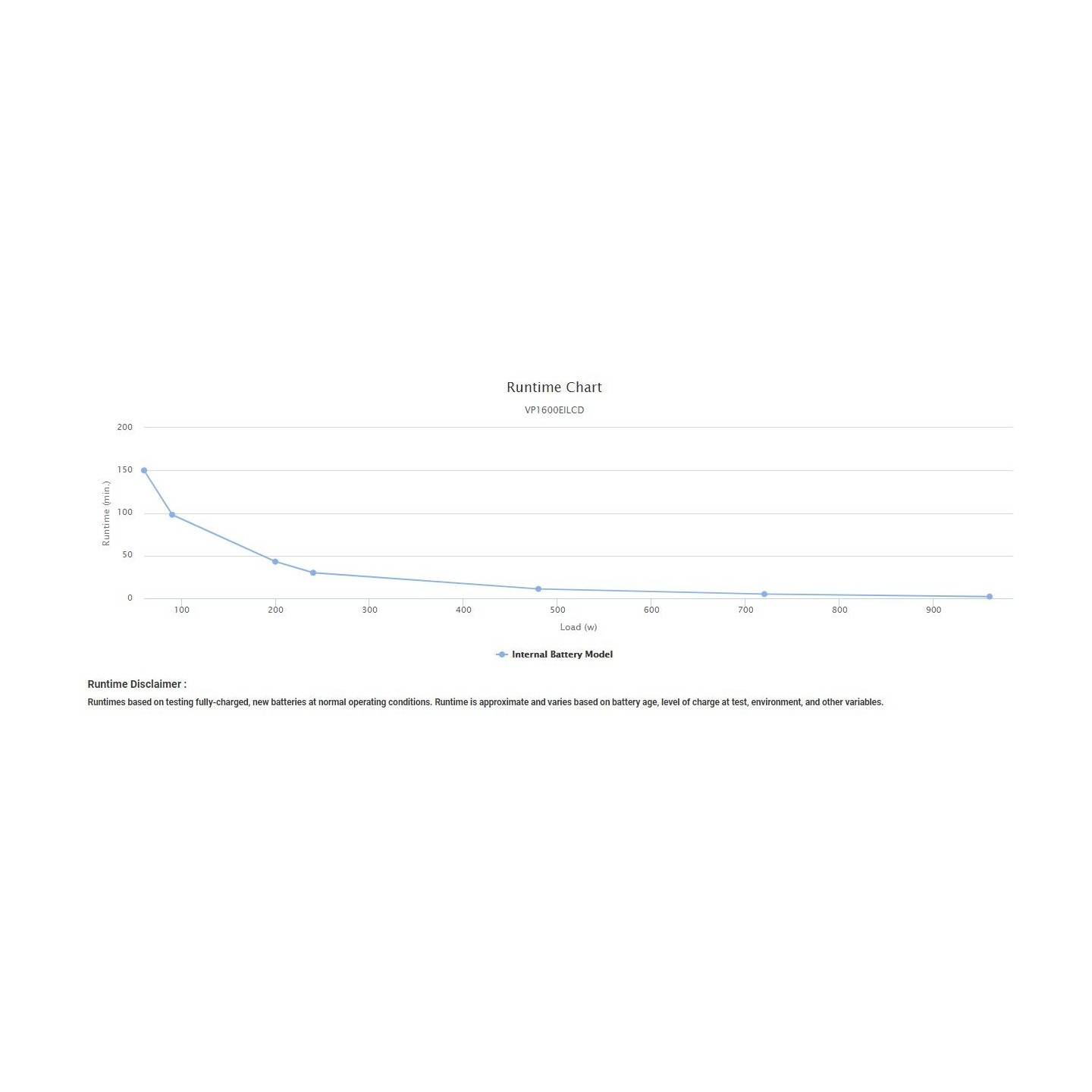

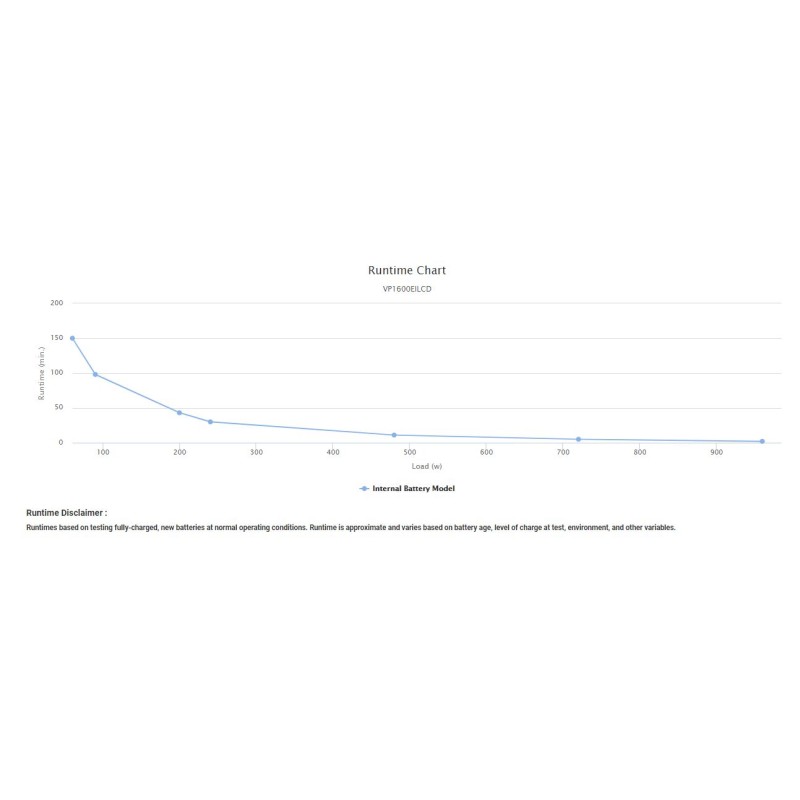

• Runtime at Half Load ( min ) : 11
• Runtime at Full Load ( min ) : 2
• Typical Recharge Time ( Hours ) : 8
• Start On Battery : Yes
• User-replaceable : Yes - Qualified Personnel Only
• Battery Type : Sealed Lead-acid

• Surge Suppression ( Joules ) : 450
• EMI/RFI Filtration : Yes
• Phone/Network Protection RJ11/RJ45 (Combo) : 1-in, 1-out
•

• LCD Panel : Yes
• LCD Information Display : Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information
• LCD Setting & Control : Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning
• LED Indicators : Power On
• HID Compliant USB Port(s) : 1
• Audible Alarms : Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable ( pcs ) : USB Cable x1
• Ethernet Data Transmission Speed : Up to 1Gbps
• Power Management Software : PowerPanel Personal (Recommended)

• Enclosure Construction : Plastic
• Color : Black

• Dimensions (WxHxD) (mm.) : 100 x 281 x 355
• Weight (kg.) : 10.42

• Dimensions (WxHxD) (mm.) : 430 x 384 x 165
• Weight (kg.) : 11.27
•

• Operating Temperature (°C) : 0 ~ 40
• Operating Relative Humidity (Non-condensing) ( % ) : 0 ~ 90
• Operating Elevation ( feet/meters ) : 0-9,843 feet (0-3,000 meters)
• Storage Temperature (°F) : -4 ~ 122
• Storage Temperature (°C) : -20 ~ 50
• Storage Relative Humidity (Non-condensing) ( % ) : 0 ~ 90
• Storage Elevation ( feet/meters ) : 0-9,843 feet (0-3,000 meters)
• Online Thermal Dissipation ( BTU/hr ) : 68
• Audible Noise at 1.0M from Surface of Unit ( dBA ) : 50

• Certifications : CE, EAC
• RoHS : Yes
