Unitek Type-C Hub - D1019A - USB3.1 with HDMI VGA GB SD PD100W
Powerful aluminium USB-C hub with USB 3.1 Gen1 data, 100W Power Delivery, 4K HDMI, full HD VGA, Gigabit Ethernet RJ45, and SD card reader.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Docks & Hubs - Type | USB-C Hub |
|---|---|
| Docks & Hubs - Host Interface | USB-C (DP Alt-Mode) |
| Docks & Hubs - Power Delivery (PD) | 100 W |
| Docks & Hubs - Video Outputs | HDMI |
| Docks & Hubs - Max Displays | 2 |
| Docks & Hubs - Max Resolution | 4K60 (single) |
| Docks & Hubs - Ethernet | 1GbE |
| Docks & Hubs - USB Ports | USB-A + USB-C |
| Docks & Hubs - Card Reader | SD |
| Docks & Hubs - Audio Jack | Yes |

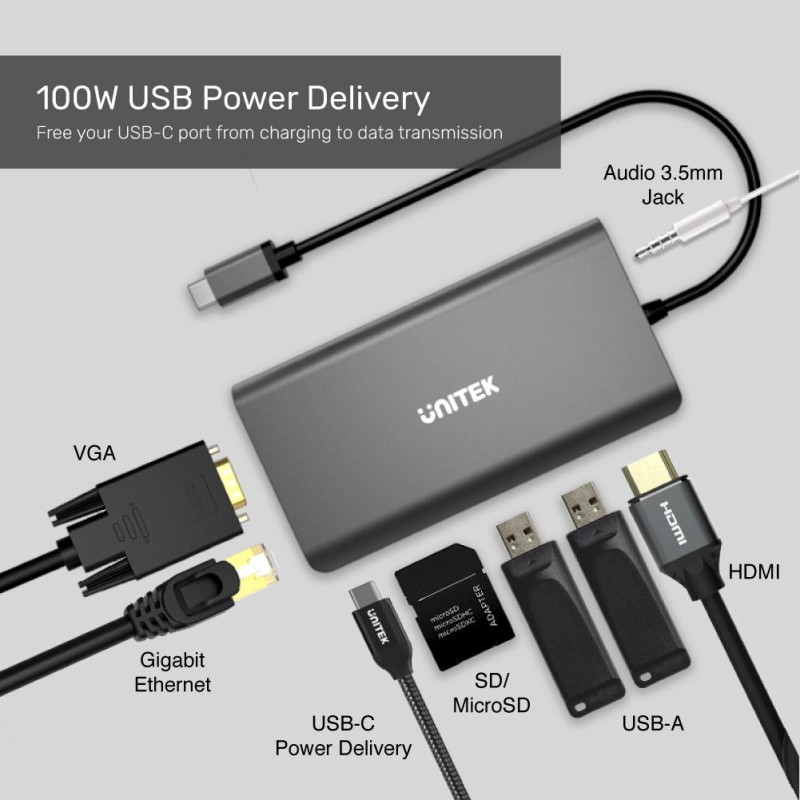

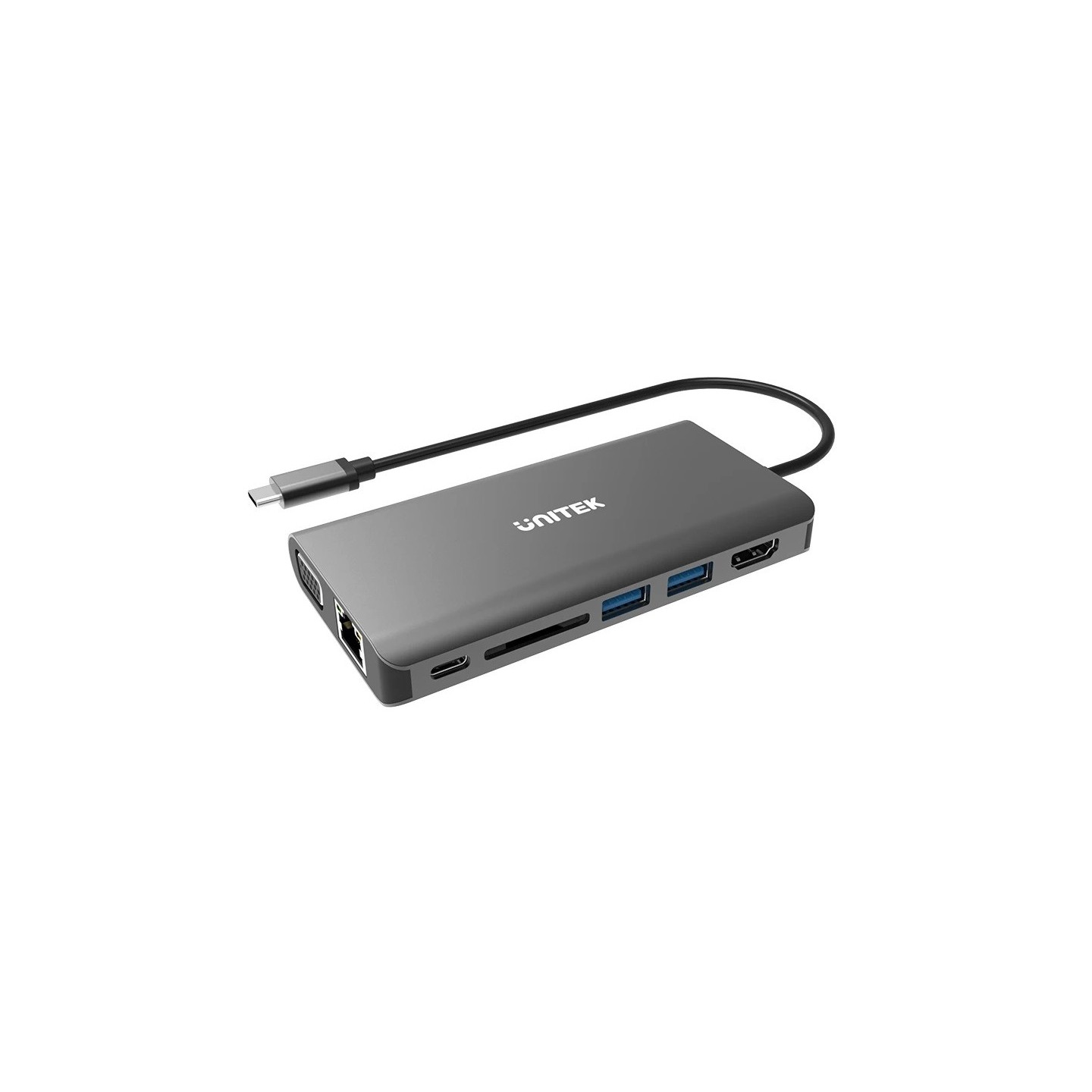

This powerful aluminium USB-C hub combines a USB-C port supporting USB 3.1 Gen1 5Gbps data plus the forceful Power Delivery 100W charging, 4K HDMI & full HD VGA, a Gigabit Ethernet RJ45, a card reader, dual USB ports and a 3.5mm audio jack.
- USB-C female port supporting USB Power Delivery Revision 3.0 Ver 1.1 is able to charge and syncsimultaneously, up to 100W (20V/5A) and 5Gbps.
- TWO USB-A female ports support SuperSpeed USB, data transfer rate up to 5Gbps. Backwardcompatible with USB2.0/USB1.1.
- With HDMI1.4 port, supports HDCP 1.4, output as 4K 30Hz resolution.
- With VGA port, supports Full HD 1080P resolution. While HDMI and VGA output ports work simultaneously, the max. resolution of both ports is 1080P 60Hz.

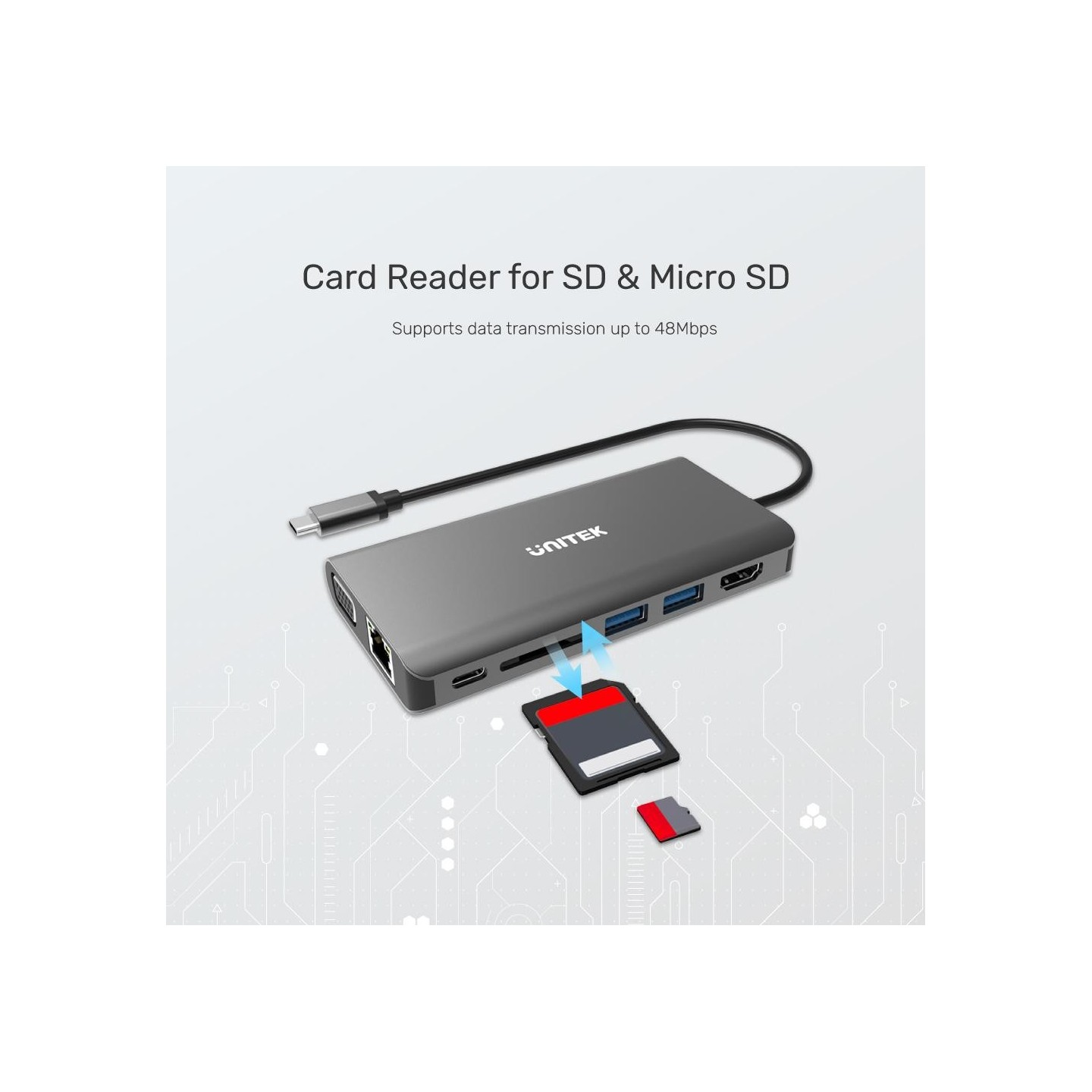

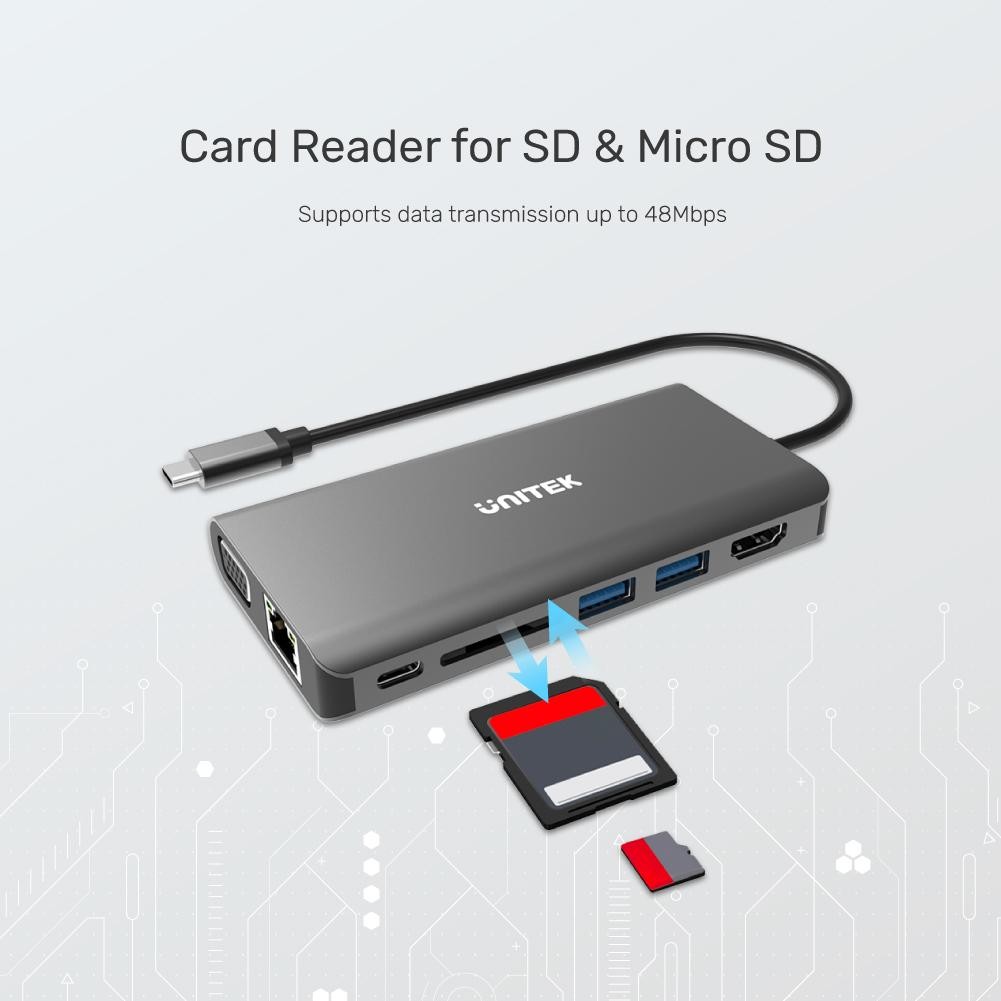

- With card reader for SD Card and Micro SD Card, up to 48Mbps.
- With 3.5mm jack adapter, supports 48 k/Hz with a16-bit sampling rate.
- Gigabit Ethernet for your internet connection, automatically adapts to the network transmission with 10M/100M/1000Mbps and supports IEEE 802.3 standard.
- Supports IPv4/IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading, Wake-on-LAN, half/full duplex and power management.
- Plug and play, no need to install the driver.
Hardware&Dimension:
- Dimension: 116mm x 61mm x16.2mm
- Upstream: USB3.1 Gen1 Type-C Male

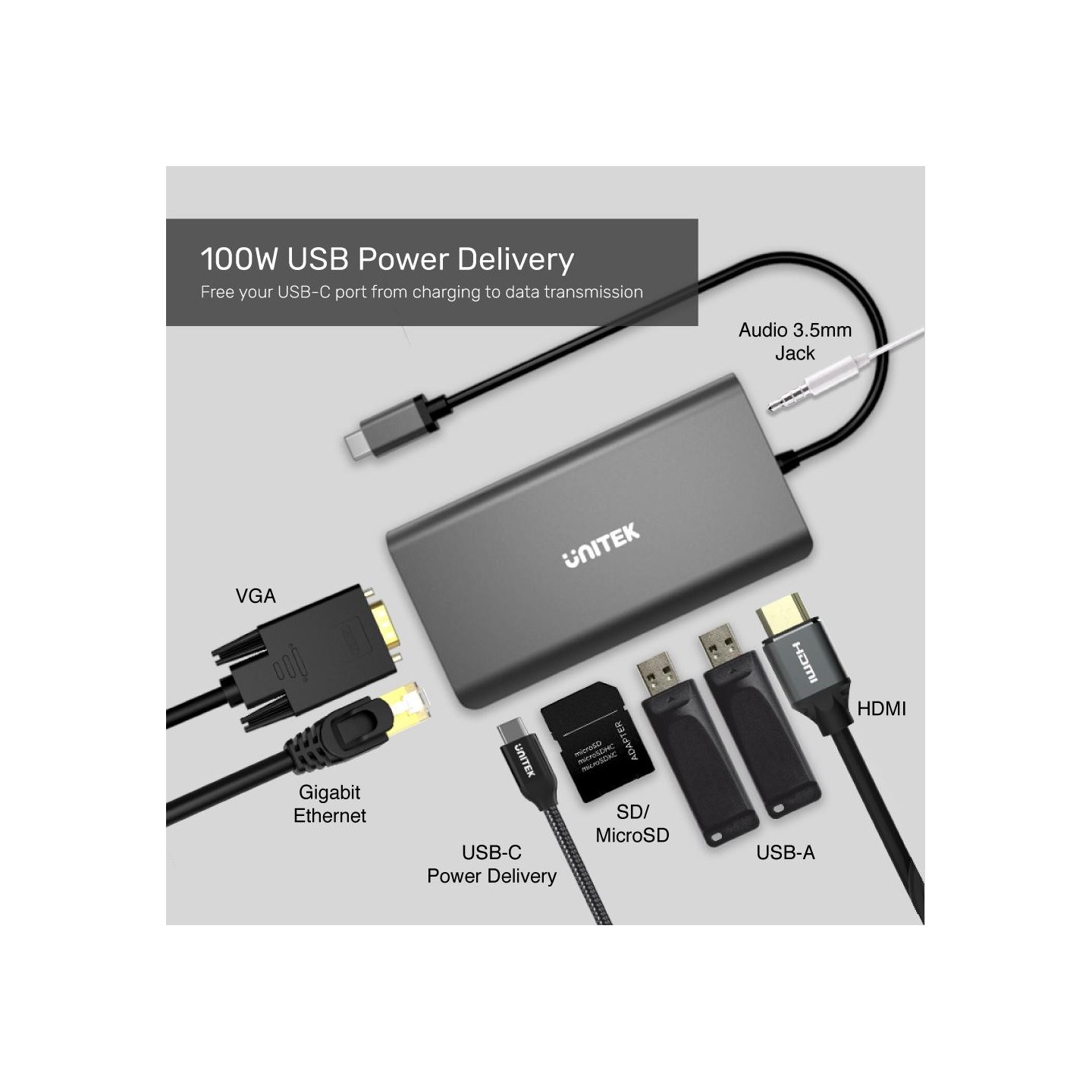

- Downstream: USB3.1 Gen1 Type-C with PD, 2 x USB3.1 Gen1 Type-A, HDMI, VGA, RJ45, SD Card Slot, Audio
- Color: Space Grey
Package Contents:

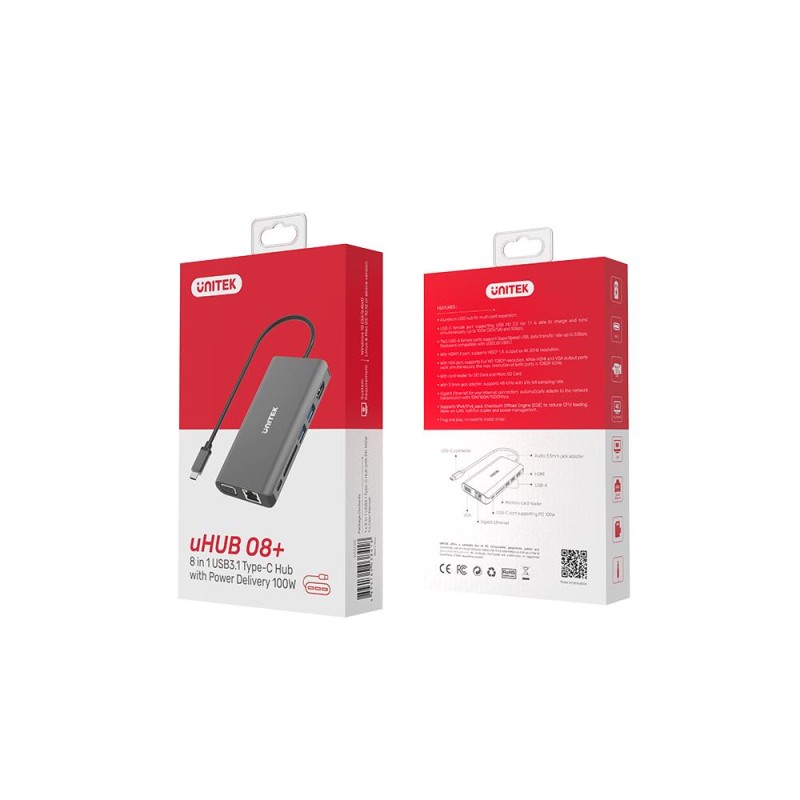

- 1 x uHUB O8+
- 1 x User Manual
| USB Type | Type C |
| USB Ports | 2 |
| USB Version | USB 3.1 Gen1 |
| HDMI Ports | 1 |
| VGA | Yes |
| Max. PD Output | 100W |
| Audio | Yes |
| Card Reader | Yes |
| Gigabit Lan | Yes |
