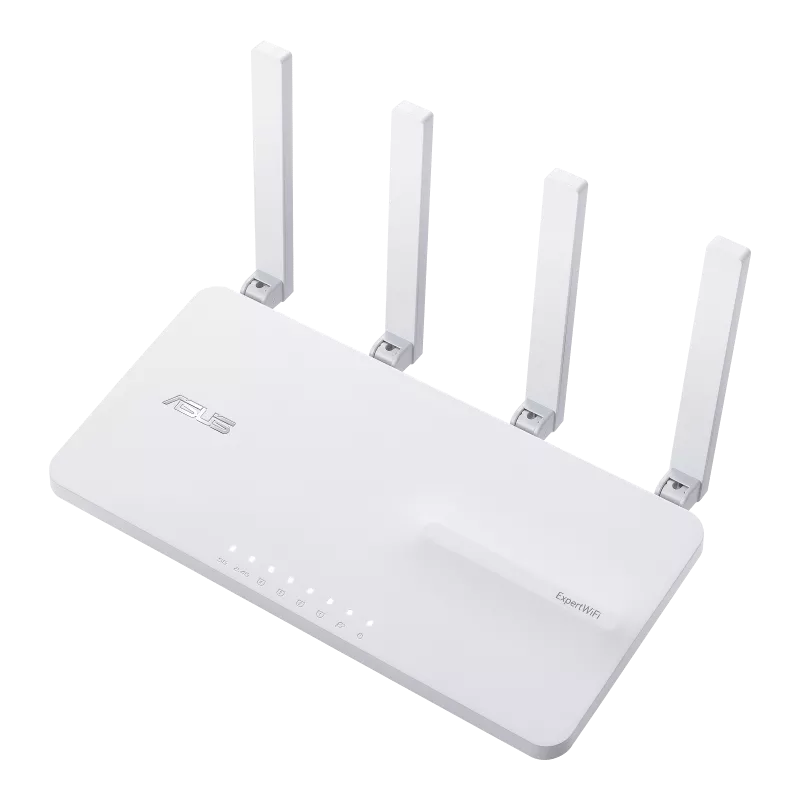

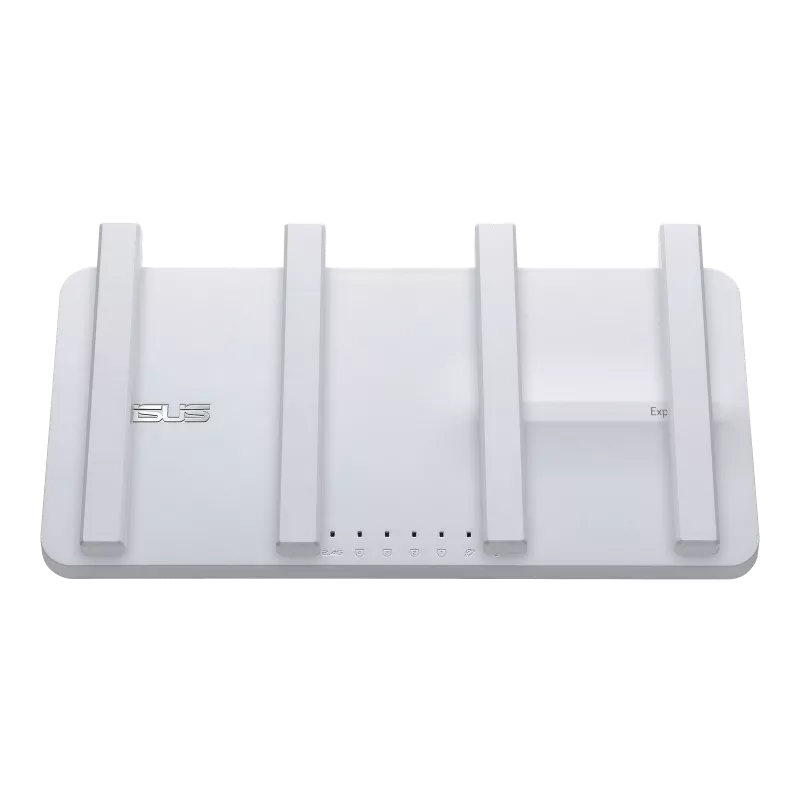

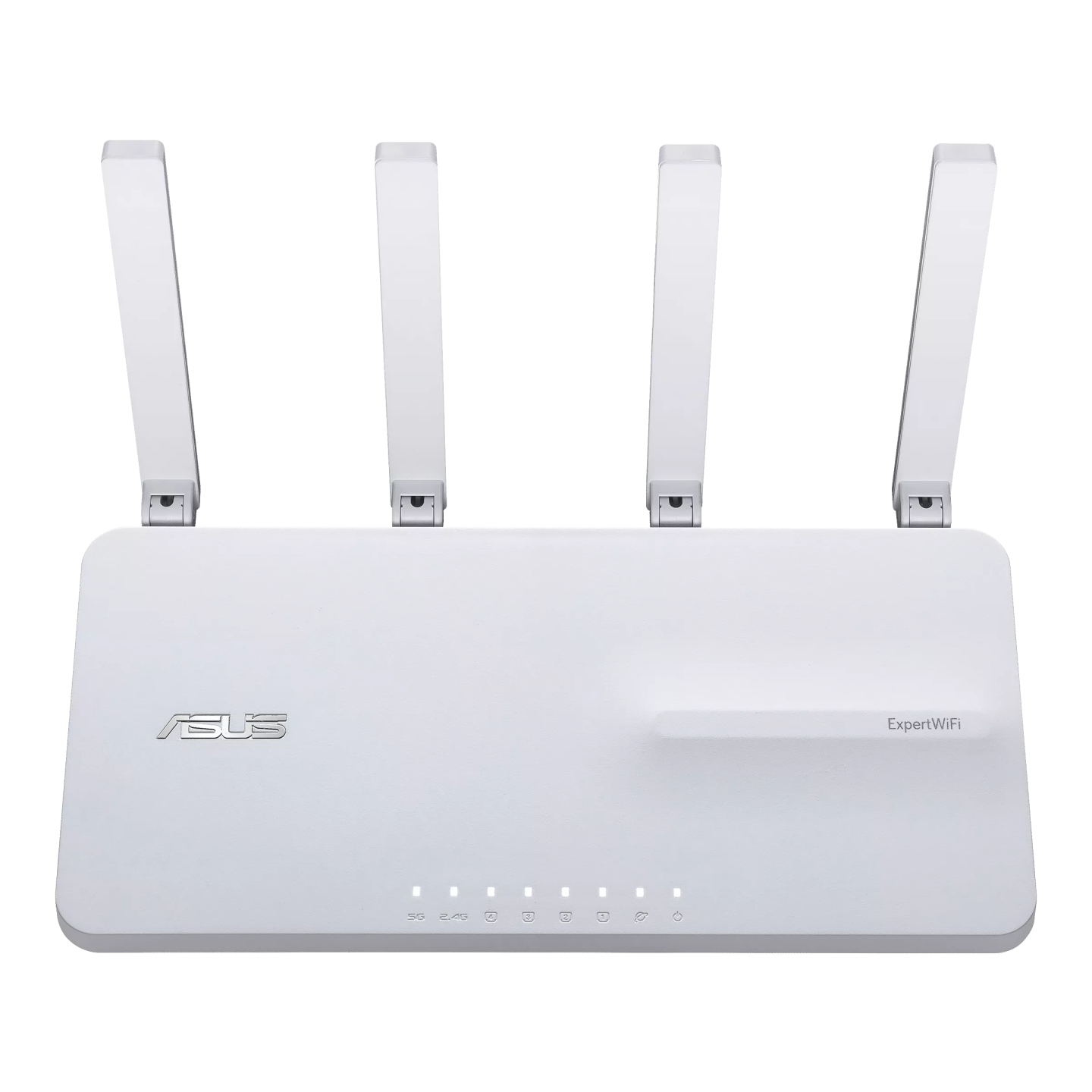

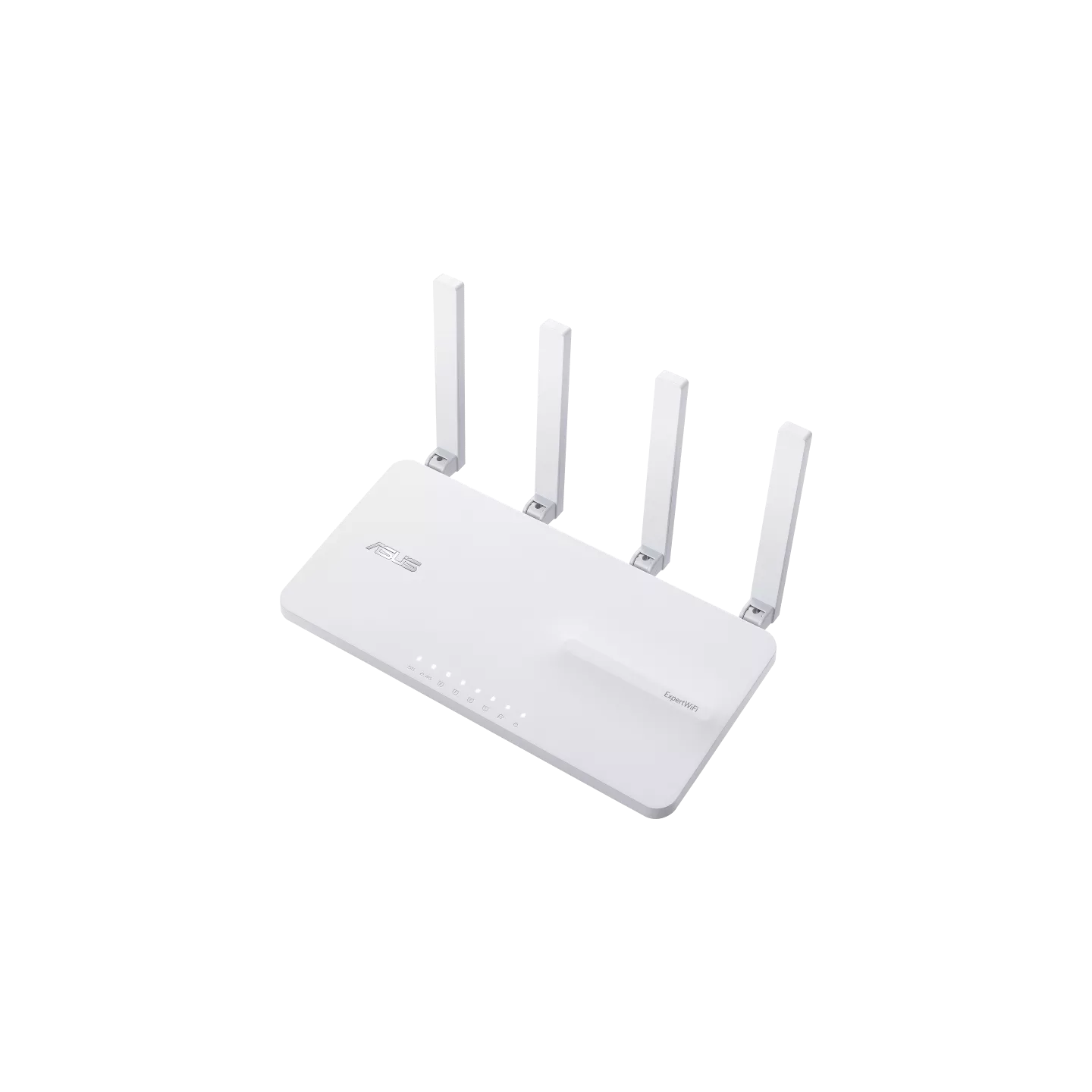

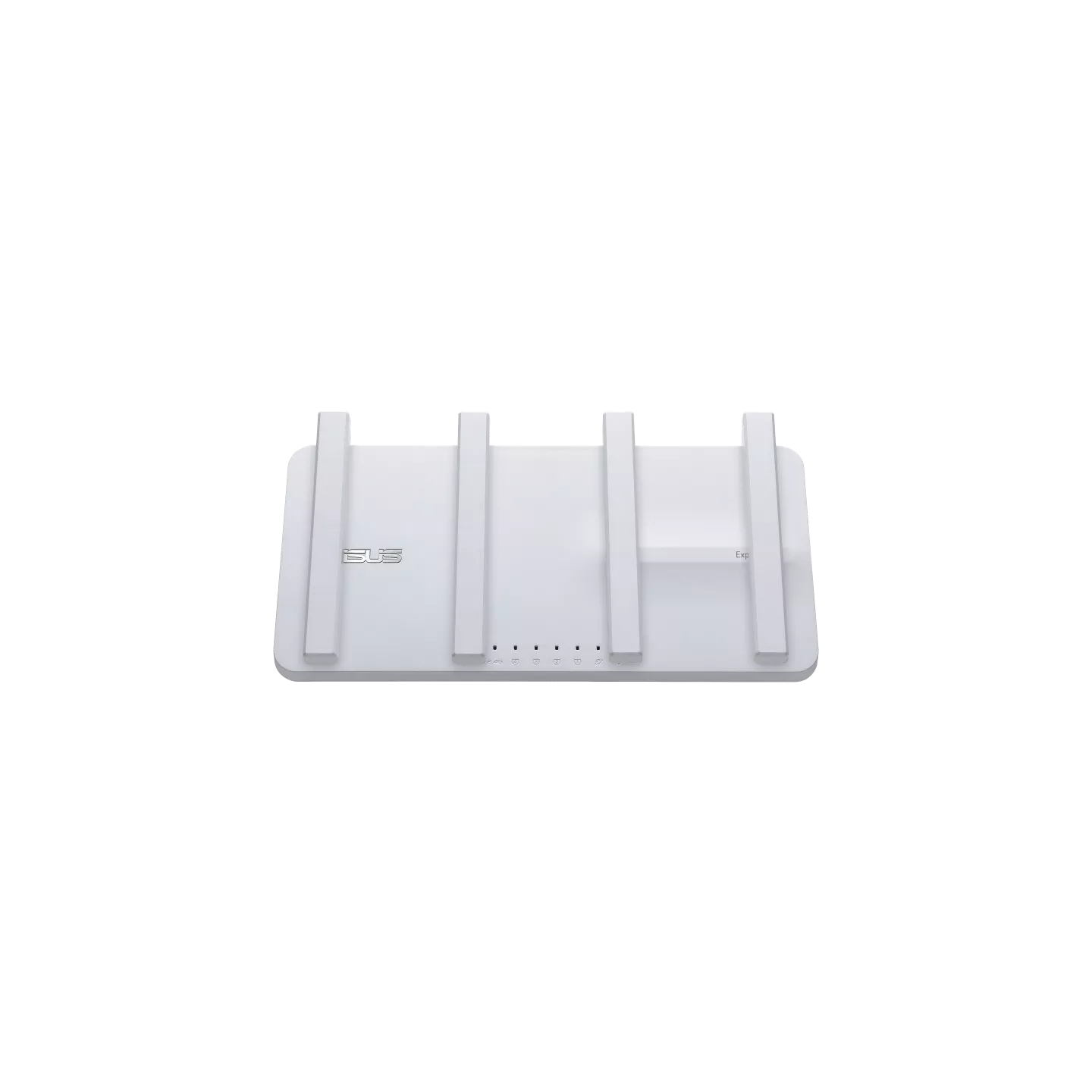

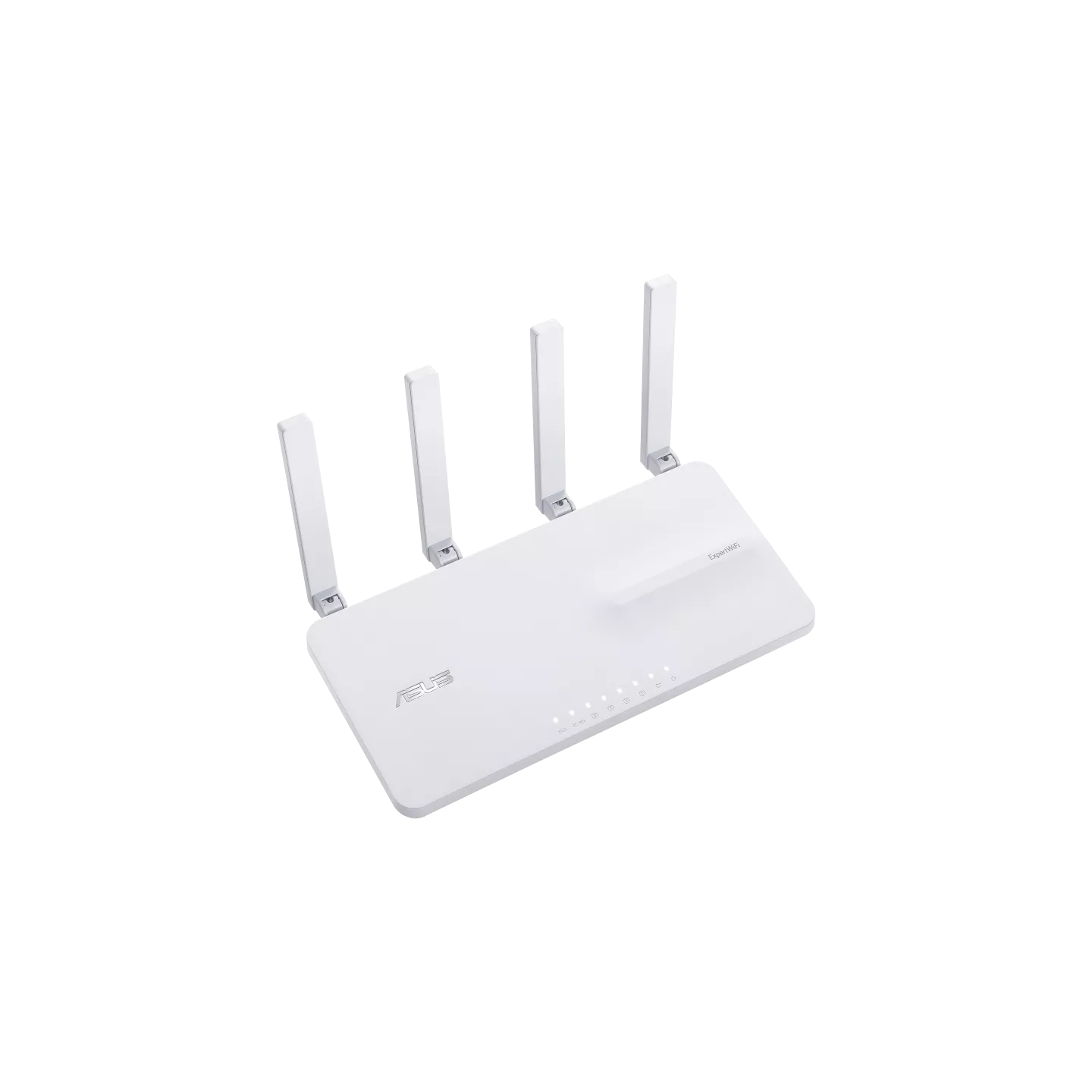

ASUS WLAN Router AX3000 WiFi 6 Dual-Band Gigabit Security VPN USB ExpertWiFi EBR63
AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-site VPN, commercial-grade netw...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Wi-Fi Standard | Wi-Fi 6 |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
AX3000 Dual-Band WiFi 6 (802.11ax) All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-site VPN, commercial-grade network security and easy management app.
- Secure and Segmented Networking – Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.
- Customizable Guest Portal – Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles
- Backup WAN for Stable Connectivity –The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection
- Commercial-Grade Network Security and VPN – Safe Browsing, VPN features to connect easily and securely to public WiFi, and a free subscription to ASUS AiProtection Pro

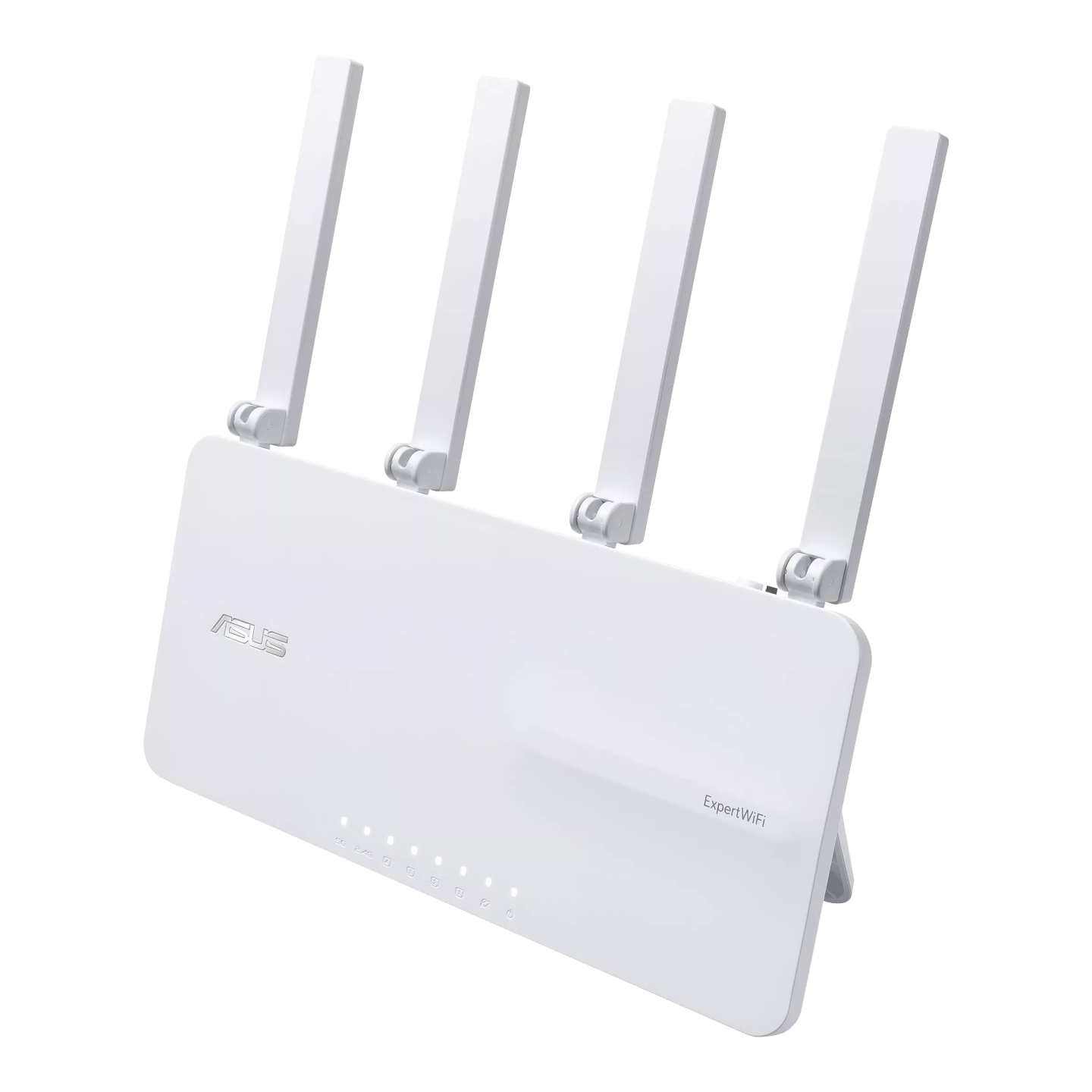

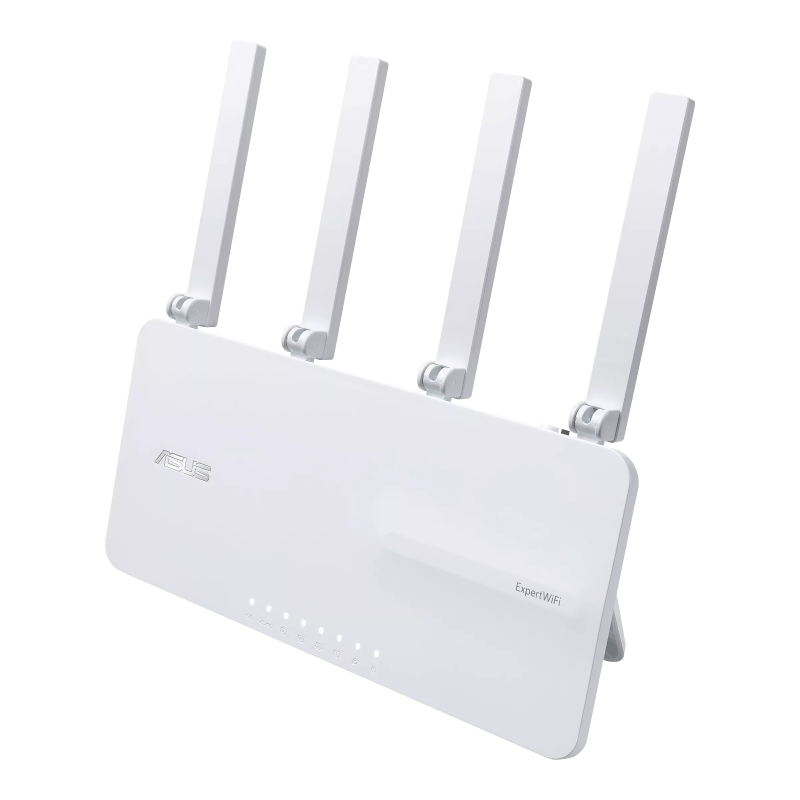

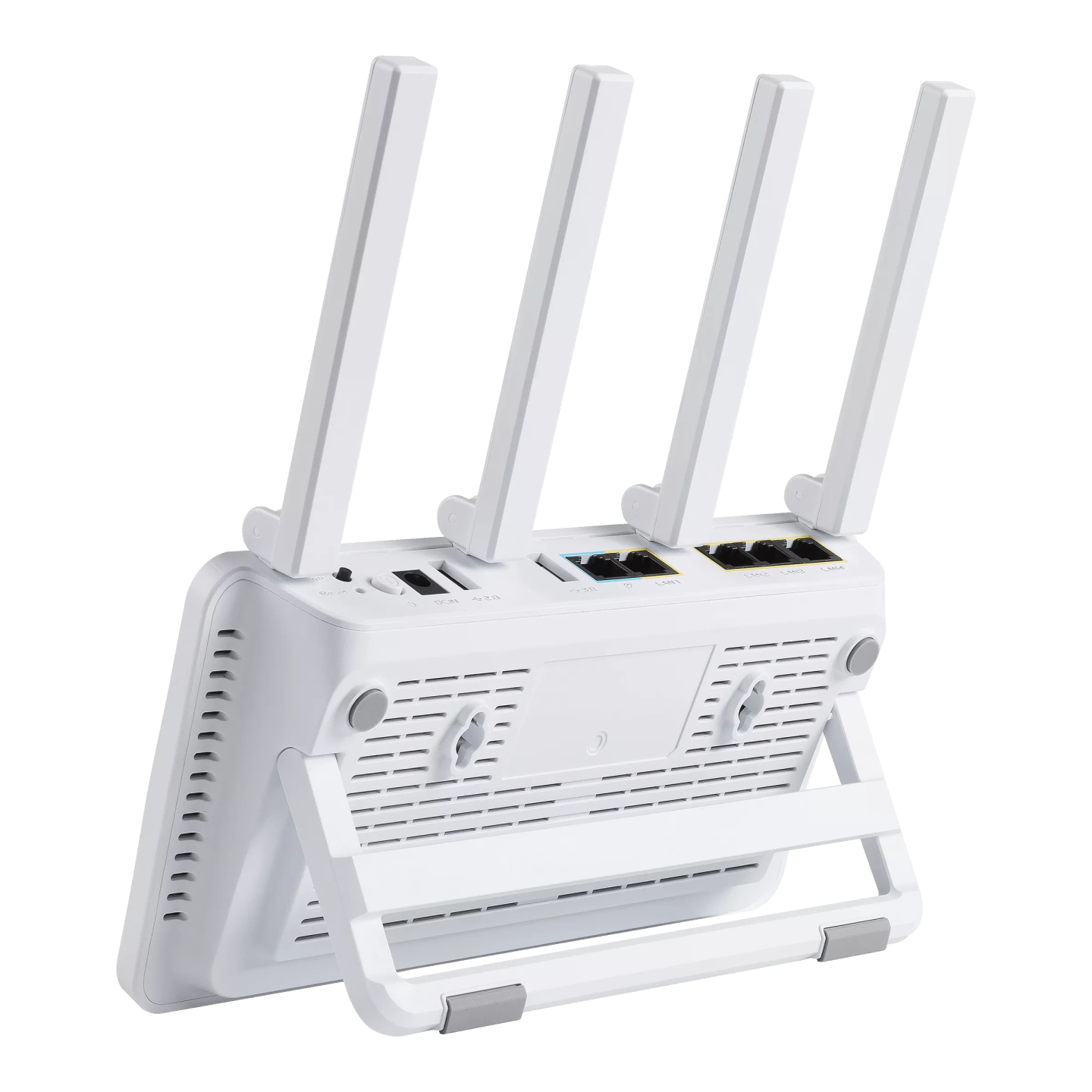

- Accommodate to Any Space – The EBR63 comes with a built-in bracket and wall mount hole that can be adjusted to fit into almost any location for space-saving and more flexibility
- Model: ASUS ExpertWiFi EBR63
- Model Name: EBR63
- Network Standard: IEEE 802.11aIEEE 802.11b/ IEEE 802.11g/ WiFi 4 (802.11n)/WiFi 5 (802.11ac)/WiFi 6 (802.11ax)/ IPv4/ IPv6
- Product Segment: AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
- Data Rate: 802.11a : up to 54 Mbps/ 802.11b : up to 11 Mbps/ 802.11g : up to 54 Mbps/ WiFi 4 (802.11n) : up to 300 Mbps/ WiFi 5 (802.11ac) : up to 1734 Mbps/ WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps/ WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
- Antenna: 4 External Antenna
- Transmit / Receive: 2.4GHz 2x2/ 5GHz 2x2
- Processor: 1.7GHz quad-core processor
- Memory: 256MB FLASH/ 512MB RAM
- Boosts Speed: OFDMA (Orthogonal Frequency Division Multiple Access)/ Beamforming: standard-based and universal/ 1024-QAM high data rate/ 20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4 GHz/ 5 GHz
- Operating Mode: Wireless Router Mode/ AiMesh Node Mode/ Access Point Mode

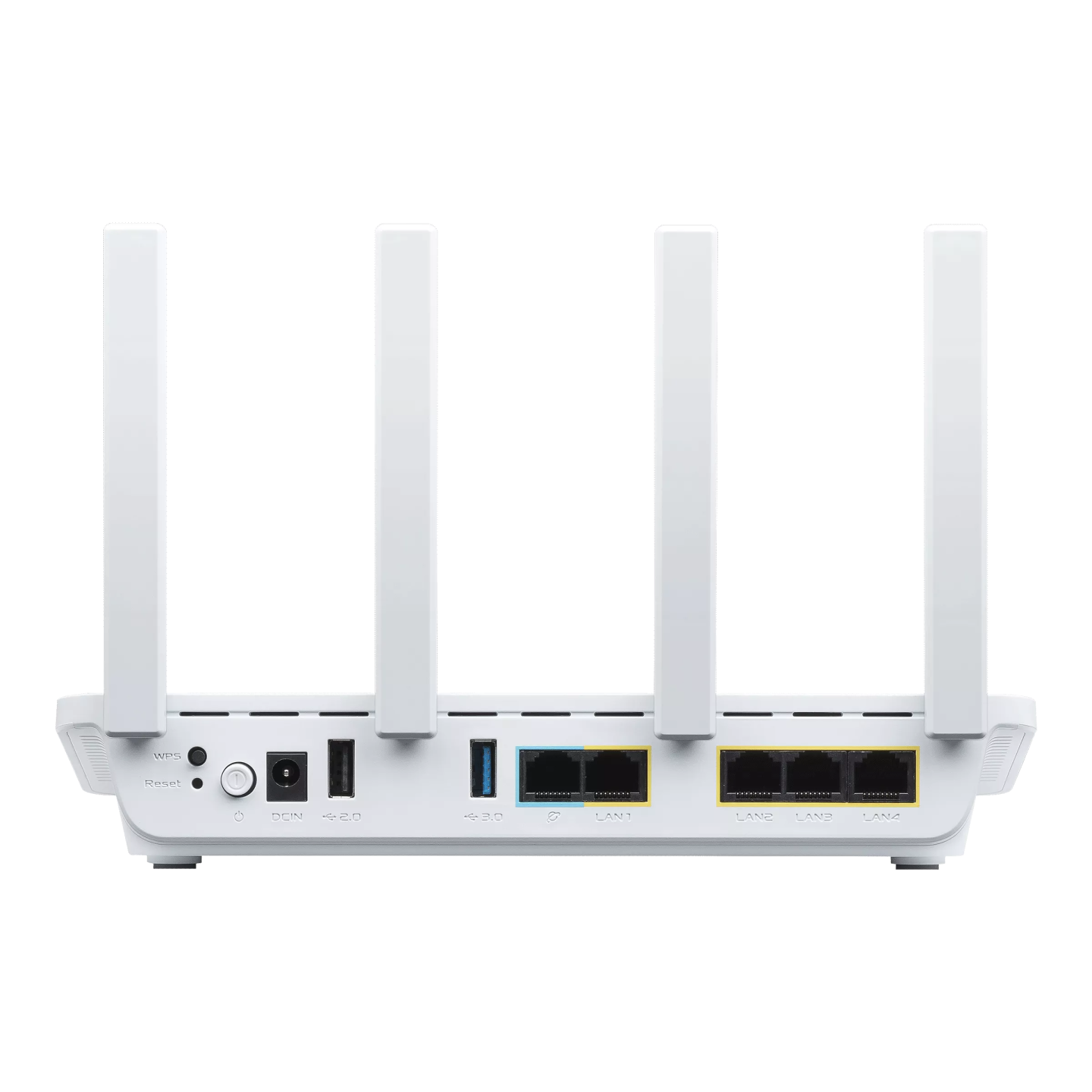

- I/O Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0
- Buttons: WPS Button, Reset Button, Power Switch
- LED Indicator: POWER, WAN, LAN, 5G, 2.4G
- Power Supply: AC Input : 110V~240V(50~60Hz)/ DC Output : 12V with max. 2A current
- Mounting: Wall Mount
- Package Content:ExpertWiFi EBR63/ RJ45 Ethernet Cable/ Power Adapter/ Quick Start Guide/ Warranty Card
- Product Weight (g):436g
- Product Dimentions: 225*127*146mm
- AiMesh: AiMesh:Primary AiMesh Router/ AiMesh NodeDevice Access Control: "Allow you to block access to unwanted websites and apps"
- Web & Apps Filters/Time Scheduling/Safe Browsing
- Customized Internet Schedule: Maximum Device Access Control Profile :12/Maximum Device Access Control Content Filter Rule :12
- Dashboard: Dashboard
- Self-Defined Network: "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings"
- Self-Defined Network Type: Employee/ Guest Portal/ Guest Network/ Scheduled Network/ IoT Network/ VPN Network/ Maximum Self-Defined Network Rule :16/ Multiple Network/ VLAN/ Captive Portal for Free WiFi/ VPN WiFi/ WiFi Scheduling: One Time Access/ WiFi Scheduling: Weekly Schedule/ WiFi share: QR code, PDF file/ Bandwidth Limiter/ AP isolate /DNS Server ConnectionSecurity: AiProtection/ VPN/ WPS/ Let's Encrypt/ DNS-over-TLS/ SSH/
- Firewall:Maximum Firewall Keyword Filter :64/ Maximum Firewall Network Service Filter :32/ Maximum Firewall URL Filter : 64
- AiProtection: AiProtection Pro: Router Security Assessment/Malicious Site Blocking/ Two-Way IPS/ Infected Device Prevention and Blocking
- VPN:VPN Client L2PT/ VPN Client Open VPN/ VPN Client PPTP/ VPN Client WireGuard/ VPN Server IPSec/ VPN Server Open VPN/ VPN Server PPTP/ VPN Server WireGuard/ VPN Fusion/ Support Surfshark
- Traffic Control: Adaptive QoS: Bandwidth Monitor/ Bandwidth Limiter/ Real-time Traffic Monitor/ Wired Traffic Monitor/ Wireless Traffic Monitor
- Traffic Analyzer Website History
- WAN: PPPoE/
- PPTP/ L2TP/ IPSec/ Dual WAN/ 3G / 4G LTE Dongle/ 4G / 5G Auto Mobile Tethering/ Port Forwarding/ Port Triggering/ DMZ/ DDNS/
- NAT Passthrough:PPTP Pass-Through/ L2TP Pass-Through/ IPSec Pass-Through
- LAN: DHCP Server/ IGMP Snooping/ IPTV/ VLAN
- Wireless: MU-MIMO/ UTF-8 SSID
- WiFi MAC Address Filter:Maximum MAC Filters : 64/ Wireless Scheduler
- USB application:4G / 5G Auto Mobile Tethering/ Media Server/ Samba Server/ FTP Server/ Shared Folder Privileges
- User Interface: WEB: ASUSWRT/ APP: ASUS ExpertWiFi APP
- Administration: Configuration Backup and Restore/ Diagnosis Tools/ Feedback System/ System Log/ New Device Connect Notification/ Login Captcha/ Connection Diagnosis/Auto Firmware Update
| Type | Wireless |
| Environment | Indoor |
| Wi-Fi Technology | Wi-Fi 6 |
| Ethernet Speed | Gigabit |
| Wi-Fi Speed | AX3000 |
| Ethernet Ports | 5 |
| System Memory | 512MB RAM |
| Mobile APP | Yes |
| USB Port | Yes |
