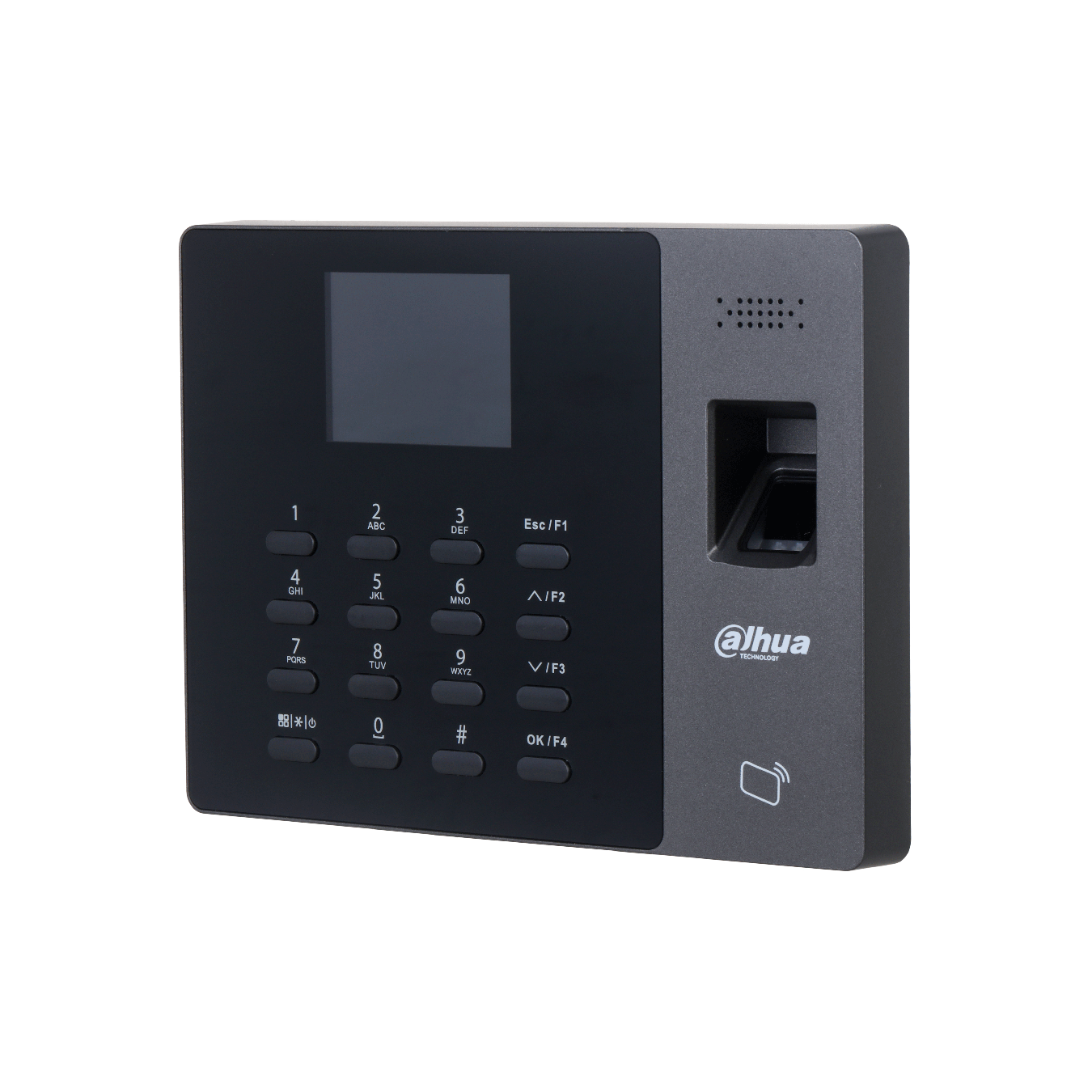

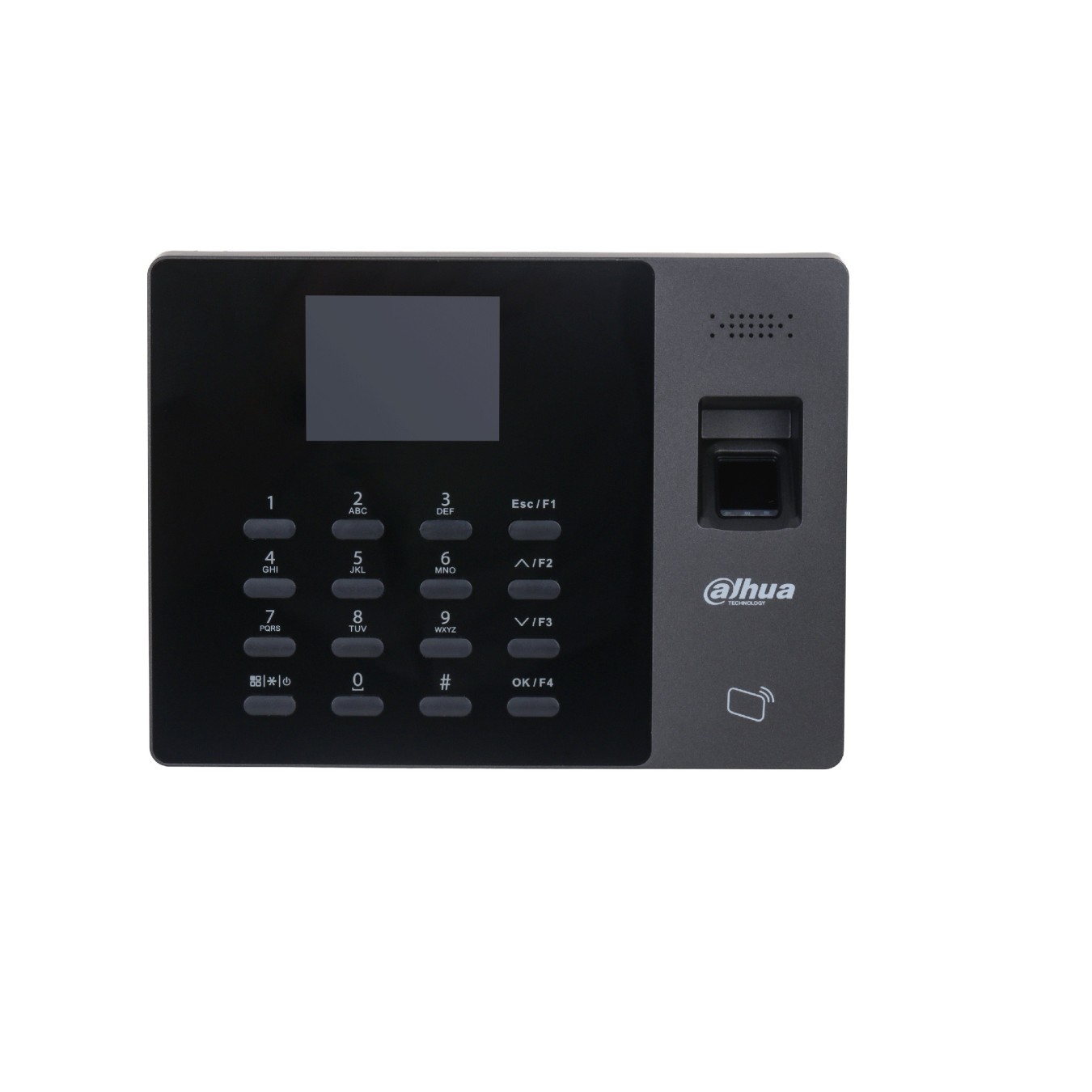

Dahua AC Time Attendance Terminal - ASA1222GL - AC Time Attendance Terminal

• Built with 16 mechanical buttons, a 2.4 inch LCD display and has a user friendly interface
• Lasts up to 3 hours when the battery is fully charged
• Personnel can clock in and out with fingerprint, password and card swipe
• Supports up to 1,000 users, 2,000 fingerprints, 1,000 passwords, 1,000 cards and 100,000 attendance records
• The shifts of users and departments can be arranged on a weekly and monthly basis, and each shift can have 2 periods and 1 overtime period
• Provides scheduled reminders accompanied with a ring
• Imports and exports data from the USB flash drive, such a data on personnel, fingerprints, attendance and configurations
• Supports voice prompt
• Sends attendance records to the SmartPSS Lite client through the network
• Updates the firmware through the Internet and USB flash drive

System

• Main Processor : Embedded Processor
• Button Type : Mechanical
• Network Protocol : UDP; TCP; IPv4

Basic

• Display Screen : 2.4" TFT
• Product Type : Attendance Standalone
• Screen Type : Non-touchscreen
• Screen Resolution : 320 × 240
• Voice Prompt : Yes
• Powering On/Off Button : 1
• Casing Material : PC + ABS

Function

• Card Type : IC card
• Network Update : Yes
• Real-time Monitoring : Yes
• Auto Registration : Yes

Performance

• Response Time : 0.1 s
• Card Reading Distance : 0 cm–5 cm
• Fingerprint Sensor Type : Optical fingerprint
• Fingerprint Verification Mode : 1:N
• Fingerprint Recognition Time  : 2 s

Attendance

• Export Attendance Record : USB flash drive export
• Attendance Check Mode : Free attendance; Fixed attendance
• Attendance Statistics : Yes
• Department Setting : Yes
• Schedule Setting : Yes

User

• User (Card) Type : General user

Capacity

• User Capacity : 1,000
• Fingerprint Capacity : 2,000
• Card Capacity : 1,000
• Password Capacity : 1,000
• Record Capacity : 100,000

Port

• USB : 1 × USB 2.0 port
• Network Port : 1 × RJ-45
• Exit Button : 1 channel
• Lock Control : 1 channel, overlay

General

• Power Adapter : Included
• Power Supply : 12 VDC, 1 A
• Power Consumption : ≤ 12 W (Working)
• Product Dimensions : 181.6 mm × 135.6 mm × 32.7 mm
• Packaging Dimensions : 298 mm × 162 mm × 71 mm  (L × W × H, in an inner carton) / 383 mm × 313 mm × 349 mm (L × W × H, protection box)
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 5%–95% (RH)
• Operating Environment : Indoor
• Gross Weight : 0.61 kg
• Installation : Surface Mount
• Certifications : CE; FCC
• Storage Temperature : –20 °C to +60 °C
