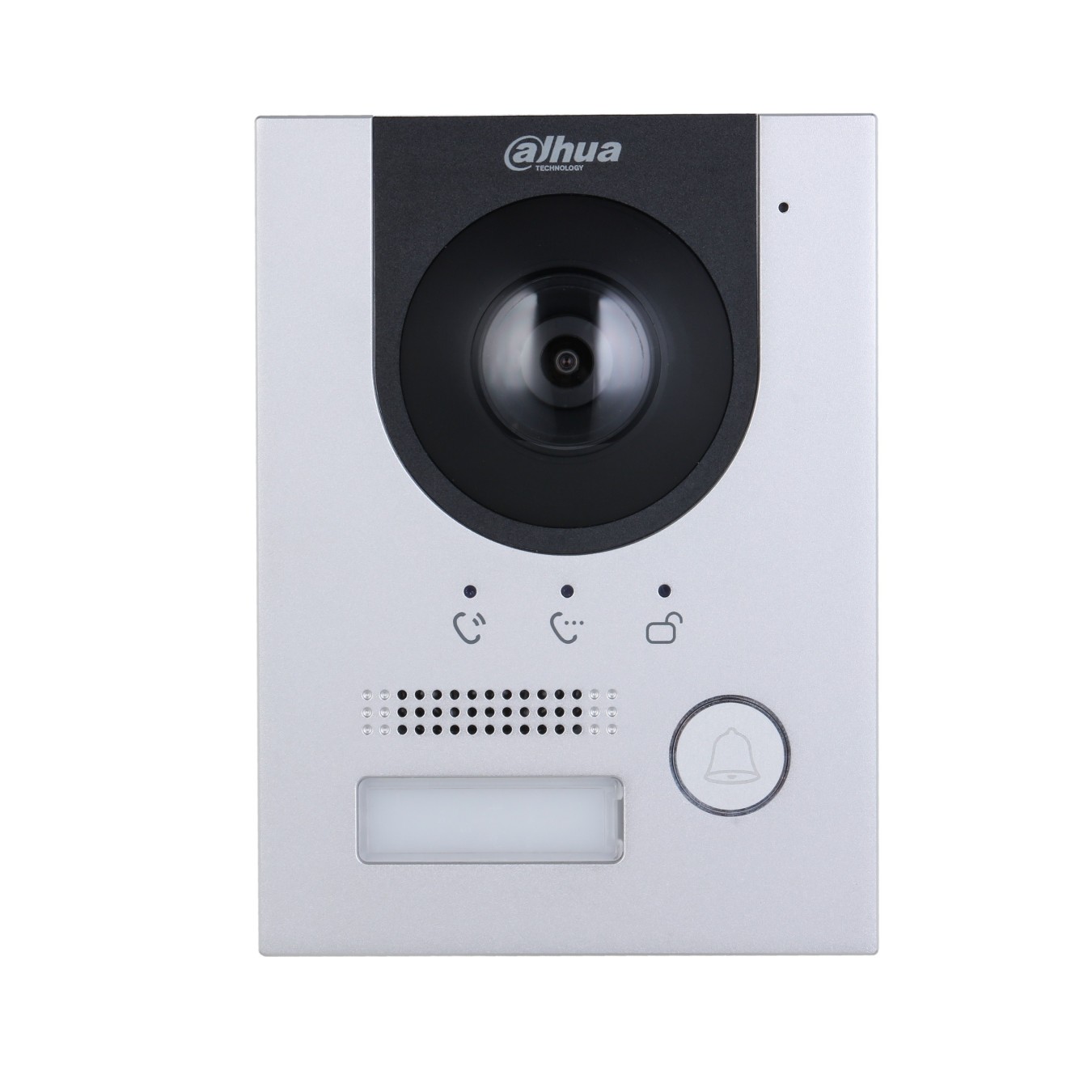

Dahua VD IP Doorphone Villa Camera - VTO2202F-P-S3 - Dahua VD IP Doorphone Villa Camera

• Anodized aluminum front panel
• CMOS low illumination 2MP HD colorful 168.6° camera
• Video intercom function
• Provides 12 VDC, 600 mA power
• Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
• IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide)
• Support surface and flush mount
• Support H.265 and H.264
• Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard)

System

• Main Processor : Embedded Processor
• Operating System : Embedded Linux Operation System
• Button Type : Mechanical
• Number of Buttons : 1
• Interoperability : ONVIF; CGI
• Network Protocol : IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP

Basic

• Camera : 1/2.9" 2 MP CMOS
• Field of View : H: 168.6°, V: 87.1°, D: 176.7°
• WDR : 120 dB
• Noise Reduction : 3D NR
• Video Compression : H.265; H.264
• Video Resolution : Main stream: 720p; WVGA; D1; CIF / Sub stream: 1080p; WVGA; D1; QVGA; CIF
• Video Frame Rate : 25 fps
• Video Bit Rate : 256 Kbps to 8 Mbps
• Light Compensation : Auto IR
• Day/Night : Auto(ICR)/Color/B/W; Color/B/W
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1 channel
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 kHz, 16 bits

Function

• Communication Mode : Digital 2-wire
• Unlock Mode : Remote
• Leave Videos : Yes (SD card is inserted in the indoor monitor or door station)
• Storage : Supports Micro SD card (up to 256 GB)
• Web Configuration : Yes
• Performance : Casing Material
• Aluminum : Port
• RS-485 : 1
• Alarm Output : 1
• Power Output : 1 port, 12 V/600 mA
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1
• Network Port : 1 × RJ-45 port, 10/100 Mbps network port

Alarm

• Tamper Alarm : Yes

General

• Appearance Color : Silver
• Power Supply : Dahua 2-wire switch (max. power supply distance is 50 m)
• 48 VDC, 1 A; PoE (802.3af/at)
• Installation : Flush Mount; Surface Mount
• Certifications : CE
• Accessory : Surface mount box (optional); flush mount box (optional); rain cover (optional)
• Product Dimensions : 130 mm × 96 mm × 28.5 mm
• Protection : IK07; IP65
• Operating Temperature : –30°C to +60°C
• Operating Humidity : 10%–90% (RH), non-condensing
• Operating Environment : Outdoor
• Operating Altitude : 0 m–3000 m
• Power Consumption : ≤4 W (standby), ≤5 W (working)
• Gross Weight : 0.48 kg
• Storage Temperature : 0 °C to +40 °C
• Storage Humidity : 30%–75% (RH), non-condensing
