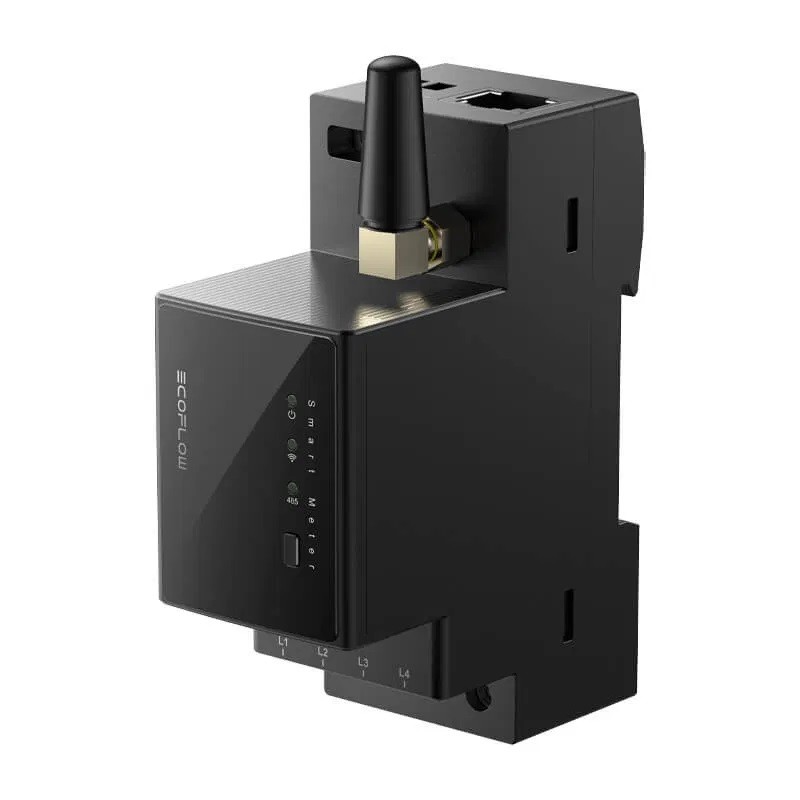

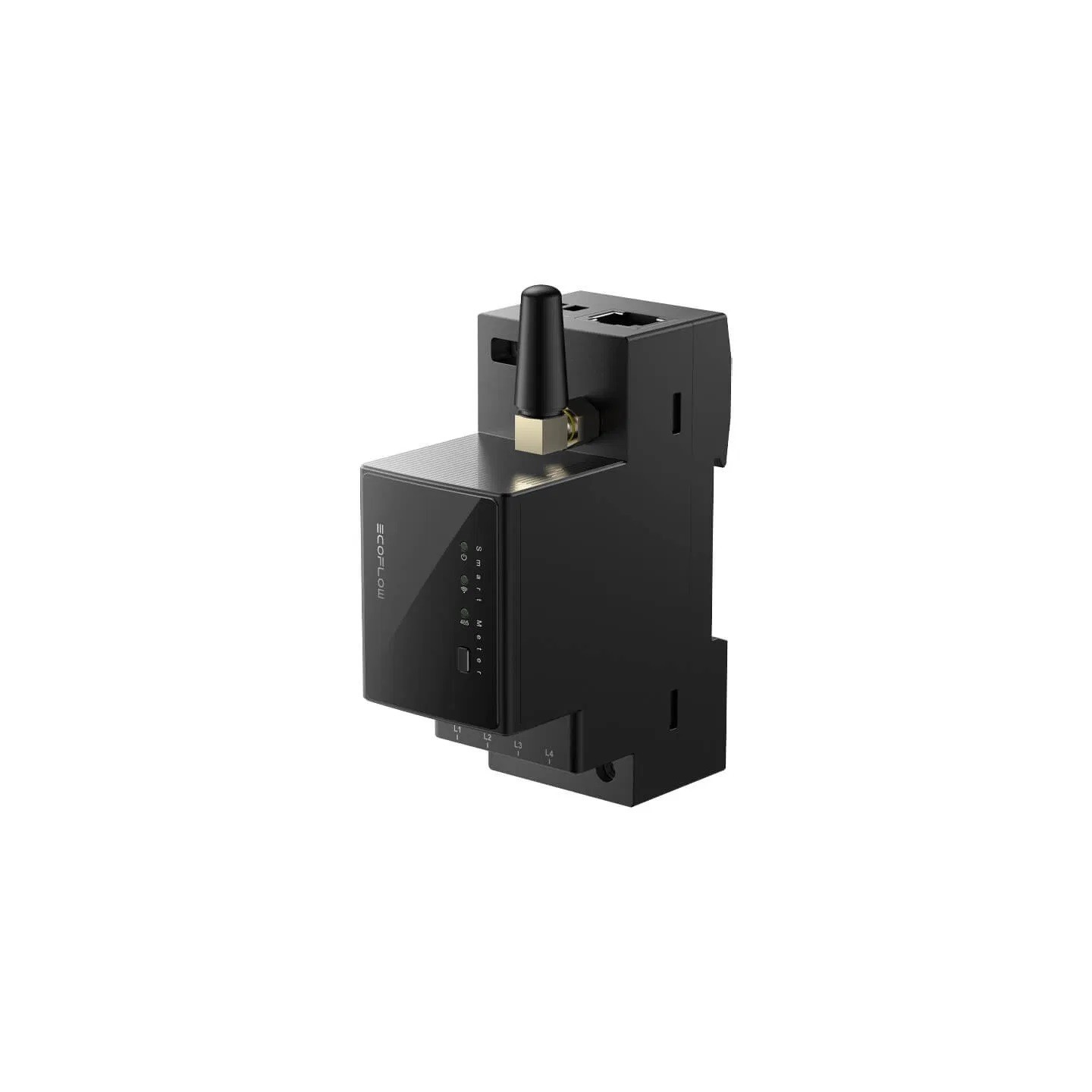

EcoFlow STREAM Smart Meter - Real Time Energy Tracking & Allocation
Whole-home smart meter for real-time energy tracking and allocation; pairs with EcoFlow STREAM Solar Plant; easy DIN-rail install; 100-260V AC, <3W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Input Plug | Hardwired |
|---|

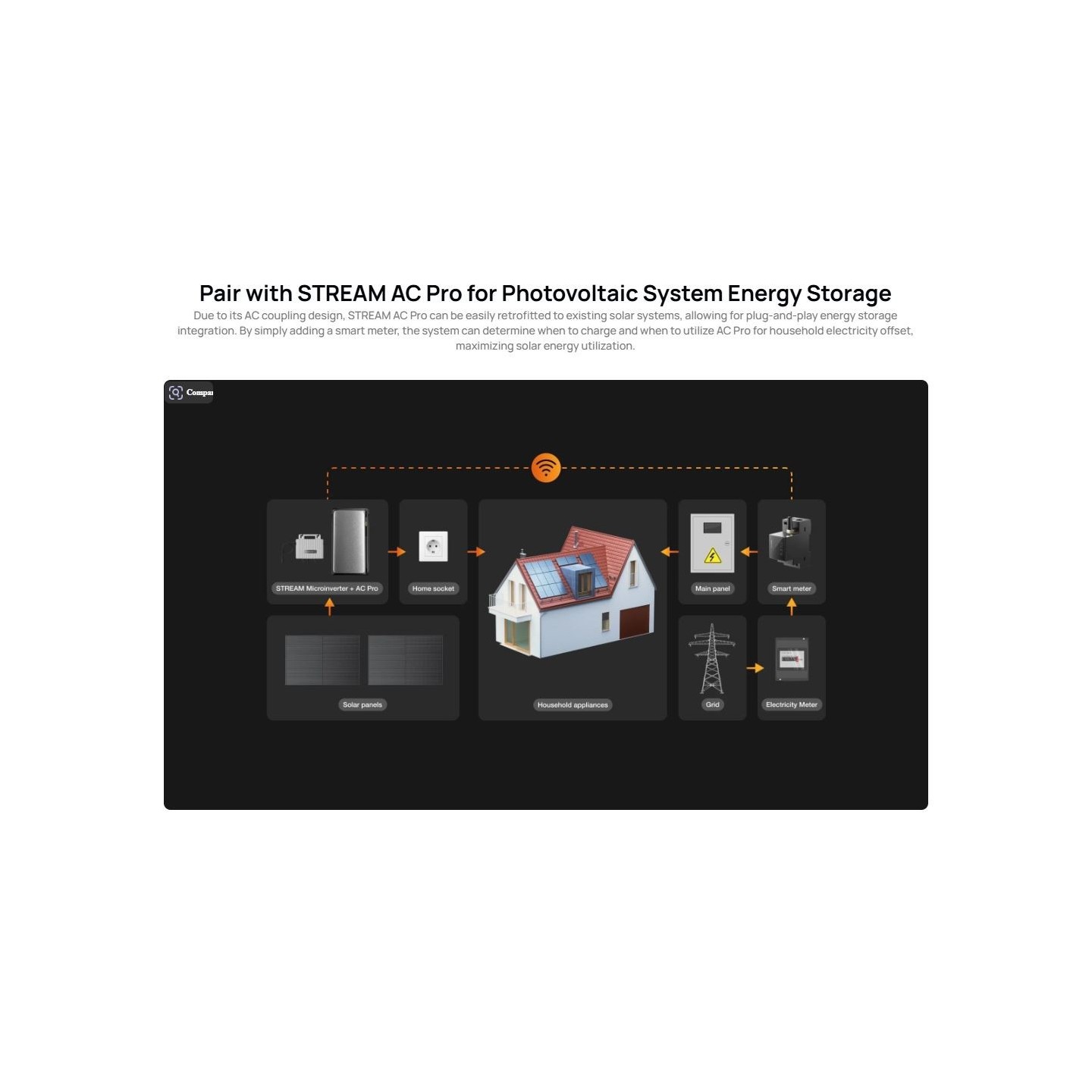

Pair with the EcoFlow STREAM Series Plug & Play Solar Plant

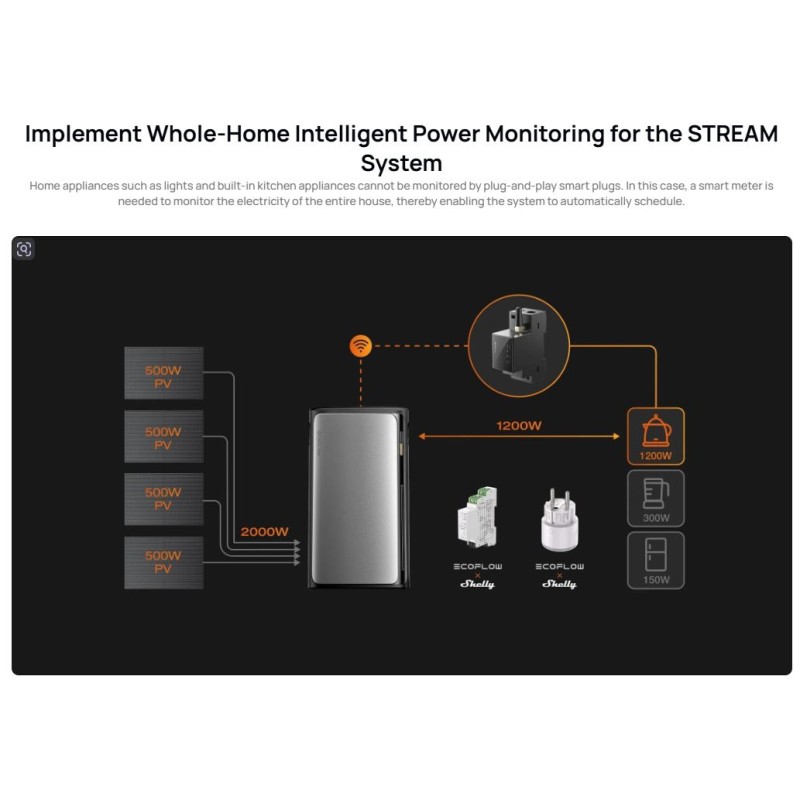

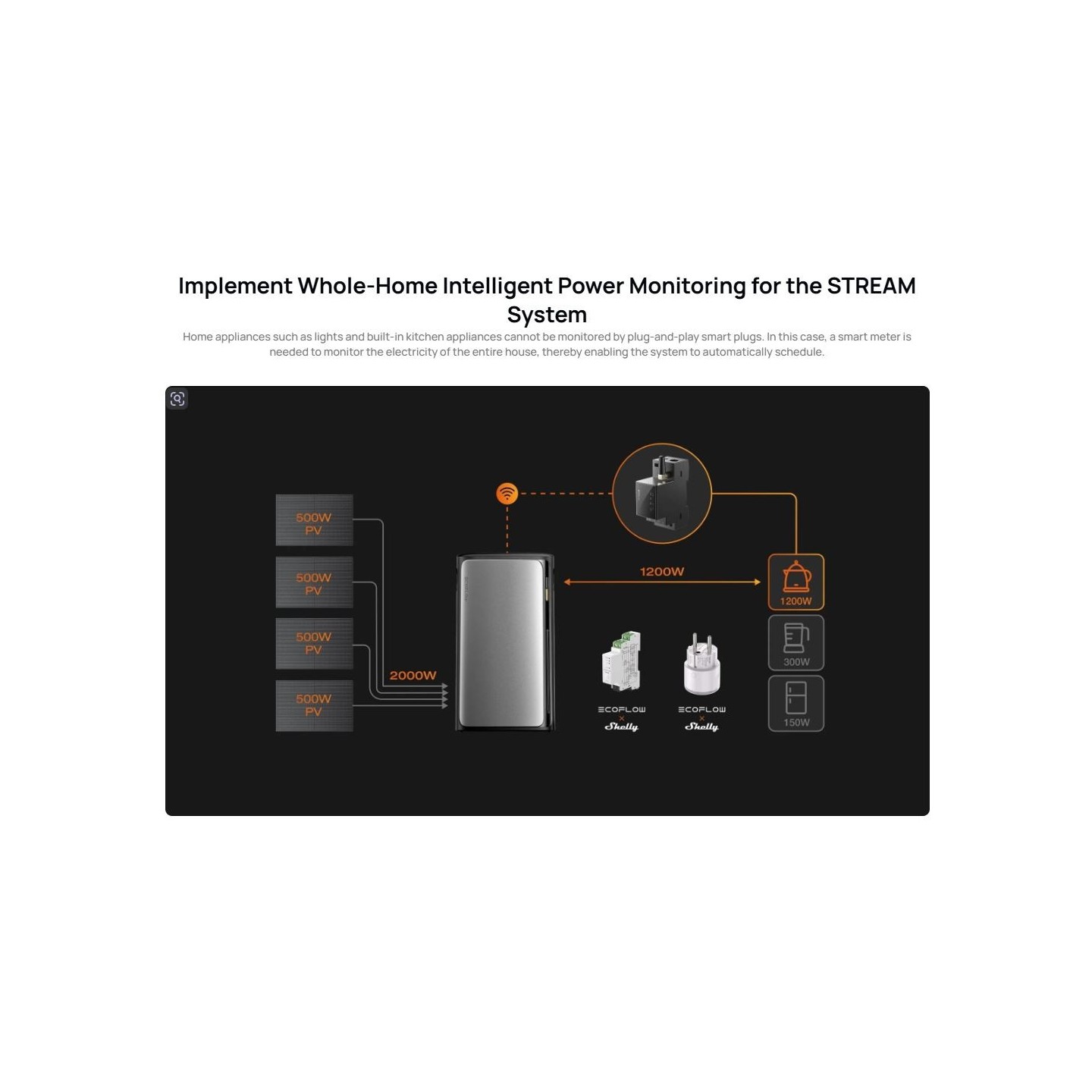

- Whole-Home Intelligent Power Monitoring
- Utilise household electricity offset
- Maximise solar energy utilisation

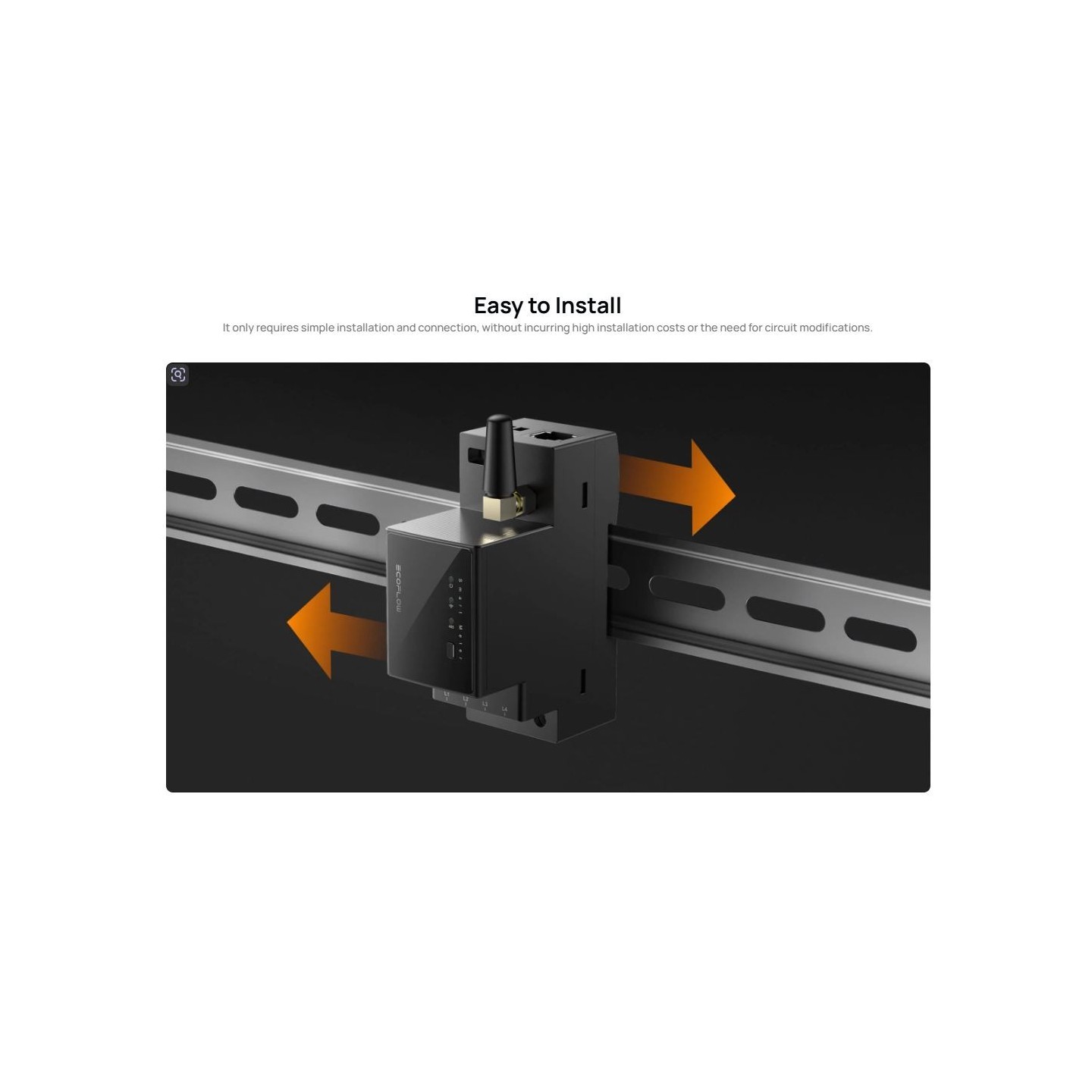

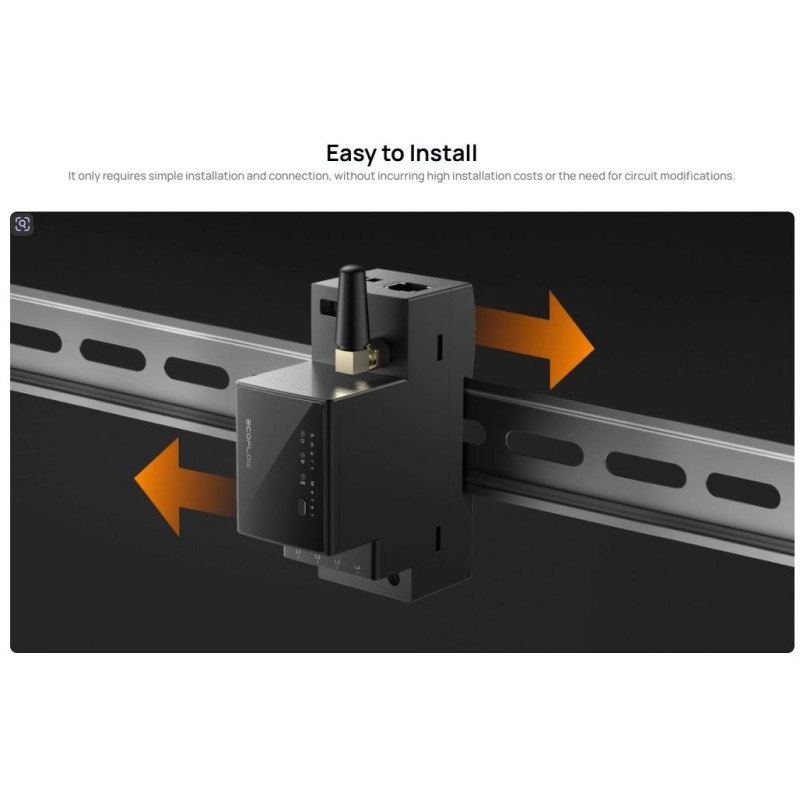

- Easy to Install
- Works with EcoFlow OASIS
*Not compatible with EcoFlow PowerStream Microinverter
- Size (HxWxD) : 94x19x69 ±0.5 mm /
- Weight : 62 ±1 g
- Mounting : DIN rail
- Screw terminals max torque : 0.4 Nm
- Conductor cross section : 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
- Conductor stripped length : 6 to 7 mm
- Shell material : Plastic
- Ambient temperature : -20 °C to 40 °C
- Humidity : 30 % to 70 % RH
- Max. altitude : 2000 m
- Power supply voltage AC : 100 - 260 V, 50/60 Hz
- Power supply voltage DC : N/A
- Power consumption : < 3 W
- External protection : Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
- Internal-temperature sensor : Yes
- Voltmeters (RMS for each phase) : 100 - 260 V
- Voltmeters accuracy : ±1 %
- Ammeters (RMS via CT for each phase and the Neutral) : 0-120 A
- Compatible CT : CT 120A
- Ammeters accuracy : ±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)
- Power and energy meters : Active and apparent power / Active and apparent energy / Power factor / Fundamental active and fundamental reactive energy
- Channel-to-channel calibration minimum load : 500 W per channel
- No load threshold : 30 VA per channel
- Measurement data storage : At least 60 days of 1 min data resolution
- Data export : CSV for PQ recorded values / JSON format export through RPC
- RF band : 2400 - 2495 MHz
- Max. RF power : <20 dBm
- Wi-Fi protocol : 802.11 b/g/n
- Wi-Fi Range : Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
- Bluetooth Protocol : 4.2
- Bluetooth Range : Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
- CPU : ESP32-D0WDQ6
- Flash : 16 MB
- Webhooks (URL actions) : 20 with 5 URLs per hook
- Scripting : Yes
- MQTT : Yes
- CoAP : No
