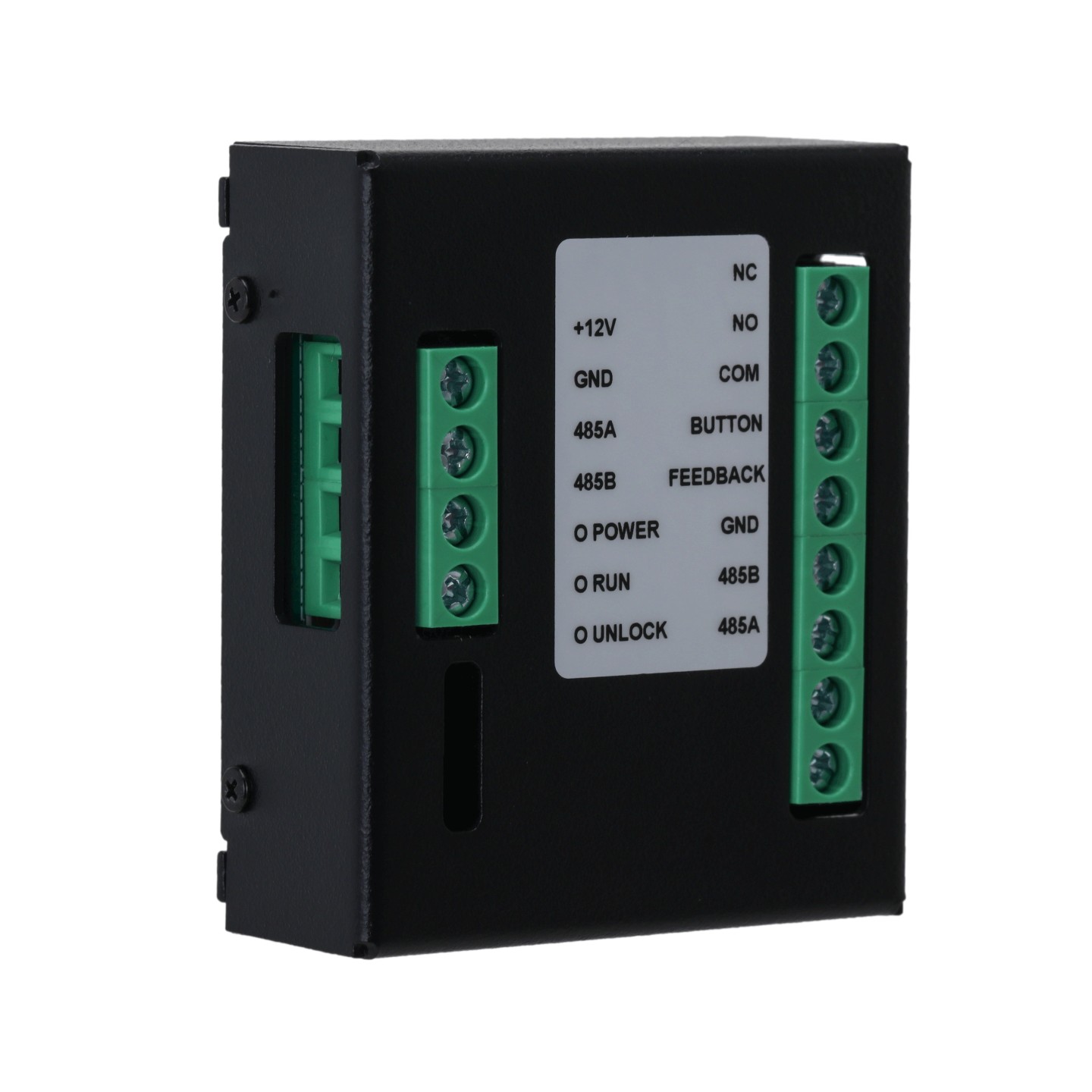

Dahua AC Extension Module - DEE1010B-S2
Expansion module for access control that works with access control terminal and door station; RS-485; connects to electronic or magnetic locks; features 3 indicators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | 12 V DC |
|---|---|
| Intercoms - Access | Button |
- Used to expand access control functions by working with access control terminal and door station
- Supports RS-485 communication
- Connects to electronic or magnetic locks to bolster security
- Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door
Port
- RS-485 : 2
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
General
- Power Supply : 12 VDC, 1 A (not included)
- Power Consumption : ≤ 0.9 W (standby), ≤ 1 W (working)
- Product Dimensions : 58.2 mm × 49.2 mm × 20.2 mm (W × H × D)
- Operating Temperature : –10 °C to +60 °C
- Operating Humidity : 0%–95% (RH), non-condensing
- Net Weight : 0.09 kg
- Gross Weight : 0.12 kg
- Certifications : CE; FCC
