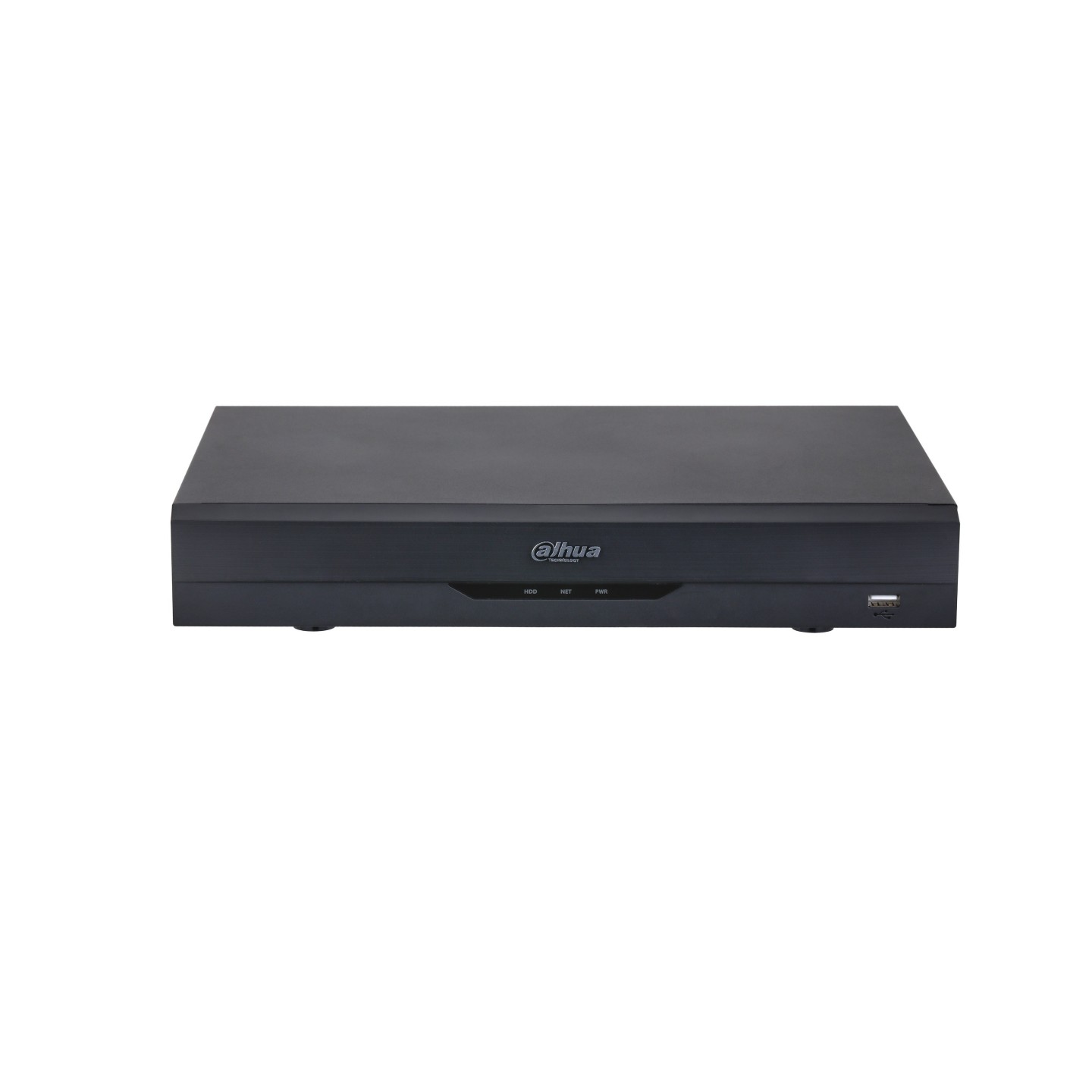

Dahua XVR - XVR5116HS-I3 - 1080P 16channels
H.265+/H.265 dual-stream compression; Full-channel AI Coding; supports HDCVI/AHD/TVI/CVBS/IP inputs; up to 24 IP channels, up to 6MP per channel.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| DVRs - Channels | 16 |
|---|
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
- Up to 2 channel video stream ( analog channel ) Perimeter Protection
- Up to 16 channels video stream ( analog channel ) SMD Plus
- Up to 2 channel video stream (analog channel ) human face recognition
- IoT & POS functionalities
System
- Main Processor: Embedded Processor
- Operating System: Embedded LINUX
Perimeter Protection
- Perimeter Performance AI by Recorder (Number of Channels) : 2 channels
Face Recognition
- Face Database Capacity : Up to 10 face databases and 10,000 pictures.
- Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels
SMD Plus
- SMD Plus by Recorder : Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Video and Audio
- Analog Camera Input : 16 channels, BNC
- HDCVI Camera Input : 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
- AHD Camera Input : 5MP, 4MP, 1080P@25/30, 720P@25/30fps
- TVI Camera Input : 5MP, 4MP, 1080P@25/30, 720P@25/30fps
- CVBS Camera Input : PAL/NTSC
- IP Camera Input : 16+8 channels, each channel up to 6MP
- Audio In/Out : 1/1, RCA
- Two-way Talk : Reuse audio in/out, RCA
Recording
- Compression : AI Coding/H.265+/H.265/H.264+/H.264
- Resolution : 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
- Record Rate : Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H / D1/CIF (1fps–25/30fps) / Sub stream: D1/CIF (1fps–15fps)
- Bit Rate : 32 Kbps–6144 Kbps Per Channel
- Record Mode : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Record Interval : 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
- Audio Compression : G.711A, G.711U, PCM
- Audio Sample Rate : 8 KHz, 16 bit Per Channel
- Audio Bit Rate : 64 Kbps Per Channel
Display
- Interface : 1 HDMI ,1 VGA
- Resolution : VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 / HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode
- Multi-screen Display : When IP extension mode not enabled: 1/4//8/9/16 When IP extension mode enabled: 1/4/8/9/16/25
- OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
- Interface : 1 RJ-45 Port (100 MB)
- Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access : 128 users
- Smart Phone : iPhone, iPad, Android
- Interoperability : ONVIF 16.12, CGI Conformant
Video Detection and Alarm
- Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input : N/A
- Relay Output : N/A
Playback and Backup
- Playback : 1/4/9
- Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode : USB Device/Network
Storage
- Internal HDD : 1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
- eSATA : N/A
Auxiliary Interface
- USB : 2 USB Ports (USB 2.0)
- RS485 : 1 Port, for PTZ Control
- RS232 : N/A
Electrical
- Power Supply : DC 12V/2A
- Power Consumption (Without HDD) : <12W
Construction
- Dimensions : Compact 1U, 260 mm × 237.9 mm × 47.6 mm
- Net Weight (without HDD) : 1.17 kg
- Gross Weight : 1.57 kg
- Installation : Desktop installation
Environmental
- Operating Conditions : -10°C to +55°C
- Operating Humidity : 0–90% RH
Third-party Support
- Third-party Support : Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Certifications
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
- FCC: Part 15 Subpart B
| DVR Channels | 16 |
| DVR Protocols | HDCVI/AHD/TVI/CVBS/IP |
| HDD | 1 Disk Up to 16TB |
| Max Record Resolution | CH01-16: 5M-N/1080P |
| Max Recording Rate | All channel 5M-N(1~10fps); 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) |
