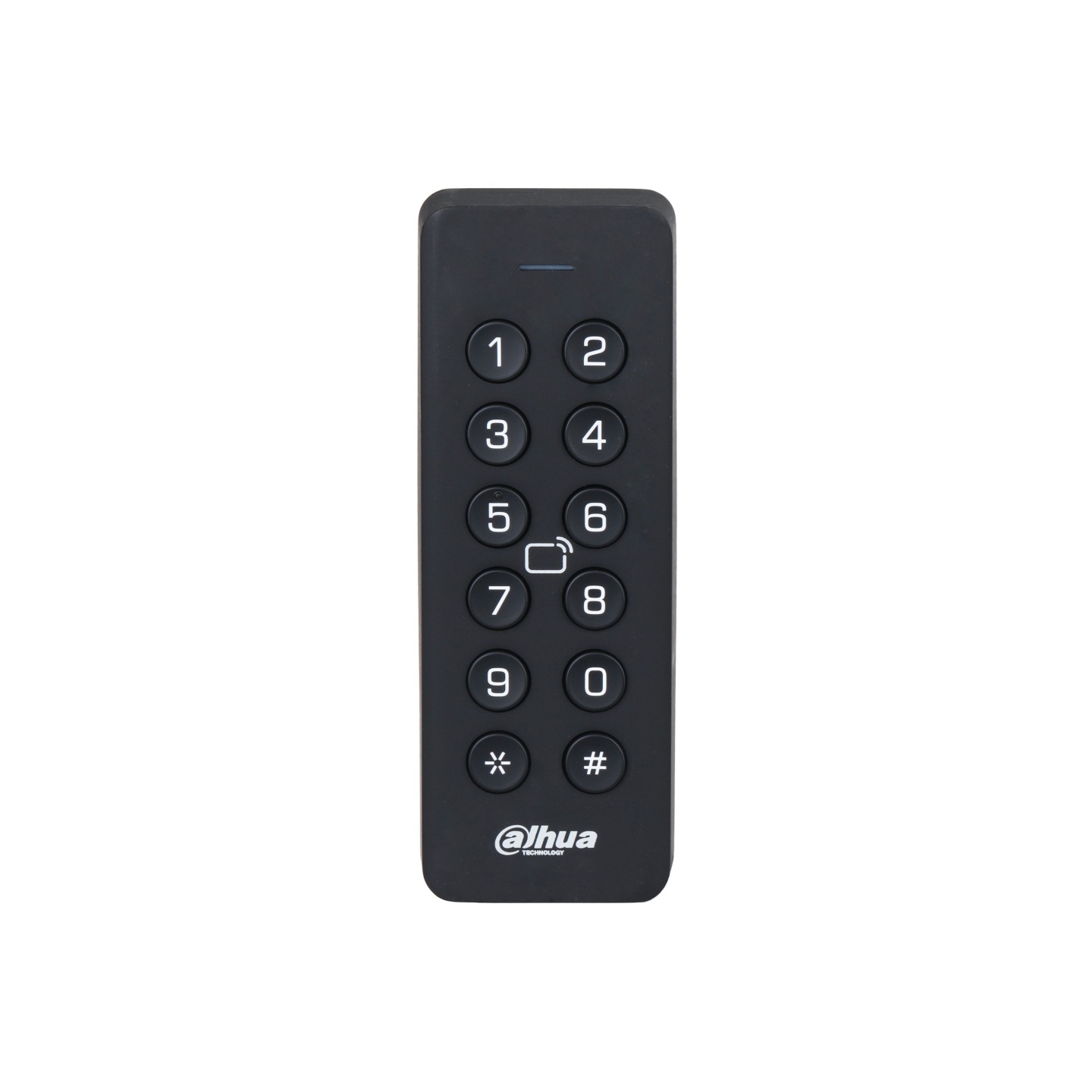

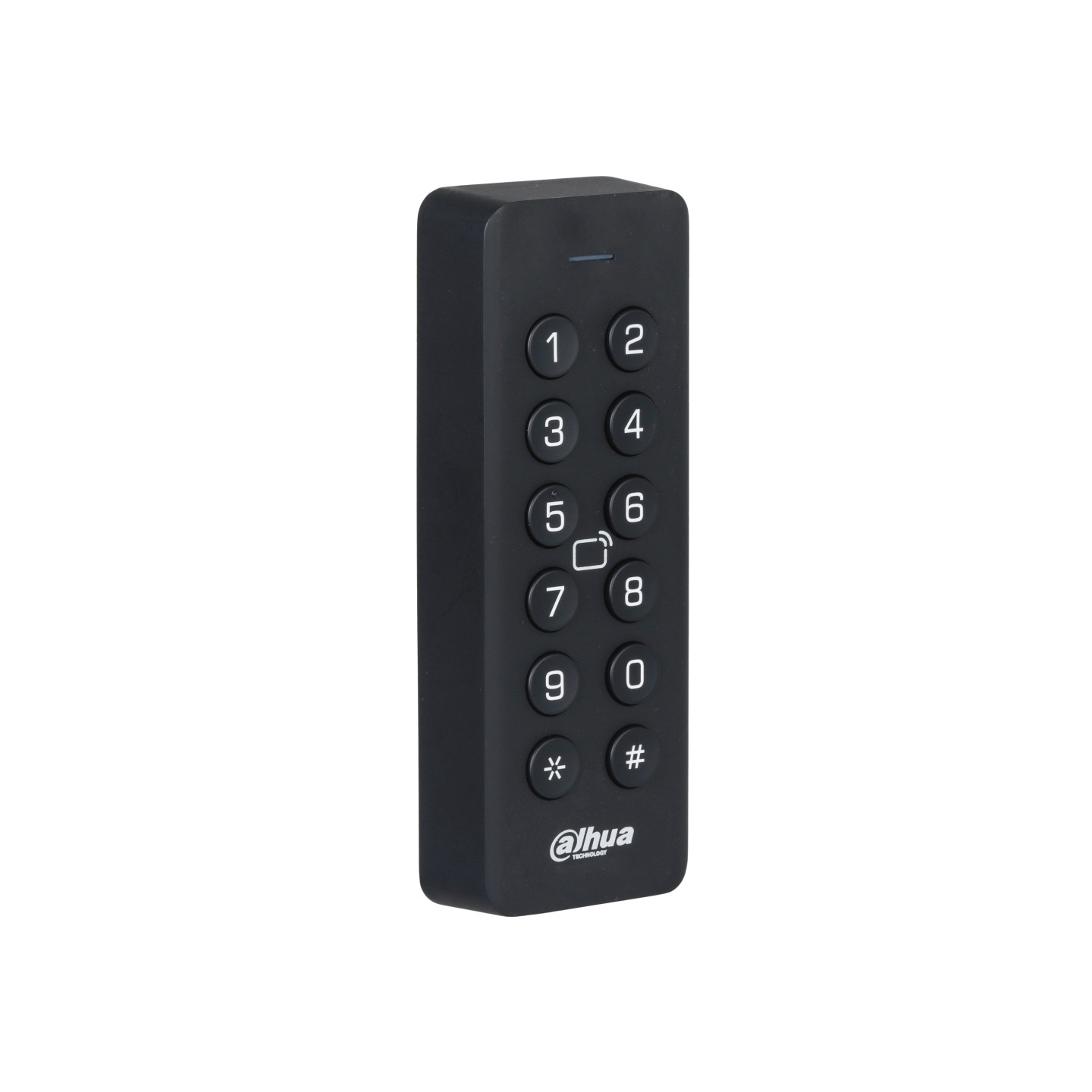

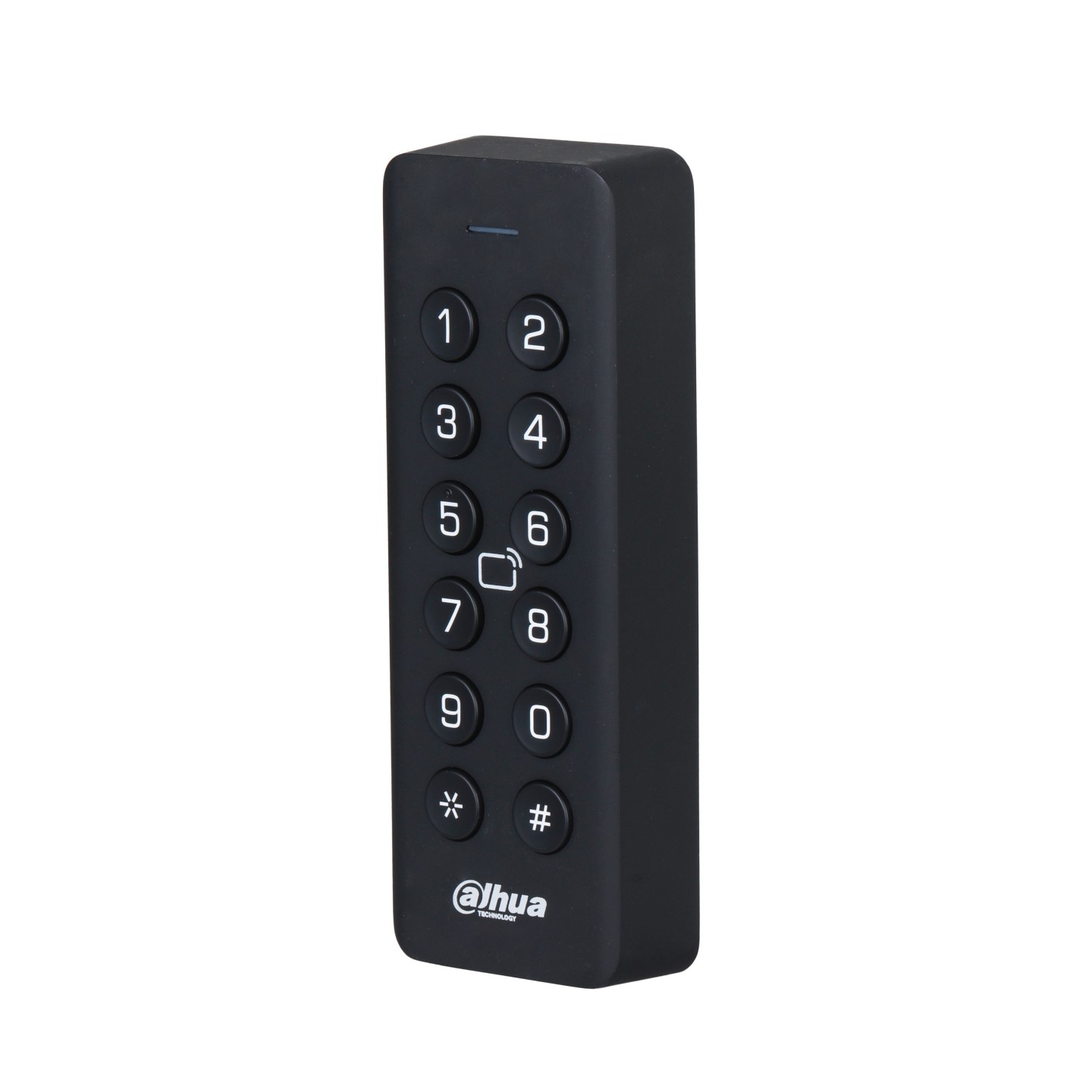

Dahua AC RFID Reader With Keyboard - ASR2101H
Card and password unlocking; RS-485 and Wiegand 34 (configurable Wiegand 26); buzzer and indicator prompts; tamper alarm; watchdog monitoring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader + Keypad |
|---|---|
| Access Control - Software | Standalone |
- Card unlock and password unlock
- RS-485 and Wiegand 34 communication (Wiegand 26 can be configured)
- Prompts using the buzzer and indicator light
- Tamper alarm
- Watchdog monitors and controls the device when it behaves
- All the connection ports have overcurrent and overvoltage protection
- IP66 rated
System
- OSDP Protocol : Yes
- Button Type : Mechanical
Basic
- Product Type : Card reader
- Buzzer : Yes
- Backlight : Yes
- Casing Material : PC + ABS
Function
- Unlock Mode : Card, password
- Card Type : IC card
Performance
- Response Time : 0.1 s
- Card Reading Distance : 0 cm–8 cm
Port
- RS-485 : 1
- Wiegand : 1 channel output
Alarm
- Tamper Alarm : Yes
General
- Power Supply : 12 VDC, 0.5 A
- Protection : IP66
- Power Consumption : ≤ 0.48 W (standby), ≤ 1.2 W (working)
- Product Dimensions : 127 mm × 46 mm × 20 mm
- Packaging Dimensions : 139 mm × 73 mm × 48 mm
- Operating Temperature : –30 °C to +70 °C
- Operating Humidity : ≤ 95% (RH)
- Operating Environment : Outdoor
- Gross Weight : 104 g
- Installation : Surface Mount
| Reader Frequency | Mifare (13.56MHZ) |
| Water Proof | IP66 |
