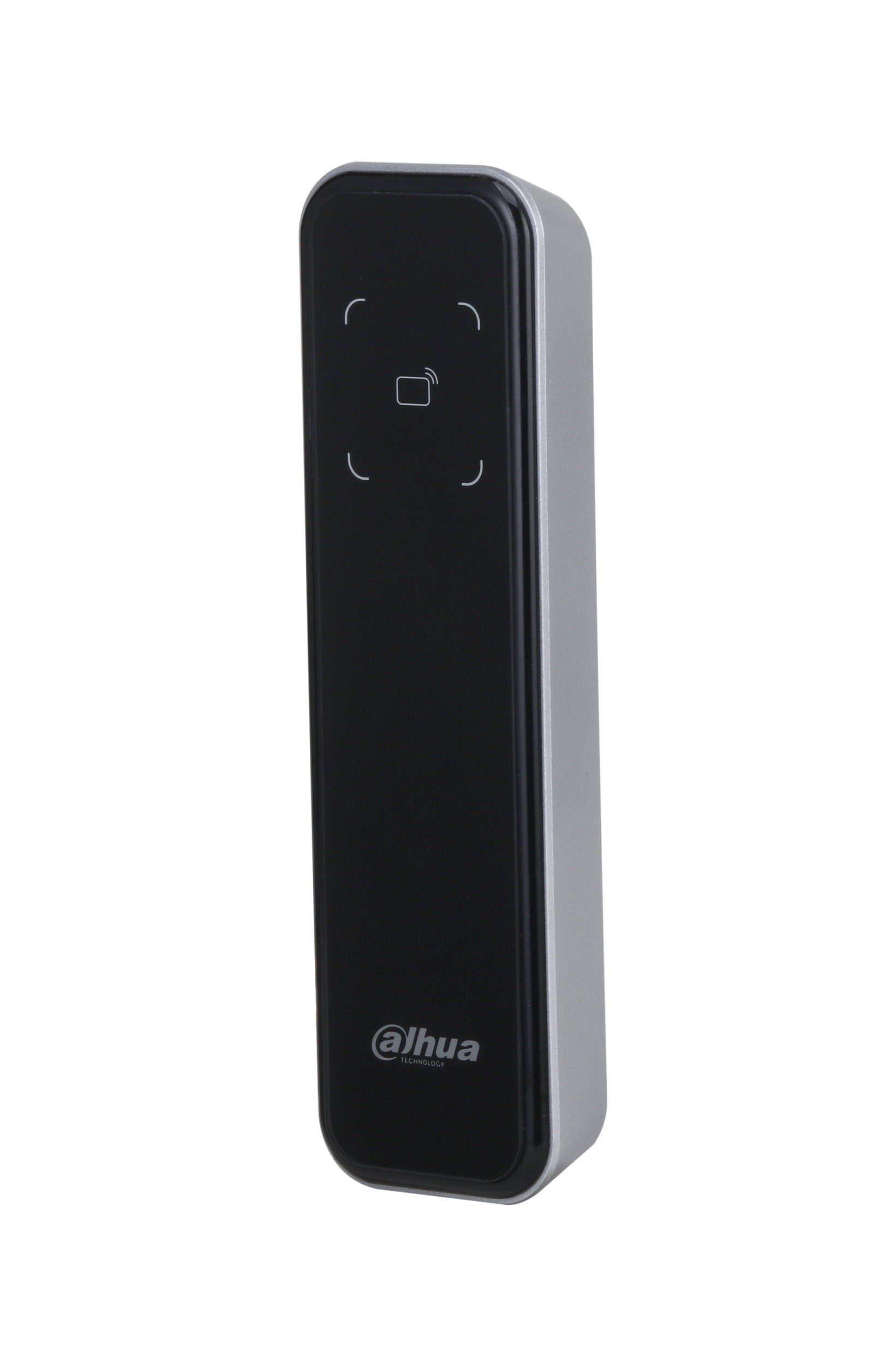

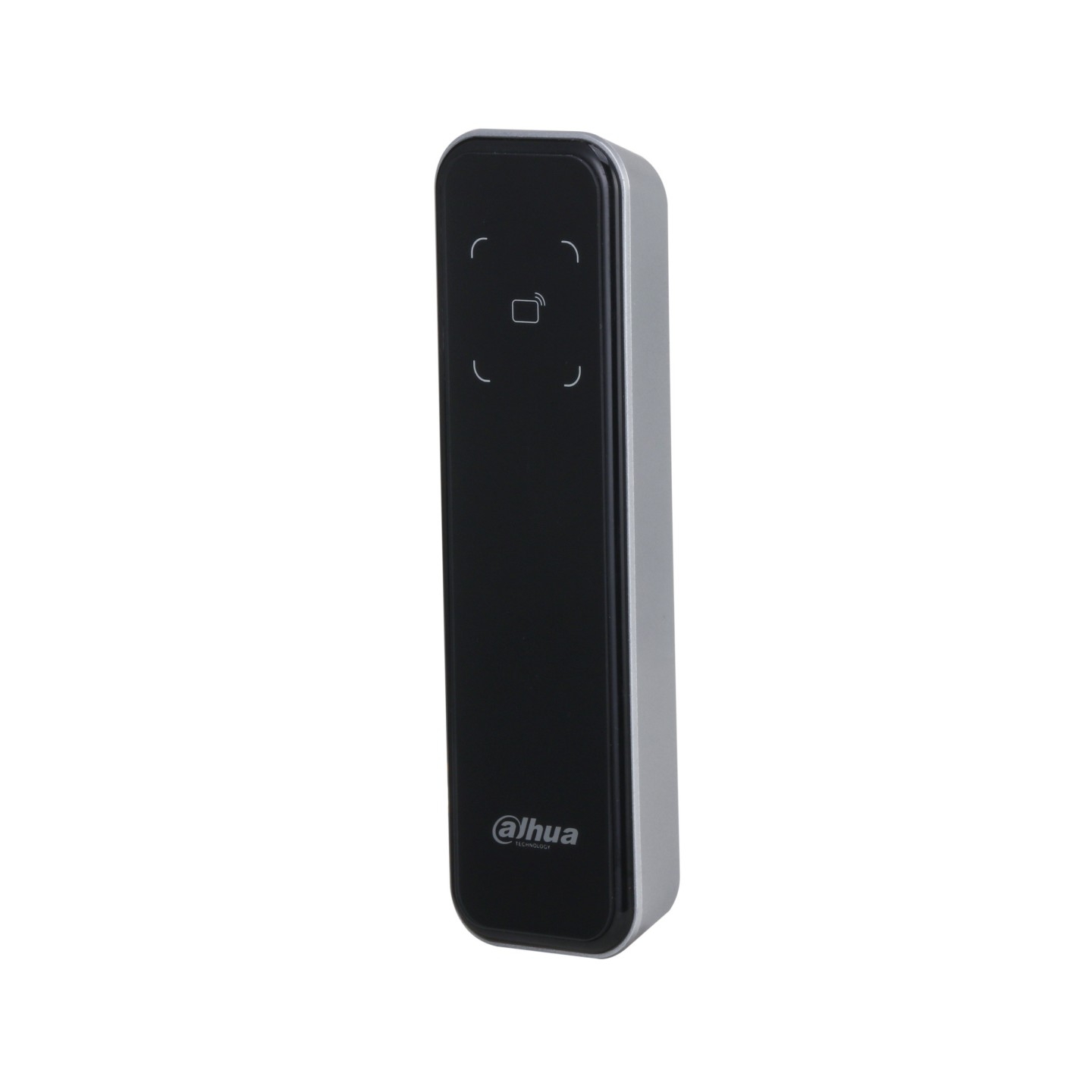

Dahua AC RFID & Bluetooth Reader - ASR2200A-B -

• PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
• Contactless card reading for IC cards (Mifare cards)
• Unlock through card swiping and Bluetooth
• Communicates through the RS-485 port, Wiegand port, and Bluetooth
• Prompts using the buzzer and indicator light
• Supports the anti-tampering alarm
• The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
• All the connection ports have overcurrent and overvoltage protection
• Works with the DMSS mobile client

Basic

• Product Type : Card reader
• Buzzer : Yes
• Casing Material : Tempered glass/PC

Function

• Unlock Mode : Card swiping/Bluetooth
• Card Type : IC card
• Bluetooth : Yes

Performance

• Response Time : 0.1 s
• Card Reading Distance : 0 cm–5 cm
• Bluetooth Distance : 1.Short-range: ≤0.2 m / 2.Mid-range: ≤2 m. 3. / Long-range: ≤10 m. The Bluetooth unlock range might differ depending on models of your phone and the environment

Port

• RS-485 : 1
• Wiegand : 1 output channel

Alarm

• Tamper Alarm : Yes

General

• Power Supply : 12 VDC, 0.5 A
• Protection : IP66
• Power Consumption : Standby ≤0.9 W, working ≤1.7W
• Product Dimensions : 135 mm × 40 mm × 15 mm (H × W × D)
• Packaging Dimensions : 195 mm × 75 mm × 52 mm (H × W × D, 1 in inner carton) / 415 mm × 400 mm × 230 mm (H × W × D, carton)
• Operating Temperature : –30 °C to +70 °C (–22 °F to +158 °F)
• Operating Humidity : 5%–95% (RH), non-condensing
• Operating Environment : Outdoor
• Gross Weight : 0.16 kg
• Installation : Surface Mount
• Certifications : CE; FCC
