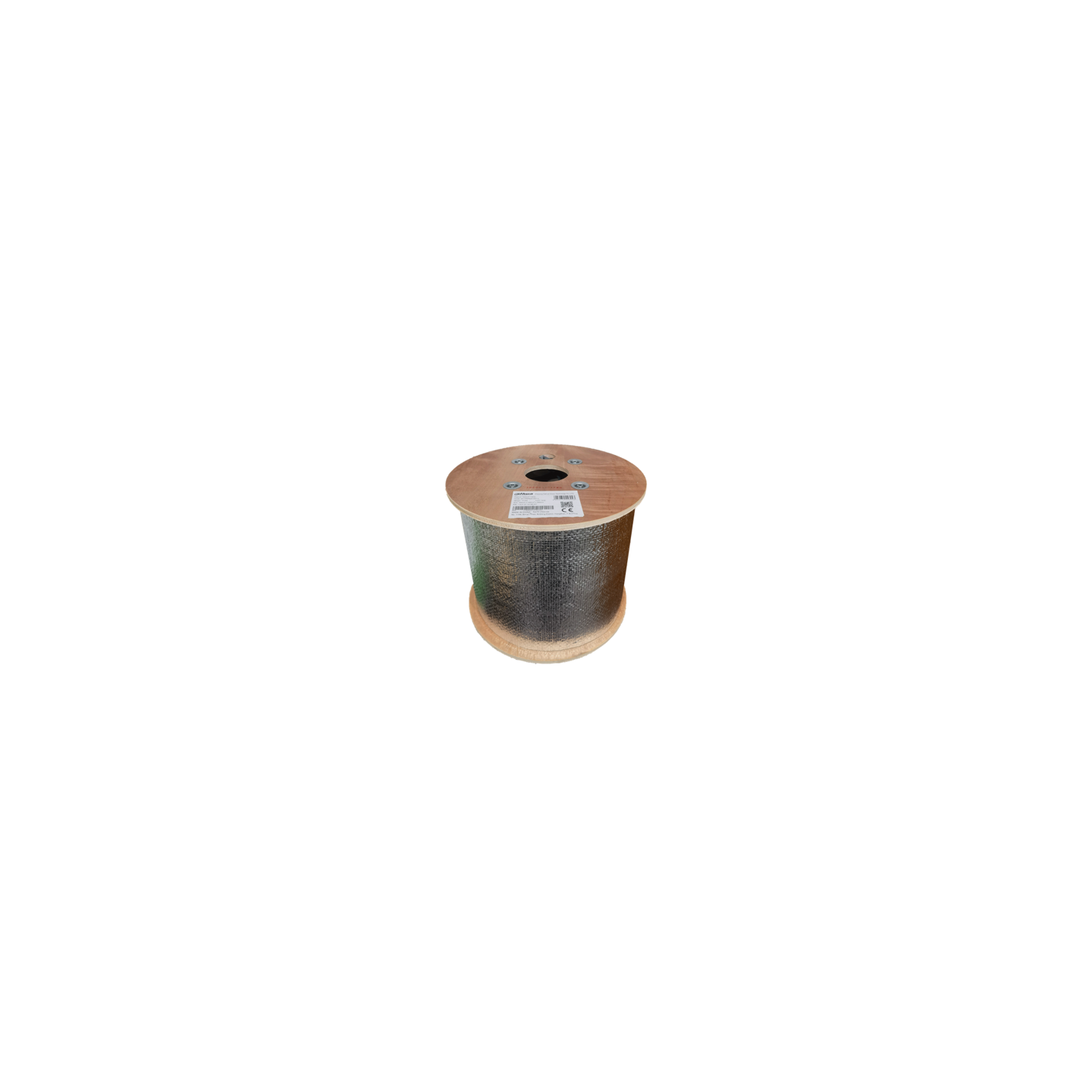

Dahua CAT5e CPR OFC FTP Cable 305m 0.52mm Gray - PFM920I-5EF - CAT5e CPR OFC FTP Cable 305m 0.52mm Gray

• 305.0 m (1000 ft)/carton FTP CAT5E, power over Ethernet, compatible with one cable
• High-purity Oxygen-Free Copper conductor material
• Customized PVC outer sheath; meet CE CPR Eca and ANSI/TIA 568-C.2 flame retardant class certified
• 10-year warranty

Conductor

• Material : Oxygen free copper (99.95% purity)
• Diameter : 0.52 mm ± 0.02 mm (0.0204" ± 0.0007")
• Wire Gauge : 24 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.25 mm (0.0098")
• Diameter : 1.04 mm ± 0.05 mm (0.0409" ± 0.0019")
• Color : 4 pairs, Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 500D

Drain Wire

• Material : Solid tinned copper
• Specification : 0.50 mm ± 0.10 mm (0.0196" ± 0.0039")

Shielding

• Material : Polyester aluminum foil
• Specification : 19 × 0.065 mm (19 × 0.0025")

Sheath

• Material : PVC
• Min. Average Thickness : 0.40 mm (0.0157")
• Diameter : 6.2 mm ± 0.5 mm (0.2440" ± 0.0196")
• Color : Gray

Electrical

• Max. DC Resistance of a Single Conductor (20°C) : 9.5 Ω / 100 m
• Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Unbalanced Line-to-Ground Capacitance : 160 pF / 100 m
• Working Capacitance : 56 pF / 100 m

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near End Cross Talk : ≥35.30 dB / 100 m @ 100 MHz
• Max. Attenuation : ≤22.0 dB / 100 m @ 100 MHz
• Return Loss : ≥20.1 dB / 100 m @ 100 MHz

Mechanical

• Tensile Strength : Sheath ≥13.5 MPa, insulation ≥16 MPa
• Elongation at Break : Sheath ≥150%, insulation ≥300%
• Installation Bending Radius : >8 times of outer cable diameter

Environmental

• Color Migration Resistance of Insulation : No migration
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operating Temperature : –20 °C to +75 °C (–4 °F to 167 °F)
• Installation Temperature : 0 °C to +60 °C (32 °F to 140 °F)
• Storage Temperature : –15 °C to +75 °C (5 °F to 167 °F)

Packaging

• Cable Length : 305.0 m ± 2.0 m (1,000.66 ft ± 6.56 ft)
• Packaging Dimensions : 350 mm × 350 mm × 300 mm (13.77" × 13.77" × 11.81") (L × W × H)
• Packaging Method : 305.0 m (1,000.66 ft) a roll, plywood wooden shaft
• Net Weight : 11.5 kg ± 0.5 kg (25.35 lb ± 1.10 lb)
• Gross Weight : 14.0 kg ± 0.5 kg (30.86 lb ± 1.10 lb)

Compliance

• Executive Standards : ANSI/TIA 568-C.2
• Certifications : CPR Eca
