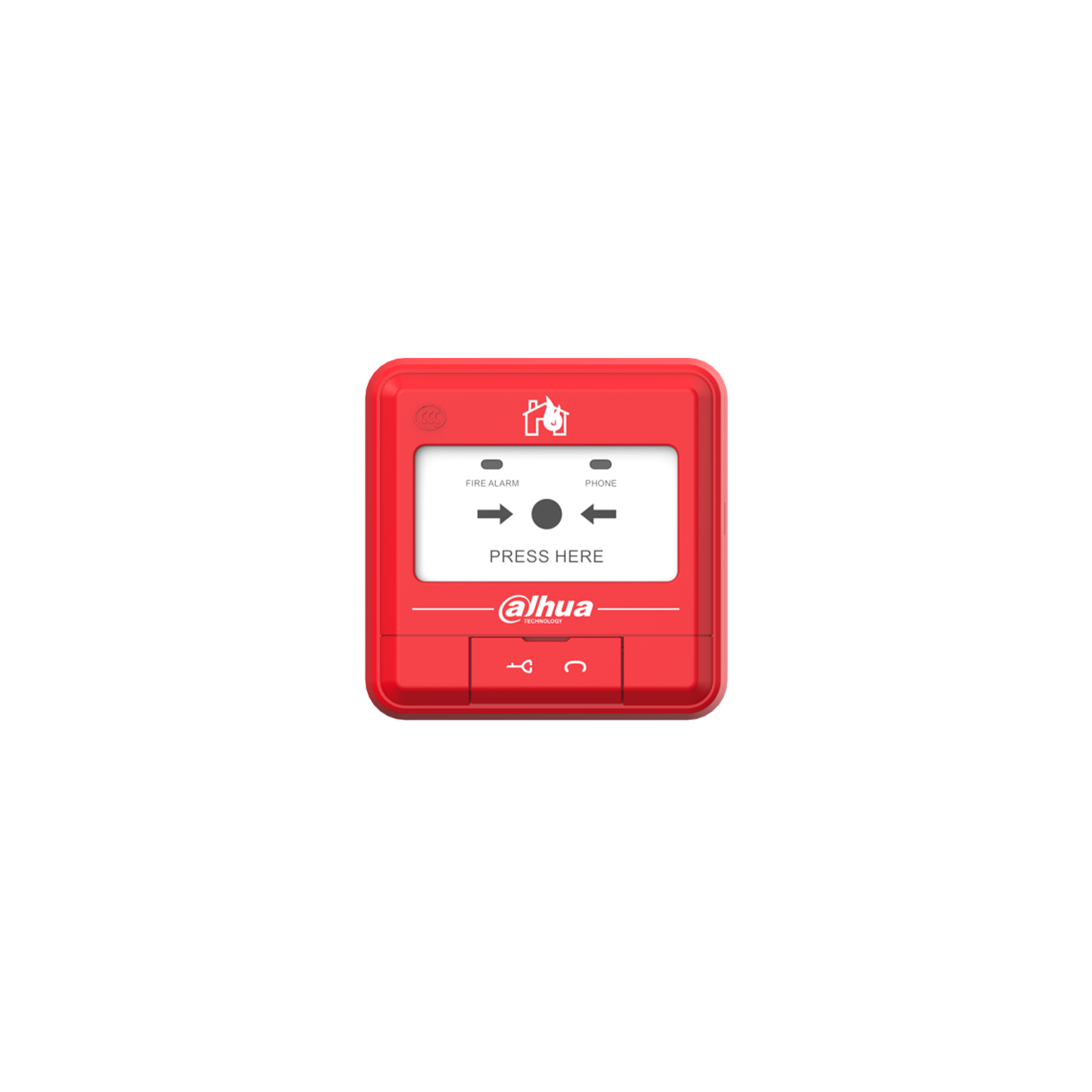

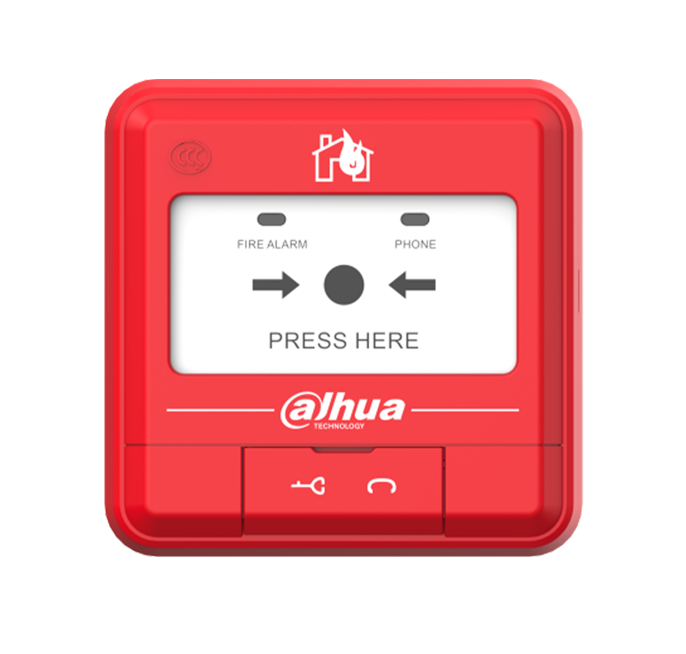

Dahua Addressable Fire Alarm Manual Call Point - HY-1200-CTXF - without Base
Addressable manual call point with two-wire, polarity-free wiring; built-in microprocessor; ultra-low monitoring and alarm current; plug-in installation; DC24V operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, performance is stable
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Independent output: A pair of normally open contacts telephone system
- Simple installation: With a plug-in structure, easy to install and construct
Electrical
- Working Voltage : DC24V
- Current : Monitoring current: ≤ 100μA / Alarm current: ≤ 170μA
- Contacts Capacity : DC30V/100mA
- Indicator : Fire Alarm / Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm / Phone / Red indicator flashes during polling and communication
Communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
Communication
Distance : 1500 m (4921.26 ft)
Environment
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
Construction
- Color : Red
- Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")
- Weight (with base) : 136 g (0.30 lb)
- Compliance Standard : EN54-11
