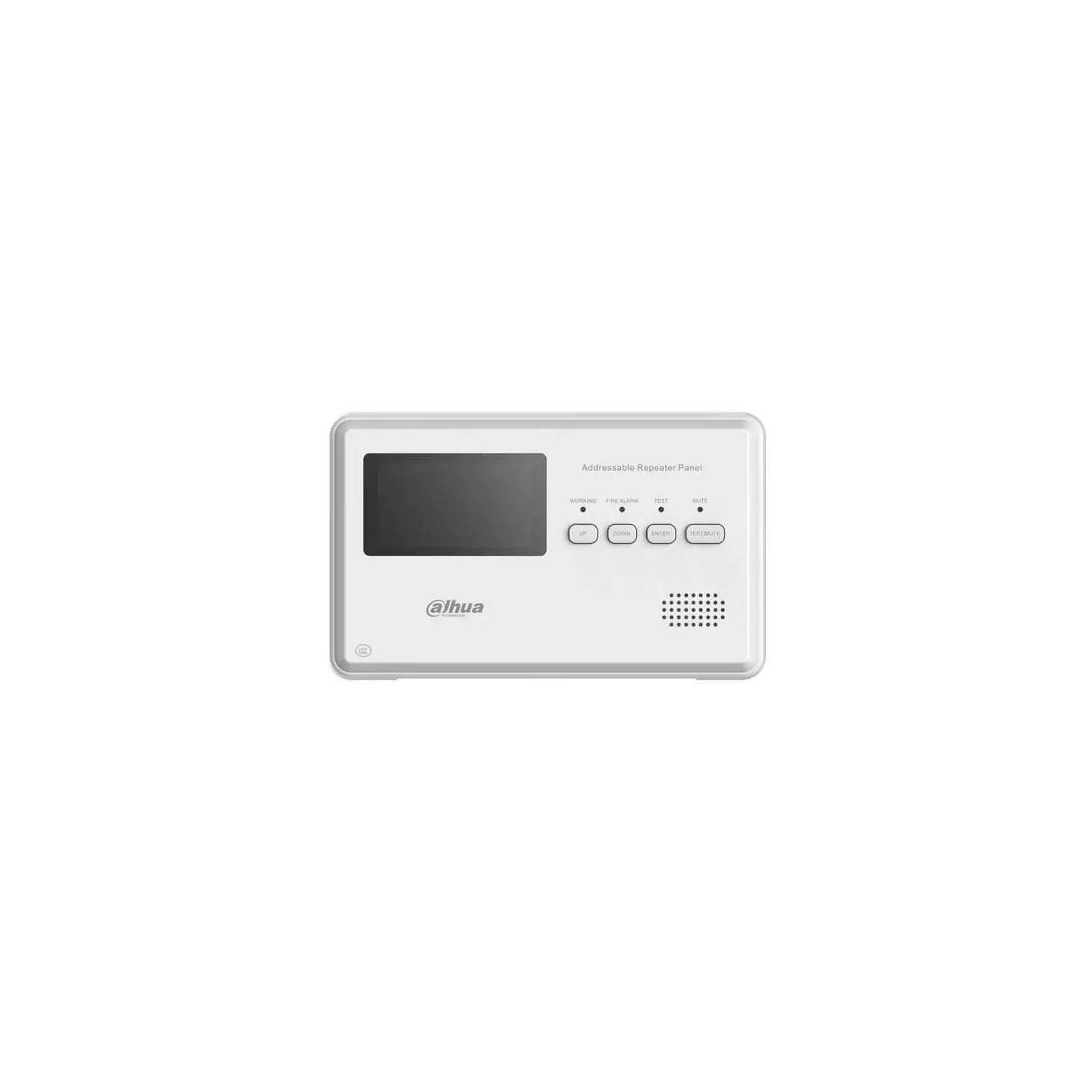

Dahua Addressable Fire Alarm Repeater Panel - HY-1330-CTXF
Dahua addressable fire alarm repeater panel with two-wire, polarity-free wiring, built-in microprocessor for stable performance, and ultra-low monitoring/alarm current.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Smart Features | Self-Test |
|---|
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, performance is stable
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
Electrical
- Working Voltage : DC24V
- Current : Monitoring current: ≤ 2mA / Maximum operating current: ≤ 10mA
- Indicator : Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunctioned / Alarm: Red indicator remains lit during alarm / Self-test: Yellow indicator remains lit during self-testMute: Yellow indicator remains lit when Test/Mute Button is pressed
- Display Capacity : 999 pieces of alarm information
- Display : 64×128 LCD screen
Communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : 1500 m (4921.26 ft)
- Alarm Sound Pressure : 65dB–115dB (A) @ 1m
- Environment
- Operating Temperature : –10°C to +40°C (+14°F to +104°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
Construction
- Color : White
- Dimensions (with base) : 180.0 mm × 110.0 mm × 32.0 mm (7.09" × 4.33" × 1.26")
- Weight (with base) : 270 g (0.60 lb)
- Compliance Standard : EN54-2
