Lanberg Fiber ODF - for 12xSC Simplex or 12xLC Duplex Adapters RM Metal
1U pull-out fiber optic switch for 19-inch cabinets with mounting accessories; powder-coated steel construction.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The 1U high pull-out fiber optic switch with mounting accessories is a product designed for installation inside 19" wide data communication cabinets. It was made entirely of durable powder-coated steel sheet.

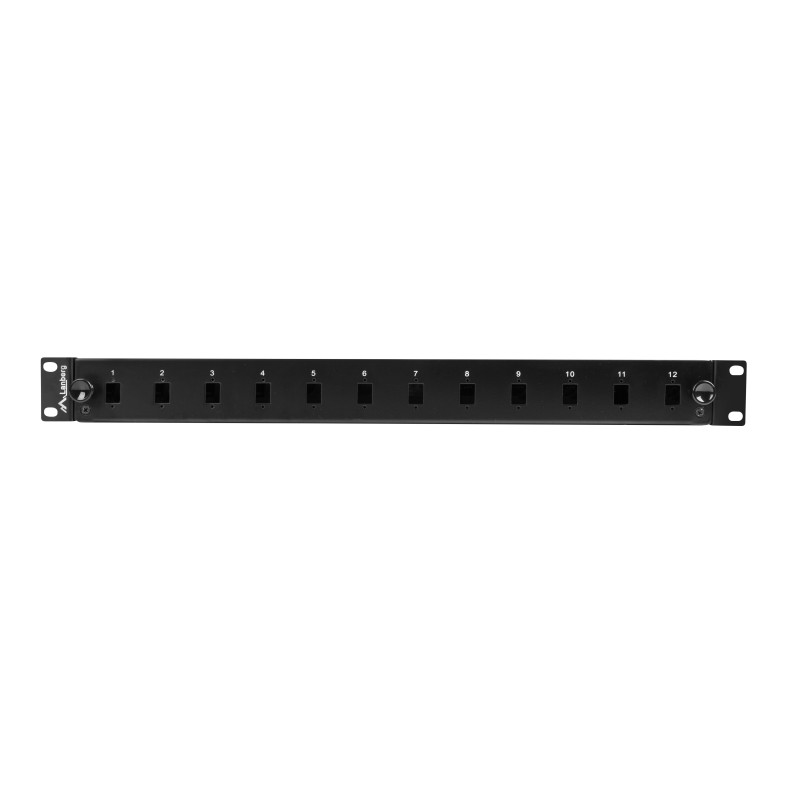

The front panel is equipped with port numbering and screw holes for better attachment of adapters. Using the front panel, we can slide out or remove the fiber optic patchpanel drawer, which provides good organization and installation of fiber optic cables, in addition, the rear panel of the drawer was equipped with 5 cable inputs.
The handles of the so-called rack "ears" are adjustable, which allows you to seamlessly adjust the fiber optic patchpanel to the requirements of a particular user in the data communications cabinet.
- Front panel capacity: 12xSC Simplex or 12xLC Duplex,
- Thickness of the sheet:1.2mm,
- Thickness of mounting brackets: 1.5mm,
- Material of weld tray and spools: Plastic (ABS),

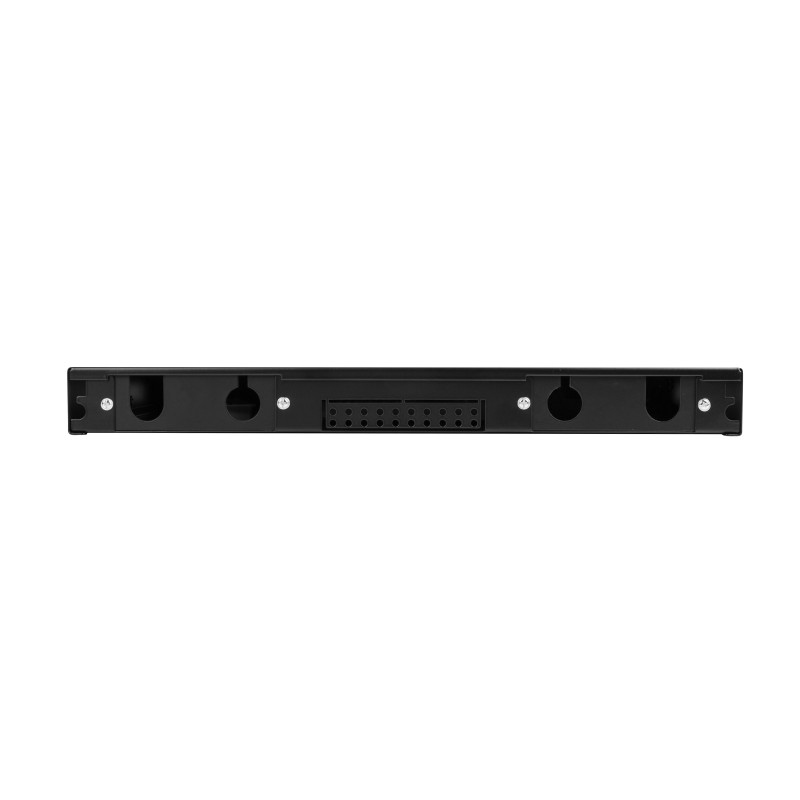

- Back panel equipped with 4 holes of 22mm diameter and 1 hole for DROP cables,

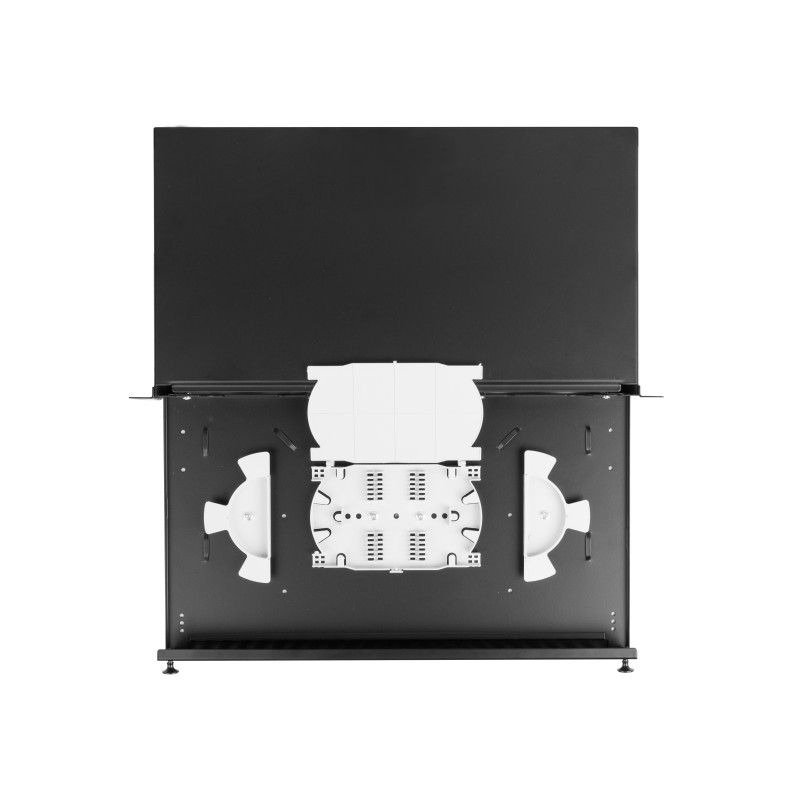

- Drawer equipped with weld trays and cable holders.
Accessories included: 2x PG13.5 cable glands, splice trays, cable ties, M6x16mm screws with retainers, M2x8mm screws for attaching fiber optic adapters, in addition - a screw with a knurled nut for attaching alternatively its own weld tray.
