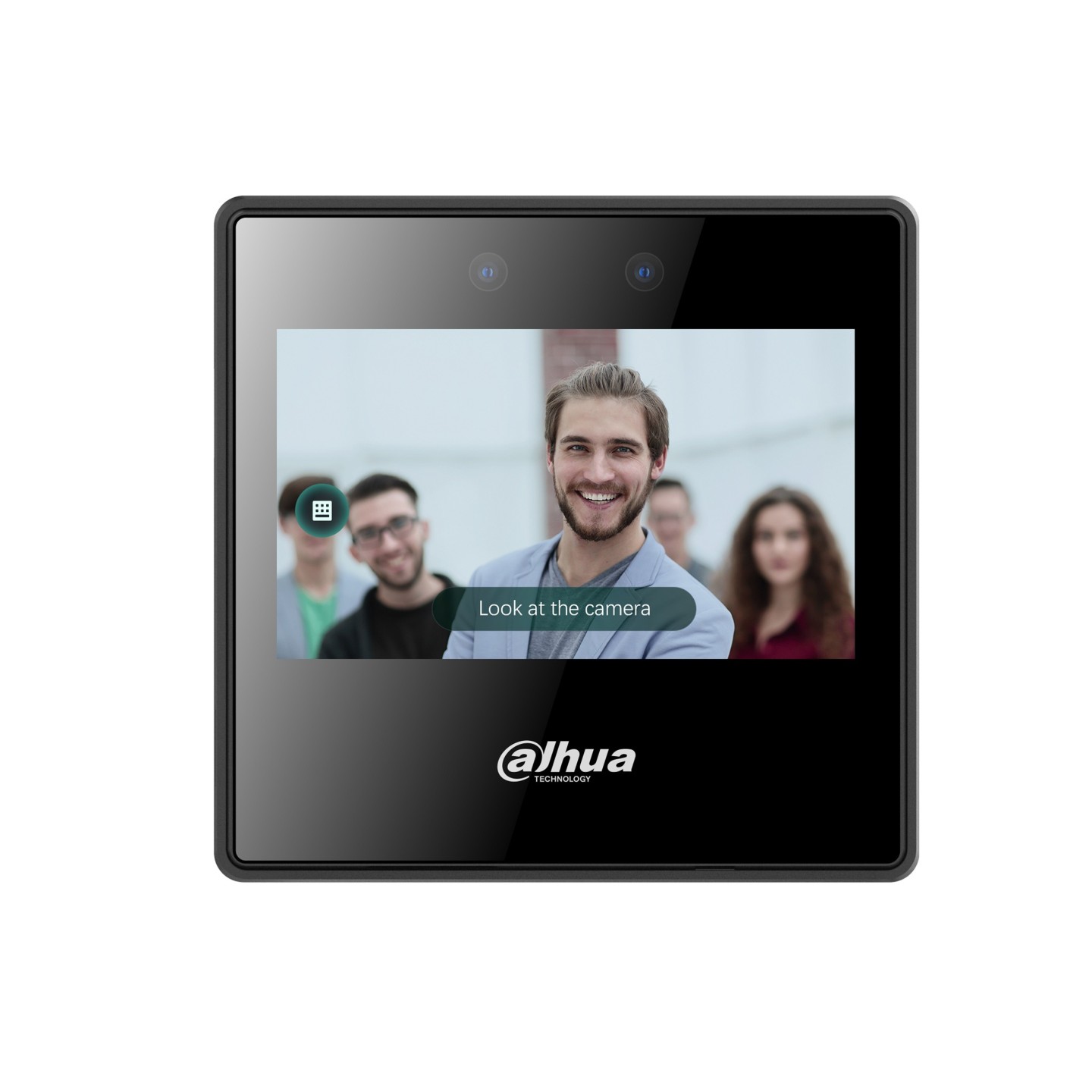

Dahua AC Time Attendance & Face Recognition Terminal - ASA3223A-W
4.3-inch glass touch screen (480x272), 2MP dual-lens camera with IR/DWDR, face/password verification, mask detection; supports 2,000 users/faces/passwords, 50 admins, 300,000 records; 99.9% liveness, 0.2s 1:N; customizable voice prompts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Control - Type | Reader |
|---|---|
| Access Control - Software | Standalone |
- 4.3 inch glass touch screen with a resolution of 480 × 272
- 2-MP wide-angle dual-lens camera with IR illumination and DWDR
- Verification Methods including face and password
- Supports mask detection
- Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft)
- Supports 2,000 users, 2,000 faces, 2,000 passwords, 50 administrators, and 300,000 records
- Liveness detection has a face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person
- Supports customization of voice prompts
System
- Main Processor : Embedded Processor
- Network Protocol : IPv4; RTSP; RTP; TCP; UDP; P2P
- Interoperability : ONVIF; CGI
- SDK and API : Yes
Basic
- Product Type : Standalone
- Display Screen : 4.3" LCD
- Screen Type : Capacitive Touchscreen
- Screen Resolution : 480 (H) × 272(V)
- Camera : 2-MP CMOS HD dual-lens camera
- WDR : DWDR
- Light Compensation : Auto IR
- Voice Prompt : Yes
- Casing : PC + ABS
Function
- Verification Method : Password, face, and other verification methods
- Period List : 128 periods
- Holiday Period : 128 periods
- Network Update : Yes
- Wi-Fi : Yes
- Wireless Standard : IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range : 2.4 GHz
- Web Configuration : Yes
- Auto Registration : Yes
- Real-time Monitoring : Yes
Performance
- Face Recognition Height Range : 1.1 m–2.0 m
- Face Recognition Distance : 0.3 m–1.5 m
- Face Recognition Accuracy : 99.9%
- Face Recognition Time : 0.2 s
Capacity
- User Capacity : 2,000
- Face Image Capacity : 2,000
- Password Capacity : 2,000
- Record Capacity : 300,000
Port
- USB : 1 × USB 2.0
General
- Power Adapter : Standard
- Power Supply : 12 VDC, 1.5 A
- Power Consumption : ≤18 W
- Product Dimensions : 115.0 mm × 118.0 mm × 27.1 mm (H × W × W)
- Packaging Dimensions : 190 mm × 179 mm × 127 mm (L × W × H, protection box)
- Operating Temperature : –10 °C to +40 °C
- Operating Humidity : 0%–90% (RH), non-condensing
- Operating Environment : Indoor
- Net Weight : 250 g
- Gross Weight : 400 g
- Accessory : Wall mount bracket and desktop bracket (included)
- Installation : Wall mount ; 86 case mount; desk mount
