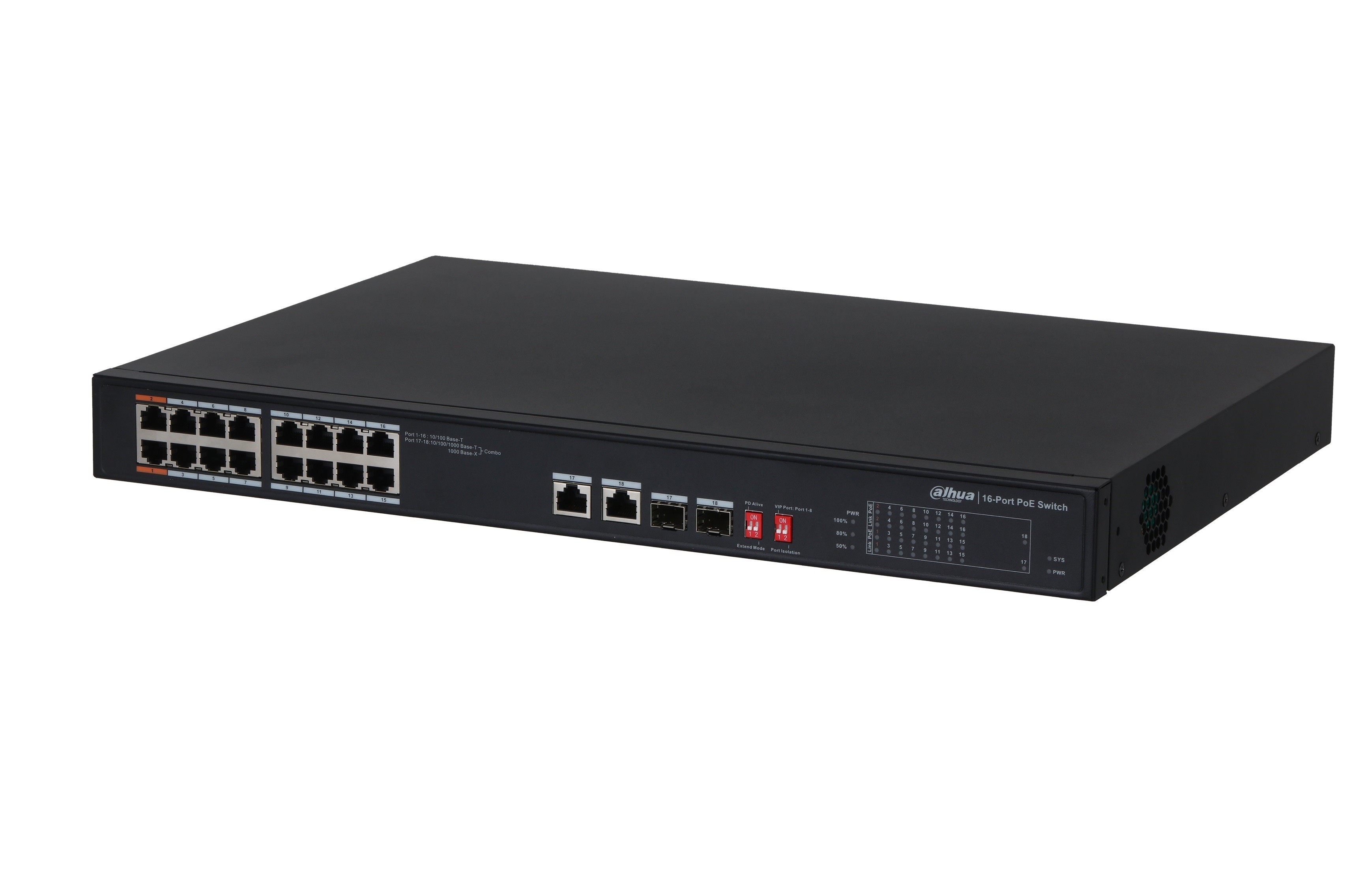

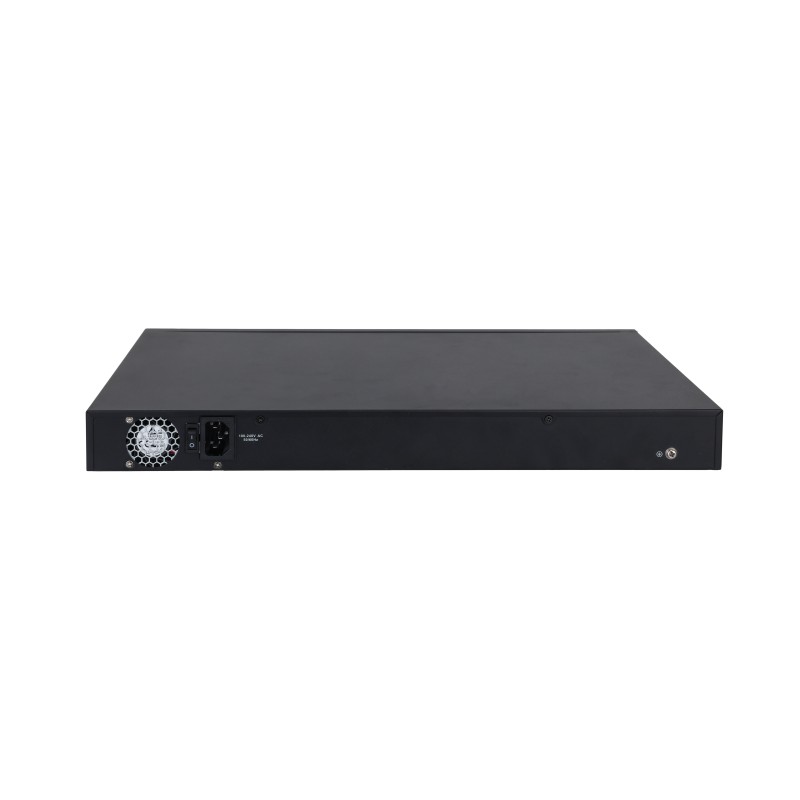

Dahua PoE Switch - PFS3218-16ET-135 - 16ports 16FE + 2GE 135W
Intelligent PoE switch with PoE watchdog (PD Alive), long-distance PoE transmission, smooth operation, wide operating temp -10 to 55°C, port isolation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
- Intelligent PoE
- PD Alive(PoE Watchdog)
- Long Distance PoE Transmission
- Smooth Transmission
- Wide Working Temperature: –10 to 55°C (14°F to 131°F)
- Port Isolation
Performance
- Layer : Layer 2
- Managed : No
- Switching Capacity : 7.2 Gbps
- Packet Forwarding Rate : 5.3568 Mpps
- Packet Buffer Memory : 4 Mbit
- MAC Table Size : 8K
- Standards Compliance : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Hardware Feature
- Standard Power Supply : Yes
- PoE : Yes
- Ethernet Port : 16
- Optical Port : 2
- Ethernet Port Rate : 100 Mbps
- Optical Port Rate : 1 Gbps
- Number of Bussiness Card Slots : "Port 1–16: 16 × RJ45 10/100 Mbps / Port 17–18: 2 × RJ45 10/100/1000 Mbps (uplink) / Port 17–18: 2 × SFP 1000 Mbps (uplink) (combo)"
- Power Supply : 100V AC–240V AC
- Operating Temperature : –10°C to 55°C (14°F to 131°F)
- Operating Humidity : 10%–90%
- Storage Humidity : 5%–95%
- Power Consumption : "Idling: 5W / Full load: 135W"
PoE
- PoE Standard : IEEE802.3af, IEEE802.3at, Hi-PoE
- PoE Budget : Port 1–2≤60W, Port 3–16≤30W, total≤135W
- PoE Pin Assignment : PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) :
- Long Distance PoE Transmission : Yes
Function
- VLAN : Port Isolation
- QoS : Yes
- System Maintenance : PD Alive
General
- ESD : Air discharge: 8kV / Contact discharge: 6kV
- Thunderproof : Common mode: 4kV / Differential mode: 2kV
- Dimensions : 440 mm × 300 mm × 44 mm
- Packaging Dimensions : 527 mm × 412 mm × 110 mm
| Ethernet Speed | Fast Ethernet |
| Ethernet Ports | 16 |
| Long Distance POE | Up to 250 Meters |
| Poe Ports | 16 |
| Power | 135W |
| Total PoE Power | 135W |
| Max. Watt per Port | 30W |
| Type | Unmanaged |
| Mounting | Rackmounted |
| PoE Type | 802.3af/at |
| SFP Ports | 2 |
| Gigabit Uplink Ports | 2 x SFP/RJ45 Combo |
| Recommended for | VoIP Phones, IP Cameras |
