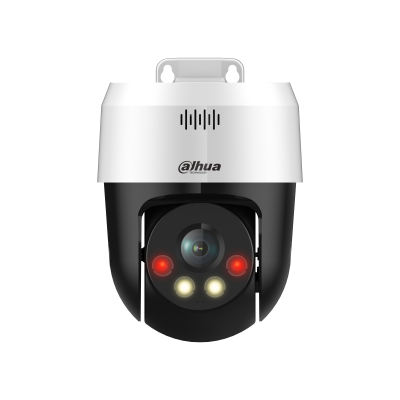

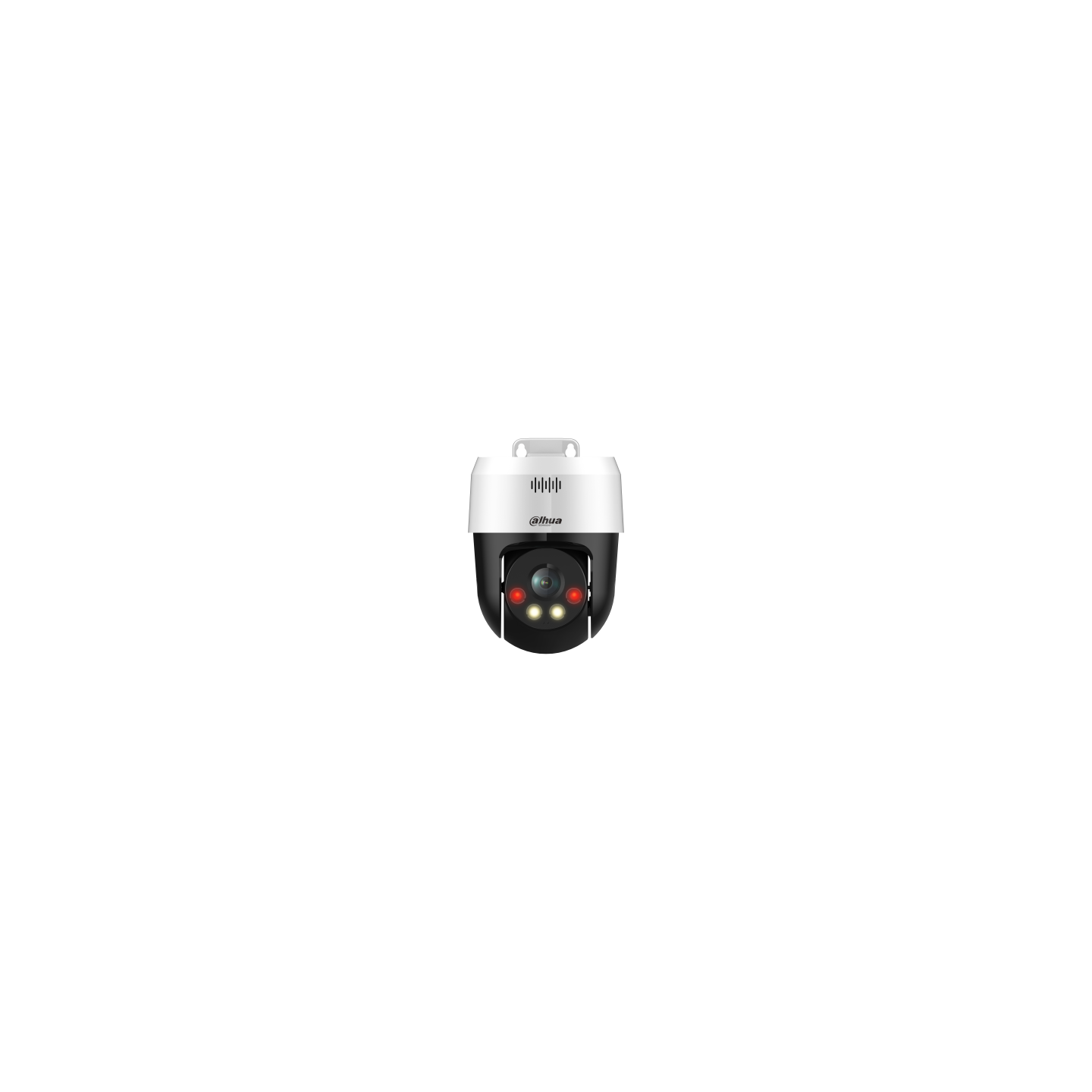

Dahua IP 5.0MP PT Dome Smart Dual Light - SD2A500NB-GNY-A-PV - IP 5.0MP PT Dome Smart Dual Light
5.0 MP IP Dome camera with 1/2.8" STARVIS CMOS, up to 25/30fps@5MP, human/vehicle detection, tripwire, intrusion, H.265, PoE, 2-way audio, sound and light alarm, IR and white light.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Resolution | 5 MP |
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic + Speaker (2-way) |
- 1/2.8" 5Megapixel STARVIS™ CMOS.
- Max. 25/30fps@5MP.
- Human/vehicle detecton.
- Tripwire, intrusion.
- H.265 encoding.
- PoE.
- Two-way talk.
- Sound and light alarm.
- IR and white light, three night view modes.
- IP66.
Camera
- Image Sensor : 1/2.8" CMOS
- Pixel : 5 MP
- Max. Resolution : 2560 (H) × 1920(V)
- Electronic Shutter Speed : 1 s–1/100,000 s
- Illuminator Number : 2 (IR light); 2 (warm light)
Lens
- Focal Length : 4.0 mm
- Max. Aperture : F1.6
- Field of View : H: 80.4°; V: 58.1°; D: 104.8°
- Close Focus Distance : 0.3 m
PTZ
- Pan/Tilt Range : Pan: 0° to 345° / Tilt: 0° to +80°
- Preset : 300
Smart Event
- IVS : Tripwire; intrusion,linkage tracking
- Human Detection : Yes
- SMD : SMD3.0
Active Deterrence
- Light Warning : Warm light warning / Flash duration: 5 s–30 s / Flash frequency:high, medium, low
- Sound Warning : Offers 1 sound alarm and 10 custom sound alarms can be imported / Sound can be set from 0%–100% / Play times can be set from 1-10
Video
- Video Compression : Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream 1)
- Resolution : 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
- Video Frame Rate : Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
- Video Bit Rate : H264: 88 kbps-8,192 kbps / H265: 35 kbps-8,192 kbps
- Day/Night : Auto (ICR); Color/B/W
- WDR : DWDR
- Image Rotation : 180°
Audio
- Audio Compression : PCM; G.711a; G.711Mu; G.726
Network
Network Port : RJ-45 (10/100 Base-T)
- Network Protocol : UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
- Interoperability : RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P
- Streaming Method : Unicast/Multicast
- User/Host : 20 (total bandwidth: 64 M)
- Storage : Micro SD card (256 GB); FTP
- Browser : IE: IE 7 and later versions; Chrome; Firefox; Safari
- Management Software : Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS
- Mobile Client : iOS;Android
Certification
- Certifications : CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-
3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Power
- Power Supply : 12 VDC/1.5 A ± 10% PoE (802.3af)
-
Power Consumption : Basic: 3.5 W; Max: 9 W (illuminator)
Environment
- Operating Temperature : –30 °C to +55 °C
- Operating Humidity : ≤95%
- Protection : Waterproof and Dustproof;TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
- Product Dimensions : 140.5 mm × Φ111.0 mm
- Net Weight : 0.5 kg
- Gross Weight : 1 kg
| AI Features | Person,Vehicle Detection |
| Camera Resolution | 5.0MP |
| Housing Type | Dome |
| Full-Color | Yes |
| Illumination Distance | Up to 30m |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| WDR | DWDR |
| Starvis | YES |
| Audio | Two-Way |
