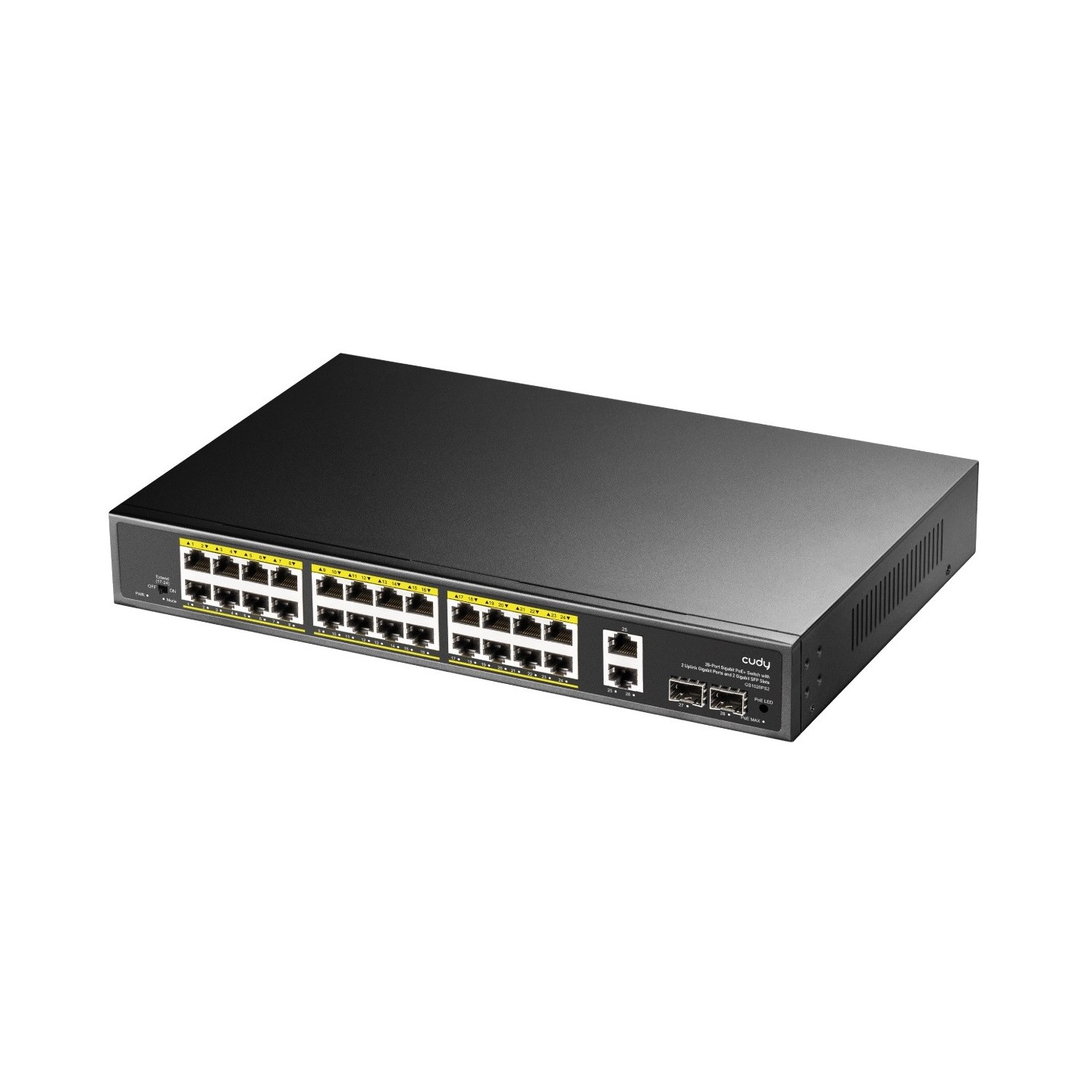

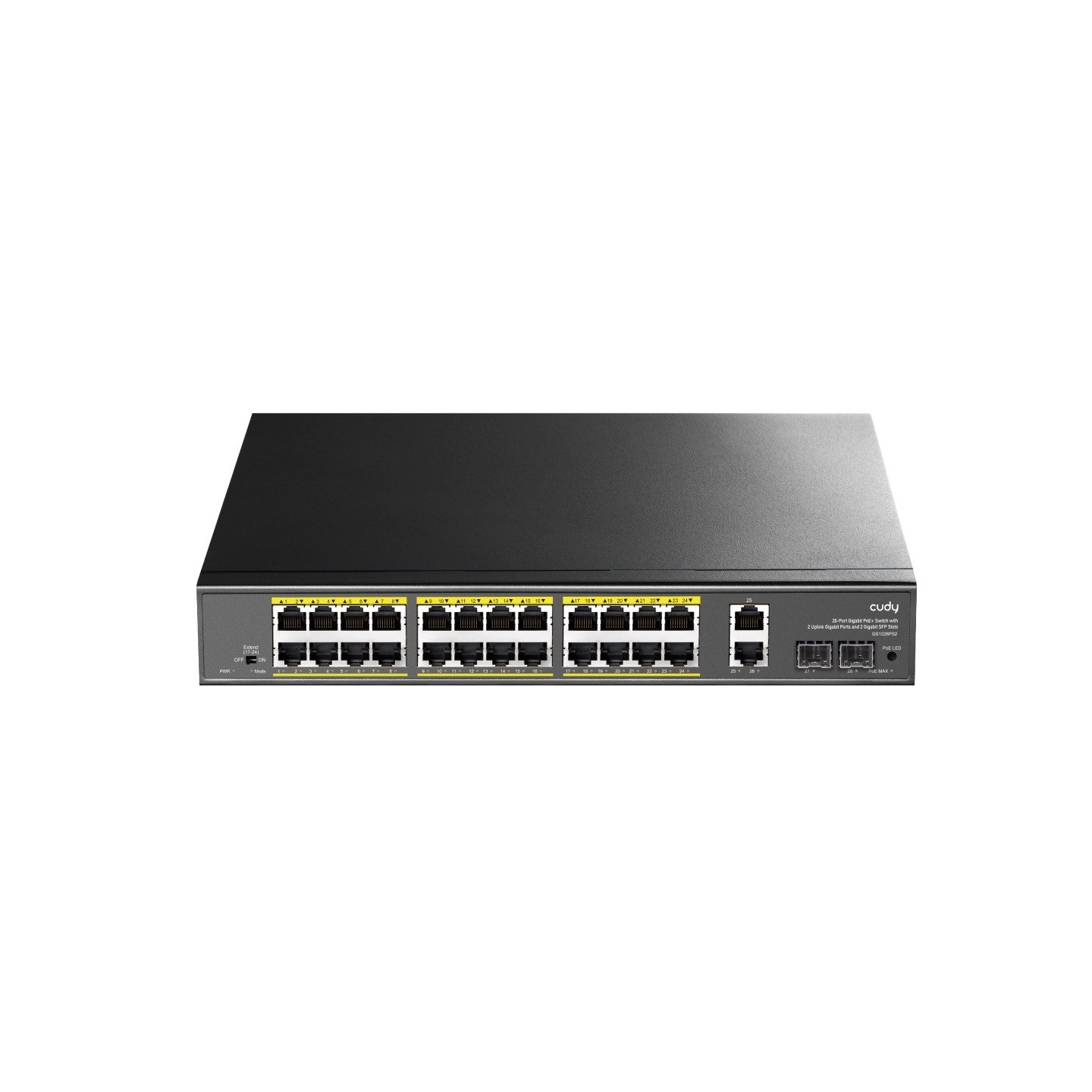

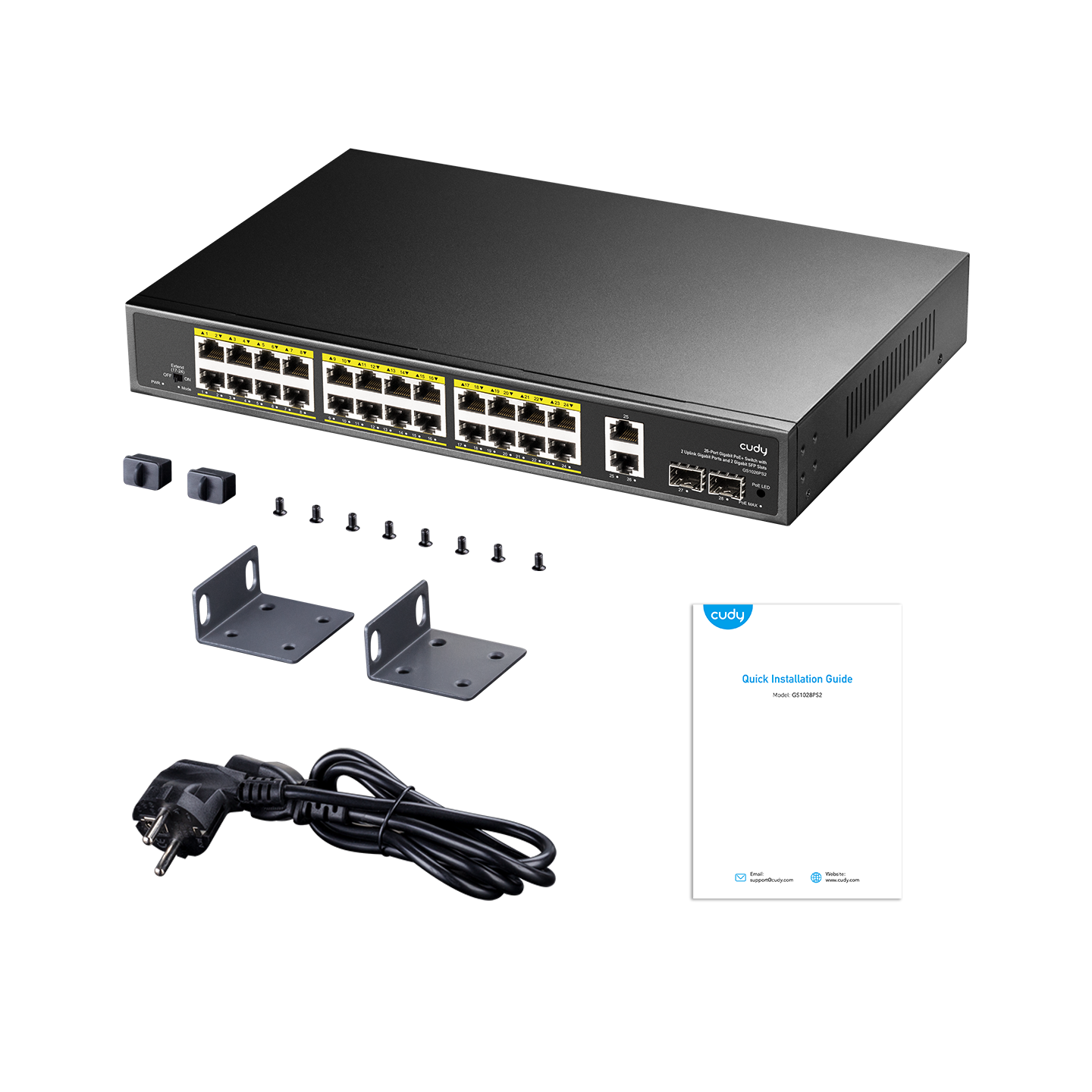

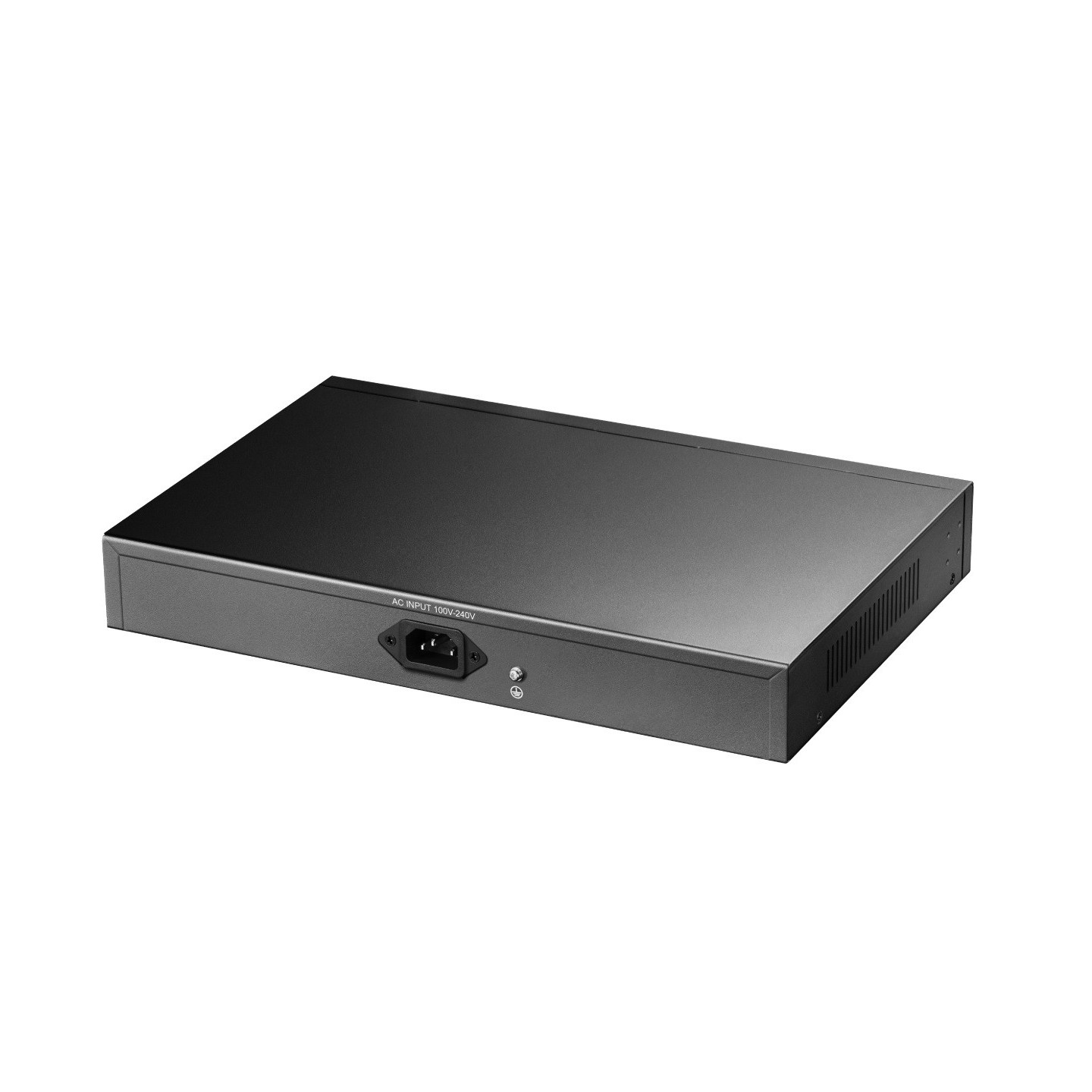

Cudy Switch PoE Gigabit 24PoE + 2GbE + 2SFP Uplink 300W RM - GS1026PS2 - RM
24 PoE ports with 2 GbE + 2 SFP uplinks, 300W total PoE, RM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
- Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
- 24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
- Port 17-24 Supports CCTV Mode for max 250 meters transmission
- 300-watt total power supply
- Watchdog detects unresponsive PoE clients under VLAN mode
- PoE Port Priority streamlines device power management
Model: GS1026PS2
Connector Type: 24× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots
Network Protocol:
- IEEE 802.3 (Ethernet)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3x (Flow Control)
- IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Parameters
- PoE Standard: IEEE802.3af /IEEE802.3at
- Max each port: 15.4W ( IEEE 802.3af )
- Max each port：30W ( IEEE 802.3at )
- PoE compatibility: IEEE 802.3af/at adaptive
- PoE port output: DC48-55V
- Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media
- 10BASE-T: Cat 5E UTP(≤250 meter)
- 100BASE-TX: Cat5 or more UTP (≤100 meter)
- 1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical
- MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
- Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification
- Bandwidth: 56Gbps
- MAC: 8K
- Packet Buffer Memory: 3 Mbit
- Packet Forwarding Rate: 41.644 Mpps
Power Supply
- Power input: AC100-240V 50/60Hz, Power Budget: 300 W
LED Indicator
- PWR :Power supply indicator (Red)
- Lighting: Powered
- Un-Light: No Power
1-24
- PoE/RJ-45 Status indicator (Yellow)
- On: POE power supply is normal
- Off: POE not powered
1-28
- PoE/RJ-45 StatUs indicator (Green)
- On: Link normal
- Off: Link blocked
- Flashing: Data transmitting
Note Press the PoE Status Button to switch between PoE and RJ-45 displaying modes
Working Environment
- Operating Temperature: -20℃ ~ 50℃;
- Storage Temperature: -40℃ ~ 80℃;
- Operating Humidity: Max 90%, non-condensing
- Storage Humidity: Max 95%, non-condensing
- Working Height: Max to 10,000 feet (3,000 meters)
- Storage Height: Max to 10,000 feet (3,000 meters)
| Ethernet Speed | Gigabit |
| Ethernet Ports | 24 |
| Poe Ports | 24 |
| Total PoE Power | 300W |
| Max. Watt per Port | 30W |
| Type | Unmanaged |
| Housing | Metal |
| Mounting | Rackmounted |
| PoE Type | 802.3af/at |
| Gigabit Uplink Ports | 2×RJ45+2×SFP |
