NBmounts F120 17-27" Gas Spring Wall Mount Single Arm Monitor Bracket (Boxed)
Full-motion gas spring wall mount for 17-27" monitors. Supports up to 7kg with 360° rotation, ±180° swivel, and +35°/-50° tilt. VESA 75x75/100x100mm compatible with aluminum construction and cable management.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitor Stands & Mounts - Supported Devices | Monitor |
|---|---|
| Monitor Stands & Mounts - Screen Capacity | 1 Screen |
| Monitor Stands & Mounts - Max Screen Size | Up to 27 inch |
| Monitor Stands & Mounts - Mount Type | Pole Mount |
| Monitor Stands & Mounts - VESA Compatibility | 100x100 mm 75x75 mm |
| Monitor Stands & Mounts - Weight Capacity | Standard (Up to 8 kg) |
| Monitor Stands & Mounts - Adjustment Type | Gas Spring |
| Monitor Stands & Mounts - Special Features | Cable Management |

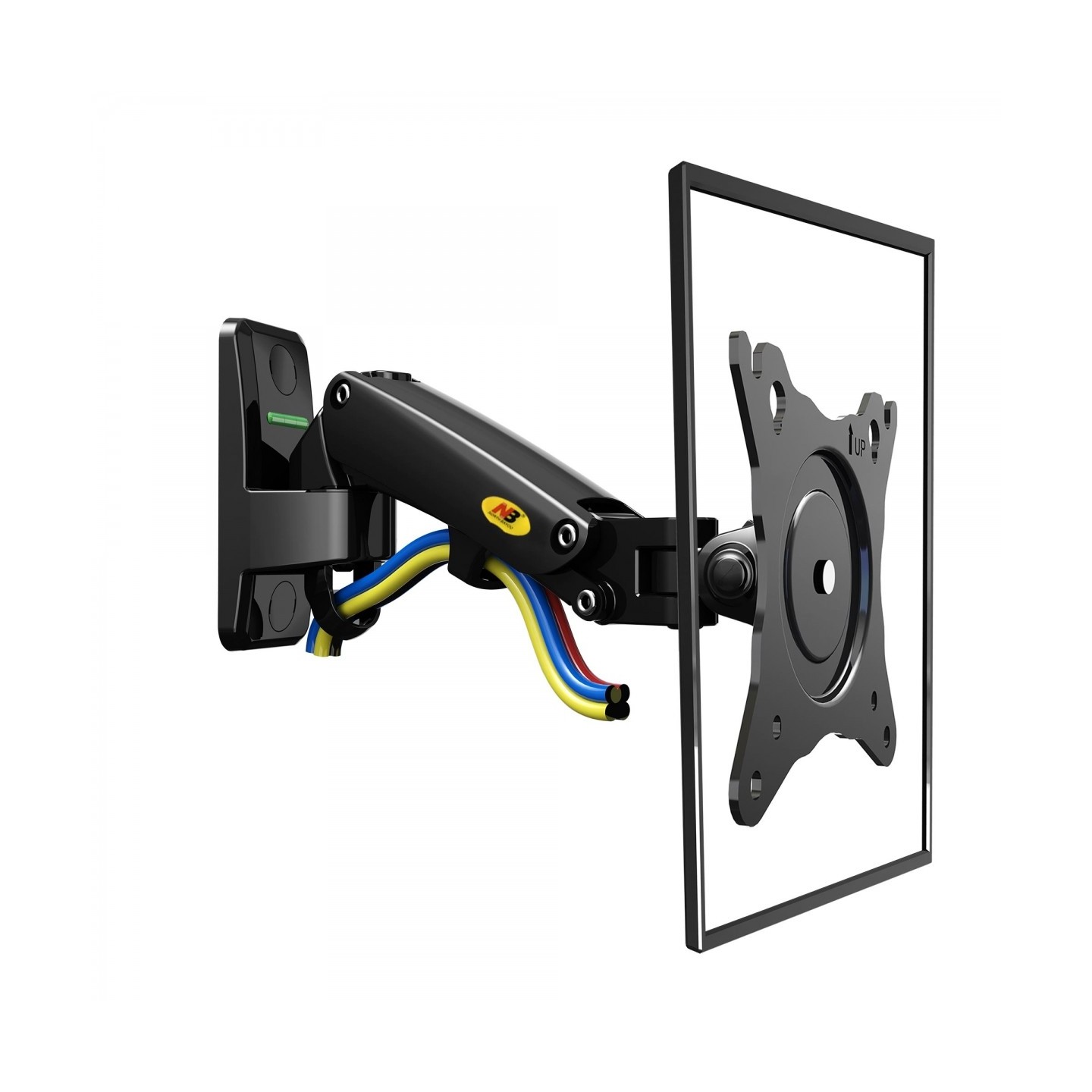

The NBmounts F120 is a professional-grade gas spring wall mount designed for 17-27" monitors and displays. Built with an ergonomic interface and aluminum alloy construction, this full-motion mount enables effortless adjustment in all directions, allowing users to achieve the perfect viewing angle for work, gaming, or entertainment. The integrated gas-spring mechanism provides smooth, gravity-assisted height adjustment without manual locking, while the gravity-designed pivot joint enables static positioning once your ideal angle is found.
This versatile mount features exceptional flexibility with 360° rotation, ±180° swivel capability, and +35° to -50° tilt adjustment. The retractable and extendable arms provide space-saving functionality in limited areas, with a maximum 285mm extension from the wall and 155mm vertical lift. Supporting monitors up to 7kg, the F120 is VESA-compliant with both 75x75mm and 100x100mm mounting patterns. The polished aluminum construction with stainless steel components ensures durability and aesthetic appeal, while integrated cable management keeps your workspace organized and professional-looking.
- Full-motion articulation with 360° rotation and ±180° swivel
- Gas-spring mechanism for effortless height and angle adjustment
- Supports 17-27" monitors up to 7kg maximum weight
- VESA 75x75mm and 100x100mm compatible

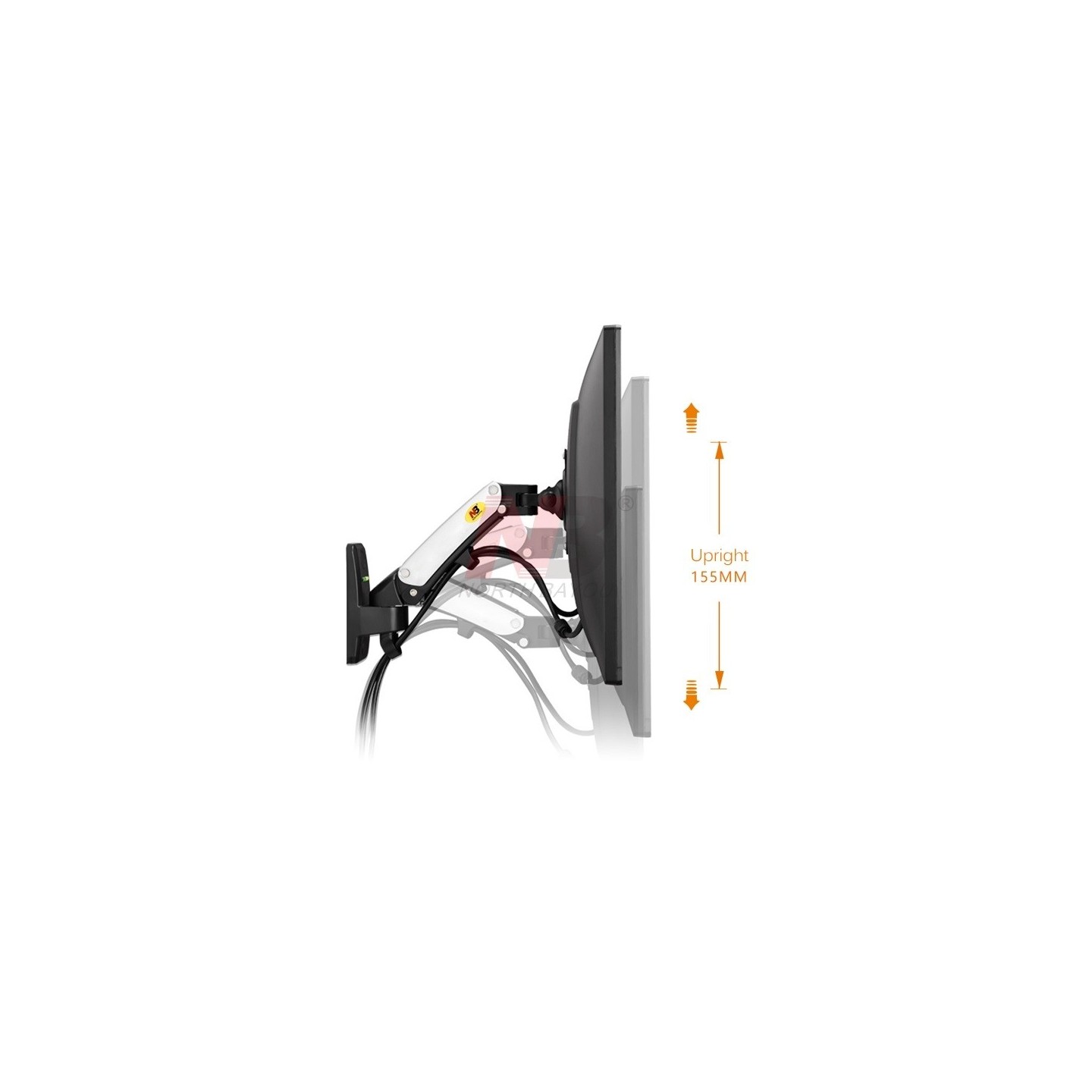

- 155mm vertical lift with 285mm wall extension
- Polished aluminum and stainless steel construction
- Integrated cable management system
- Tilt range: +35° to -50°
| Model | NB F120 |
| Screen Size Compatibility | 17-27 inches |
| Weight Capacity | 2-7 kg (4.4-15 lbs) |
| Mounting Type | Wall Mount |
| Adjustment Type | Gas Spring |
| Rotation | 360° |
| Swivel | ±180° |
| Tilt Range | +35° to -50° |
| Vertical Lift | 155 mm (6.1 inches) |
| Arm Extension | 285 mm (28 cm) |
| VESA Compatibility | 75x75 mm, 100x100 mm |
| Material | Aluminum Alloy with Stainless Steel |
| Color | Black |
| Cable Management | Integrated |
| Number of Arms | Single Arm |
