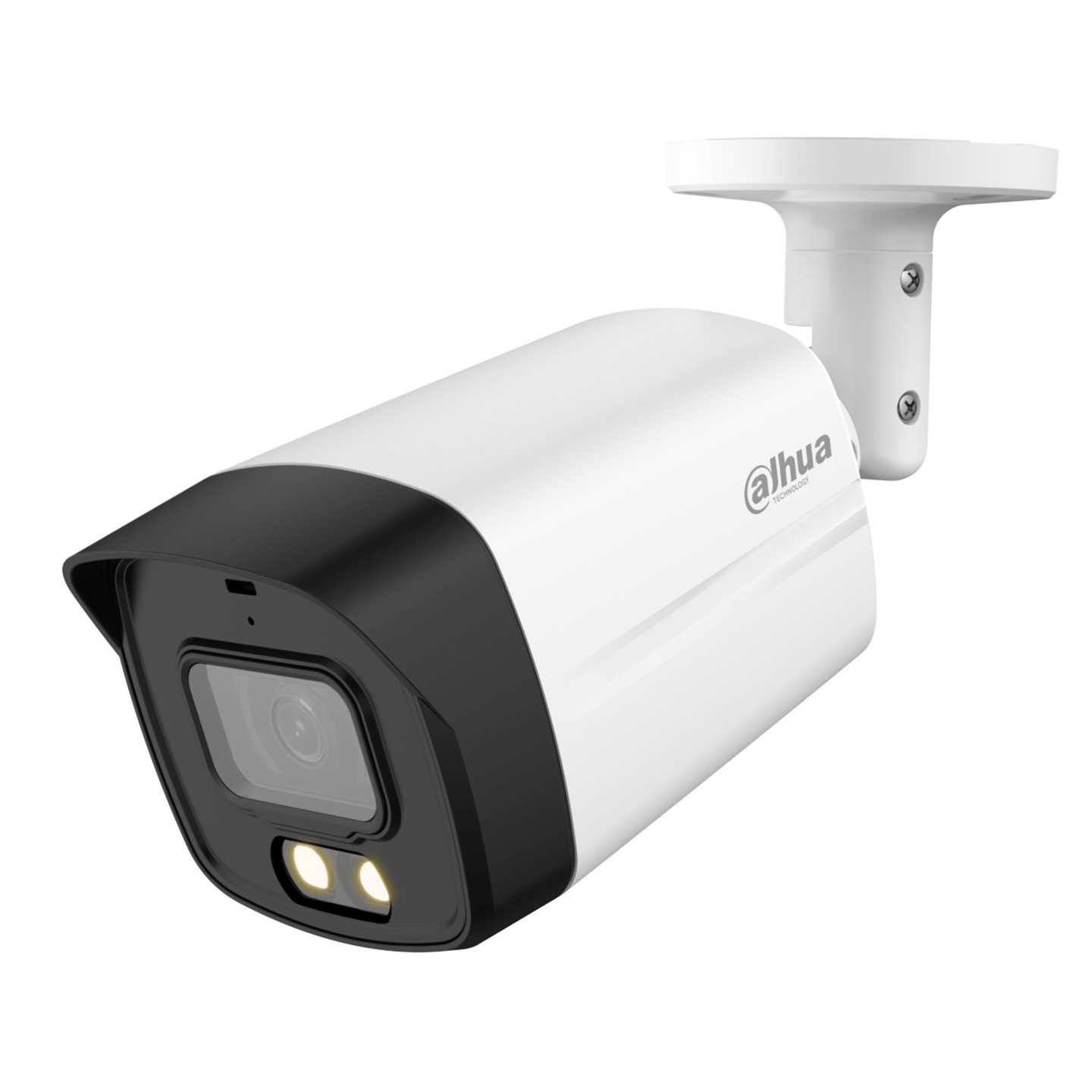

Dahua HDCVI - HFW1239TLM-A-LED-S2 - 2.0MP Bullet 3.6mm Full Color
Dahua HDCVI bullet camera, 2.0MP, 3.6mm lens, full color.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- 24/7 color imaging, Max. 30 fps@1080p
- 40 m illumination distance
- Super Adapt, 130 dB true WDR, 3D NR
- Built-in mic (-A)
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, DC 12 V
Camera
- Image Sensor : 1/2.8" CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Pixel : 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s / NTSC: 1/30 s–1/100,000 s
- S/N Ratio : > 65 dB
- Min. Illumination : 0.001 Lux/F1.6, 30IRE, 0 Lux LED on
- Illumination Distance : 40 m (131.2 ft)
- Illuminator On/Off Control : Auto / Manual
- Illuminator Number : 2
Lens
- Lens Type : Fixed lens
- Mount Type : M12
- Focal Length : 3.6 mm
- Max. Aperture : F1.6
- Field of View : 3.6 mm: H: 86°; V: 46°; D: 101°
- Iris Type : Fixed iris
- Close Focus Distance : 3.6 mm: 1.1 m (3.6 ft)
Video
- Frame Rate : CVI : PAL: 1080p@25 fps, NTSC: 1080p@30 fps / AHD:
- PAL: 1080p@25 fps, NTSC: 1080p@30 fps / TVI : PAL : 1080p@25 fps NTSC : 1080p@30 fps / CVBS : PAL: 960 × 576H, NTSC: 960 × 480H
- Resolution : 1080p (1920 × 1080) / 960H (960 × 576/960 × 480)
- BLC : BLC/WDR/HLC
- WDR : 130 dB
- White Balance : Auto, Area WB
- Gain Control : Auto, manual
- Noise Reduction : 3D NR
- Smart Light : Yes
- Mirror : Off/On
- Privacy Masking : Off/On (8 area, rectangle)
Certifications
- Certifications : CE (EN55032, EN55024, EN50130-4) / FCC (CFR 47 FCC Part 15 subpartB / ANSI C63.4-2014) / UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in mic (-A)
Power
- Power Supply : 12 V ±30% DC
- Power Consumption : Max 5.1 W (12 V DC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
- Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
- Protection Grade : IP67
Structure
- Casing : Metal front cover / plastic main body / metal bracket
- Camera Dimensions : 198.4 mm × 80.2 mm × 76.2 mm
- Net Weight : 0.28 kg
- Gross Weight : 0.43 kg
| Housing Type | Bullet |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Full-Color | Yes |
| Camera Resolution | 2.0MP |
| Illumination Distance | Up to 40m |
| Lens | Fixed |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| WDR | 130dB true WDR |
| Audio | Built-in Mic |
