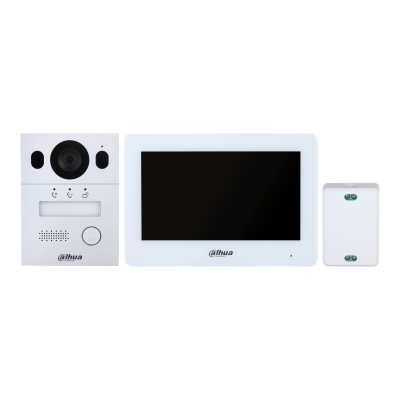

Dahua VD - KTX01 - 2-wire Wi-Fi Hybrid KIT

2-wire Wi-Fi Hybrid Indoor Monitor:

• 7" TFT capacitive touch screen.
• Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
• Supports recording videos and capturing snapshots. (SD card is required).
• 6-channel alarm input and 1-channel alarm output.
• The app can be used to receive calls and alarm notifications.
• Connects to HDCVI camera.

2-wire Hybrid Villa Door Station:

• Aluminum alloy front panel.
• Auto IR illumination.
• Video messages can be left for unanswered calls. (SD card is required for VTH).
• Features nameplate and DWDR.
• Supports local lock and second lock.
• Offers anti-tampering alarm.
• IP65 and IK07 rated.

DHI-VTO2003F

System

• Main Processor : Embedded Processor
• Button Type : Mechanical

Basic

• Camera : 1/2.8" 2 MP CMOS HDR Camera
• Field of View : H: 110°; V: 60°
• WDR : DWDR
• Noise Reduction : 3D NR
• Video Resolution : P: 960 (H) × 576 (V) , N: 960 (H) × 480 (V)
• Video Frame Rate : P: 25 fps , N: 30 fps
• Light Compensation  : Auto IR
• Day/Night : Auto(ICR)/Color/B/W
• Audio Input : 1
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio (half–duplex)

Function

• Unlock Mode : Remote unlock
• Leave Videos : Yes (SD card inserted in VTH is needed)

Performance

• Casing Material : Aluminum Alloy

Port

• RS-485 : 1
• Alarm Output : 1
• Power Output : 1 × 12 VDC output, 200 mA
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1
• Alarm : Tamper Alarm : Yes

General

• Appearance Color : Silver
• Power Supply : 2-wire controller
• Installation : Flush mount; surface mount
• Certifications : CE; FCC
• Product Dimensions : 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
• Protection : IP65 , IK07
• Operating Temperature : –40 °C to +60°C (–40 °F to +140 °F)
• Operating Humidity : 10%–95% (RH), non-condensing
• Operating Altitude : 0 m–3000 m (0 ft – 9842.52 ft)
• Power Consumption : ≤ 1.5 W (standby), ≤ 10 W(working)
• Gross Weight : 0.502 kg (1.11 lb)
• Storage Temperature : –40 °C to +70°C (–40 °F to +158 °F)
• Storage Humidity : 95% (RH), non-condensing

DHI-VTH5123H-W

System

• Main Processor : Embedded Processor
• Operating System : Embedded operating system
• Network Protocol : IPv4; UDP; DNS; TCP

Basic

• Screen Type : Capacitive Touchscreen
• Display Screen : 7" TFT
• Screen Resolution : 1024 (H) × 600 (V)
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)
• Audio Enhancement : Echo suppression/digital noise reduction
• Audio Bit Rate : 16 kHz; 16 bit

Function

• Leave Videos : Yes (SD card needed)
• DND Mode : Do not disturb period can be set; Do not disturb mode can be set.
• Number of Extensions : 5
• Wi-Fi : Yes
• Wireless Standard : IEEE802.11b/802.11g/802.11n
• Wireless Frequency Range : 2.4 GHz
• Max Transmission Power : ≤20 dBm@2,400–2,483.5 MHz
• Storage : Micro SD card (up to 64 GB)

Port

• RS-485 : 1
• Alarm Input : 6
• Alarm Output : 1
• Power Output : 1 (12 V, 200 mA)
• Door Bell : Yes (use the alarm input port)

Performance

• Casing Material : PC + ABS

General

• Appearance Color : White
• Power Supply : 2-wire controller
• Installation : Surface Mount
• Certifications : CE; FCC
• Product Dimensions : 130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")
• Operating Temperature : –10 °C to +55°C (14 °F to +131 °F)
• Operating Humidity : 10%–95% (RH)
• Operating Altitude : 0 m–3000 m (0 ft – 4265.09 ft)
• Power Consumption : ≤ 2.5 W (standby), ≤ 10 W(working)
• Gross Weight : 0.633 kg (1.40 lb)
• Storage Temperature : –40 °C to +70°C (–40 °F to +158 °F)
• Storage Humidity : 95% (RH), non-condensing

VTNC1003C

Performance

• Casing Material : PC + ABS

General

• Appearance Color : White
• Power Supply : 48 VDC
• Certifications : CE; FCC
• Accessory : Included: Line termination terminal
• Product Dimensions :P 65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")
• Operating Temperature : –10 °C to +55°C (14 °F to +131 °F)
• Operating Humidity : 10%–95% (RH)
• Operating Altitude : 0 m–3000 m (0 ft – 4265.09 ft)
• Power Consumption : 3.5 W
• Gross Weight : 0.13 kg (0.29 lb)
