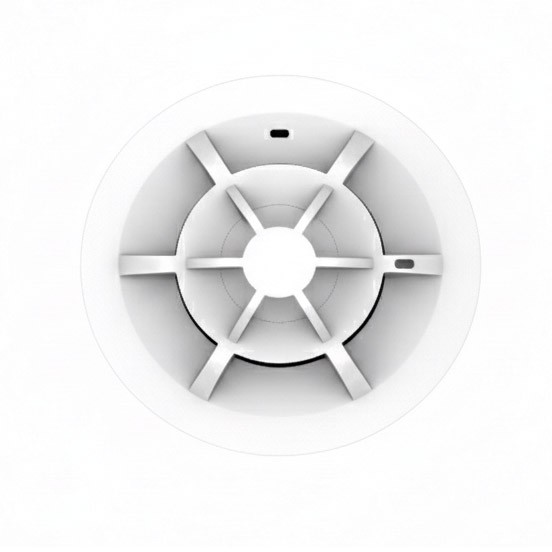

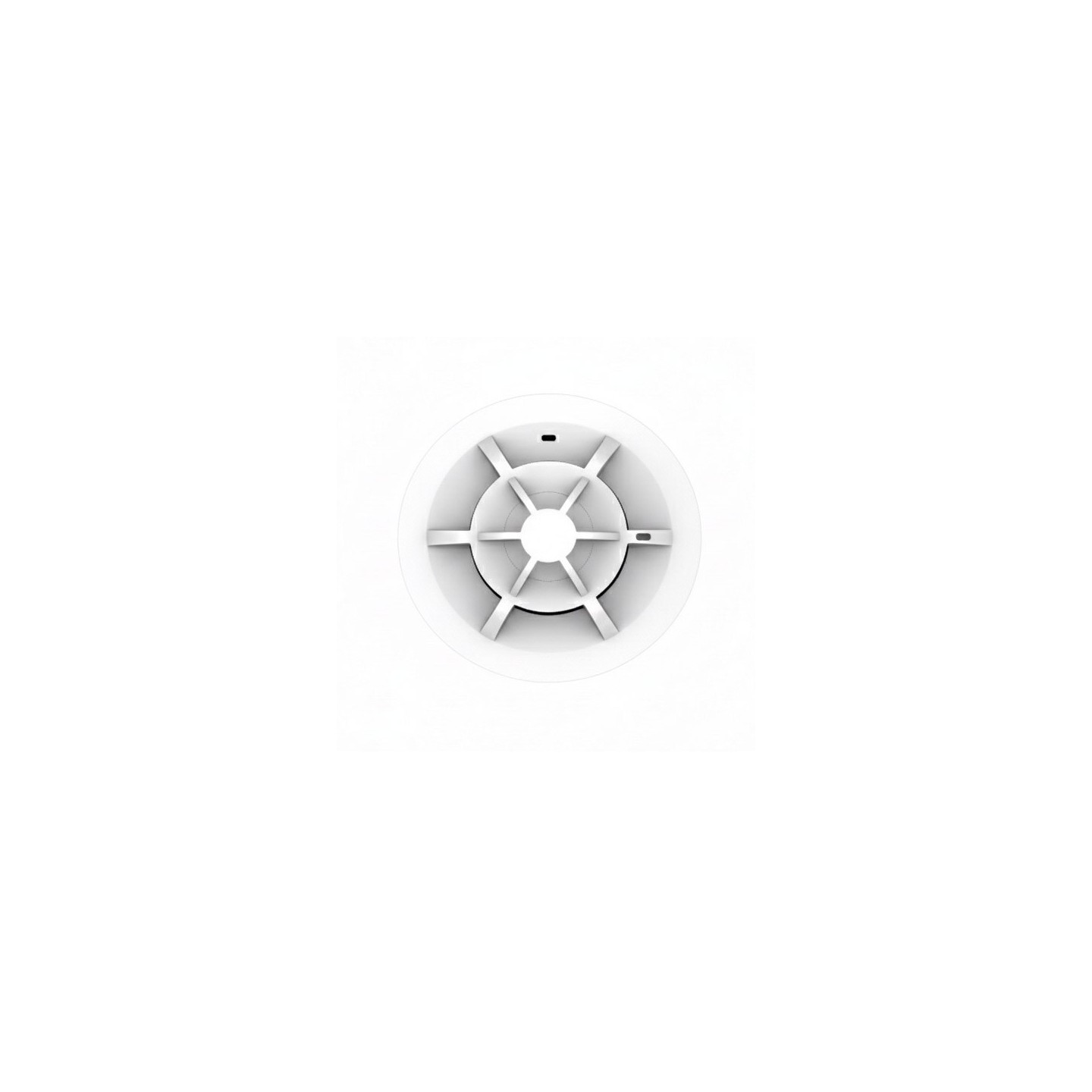

Dahua Conventional Fire Alarm Detector - HY-C135 - With Base (Smoke & Heat)
3W-B multi-sensor smoke/heat detector with two-wire polarity-free power; microprocessor-based communication; ultra-low monitoring and alarm currents; EN54-5/EN54-7 compliant.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- 3W-B multi-sensor smoke and heat detector with two-wire and polarity-free power supply
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- High-performance sensor featuring a split-spectrum optical smoke detector and a sensitive thermistor
- Designed in accordance with EN54-5 and EN54-7 standard
- Power : DC24V
- Current Monitoring current : ≤ 70μA
- Alarm current : ≤ 15mA
- Indicator : Red LED / Polling : Flash every 6 seconds / Alarm : Remain lit / Fault: Flash every 2 seconds
- Alarm Threshold for Heat : Detection A2R (54°C to 62°C) (129°F to 144°F)
- Wiring : Two-wire, polarity-free
- Operating Temperature –10°C to +55°C (+14°F to +131°F)
- Storage Temperature –20°C to +65°C (–4°F to +149°F)
- Operating Humidity ≤ 95% RH (no condensation)
- Color : White
- Dimensions (with base) : Φ 100 mm × 68.7 mm (Φ 3.94" × 2.70")
- Weight : (with base) 110.0 g (0.243 lb)
- Compliance Standard : EN54-5, EN54-7
