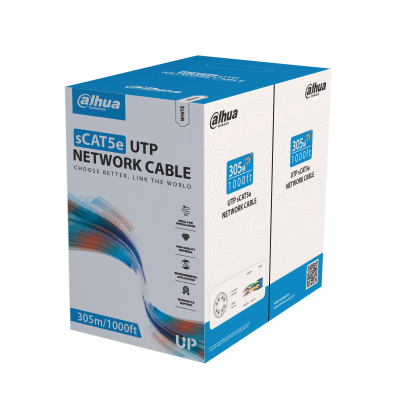

Dahua CAT5e Cable CPR 305m - DH-PFM920I-5EUN - CAT5e Cable CPR 305m

•  305 m (1000 ft)/carton U/UTP sCAT5E, power over Ethernet, compatible with one cable.
• High-purity oxygen-free copper conductor material.
• Customized PVC outer sheath；CE CPR Eca flame retardant class certified.
• 10-year warranty.

Conductor

• Material : Oxygen free copper (99.97% purity)
• Diameter : 0.45 mm ± 0.01 mm (0.02" ± 0.0004")
• Wire Gauge : 25 AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.18 mm (0.01")
• Diameter : 0.81 mm ± 0.06 mm (0.03" ± 0.0024")
• Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown

Rip Cord

• Material : Polyester
• Specification : 500D

Sheath

• Material : PVC
• Min. Average Thickness : 0.5 mm (0.02")
• Diameter : 4.7 mm ± 0.4 mm (0.19" ± 0.02")
• Color : White

Electrical

• Max. DC Resistance of a Single Conductor : 12 Ω / 100 m
• Min. Insulation Resistance : 5000 MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Dielectric Strength : No breakdown with 1kV DC for 1 min

Transmission

• Characteristic Impedance : 100 Ω ± 15 Ω
• Near-end Crosstalk : ≥35.3 dB / 100 m @ 100 MHz
• Max. Attenuation : 24.2 dB / 100 m @ 100 MHz
• Return Loss : ≥20.1 dB / 100 m @ 100 MHz

Mechanical

• Tensile Strength : Sheath ≥13.5 MPa, Insulation ≥16 MPa
• Elongation at Break : Sheath ≥150%, Insulation ≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥10%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (+32 °F to +122 °F)
• Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Security

• Vertical Flame Test : Comply with IEC 60332-1-2

Packaging

• Cable Length : 305.0 m ± 2 m (1000.66 ft ± 6.56 ft)
• Packaging Method : 305 m (1000 ft) a carton, one carton with 2 inner cartons
• Packaging Dimensions : 364.0 mm × 364.0 mm × 216.0 mm (14.37" × 14.37" × 8.50") (L × W × H)
• Transport Package Dimensions : 447.0 mm × 386.0 mm × 382.0 mm (17.60" × 15.20" × 15.04") (L × W × H)
• Net Weight : 8 kg ± 0.6 kg (17.64 lb ± 1.32 lb)
• Gross Weight : 8.5 kg ± 0.6 kg (18.73 lb ± 1.32 lb)

Compliance

• Executive Standards : Q/DXJ 067-2024, EN50575
• Certifications : CPR Eca
• Flame-retardant Standard : EN50575
