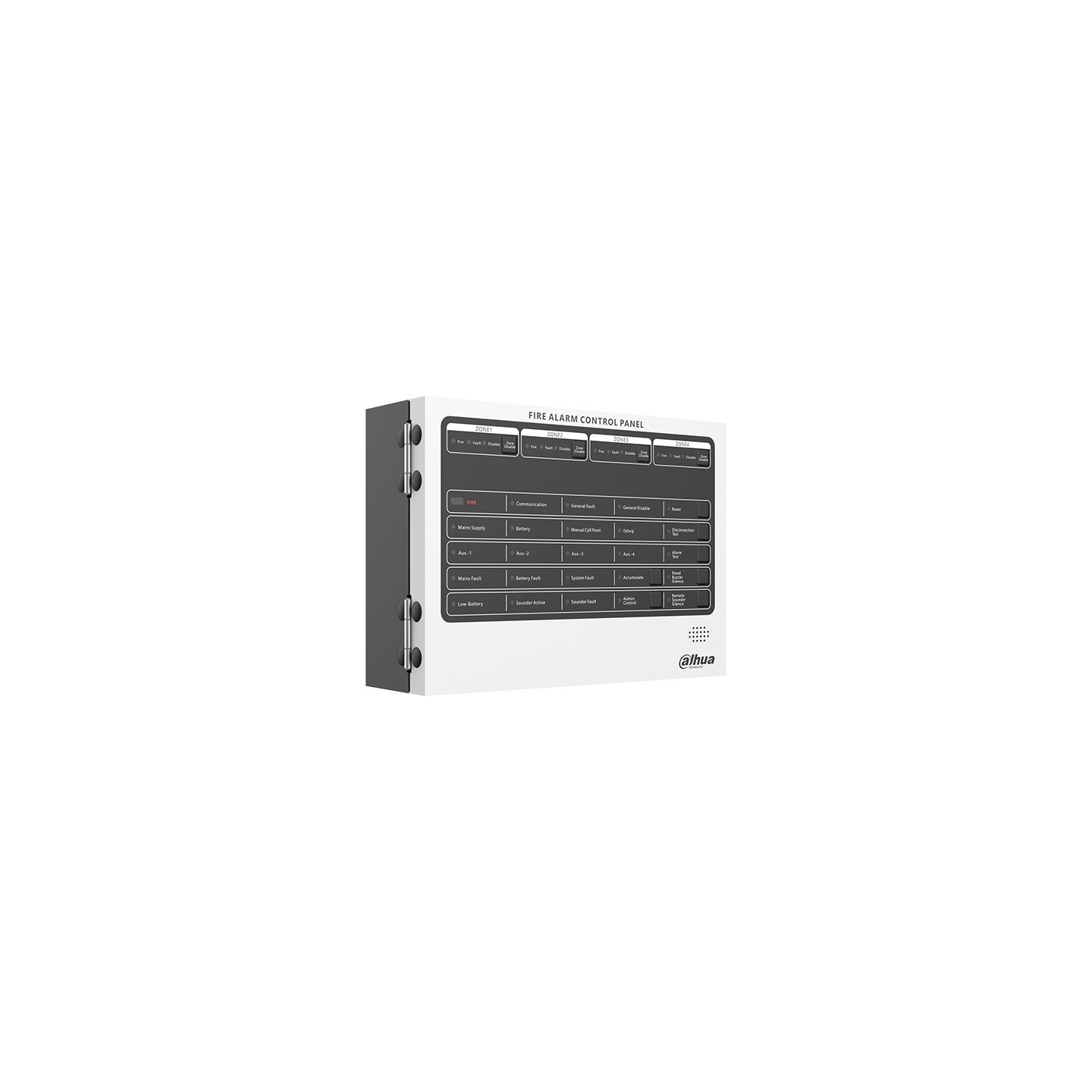

Dahua Conventional Fire Alarm Control Panel - HY-C102-4 - 4 Zones
90-270V mains input with 4 dry contacts; Ethernet for IoT; RS-485 interface; records and exports historical fire, fault and operation events.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Power | Mains + Backup |
|---|
- 90VAC to 270VAC main power supply ensures the stable operation
- 4 dry contacts make connection flexible
- Ethernet interfaces enables communication with IoT platform
- RS-485 interface contributes to convenient integration
- Record and export capacity of historical events for each of fire, fault and operation
- Number of Zones : 4
- Zone Capacity : 32 detectors per zone
- Main Power : AC90-240V/50Hz, 60Hz
- Backup Power : 2 lead-acid batteries (12V/2.5Ah each)
- Output Current : 2A
- Sounder Output : Fault: 50dB / Alarm: 60dB
- Fire Bell Output : DC 28V/500mA
- Dimensions : 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
- Weight : 3.5 kg / 5 kg (with 2 batteries)
- Operating Temperature : –10°C to +50°C (+14°F to +122°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Protection Grade : IP30
- Installation : Wall mount
- Compliance Standard : EN54-2,EN54-4
