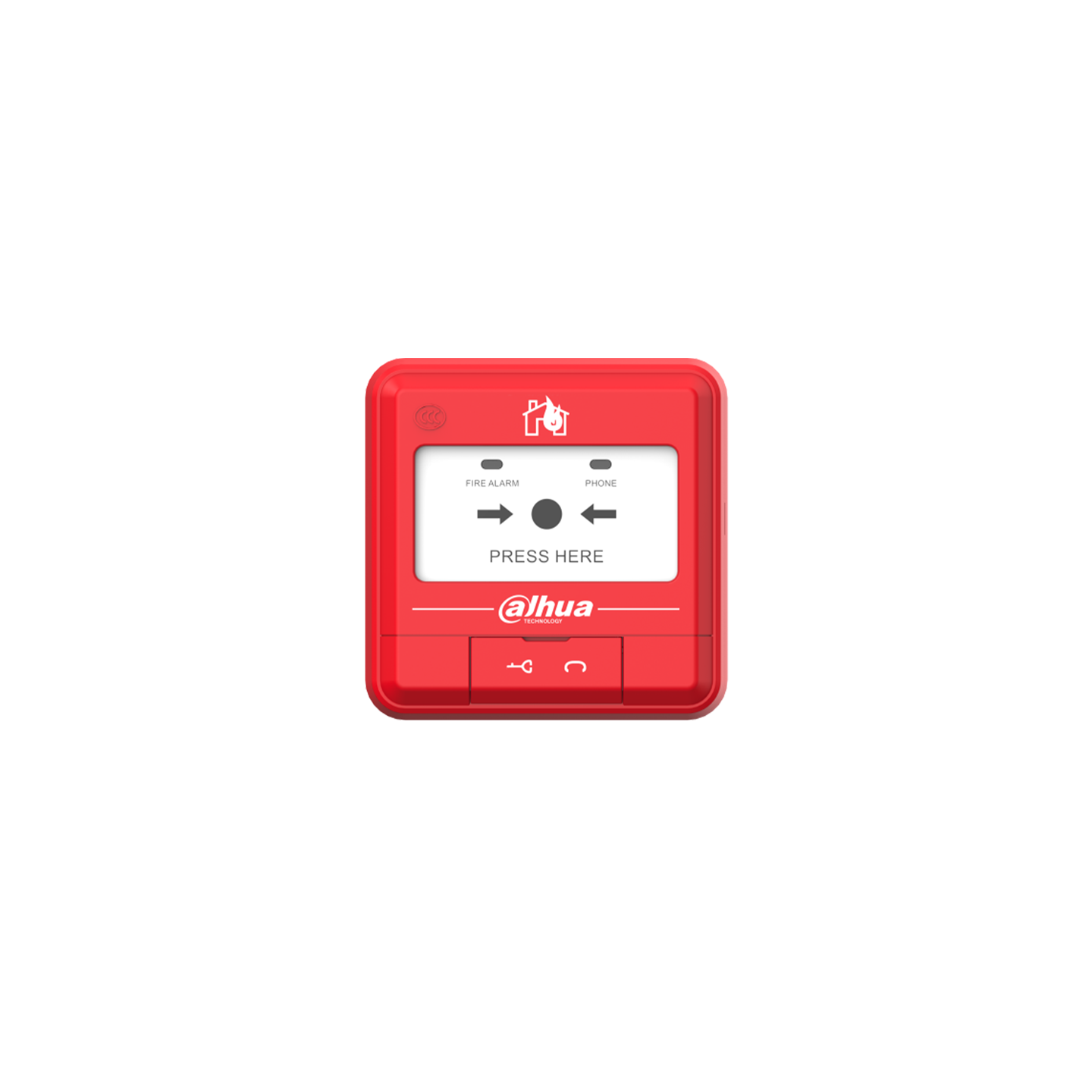

Dahua Conventional Fire Alarm Manual Call Point - HY-C121 - With Base
EN54-11:2001 compliant manual call point with base; two-wire, polarity-free wiring; robust base terminals; corrosion-resistant contacts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Meets all requirements of latest EN54
- Two-wire, polarity-free realizes convenient wiring
- Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Adopts manual contact, easy to manually control
- Non-loosening screws on base terminal for easy installation
- Contacts material is highly acid-resistant and rust-resistant
- Working Voltage : DC16V-DC28V
- Current : Standby current: ≤ 300μA / Alarm current: ≤ 400μA
- Alarm Mode : Visual alarm
- Operating Temperature : –10°C to +55°C (+14°F to +131°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")
- Weight (with base) : 136 g (0.30 lb)
- Installation : Wall Mount
- Compliance Standard : EN54-11:2001
