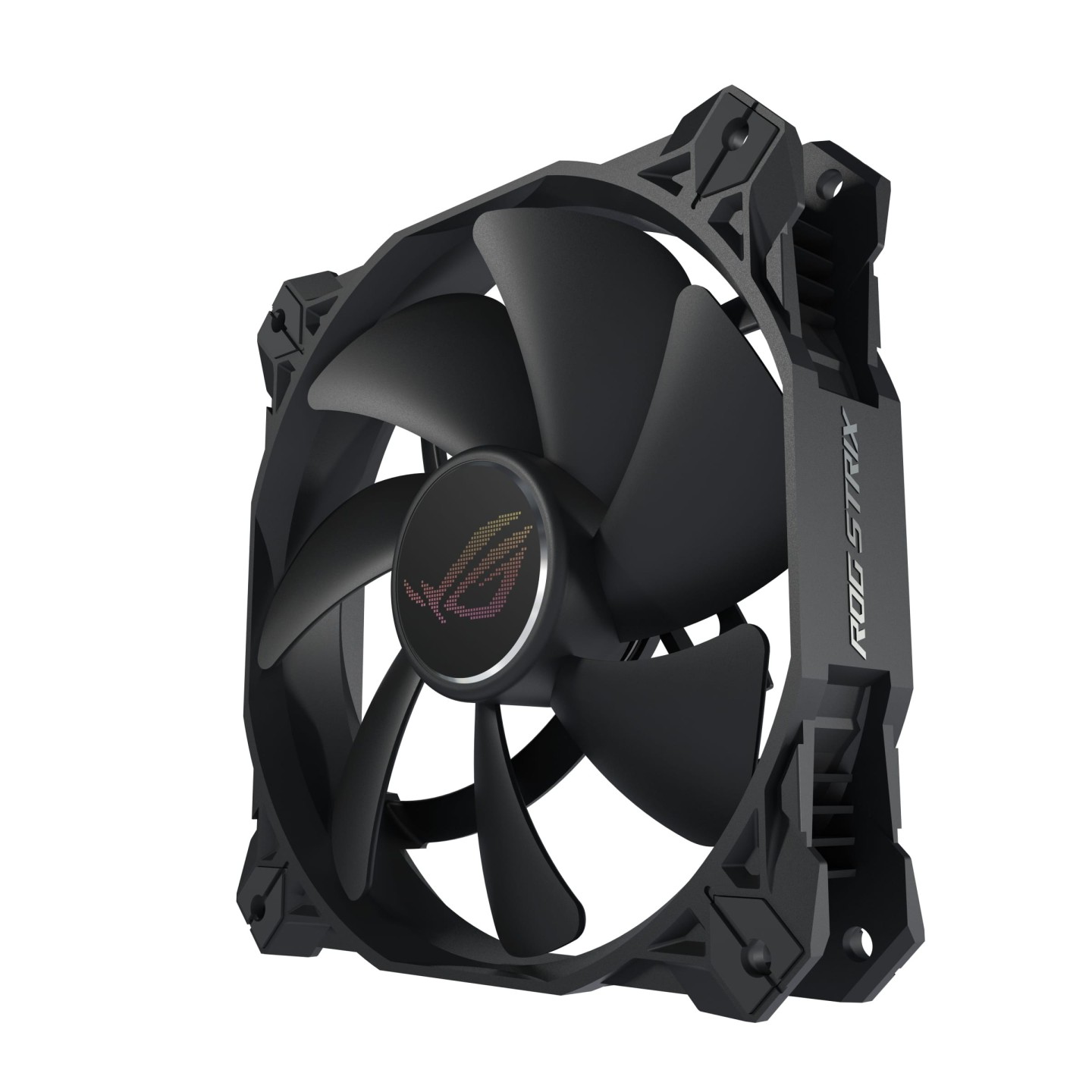

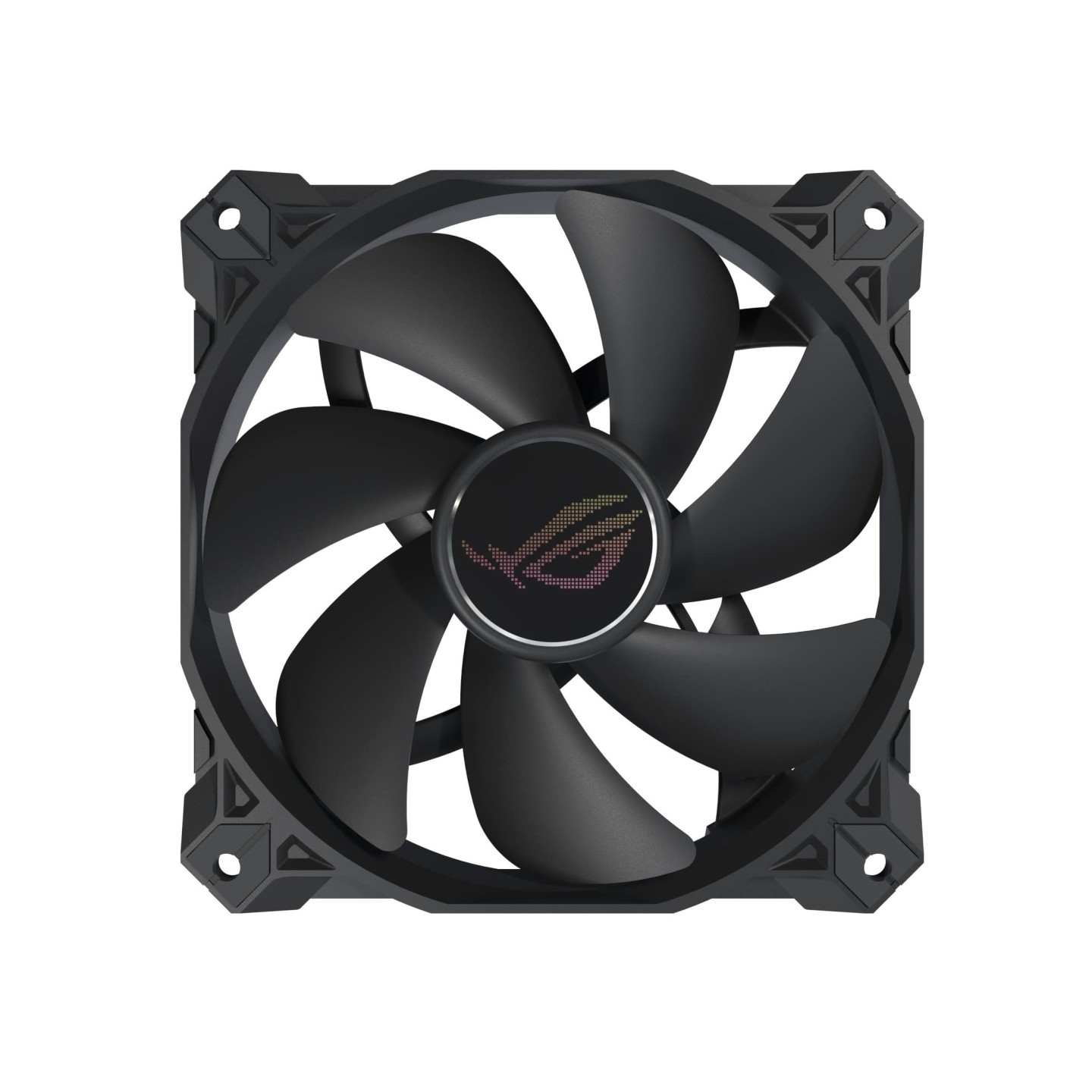

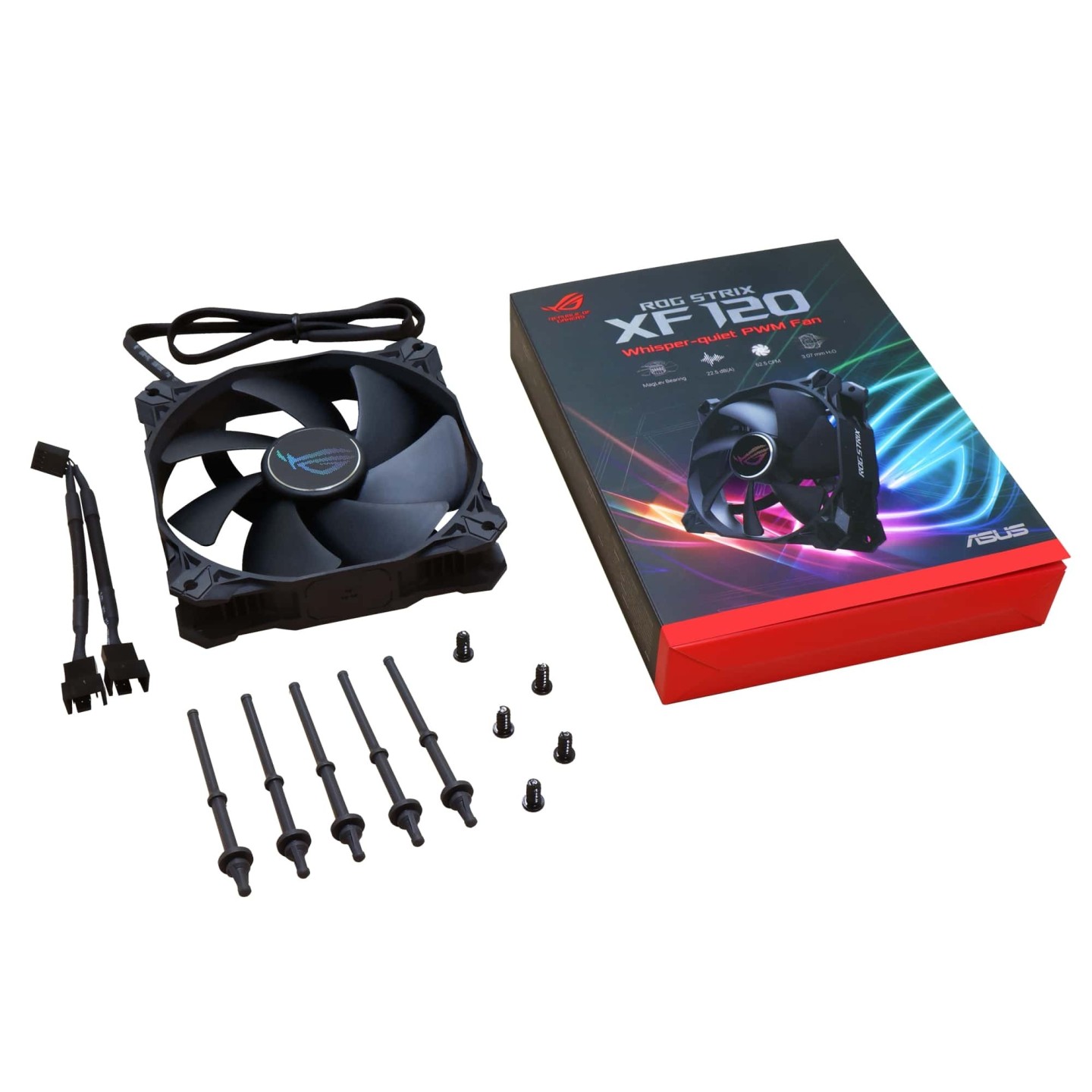

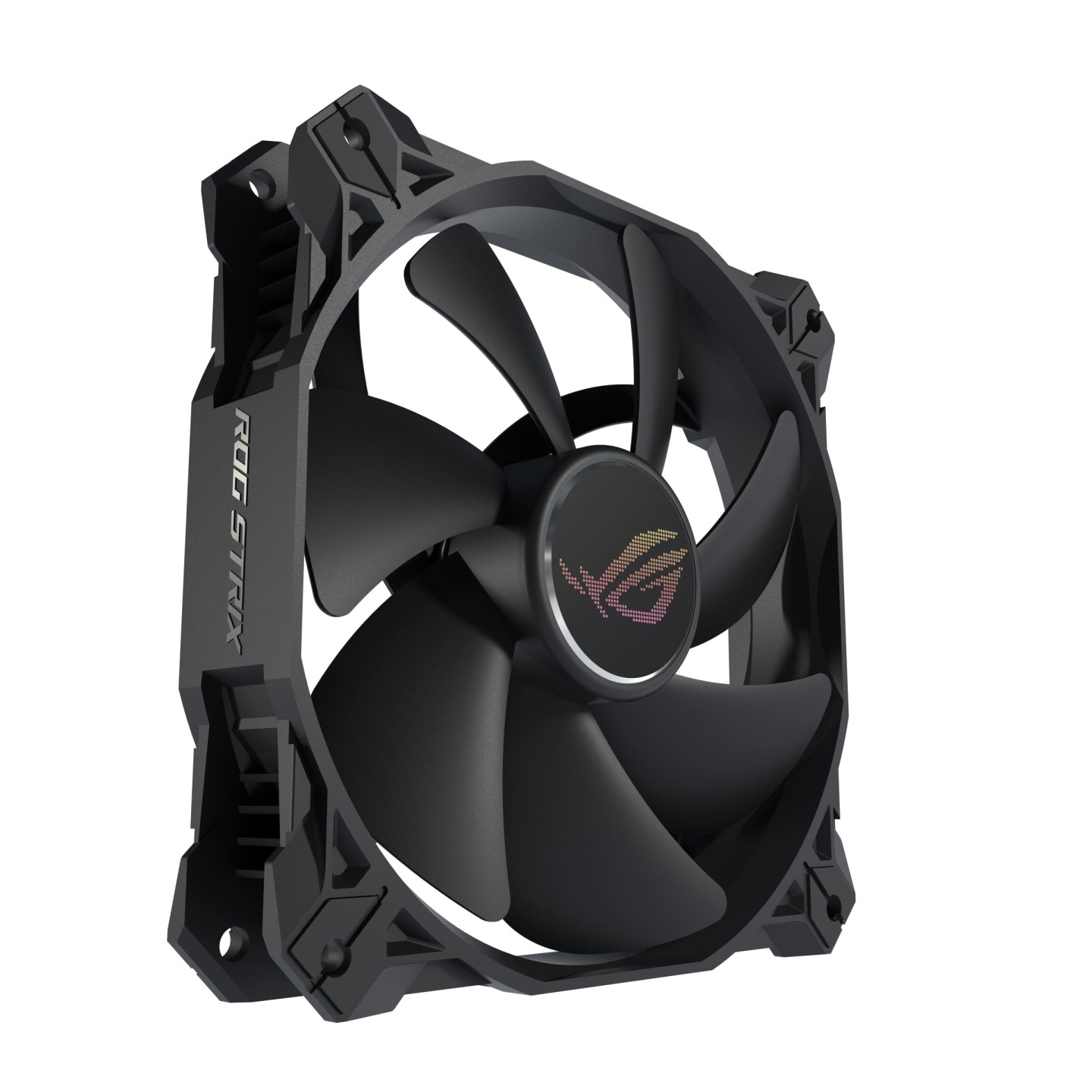

ASUS ROG Strix XF120 120mm Case Fan - 4-Pin PWM - Black (Boxed)
Whisper-quiet 120mm case fan with MagLev bearing, 4-pin PWM connector, and 250-1800 RPM range. Delivers 62.5 CFM airflow at just 22.5 dB(A) noise level with 400,000-hour lifespan.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Noise Magnetic Bearing |
The ASUS ROG Strix XF120 is a premium whisper-quiet case fan engineered for PC cases, radiators, and CPU cooling applications. Featuring a magnetic-levitation bearing and aerodynamic blade design, this 120mm fan delivers an optimal blend of airflow and static pressure while maintaining exceptional quietness at just 22.5 dB(A). The extensive 250-1800 RPM operating range provides flexibility for custom fan curves, allowing the fan to spin down to near-silent levels at low loads.
Built with reinforced fiberglass material, grooved fan blades with rounded edges, and anti-vibration pads, the XF120 minimizes turbulence and vibration for smooth, stable operation. The 4-pin PWM connector enables precise motherboard control, while the MagLev bearing ensures reduced friction and exceptional longevity with a rated lifespan of 400,000 hours. This fan is optimized primarily for airflow performance, making it ideal for case cooling and general system ventilation.
- Magnetic-levitation bearing for reduced friction and noise
- Whisper-quiet 22.5 dB(A) acoustic profile with tuned sound frequency
- Extensive 250-1800 RPM operating range for flexible fan curves
- 62.5 CFM airflow with 3.07 mm H2O static pressure

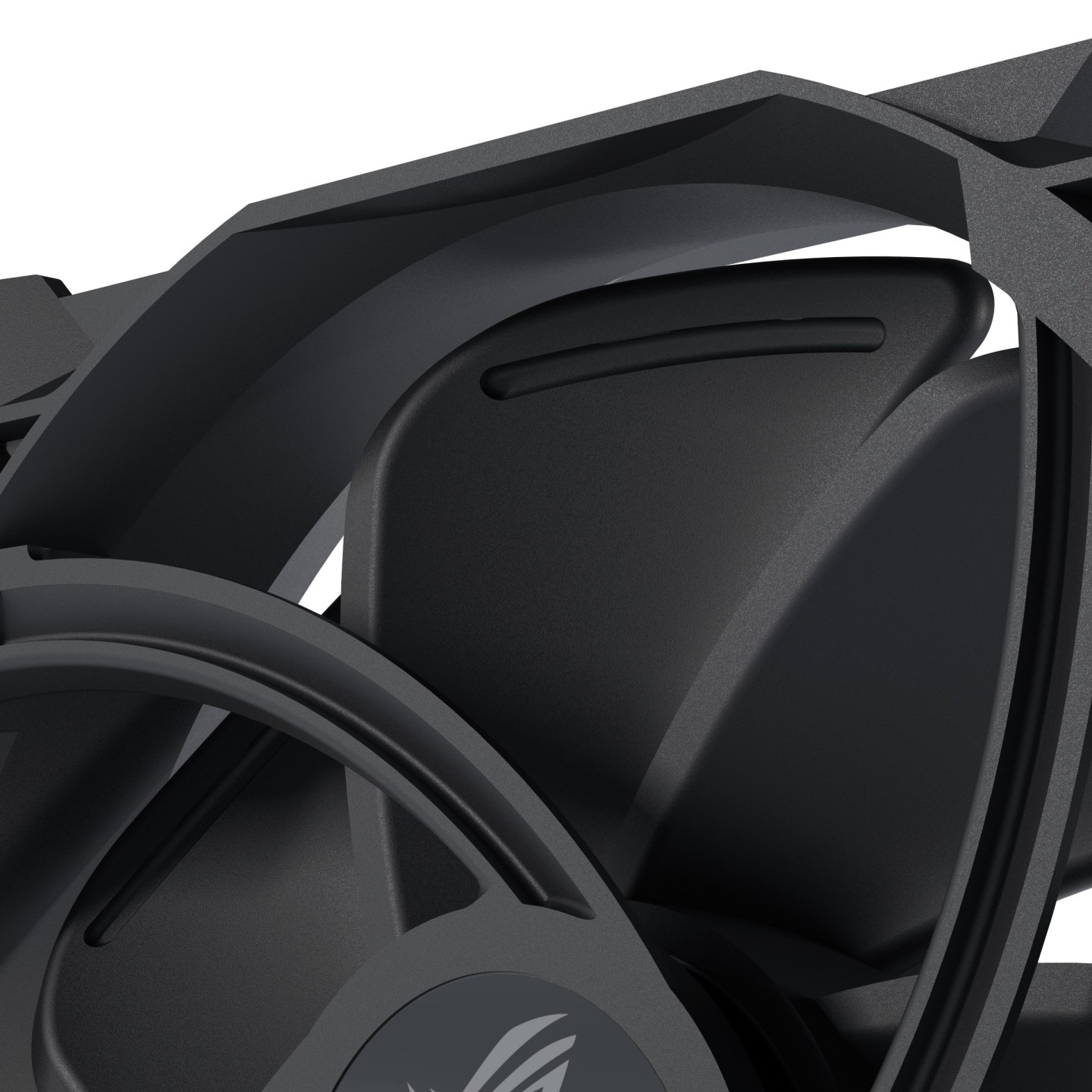

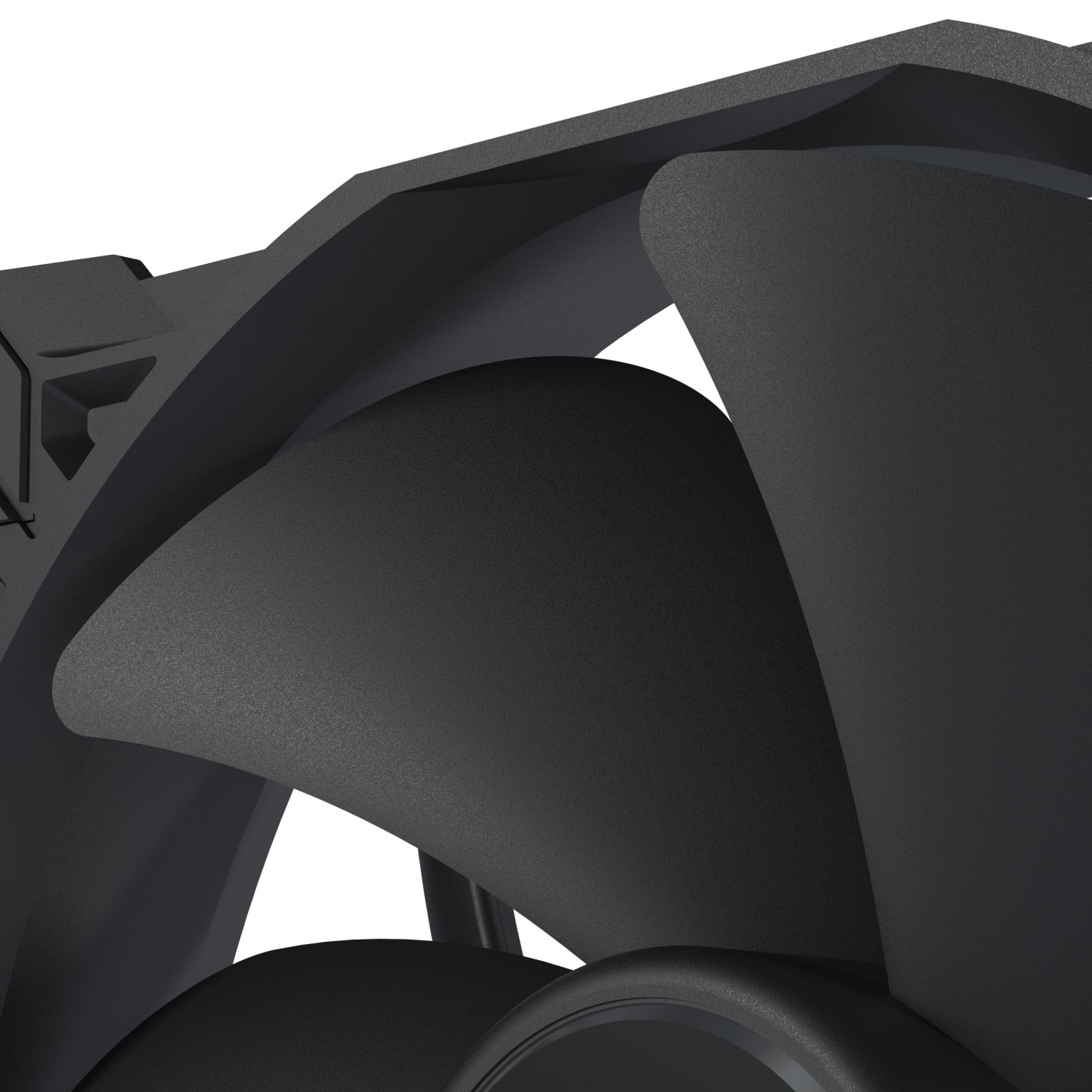

- Aerodynamic blade and frame design minimizes turbulence
- Anti-vibration pads reduce vibration and rattling
- 4-pin PWM connector for motherboard control
- 400,000-hour rated lifespan
- 5-year warranty included
| Fan Size | 120 x 120 x 25 mm |
| Fan Type | Blade (Forward) |
| Fan Bearing | Magnetic-Levitation (MagLev) |
| Fan Speed | 1800 RPM (±10%) |
| Minimum RPM | 250 RPM |
| Fan Airflow | 62.5 CFM |
| Fan Static Pressure | 3.07 mm H2O |
| Fan Noise Level | 22.5 dB(A) |
| Fan Input Power | 1.08 W |
| Fan Operating Voltage | 12 V |
| Fan Starting Voltage | 10.2 V |
| Fan Input Current | 0.09 A |
| Connector Type | 4-Pin PWM |
| Lifespan | 400,000 hours |
| Color | Black |
| RGB Lighting | None |
| Special Features | Anti-vibration pads, reinforced fiberglass material, grooved blades with rounded edges, aerodynamic frame design |
| Warranty | 5 years |
| EAN13 | 4718017984515 |
