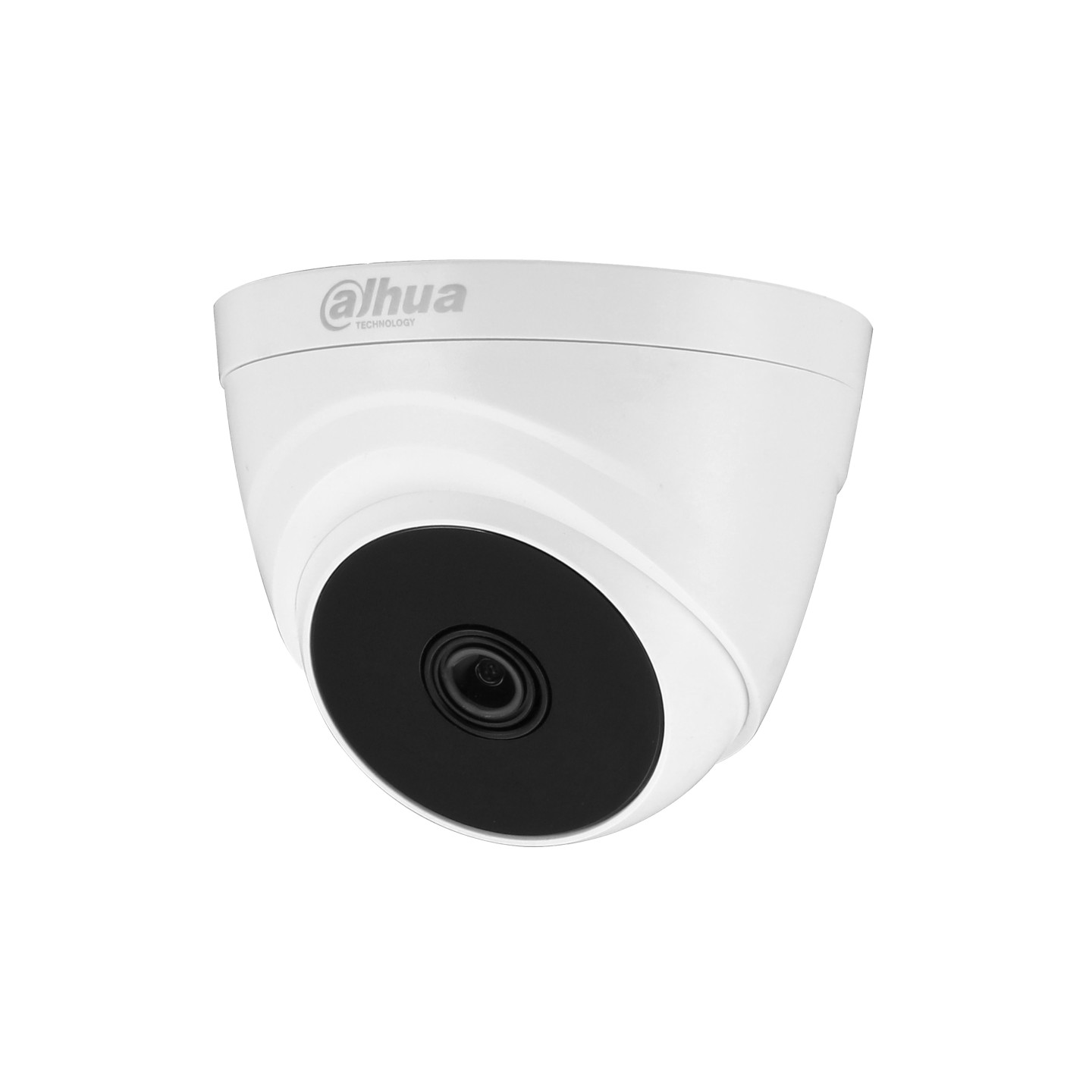

Dahua HDCVI Dome - T1A21 - Dahua HDCVI 2.0MP Dome 2.8mm
2.0MP dome camera with 2.8mm fixed lens, up to 30fps at 1080P; HD/SD output switchable; IR up to 20m with Smart IR; DC12V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Max. 30fps@1080P
HD and SD output switchable
2.8mm
Max. IR length 20m, Smart IR
DC12V
Camera
- Image Sensor : 1/2.7" CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
- Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 20m (66feet)
- IR On/Off Control : Auto / Manual
Lens
- Lens Type : Fixed lens / Fixed iris
- Mount Type : Board-in
- Focal Length : 2.8mm
- Max Aperture : F1.85
- Angle of View : H: 93° (103°, 54.7°)
- Focus Control : N/A
- Close Focus Distance : 800mm
Video
- Resolution : 1080P (1920×1080)
- Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
Certifications
- CE (EN55032, EN55024, EN50130-4)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
- Audio Interface : N/A
Electrical
- Power Supply : 12V DC ±30%
- Power Consumption : Max. 2.3W (12V DC, IR on)
Environmental
- Operating Conditions : -40°C ~ +60°C / Less than 95% RH
- Start up should be done at above -40°C
- Storage Conditions : -40°C ~ +60°C / Less than 95% RH
- Ingress Protection & Vandal Resistance : NA
Construction
- Casing : Plastic
- Dimensions : 85mm×85mm×69mm
- Net Weight : 0.09kg
- Gross Weight : 0.13kg
| Housing Type | Dome |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Camera Resolution | 2.0MP |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| IR Distance | Up to 20m |
| WDR | DWDR |
