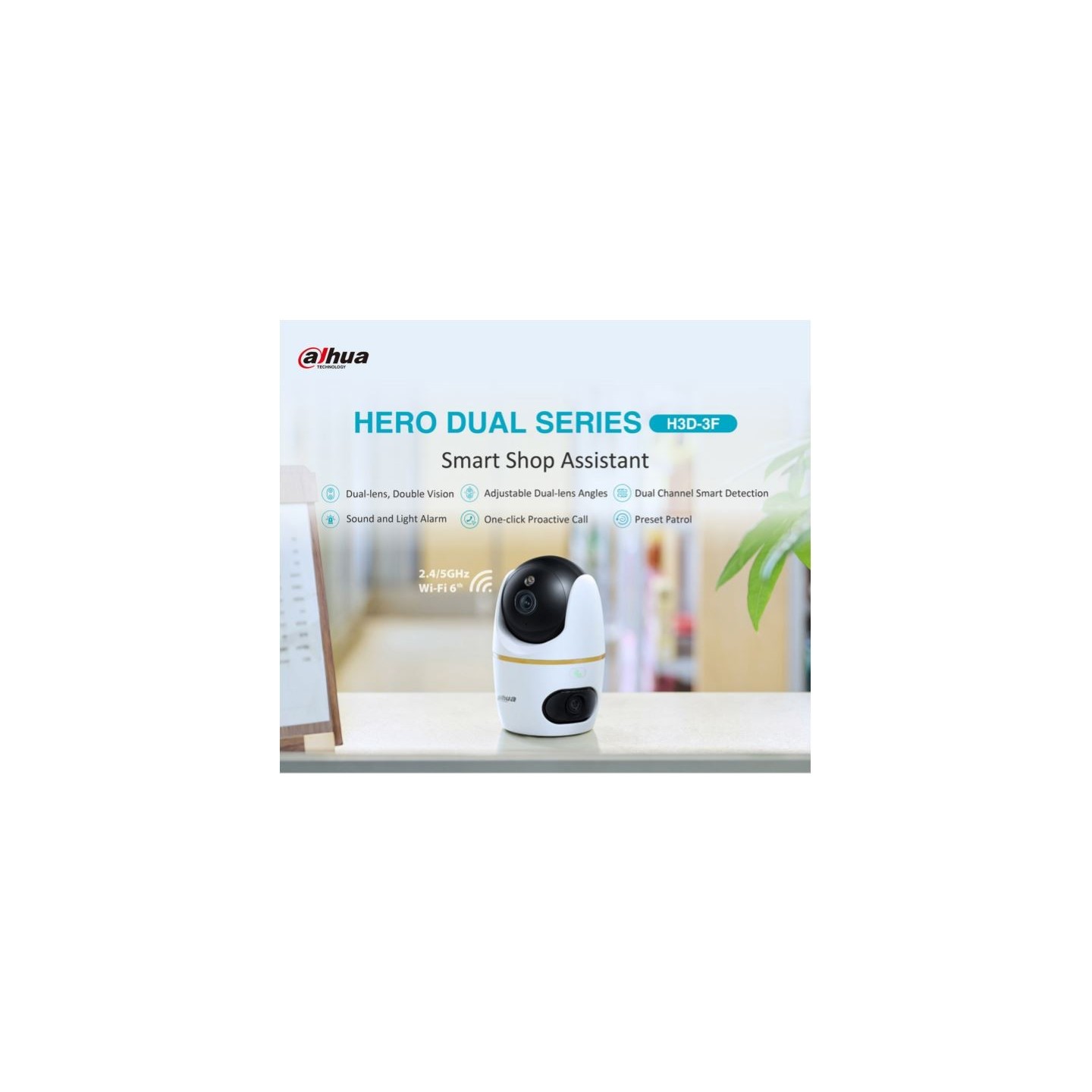

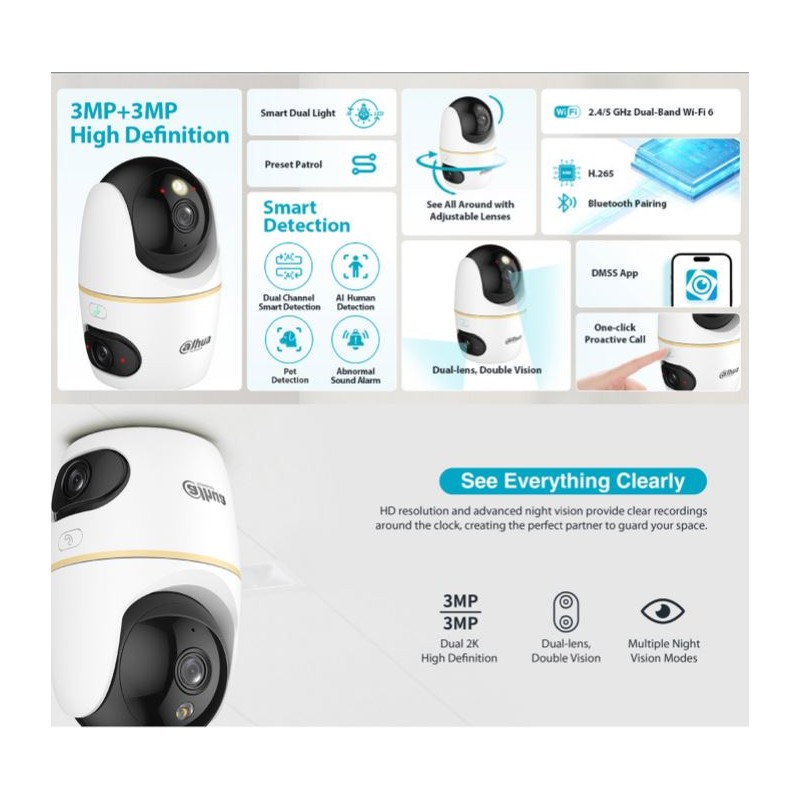

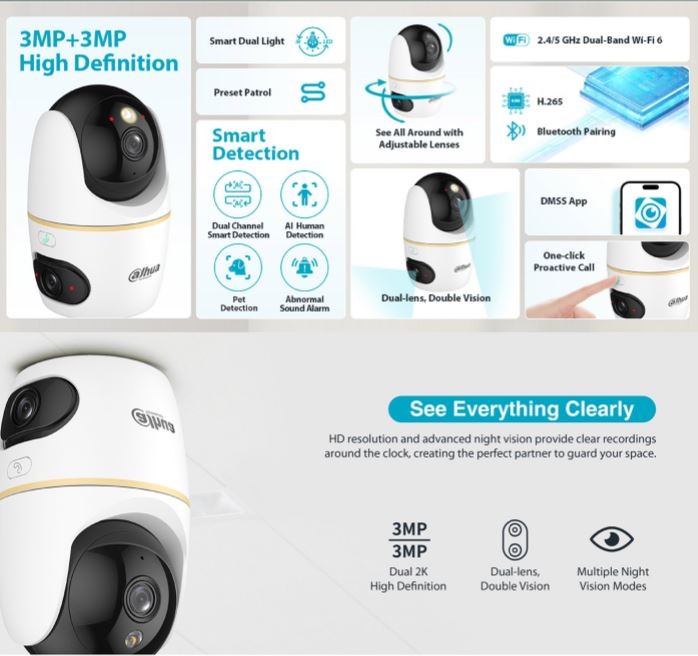

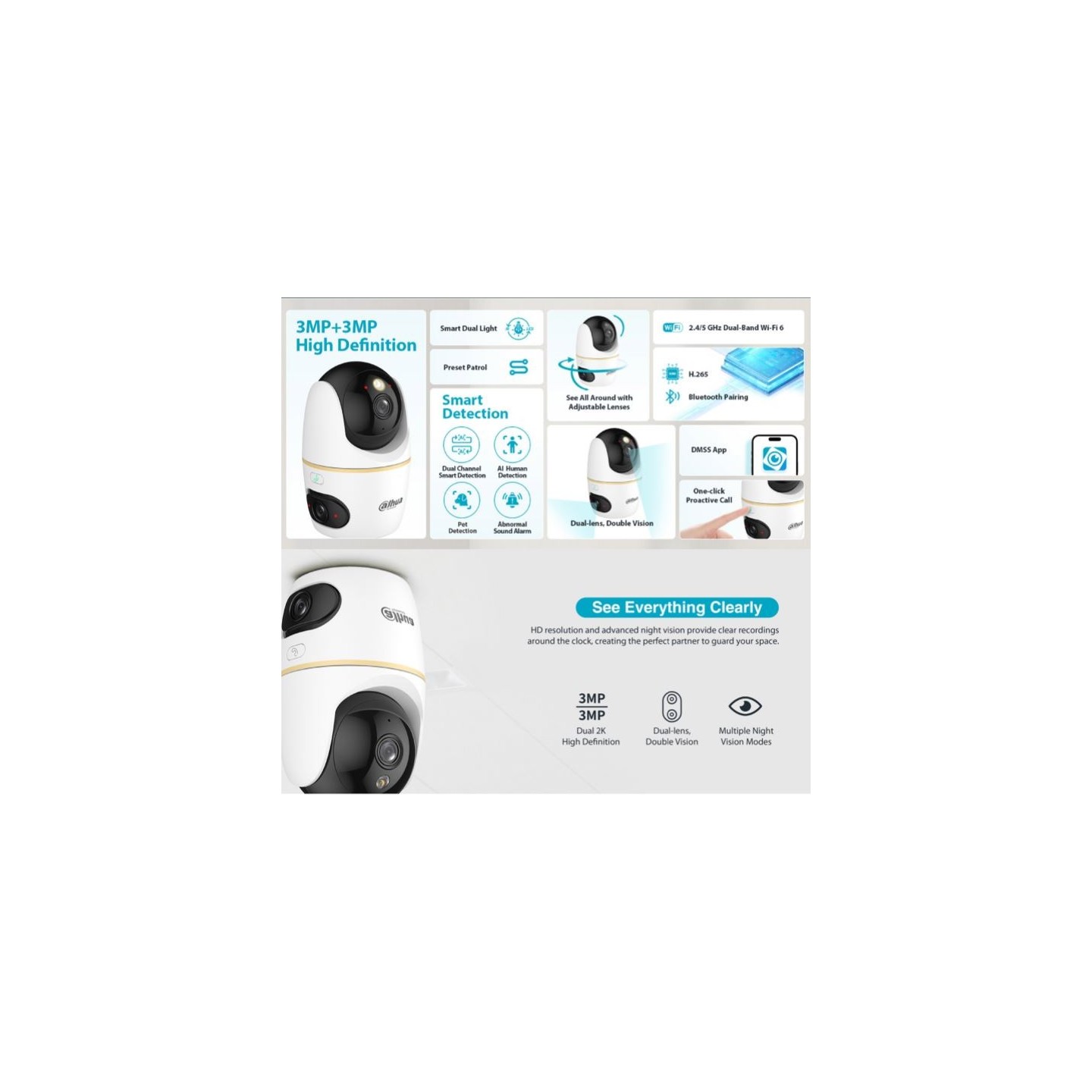

Dahua IP Indoor 3.0MP Wi-Fi PT Dome - H3D-3F - Dual Lens

• The Hero Dual Series, part of the Dahua Wireless series, has both fixed and PT lenses, allowing for simultaneous live monitoring of two areas with just one camera for multi-angle coverage. Both lenses offer AI human & pet detection, which significantly reduce the occurrence of false alarms. Particularly, the PT lens can identify moving targets and track them automatically. When the camera detects an intruder, it will trigger sound and light alerts and send notifications to the mobile client, keeping you up to date regardless of your location. These cameras are commonly used in small-scale scenarios as stores and restaurants
• Connects with any Dahua NVR

Fixed Lens

• Image Sensor : 1/3.2'' CMOS
• Max. Resolution : 2304 (H) × 1296 (V)
• Illumination Distance : Up to 30 m (98.43 ft) (IR)
• Illuminator Number : 2 (IR LED)
• Angle Adjustment : 0° to 15°
• Lens Type : Fixed-focal
• Focal Length : 3.6 mm
• Max. Aperture : F2.0
• Field of View : H: 79°; V: 43°; D: 94°

PT Lens

• Image Sensor : 1/3.2'' CMOS
• Max. Resolution : 2304 (H) × 1296 (V)
• Illumination Distance : Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)
• Illuminator Number : 2 (IR LED); 1 (Warm light)

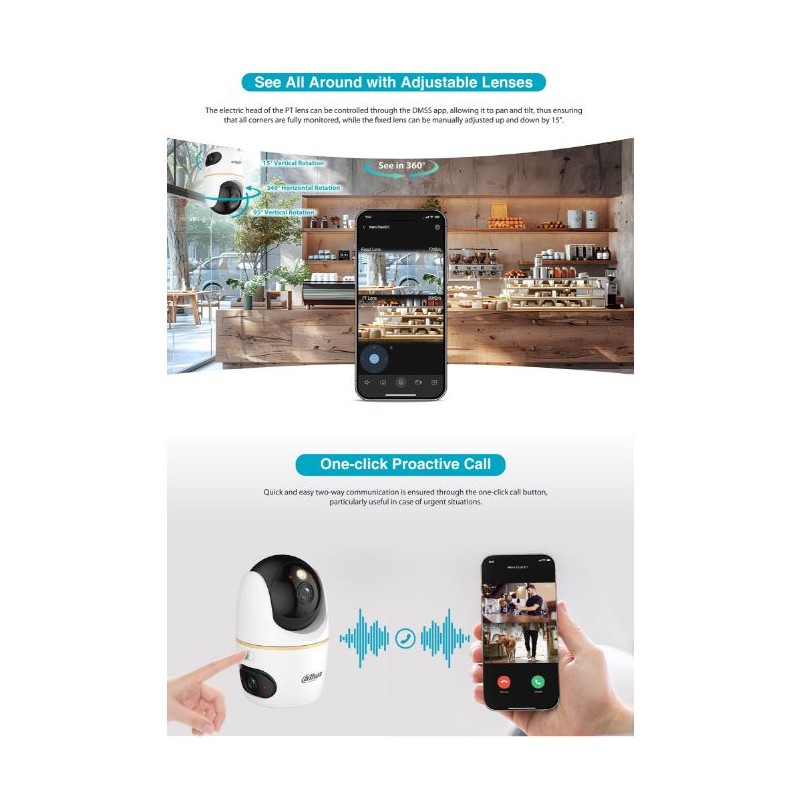

• Angle Adjustment : Pan: 0° to 349° / Tilt: –5° to 90°
• Lens Type : Fixed-focal
• Focal Length : 3.6 mm
• Max. Aperture : F2.0
• Field of View : H: 79°; V: 43°; D: 94°

Intelligence

• Human Detection : Yes
• Pet Detection : Yes

Audio and Video

• Video Compression : H.265
• Video Frame Rate : Main stream: 2304 × 1296@15 fps / sub stream: 640 × 360@15 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

• Video Bit Rate : H.265: 512 kbps–4096 kbps
• Day/Night : Auto(ICR)/Color/B/W
• WDR : DWDR
• Motion Detection : Yes
• Image Rotation : 0°/180°
• Built-in MIC : Yes, built-in Mic
• Built-in Speaker : Yes, built-in speaker
• Audio Compression : G.711a

Network

• Network Port : RJ-45 (10/100 Base-T)
• Wi-Fi : IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz
• Wi-Fi Pairing : Bluetooth pairing
• Storage : Micro SD card (support max. 256 GB)
• Management Software : DMSS
• Mobile Client : iOS;Android

Function

• Abnormal Sound Alarm : Yes
• Privacy Mode : Yes

General

• Certifications : CE
• Power Supply : 5 VDC
• Power Consumption : Basic: 2.3 W / Max.: 5.2 W (pulling stream+ IR + PT rotation)
• Operating Temperature : –10 °C to +45 °C (–4 °F to +113 °F)
• Operating Humidity : ≤95% (RH), non-condensing
• Casing Material : Plastic
• Product Dimensions : Φ80.9 mm × 125.7mm (3.19" × Φ4.95")
• Net Weight : 233 g (0.51 lb)
