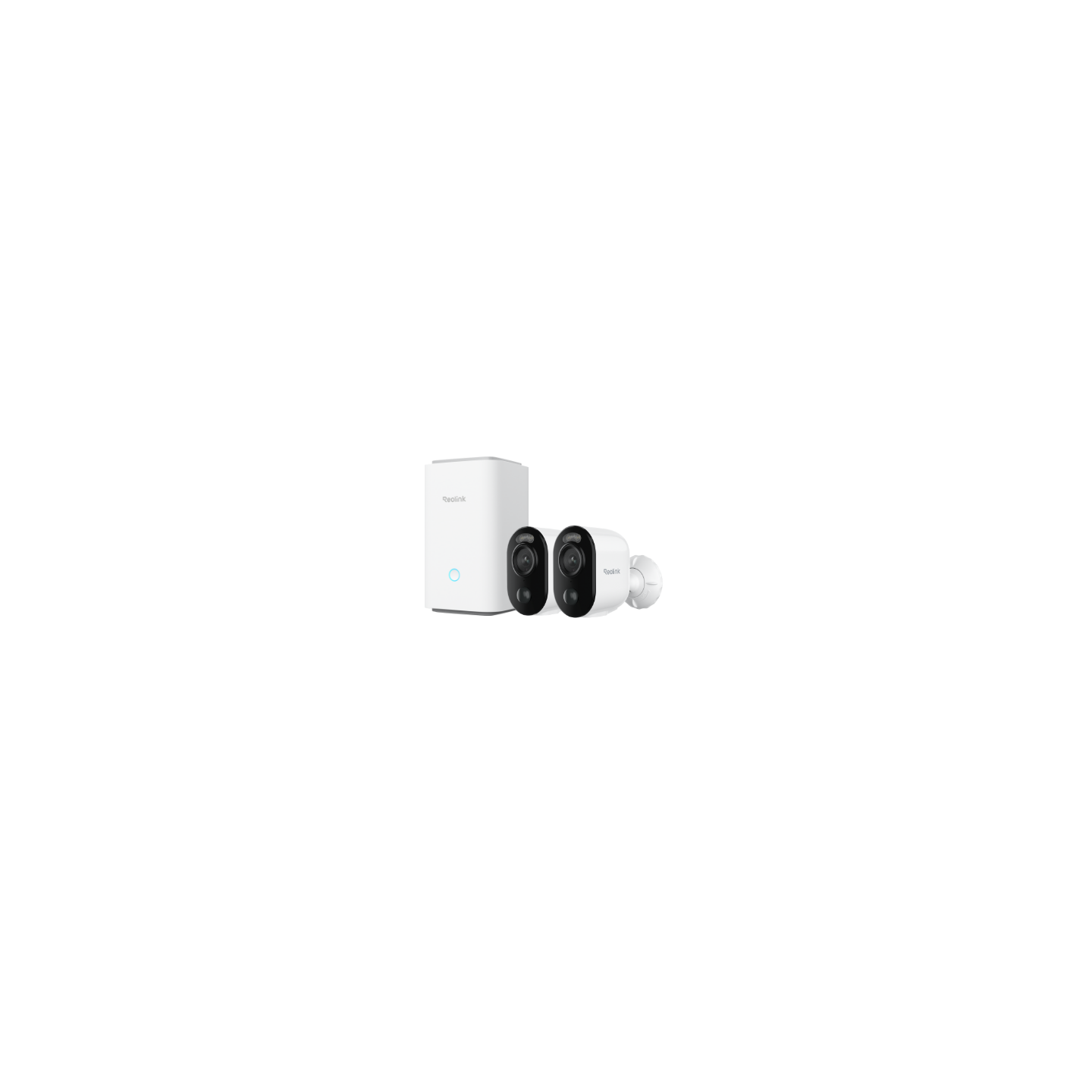

Reolink HUB Home Hub Kit - B310 - 2x Argus Series + 128GB SD Card

• Person/Vehicle/Animal Detection
• Expandable to 8 Reolink Cams
• Bank-Level Encryption
• 1 Year of Local Storage

Home Hub

Device Management

• Camera : Up to 8 cameras
• Device Compatibility : All Reolink Wi-Fi/PoE cameras (Battery cameras require a firmware upgrade)
• Safety Protection : Account access and sharing options for individual devices are only available through Home Hub

Input/Output

• HDMI : NO
• USB : NO
• Reset Button : YES
• Power : DC 12V/1A
• Speaker : YES (Max. 115dB)
• Ethernet : 1*10M/100M bit RJ45 port for WAN

Storage

• SATA : NO
• microSD Card Slot : Up to 512GB*2
• Backup Media : NO
• Storage Encryption : Protect privacy and prevent theft with AES-128 encryption algorithm

Preview & Playback

• Live View : APP, PC Client
• Playback : Smart playback/event history

Wi-Fi

• Wireless Standard : IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
• Operating Frequency : 2.4/5 GHz
• Wireless Security : WPA/WPA2/WPA3

Sub-1 GHz

• Operating Frequency : 868/915MHz

System

• Network Protocols : TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
• Max. User Access : 11 users (1 admin account & 10 shared accounts)
• Smart Home : Google Assistant

Working Environment

• Operating Temperature : -10℃~+45℃
• Operating Humidity : 10%~90%

Mechanical

• Dimensions : 95*95*161.8mm
• Weight : 441g

Camera

Video & Audio

• Image Sensor: 1/2.7" CMOS sensor
• Resolution: 2304 x 1296 (3 megapixels) @15fps
• Lens: f = 4mm, F = 2.0
• Video Compression: H.264 / H.265
• Field of View: Diagonal: 115°, Horizontal: 88°, Vertical: 50°
• Infrared Night Vision: Up to 10 meters (33ft); LED: 6 pcs / 0.8W / 850nm (Auto-switching with IR-cut filter)
• Color Night Vision: With spotlights: 2 pcs / 2W / 6500K
• Frame Rate: Main stream: 10fps - 15fps (default: 15fps), Sub stream: 10fps - 15fps (default: 15fps)
• Code Rate: Main stream: 1024Kbps - 2048Kbps (default: 2048Kbps), Sub stream: 64Kbps - 256Kbps (default: 192Kbps)
• Audio: Two-way audio

Power

• Battery: 6000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
• Solar: Reolink Solar Panel (3W)

Interface

• Power Port: USB Type-C port
• SD Card Slot: Supports Max. 128GB microSD card
• Reset Button: Yes
• Audio In/Out: Built-in microphone and speaker

Wi-Fi

• Wireless Standard: IEEE 802.11 b/g/n
• Operating Frequency: 2.4GHz
• Wireless Security: WPA-PSK / WPA2-PSK

Software

• OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
• Protocols & Standards: SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
• User Access: Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

• Smart Alarm: PIR detection; motion detection; person detection; vehicle detection; animal detection
• PIR Detecting Distance: Adjustable, up to 10m (33ft)
• PIR Detecting Angle: 100° horizontal
• Recording Modes: Triggered recording
• Time Lapse: Yes
• Smart Home Compatibility: Google Assistant
• Home Hub Compatibility: Yes
• Cloud Storage: Supports Reolink Cloud (available in selected countries)

Working Environment

• Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)
• Operating Humidity: 20% ~ 85%
• Weatherproof: IP65

Mechanical

• Dimensions: 127 × 90 × 56 mm
• Weight (Without Bracket): 239g
