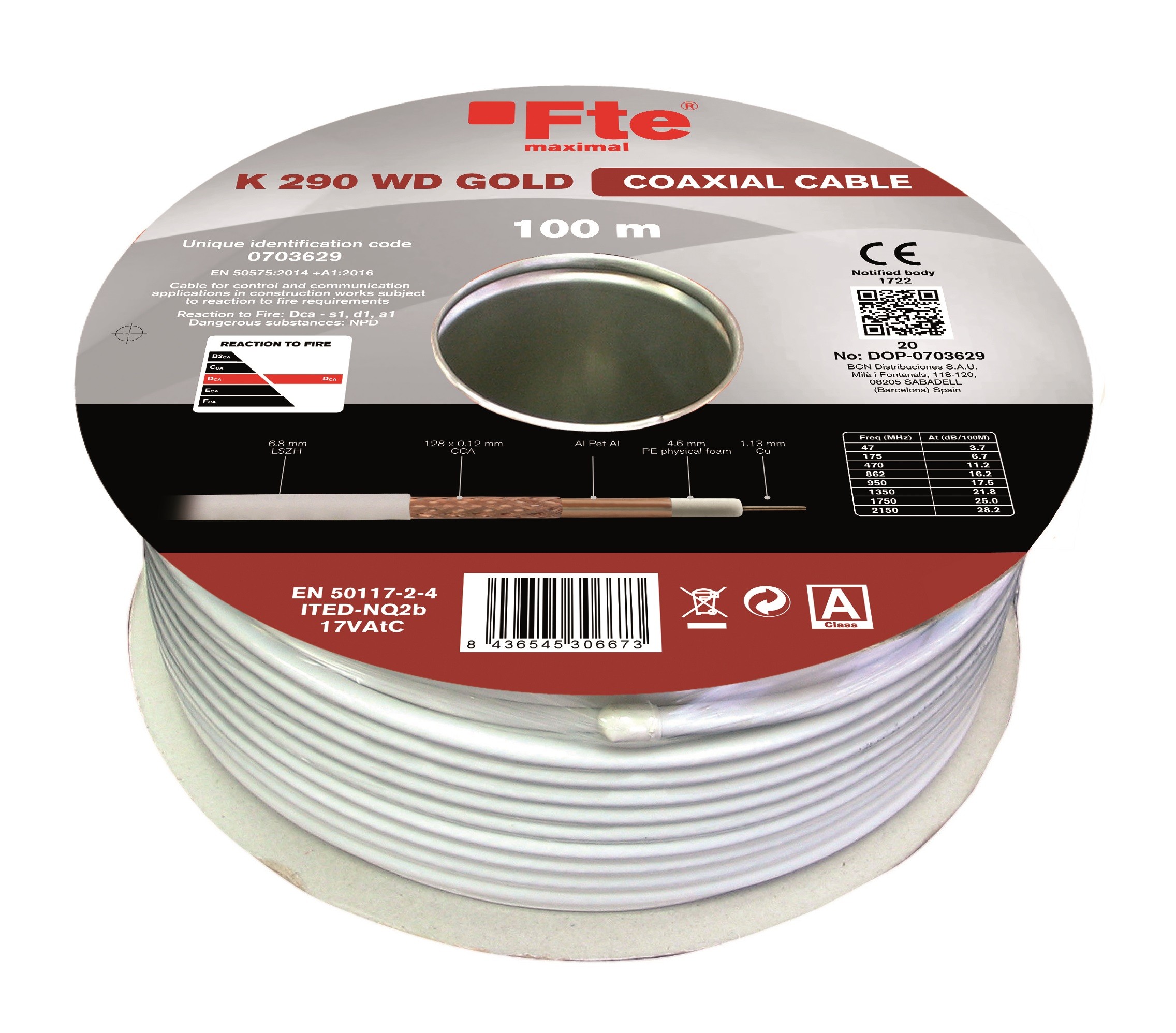

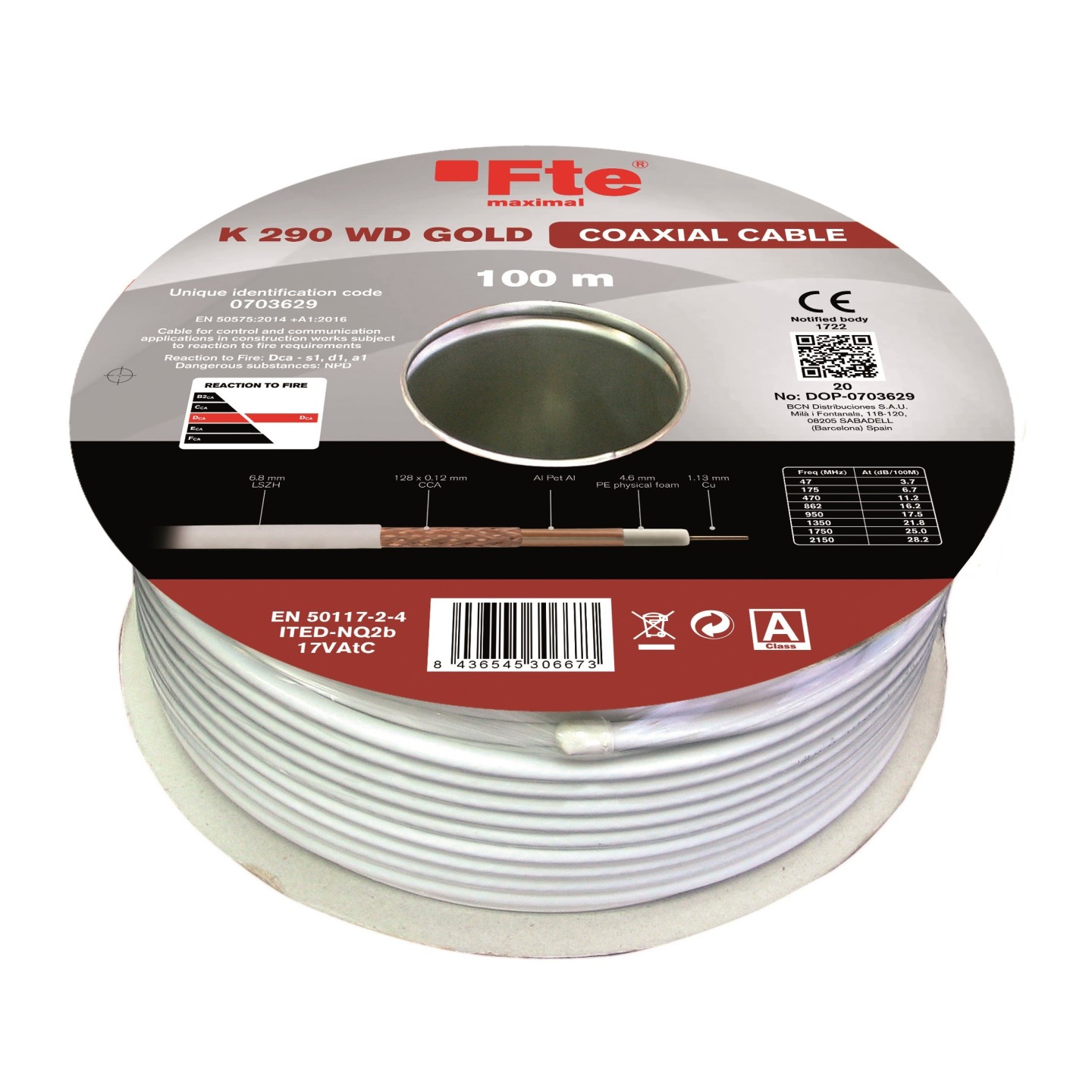

FTE Coaxial Cable - K290WD - Gold RG6 LSZH CU CPR-Dca
Replacement for K300W; 100 m RG6 coaxial cable with LSZH jacket, copper conductor, 75 Ω, high shielding (>90 dB) from 30 to 900 MHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Antenna Cables - Shielding | High (90 dB) |
|---|---|
| Antenna Cables - Jacket | LSZH |
** REPLACEMENT FOR K300W
- Impedance (Ω) 75 Ohms
- Screening factor 30-900 MHz: (dB) >90

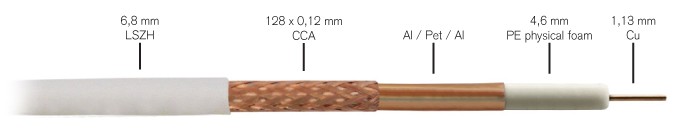

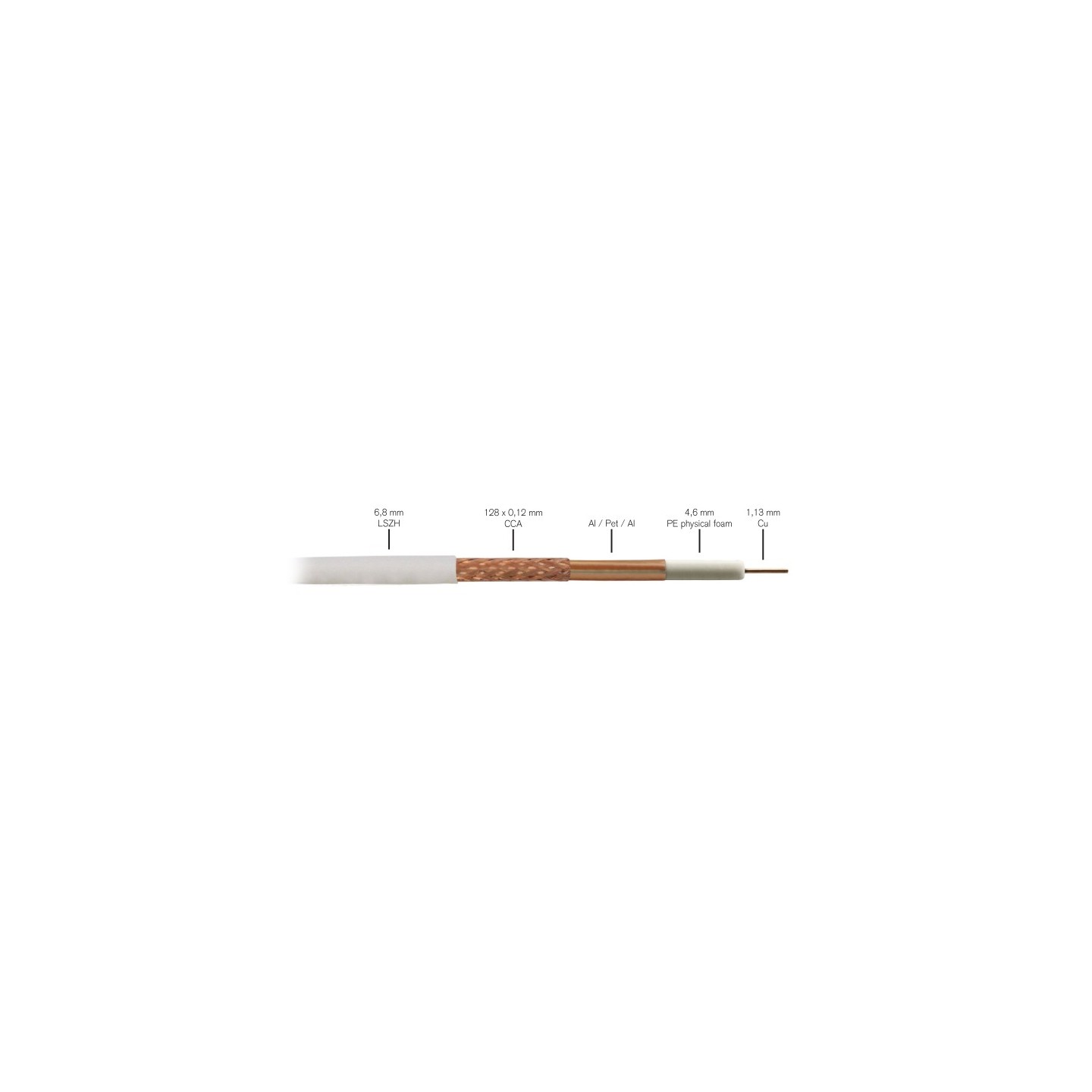

- Inner conductor (mm): 1,13 CU
- Dielectric diameter (mm) 4,6PE mm
- Foil: Al / Pet / Al (external layer copper colored)
- Braiding material: CCA copper colored
- Nº of wires: 128
- Jacket outer diameter: 6,8MM LSZH white
- Reaction to fire: Dca-s1, d1, a1
- Declaration of Performance (DoP): DoP- 0703629
- length: 100m
| Cable Type | RG6 |
| Material | Copper |
| Length | 100m |
| Cable Diameter | 6.8mm |
| Screening Wires | 128 |
