FTE Coaxial RG6 Copper LSZH Cable 100m CPR Dca - K250WD - Gold
RG6 coaxial copper cable with LSZH jacket, 100 m length, 6.8 mm diameter; inner conductor 1.0 mm Cu; dielectric 4.6 mm; foil Al / PET / Al; braid CCA; screening wires 96.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Antenna Cables - Jacket | LSZH |
|---|
- Inner conductor (mm) ø : 1,0 Cu
- Dialectric meter (mm) ø : 4,6
- Foil : Al / Pet / Al (external layer copper colored)
- Braid : CCA (copper colored)
- Nº of wires (braiding) : 96
- Screening factor (30-900 MHz) : > 86 dB
- Reaction to fire : Dca - s1, d1, a1
- Jacket outer diameter : 6,8 mm LSZH
- Attenuation (dB/100 m) : 47 MHz: 4,8 / 175 MHz: 8,3 / 470 MHz: 13,5 / 862 MHz: 18,8 / 950 MHz: 19,9 / 1350 MHz: 24,0 / 1750 MHz: 27,5 / 2150 MHz: 30,9

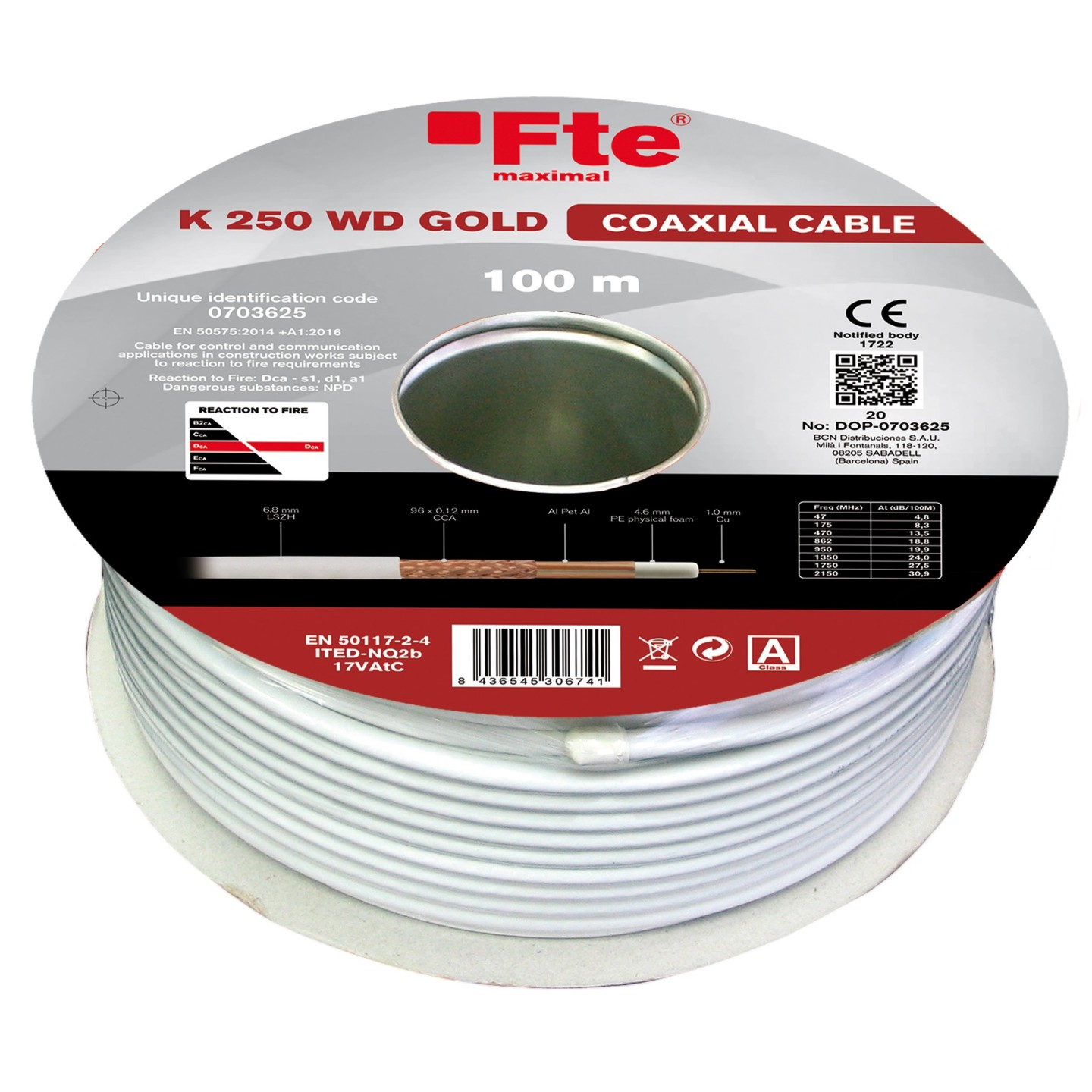

- Presentation: 100 m / Reel cardboard
| Cable Type | RG6 |
| Material | Copper |
| Length | 100m |
| Cable Diameter | 6.8mm |
| Screening Wires | 96 |
